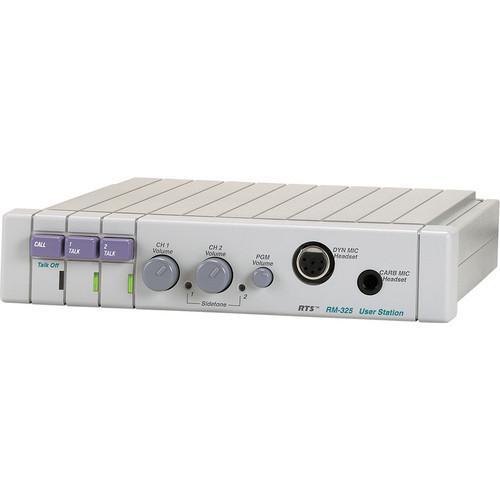

Product description The RM-325 2-Channel Intercom User Station (A5F) from Telex is a programmable 2-channel intercom user station designed to be used with an RTS-TW intercom system. The compact station can be placed on a desktop or mounted in an equipment rack with optional hardware. Each channel has its own talk button and indicator light. The buttons have dual-action momentary/latching operation to provide versatile operation. Internal DIP switches let you independently configure the talk buttons. The rear panel Aux connector also has talk switch inputs for each channel, ideal for use with a footswitch.
The station has an A5F connector that supports a dynamic microphone headset. The rear Aux connector can be used to remotely turn the mic on and off. A carbon-mic headset jack is also provided, which has an internal circuit that is activated when the carbon mic is on. An internal jumper lets you configure the carbon mic input for use as an on/off switch input. Mic audio is available as an unswitched, unbalanced output at the Aux connector.
The RM-325 has separate listen volume controls for each channel, plus a volume control for the 1/4" program input. Default operation sends channels 1 and 2 to the left and right headphones, respectively, with the program input being sent to both. You can use the internal jumpers to combined the signals for mono listening, or assign the program audio to left/right channels when using a stereo headset.
Other features of the user station include sidetone controls for each intercom channel to adjust the level of the operator's own voice in the headphones. A call button and indicator lets the unit send and receive call signals. Talk-off signals can be sent and received to kill microphones. The RM-325 is set to receive power from channel 1 of the intercom by default, though it can also be configured to receive power from channel 2 or from a local 24VDC power source attached to the Aux connector. - Designed for RTS-TW
- Works with RTS-TW intercom systems
- Compact Housing
- The compact design lets you place the station on a desktop or mount it in an equipment rack with optional hardware
- Talk Buttons
- Each channel has its own talk button and indicator light. The buttons have dual-action momentary/latching operation to provide versatile operation. Internal DIP switches let you independently configure the talk buttons
- Aux Talk Control
- The rear panel Aux connector has talk switch inputs for each channel, ideal for use with a footswitch
- A5F Headset Jack
- The station has an A5F connector that supports a dynamic microphone headset. The rear Aux connector can be used to remotely turn the mic on and off
- Carbon-Mic Jack
- A carbon-mic headset jack is provided, which has an internal circuit that is activated when the carbon mic is on. An internal jumper lets you configure the input for use as an on/off switch input
- Mic Audio
- Mic audio is available as an unswitched, unbalanced output at the Aux connector
- Listen Volume Controls
- Separate listen volume controls are provided for each channel, plus a volume control for the 1/4" program input. Default operation sends channels 1 and 2 to the left and right headphones, respectively, with the program input being sent to both. You can use the internal jumpers to combined the signals for mono listening, or assign the program audio to left/right channels when using a stereo headset
- Sidetone Controls
- Sidetone controls for each intercom channel let an operator adjust the level of his/her own voice in the headphones
- Call Button
- A call button and indicator lets the unit send and receive call signals. An internal switch lets you disable the call send function
- Talk-off
- Talk-off signals can be sent and received to kill microphones. Send and receive functionality can be independently enabled and disabled via internal switches
- Program Audio
- Program audio can be input via the 1/4" program jack, or the multi-pin Aux connector
- Power Options
- The RM-325 is set to receive power from channel 1 of the intercom by default, though it can also be configured to receive power from channel 2 or from a local 24VDC power source attached to the Aux connector
UPC: 800549425759 In the Box Telex RM-325 2-Channel Intercom User Station (A5F) 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex RM-325 2-Channel Intercom User Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex RM-325 A5F Specs | Connectors | 1 x A5F headset connector
1 x 1/4" carbon-mic jack
1 x 1/4" program jack
1 x Multi-pin Aux jack
1 x XLR line input
1 x XLR line thru jack | | Dimensions (HxWxD) | 1.75 x 8.2 x 8" (45 x 208 x 203 mm) | | Weight | 2.76 lbs (1.25 kg) | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 11.4 x 10.3 x 2.5" |
