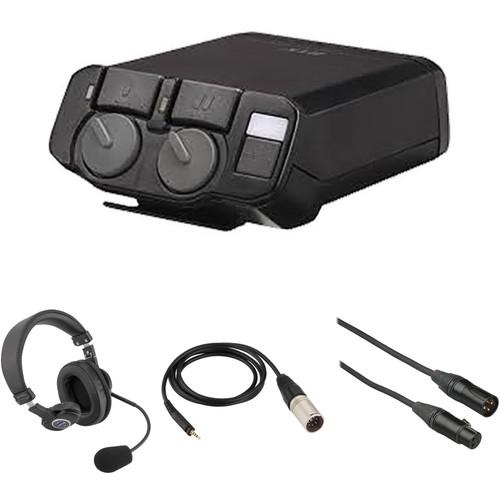

Product description The RTS 2-Channel Portable Beltpack Communications Kit with Single-Sided Headset includes a Telex RTS BP-325 two-channel portable beltpack station, a single-sided communication headset, a 3.5mm TRRS to XLR 5-pin headset cable, and one 24-gauge balanced XLR 3-pin cable. Designed for connection to an RTS Two-Wire intercom system via the supplied XLR cable, it features two talk modes, a call function, adjustable listen and talk levels, and a host of programmable settings. The supplied headset has a cardioid dynamic microphone attached to a rotatable gooseneck, which accommodates left- or right-side orientation and provides automatic muting of the mic when flipped to the vertical position. The included 3.5mm to XLR cable enables easy connectivity between the headset and beltpack station. Once connected, this kit delivers efficient two-way communication across two channels. - Telex RTS BP-325 2-Channel Portable Beltpack Station (Black) Styled in black, the Telex RTS BP-325 is a 2-channel portable beltpack station designed to work in conjunction with RTS Two-Wire intercom systems and the appropriate, dynamic headset mic. It facilitates conversations across the air-waves in one of two fashions: you can either hold down the Talk button—which instantiates momentary mode, allowing you to remain inaudible when you're not pressing the button—or, conversely, tap the Talk button a few times, which will occasion the mechanism to latch into an ever-on position. Be advised, if you instantiate latching mode, everything you say will be heard until such time as you turn it off. This unit also sports the ability to send out a call signal, should you need page someone on one of the two provided channels. Likewise, you might also find yourself paged; in this case, the red call LED will flash, presenting you with the opportunity to speak with the person courting your attention.The RTS BP-325 also features a sidetone adjustment control for changing the level of your own voice in your discrete pair of headphones whilst talking. The unit supports mono and stereo headsets, and there's also a separate connector for monaural carbon-mic headsets. Furthermore, the RTS BP-325 sports the ability to generate an inaudible signal which can effectively "kill" the ongoing signals of unattended intercom stations.
- Call Function
- Call function that allows the user to send or receive call signals to other devices on the intercom channel, including audible call alert on the listen side
- Microphone Kill Detect
- Microprocessor controlled microphone kill detect
- Powered Externally
- Powered externally, via the intercom system power supply on channel one
- Headset
- Headset 4- or 5-pin XLR connection is available
UPC: 800549425490 - Senal SMH-1010CH Communication Headset (Single-Sided) Designed for wired and wireless communications alike, the Senal SMH-1010CH is a single-sided communications headset for use in TV or radio broadcast settings, as well as sports applications and behind-the-scenes theater environments. First, you'll notice its deep, padded ear cushion, which offers not only comfort, but isolation and noise-reduction in noisy scenarios. Behind the ear cushion, a 40mm neodymium driver gives you a wide frequency response of 20 Hz to 20 kHz, as well as an expansive dynamic range.
The microphone supplied with the SMH-1010CH is a cardioid dynamic capsule, designed to minimize pickup of off-axis sound while capturing your voice clearly and intelligibly. It sits upon a durable gooseneck that can be rotated 180°. This configuration can be used on the left or right side of the SMH-1010CH. Additionally, a switch is built into the gooseneck that automatically mutes the signal when it's swiveled into the vertical position; thus, to mute your microphone, all you have to do is flip the gooseneck into the upright position. The SMH-1010CH interfaces with a variety of cables that offer compatibility with many major wired and wireless systems, such as Telex and PortaCom. You can also use this communication headset with broadcast consoles, mixers, and computers. Simply plug your separately-available, corresponding cable into the SMH-1010CH's twist-locking jack, and you're good to go. The headphones are also collapsible, making storage and transportation a cinch. Note: Please note, the SMH-1010CH does not ship with an output cable; for a list of compatible cables, please see our various kit configurations, or contact one of our specialists online, over the phone, or at our illustrious SuperStore. - Intelligible Speech Reproduction
- A cardioid dynamic microphone has been deployed for clear and intelligible voice reproduction
- 40mm Neodymium Driver
- The single-sided headphone utilizes a 40mm neodymium driver, which offers a wide frequency response and expansive dynamic range for accurate monitoring
- Passive Noise Reduction
- The SMH-1010CH offers a closed-back, over-the-ear design, which provides isolation in noisy environments; this allows you to hear what's coming over the headphones, such as cues from the director, instructions from the team leader, or coaching from the sidelines
- Precise Microphone Positioning
- The microphone is mounted on a durable gooseneck that swivels 180°; it can be used on the left or right side
- Detachable Twist-Locking Cable Design
- The twist-locking jack allows for easy attachment of cables and accessories
- Compatibility with Multiple Terminations
- The SMH-1010CH can be used with various cables, allowing you to work with multiple wired and wireless communications systems
- Comfortable Fit
- A soft, deep, and replaceable ear cushion—as well as a padded headband—provide comfort throughout long listening sessions
- Durable Design
- This headset is designed to stand up to studio and field use, offering a reliable performance even in the most demanding environments
- Folding Design
- The SMH-1010CH's folding design allows you to store and transport your headphones as needed
UPC: 847628586772 - Senal SMH-H5X Cable for Senal SMH-Series Communication Headsets The Senal SMH-H5X is a replacement cable intended for use with SMH-series communication headsets. It can also be used to augment your headset's versatility, giving you the ability to plug into a Telex system if you already have cabling for a different broadcast console or mixer on hand.
At one end, you'll find the 3.5mm TRRS connector and corresponding locking jack. This twists into your SMH-1010CH or SMH-1020CH communication headset, establishing a secure and reliable connection all the while.
At the other end, you'll note a male, 5-pin XLR connector that allows you to quickly connect the headset to Telex systems. In fact, the SMH-H5X is part of a whole ecosystem of SMH-series cables, all of which let you swap between the pin-outs of different communication and broadcast systems with ease. - Compatible with Senal SMH-Series Headsets
- The SMH-H5X fits perfectly into the twist-lock of your SMH-1010CH or SMH-1020CH, ensuring a secure connection to your headset.
- Compatible with Telex Systems
- This cable terminates in a 5-pin XLR male plug, giving you the ability to connect your SMH-series headset to Telex systems. In this way, you can use your SMH-series communication headset with consoles intended for live broadcasting, film, TV, and theater-intercom communications.
UPC: 847628582576 - Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable (20') is a studio-quality cable for connecting mics to mixers, preamps, audio interfaces and recorders; or to be used in any other application where XLR connectivity is required. The cable is engineered to be both quiet and durable, and is well-suited for critical recording and broadcast situations.
Studio Elite 4000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. A 98% braided outer shield makes the cable resistant to EMI and RFI noise. The Neutrix XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 98% braided shield offers protection from EMI and RFI noise.
- Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
- 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
- Cotton yarn reduces electrostatic and microphonic noise.
- All solder points shrink-wrapped for protection.
- Neutrik XX silver connectors offer high conductivity.
- Cast zinc shell and chuck style strain relief.
UPC: 847628551190 In the Box - RTS BP-325 2-Channel Portable Beltpack Station (Black) ysbfauauzburssxy
- Limited 3-Year Warranty
- Senal - SMH-1010CH Communication Headset (Single-Sided)
- Senal - SMH-H5X Cable for Senal SMH-Series Communication Headsets
- Kopul - Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex RTS 2-Channel Portable Beltpack Communications Kit with Single-Sided Headset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Telex RTS BP-325 2-Channel Portable Beltpack Station (Black)
Material of Construction | Polystyrene and polycarbonate mix | Impedance | Across Intercom Line: 10 kOhms typical | Noise | -75 dBu contribution to 200 Ohms Intercom Line | Program Input | Maximum input level: +20 dBu Nominal input level: -10 to +8 dBu Frequency response: 100 Hz to 12 kHz, ±3 dB | Connector | Monaural Dynamic-mic Headset Connector XLR-4-31 receptacle (J13) Pin 1 - Microphone low Pin 2 - Microphone high Pin 3 - Common Pin 4 - Headphone high Stereo Dynamic-mic Headset Connector XLR-5-31 receptacle (J14) Pin 1 - Microphone low Pin 2 - Microphone high Pin 3 - Common Pin 4 - Headphone left high Pin 5 - Headphone right high Carbon-mic Headset Connector (J1) 1/4", 3-conductor Phone JackUsed for Headset: Tip - Carbon microphone Ring - Headphone Sleeve - Common Used for Mic Switch: Tip - Remote switch normal-open contact Ring - No connection Sleeve - Remote switch common Intercom Line Input Connector (J11) XLR-3-31 female receptacle Pin 1 - Common Pin 2 - Channel 1 intercom audio and +DC Pin 3 - Channel 2 intercom audio Line Loop/Aux Connector (J10) XLR-3-32 male receptacleUsed for Loop-through: Pin 1 - Common Pin 2 - Channel 1 intercom audio and +DC Pin 3 - Channel 2 intercom audioUsed for Program Input: Pin 1 - Common Pin 2 - Program input high Pin 3 - Program input lowUsed for Remote Mic Switch and/or External Power: Pin 1 - Common Pin 2 - +22 to +24 VDC Pin 3 - Remote switch normal-open contact | Power Requirements | 30 VDC nominal (standard RTS line), 65 to 85 mA | Environmental Requirements | Storage: -4 to 176° F (-20 to 80° C); 0% to 95% humidity, noncondensing Operating: 32 to 122° F (0 to 50° C); 0% to 95% humidity, noncondensing | Dimensions (H x W x D) | 5.0 x 3.8 x 2.1" (127.0 x 96.3 x 52.1 mm) | Weight | 12 oz (340 g) | | Box Dimensions (LxWxH) | 8.9 x 4.9 x 4.35" | - Senal SMH-1010CH Communication Headset (Single-Sided)
| Element | Moving coil, dynamic | Polar Pattern (Microphone) | Cardioid | Frequency Range | 50 Hz to 18 kHz | Sensitivity | -79 dB ±3 dB (0 dB = 1 V/microbar, 1 kHz indicated by open circuit) | Impedance | 200 Ohms ±30% at 1 kHz | | Ear Cup | Single-Sided | Speaker Dimensions | 1.6" / 40.0 mm | Magnet Type | 20 Hz to 20 kHz | Sensitivity | 87 dB | Impedance | 400 Ohms | Distortion | <5% | Weight | 7.4 oz / 209.8 g | | Box Dimensions (LxWxH) | 11.6 x 7.5 x 4.5" | - Senal SMH-H5X Cable for Senal SMH-Series Communication Headsets
Connectors | TRRS to XLR male (5-pin) | Compatible with | Telex systems | Length | 48.3" / 122.6 cm | Weight | 2.3 oz / 65.2 g | | Box Dimensions (LxWxH) | 6.0 x 3.5 x 0.5" | - Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Connector 1 | 3-Pin XLR Male | Connector 2 | 3-Pin XLR Female | Cable Length | 20' / 6.1 m | Shielding | 98% Braid | Wire Gauge | 24 AWG | Contact Plating | Silver | | Box Dimensions (LxWxH) | 10.7 x 8.0 x 1.5" |
