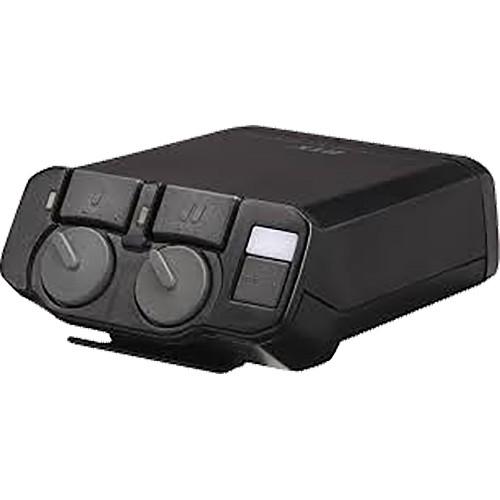

Product description Styled in black, the Telex RTS BP-325 is a 2-channel portable beltpack station designed to work in conjunction with RTS Two-Wire intercom systems and the appropriate, dynamic headset mic. It facilitates conversations across the air-waves in one of two fashions: you can either hold down the Talk button—which instantiates momentary mode, allowing you to remain inaudible when you're not pressing the button—or, conversely, tap the Talk button a few times, which will occasion the mechanism to latch into an ever-on position. Be advised, if you instantiate latching mode, everything you say will be heard until such time as you turn it off. This unit also sports the ability to send out a call signal, should you need page someone on one of the two provided channels. Likewise, you might also find yourself paged; in this case, the red call LED will flash, presenting you with the opportunity to speak with the person courting your attention.The RTS BP-325 also features a sidetone adjustment control for changing the level of your own voice in your discrete pair of headphones whilst talking. The unit supports mono and stereo headsets, and there's also a separate connector for monaural carbon-mic headsets. Furthermore, the RTS BP-325 sports the ability to generate an inaudible signal which can effectively "kill" the ongoing signals of unattended intercom stations. - Call Function
- Call function that allows the user to send or receive call signals to other devices on the intercom channel, including audible call alert on the listen side
- Microphone Kill Detect
- Microprocessor controlled microphone kill detect
- Powered Externally
- Powered externally, via the intercom system power supply on channel one
- Headset
- Headset 4- or 5-pin XLR connection is available
UPC: 800549425490 In the Box Telex RTS BP-325 2-Channel Portable Beltpack Station (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex RTS BP-325 2-Channel Portable Beltpack Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex BP325 BLACK Specs | Material of Construction | Polystyrene and polycarbonate mix | | Impedance | Across Intercom Line: 10 kOhms typical | | Noise | -75 dBu contribution to 200 Ohms Intercom Line | | Program Input | Maximum input level: +20 dBu
Nominal input level: -10 to +8 dBu
Frequency response: 100 Hz to 12 kHz, ±3 dB | | Connector | Monaural Dynamic-mic Headset Connector
XLR-4-31 receptacle (J13)
Pin 1 - Microphone low
Pin 2 - Microphone high
Pin 3 - Common
Pin 4 - Headphone high
Stereo Dynamic-mic Headset Connector
XLR-5-31 receptacle (J14)
Pin 1 - Microphone low
Pin 2 - Microphone high
Pin 3 - Common
Pin 4 - Headphone left high
Pin 5 - Headphone right high
Carbon-mic Headset Connector (J1)
1/4", 3-conductor Phone JackUsed for Headset:
Tip - Carbon microphone
Ring - Headphone
Sleeve - Common
Used for Mic Switch:
Tip - Remote switch normal-open contact
Ring - No connection
Sleeve - Remote switch common
Intercom Line Input Connector (J11)
XLR-3-31 female receptacle
Pin 1 - Common
Pin 2 - Channel 1 intercom audio and +DC
Pin 3 - Channel 2 intercom audio
Line Loop/Aux Connector (J10)
XLR-3-32 male receptacleUsed for Loop-through:
Pin 1 - Common
Pin 2 - Channel 1 intercom audio and +DC
Pin 3 - Channel 2 intercom audioUsed for Program Input:
Pin 1 - Common
Pin 2 - Program input high
Pin 3 - Program input lowUsed for Remote Mic Switch and/or External Power:
Pin 1 - Common
Pin 2 - +22 to +24 VDC
Pin 3 - Remote switch normal-open contact | | Power Requirements | 30 VDC nominal (standard RTS line), 65 to 85 mA | | Environmental Requirements | Storage: -4 to 176° F (-20 to 80° C); 0% to 95% humidity, noncondensing
Operating: 32 to 122° F (0 to 50° C); 0% to 95% humidity, noncondensing | | Dimensions (H x W x D) | 5.0 x 3.8 x 2.1" (127.0 x 96.3 x 52.1 mm) | | Weight | 12 oz (340 g) | | | | Package Weight | 1.085 lb | | Box Dimensions (LxWxH) | 8.9 x 4.9 x 4.35" |
