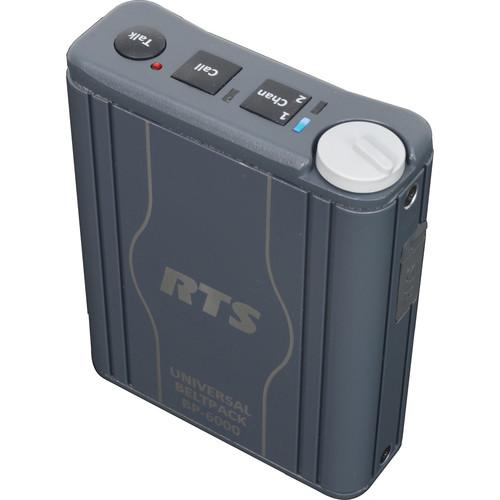

User Manual for Telex RTS BP-6000 Universal 2-Channel Beltpack for Audiocom and Clear-Com Systems Click to enlarge the picture
Contents of the user manual for the Telex RTS BP-6000 Universal 2-Channel Beltpack
- Product category: Transmitters & Receivers Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Transmitters & Receivers
|
User manual for the Telex RTS BP-6000 Universal 2-Channel Beltpack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex RTS BP-6000 is a universal two-channel beltpack designed to deliver easy configuration and customizable functionality for producers, coordinators, and team members using Audiocom or Clear-Com party line systems in broadcast, house of worship, and live stage applications. Its low current draw enables one power supply to power more beltpacks, effectively making larger setups more cost-effective. It boasts automatic configuration based upon the detected system connected to it, and auto-senses dynamic and electret headsets via the XLR 4-pin male jack. Configuration is further simplified through voice prompts, which guide you through the menus. Easy-to-use controls include level, channel select, call, and a programmable talk button. The remote mic kill disables all active mics to reduce distracting background noise. LEDs indicate the selected channel as well as call and talk status. Switchcraft 6-pin jacks are utilized for the line and loop connections on the bottom panel. An integrated belt clip allows the BP-6000 to be securely affixed to the wearer without tape or touch-fastener. - Compatible with Audiocom and Clear-Com party line systems
- Mode-sensing configuration allows the headset to detect the type of system connected and configure itself accordingly
- Switchcraft 6-pin line and loop connectors
- XLR 4-pin male headset connector automatically senses dynamic and electret headset microphones
- Dedicated button and LED indicators for selection of channel one or two
- Dedicated button and LED indicator for call function
- Programmable talk button supports always on, always off, switched, or momentary functionality
- Voice prompts simply configuration by guiding you through menus
- Remote mic kill turns off all active microphones to reduce background noise
- Reduced current draw allows more beltpacks to be powered from the same power supply
UPC: 800549831796 In the Box Telex RTS BP-6000 Universal 2-Channel Beltpack for Audiocom and Clear-Com Systems Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex RTS BP-6000 Universal 2-Channel Beltpack for Audiocom and Clear-Com Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex BP6000 Specs | Input Line Connector | 1 x XLR 6-pin female | | Headset Connector | 1 x XLR 4-pin male | | Loop Output Connector | 1 x XLR 6-pin male | | Impedance | Terminating, Balanced: 300 Ohms
Terminating, Unbalanced: 200 Ohms | | Bridging Impedance | >10 kOhms unbalanced | | Additional Requirements | Dynamic Headset Impedance: 50 to 200 Ohms
Electret Headset Impedance: 1 to 13 kOhms
Headphones: 50 to 600 Ohms | | Output Level | 0.0 dBu nominal | | Maximum Output Power | Headphone Amplifier: >140 mW into 150-Ohm load | | Frequency Response | 200 Hz to 8 kHz (
