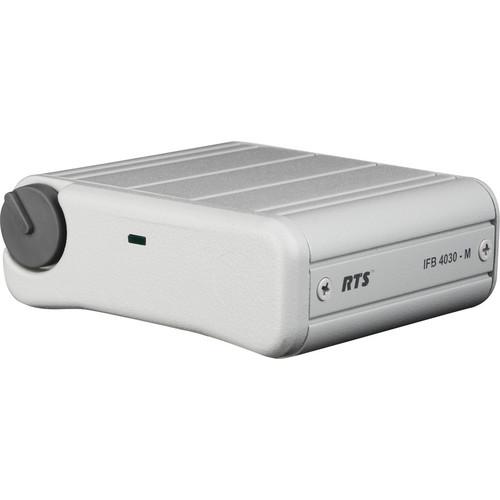

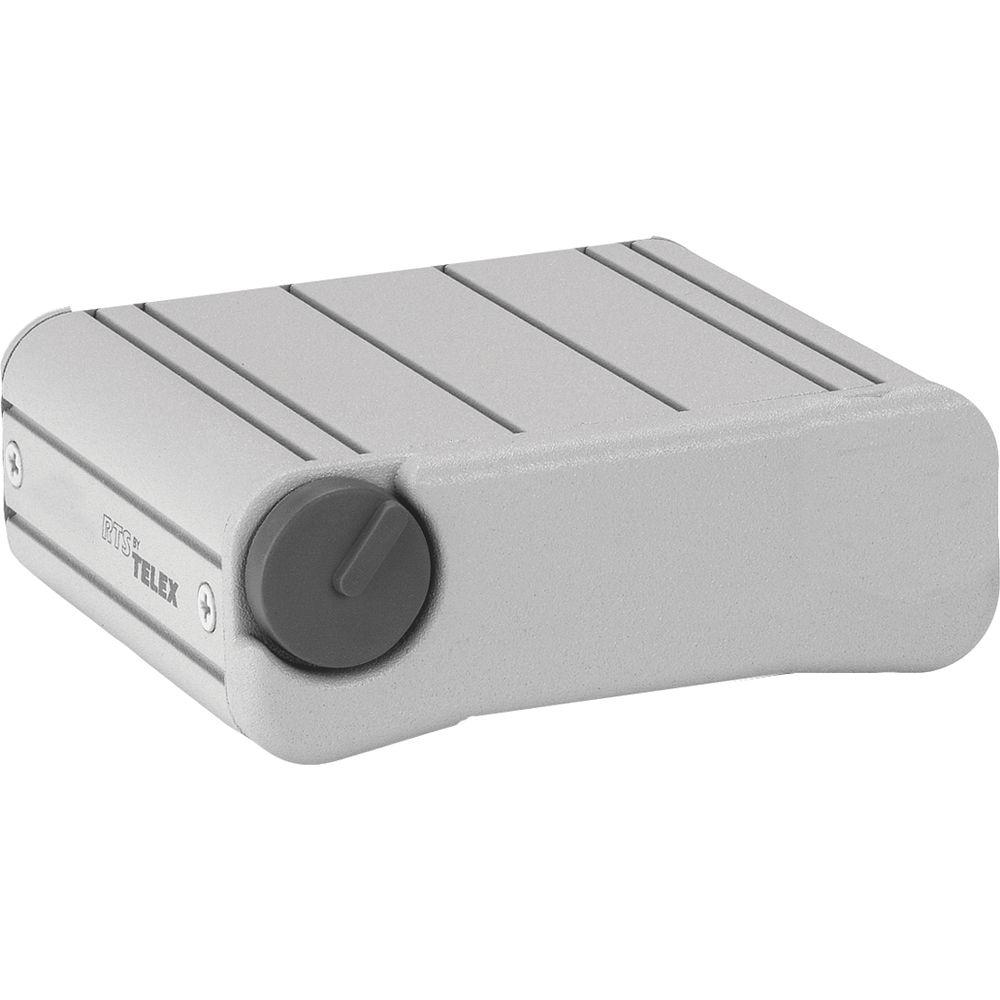

Product description The passive Telex RTS IFB 4030-M is a single-channel, listen-only IFB beltpack station intended for use with RTS digital matrix intercom systems. It allows talents, such as newscasters, musicians, and sportscasters, to receive director instructions alone or to receive both audio program feed and director instructions. It can also be used by behind-the-scene personnel for production coordination and control. The RTS IFB 4030-M features a monaural 1/4" phone jack for headphone/earset connection and a dented volume knob to help prevent accidental maladjustment during use. - Key Features
-
- Single-channel, listen-only IFB beltpack
- Connects to RTS digital matrix intercom systems

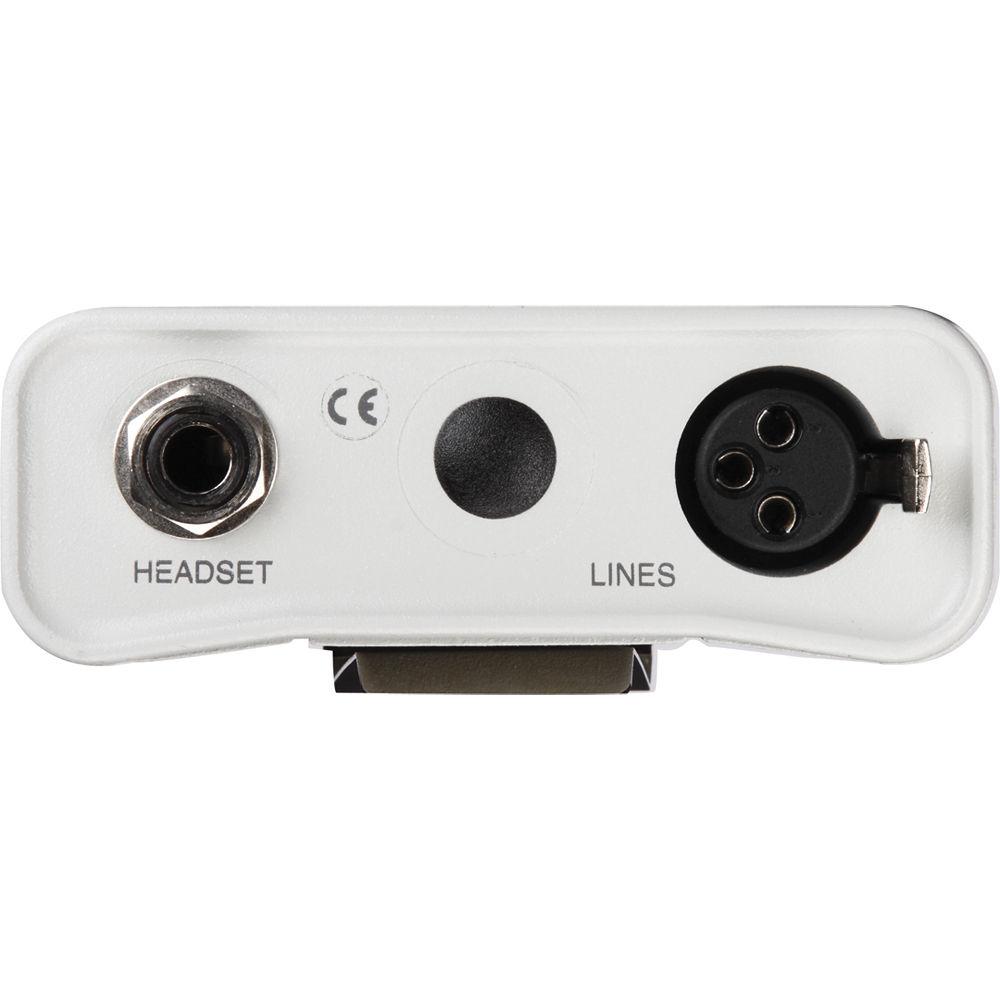

- Monaural 1/4" phone jack for headphone/earset connection
- 3-pin female XLR connector for balanced audio connection
- Dented volume control
- Passive design requires no power
UPC: 800549425735 In the Box Telex RTS IFB 4030-M Passive IFB Beltpack Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex RTS IFB 4030-M Passive IFB Beltpack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex IFB-4030-M Specs | Compatibility | 50 to 600 Ohms earsets or headphones | | Audio Input | Input Level: 2 V p-p (0 dBu), nominal
Input Impedance: 2 kOhms, ±5% | | Headset Connector | Type: 1/4" / 6.3 mm TS, monaural plug
Tip: Headset audio high
Sleeve: Headset audio low | | Audio Input | Line Input: XLR-3 female, balanced
Pin 1: Common
Pin 2: Channel 1 audio
Pin 3: Common | | Environmental Requirements | Operating: 32 to 122°F / 0 to 50°C
Storage: -4 to 176°F / -20 to 80°C
0 to 95% humidity, non-condensing | | Dimensions (H x W x D) | 1.50 x 3.75 x 3.65" / 38.0 x 95.3 x 92.7 mm | | Weight | 6.2 oz / 303.0 g | | | | Package Weight | 0.915 lb | | Box Dimensions (LxWxH) | 8.55 x 6.35 x 2.2" |
