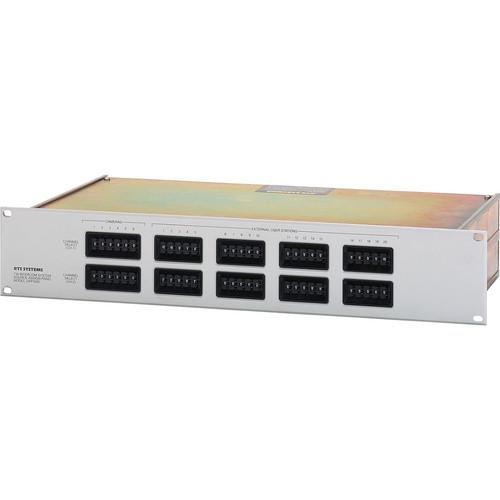

User Manual for Telex SAP1626 Source Assignment Panel Click to enlarge the picture
Contents of the user manual for the Telex SAP1626 Source Assignment Panel
- Product category: Wired Intercoms Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Wired Intercoms
|
User manual for the Telex SAP1626 Source Assignment Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The SAP1626 Source Assignment Panel from Telex is viewed as a matrix switch capable of transforming two bus intercom systems into a 15 bus system. There are three kinds of buses in the SAP-1626. Not to mention, there are twelve primary intercom buses and three program or secondary intercom buses. There are six additional outputs intended primarily for cameras, but can be used for additional TW intercom stations or groups of stations. Lastly, the SAP-1626 fits into a standard two unit high 19" (482.6mm) equipment rack. The front panel contains thumbwheels used to accomplish matrix switching. - Buses
- There are three kinds of buses in the SAP-1626: 1) two-way two-wire type intercom buses, 2) DC powered two-way two wire intercom buses, and 3) program audio buses. There are twelve primary intercom buses and three program or secondary intercom buses
- Program Buses
- Three program buses allow three different program sources to be connected to a SAP-1626. TW user stations can be assigned these programs on their channel two connection (bottom row of switches on the SAP-1626). If TW user stations are assigned one of the program buses with program not connected, the bus functions as an intercom bus
- Camera Outputs/Optional Outputs
- In addition to the twenty outputs discussed above, there are six additional outputs. These outputs are intended primarily for cameras, but can be used for additional TW Intercom stations or groups of stations. These six outputs are available on a twenty-five pin "D" type connector on the back of the SAP-1626
- Packaging
- The SAP-1626 fits into a standard two unit high 19" (482.6mm) equipment rack. The front panel contains the thumbwheels used to accomplish the matrix switching
In the Box Telex SAP1626 Source Assignment Panel 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex SAP1626 Source Assignment Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex SAP1626 Specs | Current | Maximum switch carrying current: 2.0 amps per output
Maximum switch breaking current: 0.5 amps per output | | Inputs | Intercom: 12 lines, full-duplex
Levels 2 volts p-p nominal In and out | | Program | 3 sources, simplex
Input impedance: 800 Ω
Input level range: -4-8dBm | | Outputs | User station: 20
Camera: 6 | | Power Requirements | Power is derived from the TW Intercom power supply | | Color | Light grey enamel | | Dimensions (H x W x D) | 3.5 x 19 x 9.8" 88 x 484 x 249mm) | | Weight | 10 lb. (4.5kg) |
