Product description The Telex Soundmate SM-2 is a portable, battery operated, VHF wireless personal monitoring system, notable for it's ease of operation and light weight of the principal components, clarity of sound, and a 300' operating range. The Soundmate SM-2 system consists of the ST-300 transmitter, which operates on one of 17 selectable frequencies, 4 single-channel, fixed frequency SR-50 portable receivers, with 4 companion SEB-1 earbuds. The SM-2 is designed as a low cost alternative solution for bus and museum tours, house of worship or theatrical assistive listening applications, and conferencing situations involving multi-client, multi-user translation needs. - Low-cost, portable wireless personal monitoring/assistive listening system for churches, museum tours, conferencing, and educational applications
- Single channel, fixed frequency operation for receivers, 17 selectable frequencies available for transmitter
- Backlit LCD for transmitter
- E.D.R.(Enhanced Dynamic Range)compander circuitry for transmitter; clearer, more consistent output
- Lightweight, discreet mono earphones
- Convenient "AA" battery operation with extended 30 hr. battery life for receiver

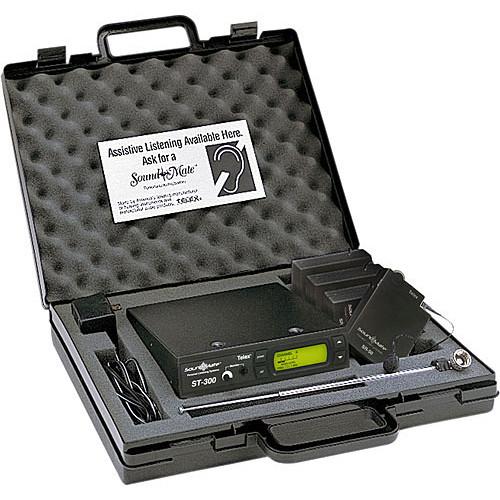

UPC: 701001022977 In the Box Telex SM-2 - Personal Listening System - D ST-300 Transmitter Telescoping Antenna 4 x SR-50 Portable Single Channel Receivers 4 x SEB-1 Earphones Soundmate Wall Plaque Owner's Manuals for SR-50, ST-300 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex SM-2 - Personal Listening System - D in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex SM-2 Specs | System | General System | | RF Carrier Frequency Range | 72.1 - 75.4 MHz | | Selectable Channels | 17 | | Compatible Channels | 1 | | Operating Range | 300' (91 m) | | Frequency Response | 100 Hz - 10 kHz | | Signal-to-Noise Ratio | Normal: 58 dB

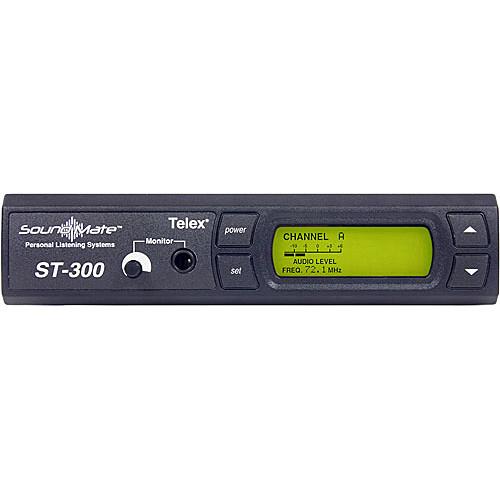

EDR Enabled: 77 dB | | Channel Separation | Not Specified by Manufacturer | | Transmitter | ST-300 Transmitter | | RF Output Power | Normal: 25K µV/m @ 3 m
High: 80K µV/m @ 3 m | | Frequency Selection | Front Panel Set/Increment/Decrement Buttons | | Frequency Indicators | LED display, channel letters | | Antenna | Omnidirectional Telescoping Antenna | | Audio Input Connectors | 1 x 1/4" TS Phone, Unbalanced
1 x 3-pin XLR Female, Balanced | | Nominal Input Level | Not Specified by Manufacturer | | Maximum Input Level | 42 dB | | Input Pad Switch | No | | Phantom Power Protection | No | | Loop In/Out Connectors | No | | Loop I/O Nominal Input Level | No | | Loop I/O Maximum Input Level | No | | Limiting | Built-In, Fixed Threshold | | Power Requirements | 13-20 VDC or 12 VAC

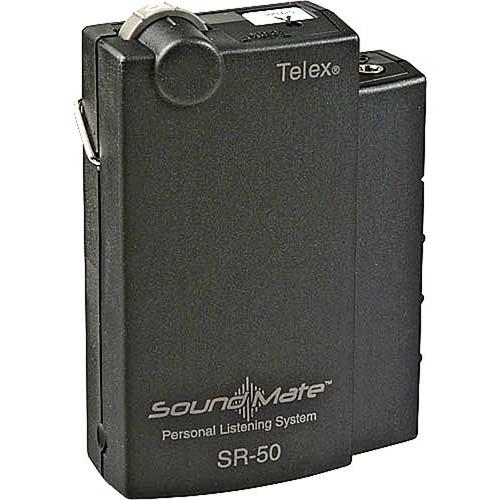

115 VAC, 60 Hz @ 30mA Plug-In Wallpack Power Supply | | Weight | Not Specified by Manufacturer | | Dimensions | 1.75 x 7.5 x 5.9" (45 x 192 x 150mm) | | Receiver | SR-50 Receiver | | RF Indicator | No | | Frequency Selection | Fixed, Single Channel | | Antenna | Omnidirectional in earphone/headphone cord | | Power Requirements | 2 x AA Batteries
2 x NiMH batteries
2 x Nickel-Cadmium batteries | | Battery Life | Alkaline: 30 hrs.
2 x NiMH: 20 hrs.

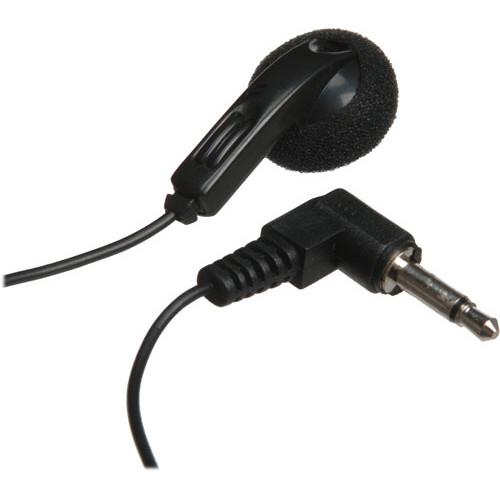

Nickel-Cadmium: 10 hrs. | | Battery Status Indicator | No | | Limiting | No | | Equalization | No | | Personal Mix Control | Top Panel On/Off/ Volume Knob | | Weight | Not Specified by Manufacturer | | Dimensions | 4 x 2.75 x 1" (101 x 70 x 25mm) | | | SEB-1 Earphones | | Transducer Type | Telethin Driver | | Sensitivity (0 VU) | Not Specified by Manufacturer | | Impedance | 32 Ohms | | Cable Length | 3'(1 m) | | Connector Type | 1/8" Mini Plug | | Ear Inserts | Foam | | Frequency Response | 100 Hz - 10 kHz | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 10.1 x 5.2 x 2.2" |
