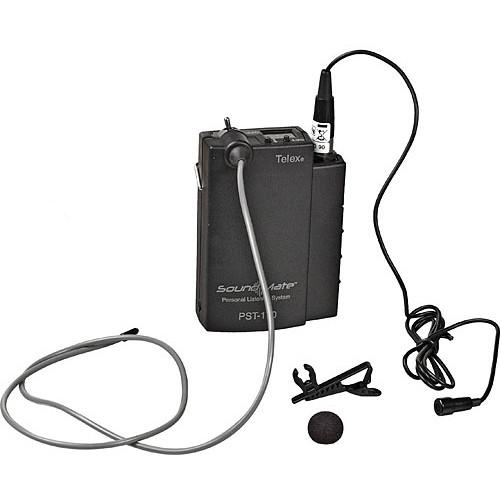

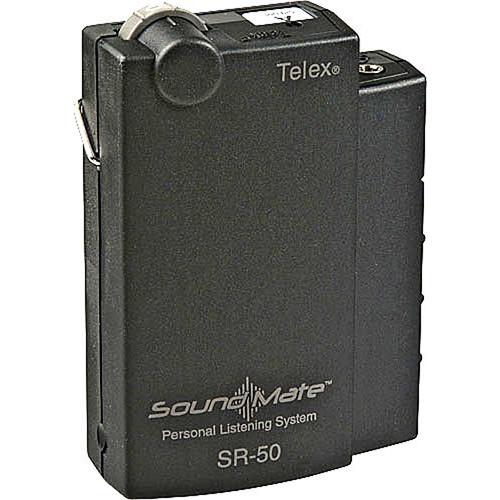

Product description The Telex Soundmate SMP-2 is a portable, battery operated, VHF wireless personal monitoring system, packed into a professional carrying case with a foam-padded interior. The system is notable for the ease of operation and light weight of the principal components, clarity of sound, and a 300' operating range. The Soundmate SMP-2 system consists of the PST-170 transmitter, which operates on one of 17 selectable frequencies, six single-channel, fixed frequency SR-50 portable receivers, with companion HED-2 collapsible headphones, and the HM-2 headworn microphone, which features a discreet, lightweight, behind-the-head headband. The case and 14 "AA" batteries are also part of the package. The SMP-2 is designed as a low cost alternative solution for bus and museum tours, house of worship or theatrical assistive listening applications, and conferencing situations involving multi-client, multi-user translation needs. - Portable wireless personal monitoring/assistive listening system for churches, museum tours, conferencing, and educational applications
- Single channel, fixed frequency operation for receivers, 17 selectable frequencies available for transmitter
- Backlit LCD for transmitter
- E.D.R.(Enhanced Dynamic Range)compander circuitry for transmitter; clearer, more consistent output

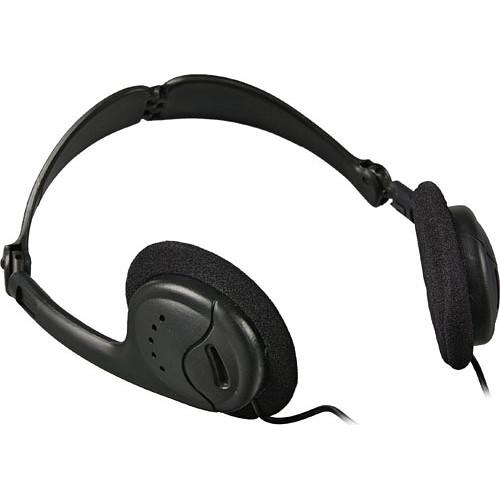

- Lightweight, collapsible folding headsets

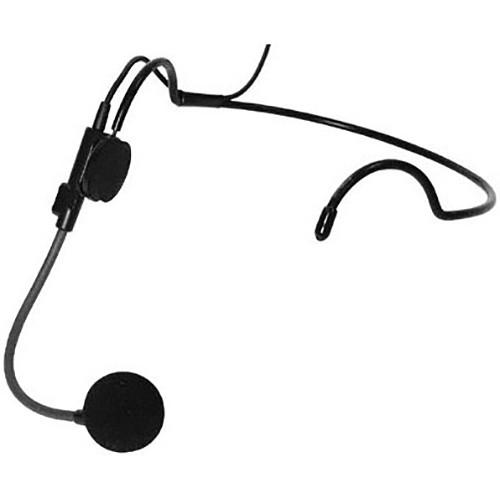

- Comfortable, discreet behind-the-head headband for microphone
- Large, professional carrying case with padded foam interior and custom compartments
- Convenient "AA" battery operation with extended 30 hr. battery life for receiver
UPC: 701001022908 In the Box Telex SMP-2 - Soundmate Wireless Portable Personal Monitoring System - ChannelA PST-170 Belt Pack Transmitter 6 x SR-50 Portable Single Channel Receivers 6 x HED-2 Collapsible Headphones 14 x AA Batteries Deluxe System Carrying Case HM-2 Headworn Microphone Owner's Manuals for SR-50, PST-170 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex SMP-2 - Soundmate Wireless Portable Personal Monitoring System - ChannelA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex SMP-2 Specs | | General System | | RF Carrier Frequency Range | 72.1 - 75.4 MHz | | Selectable Channels | 17 | | Compatible Channels | 1 | | Operating Range | 300' (91 m) | | Frequency Response | 100 Hz - 10 kHz | | Signal-to-Noise Ratio | Normal: 58 dB
EDR Enabled: 77 dB | | Channel Separation | Not Specified by Manufacturer | | | PST-170 Transmitter | | RF Output Power | 80K uV/m @ 3m | | Frequency Selection | Top Panel Set, Switch buttons | | Frequency Indicators | LED display, channel letters | | Antenna | Permanently attached trailing wire | | Audio Input Connectors | 1 x 1/8" Stereo/Mono Mini Jack
1 x TA4M Mini XLR Jack | | Nominal Input Level | Not Specified by Manufacturer | | Maximum Input Level | 42 dB | | Input Pad Switch | No | | Phantom Power Protection | No | | Loop In/Out Connectors | No | | Loop I/O Nominal Input Level | No | | Loop I/O Maximum Input Level | No | | Limiting | Built-In, Fixed Threshold | | Power Requirements | 2 x AA Batteries
2 x Nickel-Cadmium Batteries | | Weight | Not Specified by Manufacturer | | Dimensions | Not Specified by Manufacturer | | | SR-50 Receiver | | RF Indicator | No | | Frequency Selection | Fixed, Single Channel | | Antenna | Omnidirectional in earphone/headphone cord | | Power Requirements | 2 x AA Batteries
2 x NiMH batteries
2 x Nickel-Cadmium batteries | | Battery Life | Alkaline: 30 hrs.
2 x NiMH: 20 hrs.
Nickel-Cadmium: 10 hrs. | | Battery Status Indicator | No | | Limiting | No | | Equalization | No | | Personal Mix Control | Top Panel On/Off/ Volume Knob | | Weight | Not Specified by Manufacturer | | Dimensions | Not Specified by Manufacturer | | | HED-2 Headphones | | Transducer Type | Telethin Driver | | Sensitivity (0 VU) | Not Specified by Manufacturer | | Impedance | 32 Ohms | | Cable Length | 3'(1 m) | | Connector Type | 1/8" Mini Plug | | Ear Inserts | Not Applicable | | Frequency Response | 100 Hz - 10 kHz | | | HM-2 Microphone | | Transducer Type | Cardioid Dynamic | | Frequency Response | 100 Hz - 10 kHz | | Cable Length | 3' (1 m) | | Connector | TA4M | | | | Package Weight | 10.85 lb | | Box Dimensions (LxWxH) | 19.5 x 14.5 x 5.3" |
