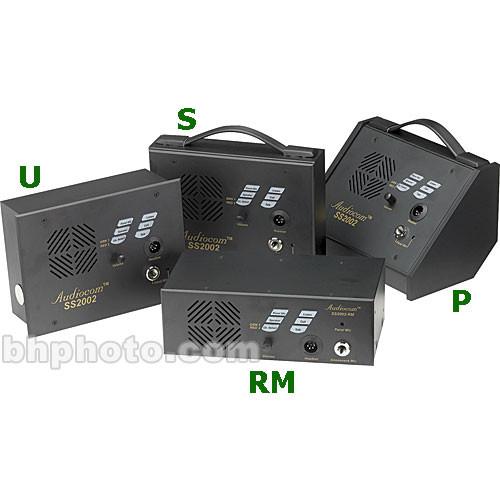

Product description The Telex SS-2002 is a dual-channel professional intercom speaker station available in four mounting versions. This model is equipped an angled "P" box enclosure designed for desktop or console placement. The SS-2002 P-box model uses dual 3-pin XLR loop-thru connectors for quick connection to the intercom system, and offers both a built-in panel microphone and an input for a gooseneck microphone. - 2-channel intercom speaker station for desktop or console placement with P-box enclosure and full send-receive capability
- Simplified 3-pin XLR loop-thru connectors for quick connection to intercom system
- Internal DIP setup switch control and full sidetone adjustment trim
- Backlit Channel Select switch
- Backlit front panel control switches for Talk, Call, Listen, Speaker and Panel Mic
- Talk key with push-to-talk and hands-free latching operation modes
- Panel Mic Key switches between built-in electret and optional gooseneck
UPC: 800549427432 In the Box Telex SS-2002P - 2-Channel Speaker Station with P-Box Desktop Enclosure SS-2002 Speaker Station with P-Box Enclosure Owner's Manual 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex SS-2002P - 2-Channel Speaker Station with P-Box Desktop Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex SS-2002 Specs | Frequency Response | Send and Receive:
20 Hz - 20 kHz +/-800Hz, 100mVrms
Mic Kill/Detect:
24 kHz +/-800Hz, 100mVrms | | Gain | 35dB | | Microphone Input Type | 1 x XLR-4M (Headset Mic)
1 x 1/4" TRS Phone (Gooseneck Panel Mic) | | Limiter | No | | Power Output | Unbalanced Mode: 1 Vrms, +/-10%
Balanced Mode: 1 Vrms | | Speaker | 8 Ohms | | SPL | Not Specified by Manufacturer | | Signal-to-Noise Ratio | Not Specified by Manufacturer | | THD + N | Not Specified by Manufacturer | | Panel Microphone Preamp | Yes | | Program Amplifier | Yes | | Speaker Amplifier | 4 Watts | | Input Level | -40dB - +35dB | | Input Impedance | Headset Headphones: 150 - 600 Ohms
Headset Microphone: 50 - 200 Ohms
Panel Mic(Built-In): 2.2 kOhms
Panel Mic (Gooseneck): 5 kOhms
Intercom Channels(Balanced): 300 Ohms
Intercom Channels(Unbalanced): 200 Ohms | | Internal Connectors | 1 x 3-pin XLR Female
1 x 3-pin XLR Male | | Internal Controls | 1 x Side Tone Trim
1 x Mic Kill Receive DIP Switch
1 x call Signal Method DIP Switch
1 x Incoming Call Beep DIP Switch
1 x Microphone Type DIP Switch
1 x Incoming Call Speaker Beep DIP Switch | | Front Panel Controls and Indicators | 1 x Channel Select Button
1 x Panel Mic Button
1 x Headset Button
1 x Listen Button
1 x Call Button
1 x Talk Button
1 x Volume Trim | | Power Requirements | Phantom Power:
24VDC Nominal (12 - 30VDC, 175mA)
Local Power: 12 - 15VDC, 250mA | | Dimensions | 9.6 x 4.1 x 8.6"(WxDxH) (244.5 x 104.7 x 217.5mm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 13.0 x 12.0 x 7.0" |
