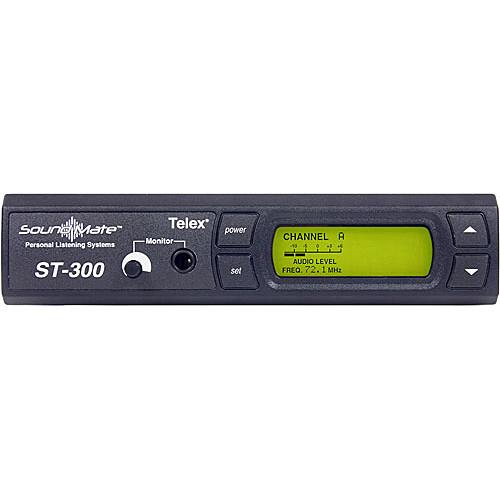

User Manual for Telex ST-300 VHF Wireless Personal Listening System Transmitter Click to enlarge the picture
Contents of the user manual for the Telex ST-300 VHF Wireless Personal Listening
- Product category: Components & Accessories Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Components & Accessories
|
User manual for the Telex ST-300 VHF Wireless Personal Listening contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex ST-300 is a personal and assistive listening wireless base transmitter, featuring 17 user selectable frequencies in the VHF band. The unit is equipped with a comprehensive set of front-mounted control buttons, a backlit LCD display, a headphone jack with an adjustable level knob for input signal monitoring, and a peak reader on the LCD display for visual input monitoring. The rear panel of the ST-300 offers a balanced XLR female connector with selectable mic, line, and 70 volt input options, along with an unbalanced 1/4" input. This cost-effective unit is recommended for use in school auditoriums and classrooms, houses of worship, meeting and screening rooms, lecture halls, and other similar applications. - 1/2 RU personal and assistive listening VHF wireless transmitter with backlit LCD display
- 17 selectable frequencies in 72 - 76 MHz range
- Full front panel controls with peak meter, RF power, frequency, dynamic range and Balanced/Unbalanced level indicators on LCD
- Headphone output with dedicated volume control
- Automatic Gain Control with 30dB range, Enhanced Dynamic Range(EDR) with 77dB Signal-to-Noise improvement
- XLR balanced input connector with 3-way balanced dynamic microphone, 600 or 70V line reads
UPC: 701001043903 In the Box Telex ST-300 VHF Wireless Personal Listening System Transmitter 12V Power Supply Detachable 1/4 Wave Antenna Owner's Manual 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex ST-300 VHF Wireless Personal Listening System Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex ST-300 Specs | | | System Modulation | FM | | Frequency Range | 72 - 76 MHz | | Operating Range | 300' (91 m) | | Tuning | Frequency Control Crystal, +/-.005% tolerance | | Power | 13 - 20 VDC/VAC
115 VAC, 6 0Hz
300 mA | | Battery Life | Not Applicable | | Charging Time | Not Applicable | | FCC License | Part 15, B5DM508 | | | | Output | 80 K µ V/m @ 3 m | | Deviation | +/-25 kHz | | Modular Distortion | Not Specified by Manufacturer | | Sensitivity | Not Specified by Manufacturer | | IF Bandwidth | Not Specified by Manufacturer | | Image Rejection | Not Specified by Manufacturer | | Controls and Indicators | 1 x Power Switch
2 x Up/Down Increment Buttons
1 x Set Button
1 x Headphone Monitor Volume Control Knob
1 x Backlit LCD Display | | Connectors | 1 x 3-pin XLR Female, Balanced Input
1 x 1/4" TS Phone, Unbalanced Input
1 x Screw-In BNC Antenna Connector
1 x 1/4" Stereo Headphone Out | | Antenna | 1 x Detachable Telescoping 1/4 Wave | | Dimensions | 1.8 x 7.6 x 5.9" (45 x 192 x 150 mm) | | Weight | 4.4 lb (2 kg)(shipping weight) | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 18.1 x 11.3 x 3.9" |
