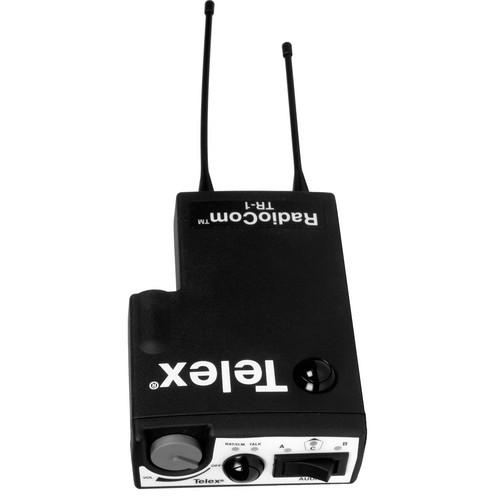

Product description The TR-1 UHF Beltpack Transceiver with Digital Encryption from Telex offers simultaneous talk and listen capabilities (full duplex), and requires the use of a BTR-1 base station to operate. The base station can connect to multiple wired and wireless systems. A complete RT-S system is compatible with Audiocom, RTS-TW, Clear-Com, RTS Matrix and any 2-wire intercom system with interconnection jacks. The serial-number based proprietary digital encryption system protects your communications with over four billion possible code combinations.
This is a frequency agile system, and a ClearScan functionality will locate available frequencies, and display the available channels—starting with those that are the most clear of RF traffic. The TR-1 can transmit at 50mW when set to high, 5mW when set to Low, and the transmission power can be adjusted from the base station when set at Auto.
A large Push-to-Talk button is present on the top of the TR-1. A switch on the rear panel enables you to change the functionality of this button. In one position, the TR-1 will always be transmitting, and pushing the Push-to-Talk button simply activates the microphone on the connected headset (headset not included). In the other position, pushing the Push-to-Talk button activates both the transmitter and the microphone. You can switch between the various connected systems directly on the TR-1 beltpack. - A battery pack that holds six AA batteries is included
- Beltpack can run for up to nine hours using standard alkaline batteries
- A large On/Off & Volume knob is accessible on the top panel
- Low battery warning tone can be sent to the connected headset
In the Box Telex TR-1 UHF Beltpack Transceiver with Digital Encryption (D4, 572 to 590 MHz) 2 x 1/4 Wave Antennas Battery Pack Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex TR-1 UHF Beltpack Transceiver with Digital Encryption in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex TR-1-D4 Specs | | | Type | Synthesized, 720 channels | | Transmit Power | 50mW typical (High), 5mW typical (Low), or auto-power switching | | Modulation Type | GMSK | | Deviation | Complies with FCC 74.861 | | Frequency Stability | 0.005% | | Harmonic & Spurious Emissions | Meets or exceeds FCC specifications | | | | Type | Dual Conversion Superheterodyne, Synthesized, 720 channels | | RF Sensitivity | <0.8 µV for 12 dB SINAD | | Selectivity | IF Selectivity: 3 dB at 230 kHz | | Image Rejection | 70 dB or better | | Frequency Stability | 0.005% | | Distortion | <1% at peak level | | S/N Ratio | From wired intercom ports: 80 dB (30 kHz low pass filtered) | | | | Frequency Range | D4, 572 to 590 MHz | | Power Requirements | 6x AA batteries | | Current Draw | 190 mA (Push-to-Talk, Talk On) | | Temperature Range | -4 to 130°F (-20 to 55°C) | | Antennas | Transmitter: 1/4 wave, screw type, replaceable
Receiver: 1/4 wave, screw type, replaceable | | FCC/ID ID | B5DM520 | | Frequency Response | 100 Hz to 4 kHz | | Input Sensitivity | Microphone: 7 mV (200Ω source) | | Output Sensitivity | Headset: 200 mW output into 150Ω (1% distortion) | | Display | LCD display | | Controls | On/Off & Volume knob
Talk button
Selection switch
C push button
Menu and Set buttons
Up and Down buttons
Push-to-Talk/Push-to-Transmit switch | | Indicator Lights | BAT/O.M. light
Talk light
A and B lights
C button light | | Headset Connector | 1x 4-pin XLR male | | Belt Clip | Yes | | Dimensions (W x H x D) | 3.75 x 5.10 x 1.65" (9.5 x 12.9 x 4.2 cm) | | Weight | With alkaline batteries: 15 oz (425 g) |
