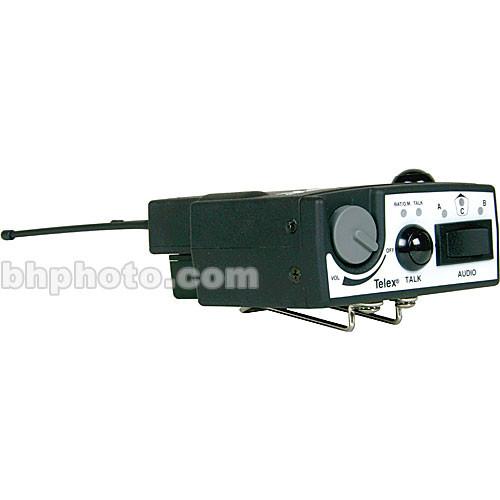

User Manual for Telex TR-1 - UHF Beltpack Transceiver with Digital Encryption Click to enlarge the picture
Contents of the user manual for the Telex TR-1 - UHF Beltpack Transceiver
- Product category: Transmitters & Receivers Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Transmitters & Receivers
|
User manual for the Telex TR-1 - UHF Beltpack Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex TR-1 is a unique professional UHF wireless intercom beltpack and component of the BTR-1 base station system, with a 1-to-1 (one base station to one belt pack) full-duplex, digitally encrypted design, for use in sports or commercial applications. The TR-1 is equipped with UHF frequency agility, digital audio security encryption, the patented ClearScan channel search, three audio channel capability with 2-wire line mix, signal relay closure, and a base station RF meter. The oversized selector switch of the TR-1 enables quick change between base station presets, and the unit is equipped with a large, clear LCD readout. The system offers the advanced technology of Intelligent Power Control, DSP Digital Audio Processing and proprietary digital audio encryption, providing clean sound and secure communications at a high professional level. - Wireless one-to-one UHF intercom beltpack with frequency agility, full-duplexing, digital security encryption
- Large selection of available frequencies organized in independent 18 MHz bands
- Factory selected A, B and C preset groups with large selector switch for A and B, 1000' operating range, Transmit power level switch
- Large, easy-access volume control and Talk button with selectable talk modes, dedicated overmodulation and battery status LED indicators, separate C preset group selector button with dedicated LED
- A4M headset connector reads dynamic or electret headset boom mic type automatically
- Enhanced ClearScan two-button frequency selection for optimal, interference- and intermodulation-free location use, ranks available frequencies in order of reliability
- Frequency change from base station or beltpacks
- Large rear panel LCD readout, dedicated Menu and Set buttons, Push-to-talk/Push-to-transmit switch
- AA or NiMH battery operation
In the Box Telex TR-1 - UHF Beltpack Transceiver with Digital Encryption (A4M Telex) (D5 - 572-590 MHz) 2 x 1/4 Wave Detachable Antennas Instruction Card 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex TR-1 - UHF Beltpack Transceiver with Digital Encryption in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex TR-1-D5 Specs | Transmitter Type | Synthesized, 720 Channels | | Receiver Type | Dual Conversion Superheterodyne, Synthesized, 720 Channels, FM | | RF Frequency Range | D5 - 572-590 MHz | | Transmit Power | 50 mW max.(Auto power reduction in closer proximity to base)
5 mW typical | | Microphone Input | A4M, 7mV (200 Ohm source) | | Antenna Type | 2 x Detachable 1/4 Wave(Transmit and Receive) | | Signal-to-Noise Ratio | Not Specified by Manufacturer | | Local Headset Output | 200 mW Output into 150 Ohms(1% distortion) | | Frequency Response | 100 Hz - 4 kHz | | Power Requirements | 6 x AA Alkaline
1 x NiMH Rechargeable | | Battery Life | AA: 14 hrs.(Continuous)
NiMH: 11 hrs.(Continuous) | | Dimensions | 3.75 x 5.05 x 1.65" (95 x 128 x 42mm) | | Weight | 15 oz (425 g) |
