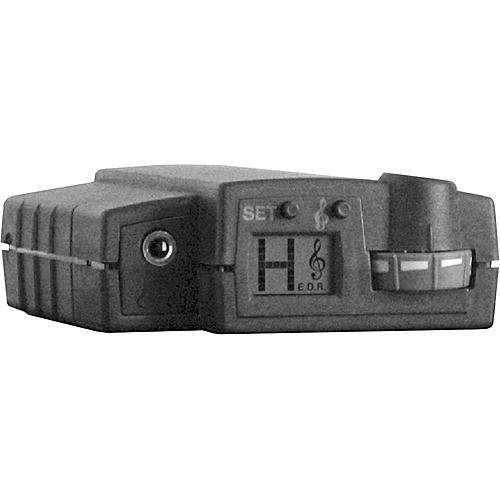

User Manual for Telex TR-16 - 16-Channel Wireless IFB Receiver Click to enlarge the picture
Contents of the user manual for the Telex TR-16 - 16-Channel Wireless IFB
- Product category: IFB & Cueing Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex IFB & Cueing
|
User manual for the Telex TR-16 - 16-Channel Wireless IFB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex TR-16 is a portable wireless receiver for IFB or personal monitoring use, operating in the low VHF range from 64 to 68 MHz with a reliable transmission range of over 750'. The TR-16 offers 16-channel frequency-agile synthesized technology, with a lighted bezel for simplified channel identification, and a selectable HF boost for improved monitoring intelligibility. The TR-16 is compatible with a variety of IFB earpieces and earphones, supporting impedances from 8 to 500 Ohms, and is equipped with a standard 1/8" headphone output. The unit operates on 2 standard alkaline AA batteries for up to 20 hrs. - Lightweight 16-channel 64.5 - 67.5 MHz band VHF frequency-agile portable receiver for IFB on-air talent or personal monitoring use with 750' transmission range
- Rotary frequency selector knob with lighted channel indicator bezel, Mono or Stereo headphone/earphone monitoring output
- Easy-access dual-function volume and on/off switch with LED
- HF contour control trim knob compensates for treble loss associated with acoustic tubes and earphone drivers
- 8 tunable frequencies in TV channel 3 band, 8 assigned to channel 4 band for improved interference-free frequency agility
- Variable 8-500 Ohm headphone or earpiece support
- Standard AA alkaline or NiCad battery power with up to 20 hr. battery life
UPC: 800549417914 In the Box Telex TR-16 - 16-Channel Wireless IFB Receiver Belt Clip 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex TR-16 - 16-Channel Wireless IFB Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex F.01U.117.809 Specs | Output Connectors | 1 x 1/8" Mini Mono/Stereo Headphone | | Input Connectors | No | | Output Level | 50mW max.(Hi)
5mW (Low) | | Input Level | Not Specified by Manufacturer | | Input Impedance | 8 Ohms - 500 Ohms (Headphone) | | Frequency Response | 100 Hz - 10 kHz | | THD + N | <2% | | Minimum Common Mode Rejection | Not Specified by Manufacturer | | Voltage Gain | Not Applicable | | Voltage Output | Not Specified by Manufacturer | | Call Signaling | No | | Sidetone | No | | Microphone Type | No | | Microphone Input | No | | Phantom Power | No | | Headset Connector | 1 x 1/8" Mini Mono/Stereo | | Maximum Current Capacity | Not Applicable | | Maximum # of Belt Packs | 5 | | Input Power Requirement | Not Applicable | | Power Adapter | No | | Dimensions | Not Specified by Manufacturer | | Weight | 9.9 oz (280.7 g) | | | | Package Weight | 0.31 lb | | Box Dimensions (LxWxH) | 5.8 x 4.75 x 1.75" |
