User Manual for Telex TR-240 2.4 GHz Wireless Intercom Beltpack Click to enlarge the picture
Contents of the user manual for the Telex TR-240 2.4 GHz Wireless Intercom
- Product category: Transmitters & Receivers Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Transmitters & Receivers
 |
User manual for the Telex TR-240 2.4 GHz Wireless Intercom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|

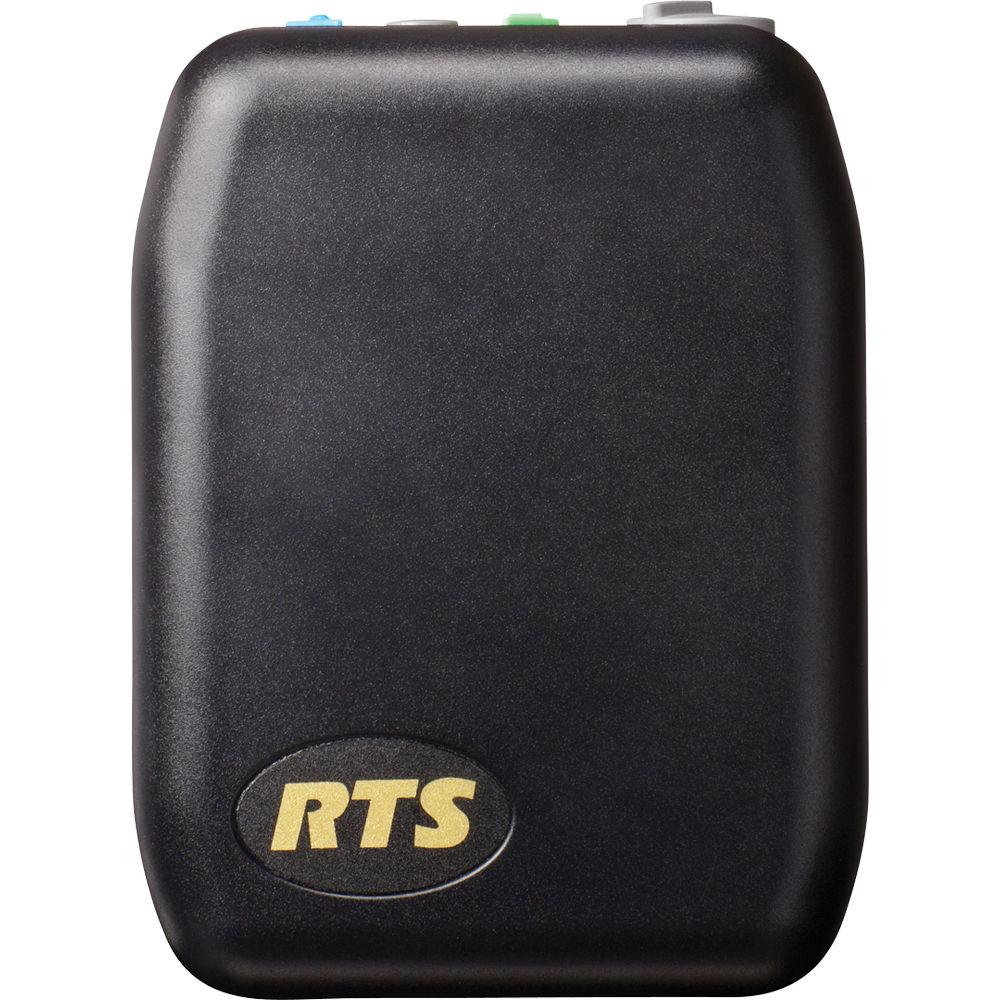

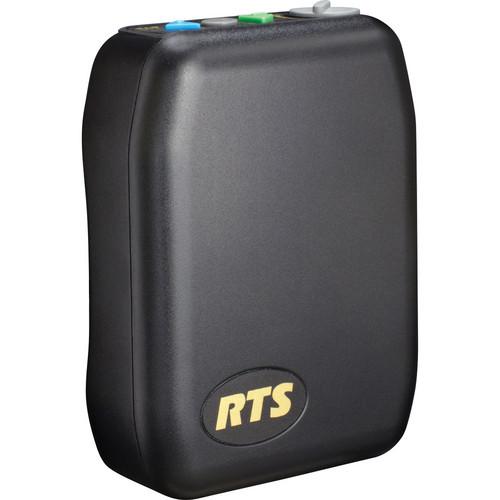

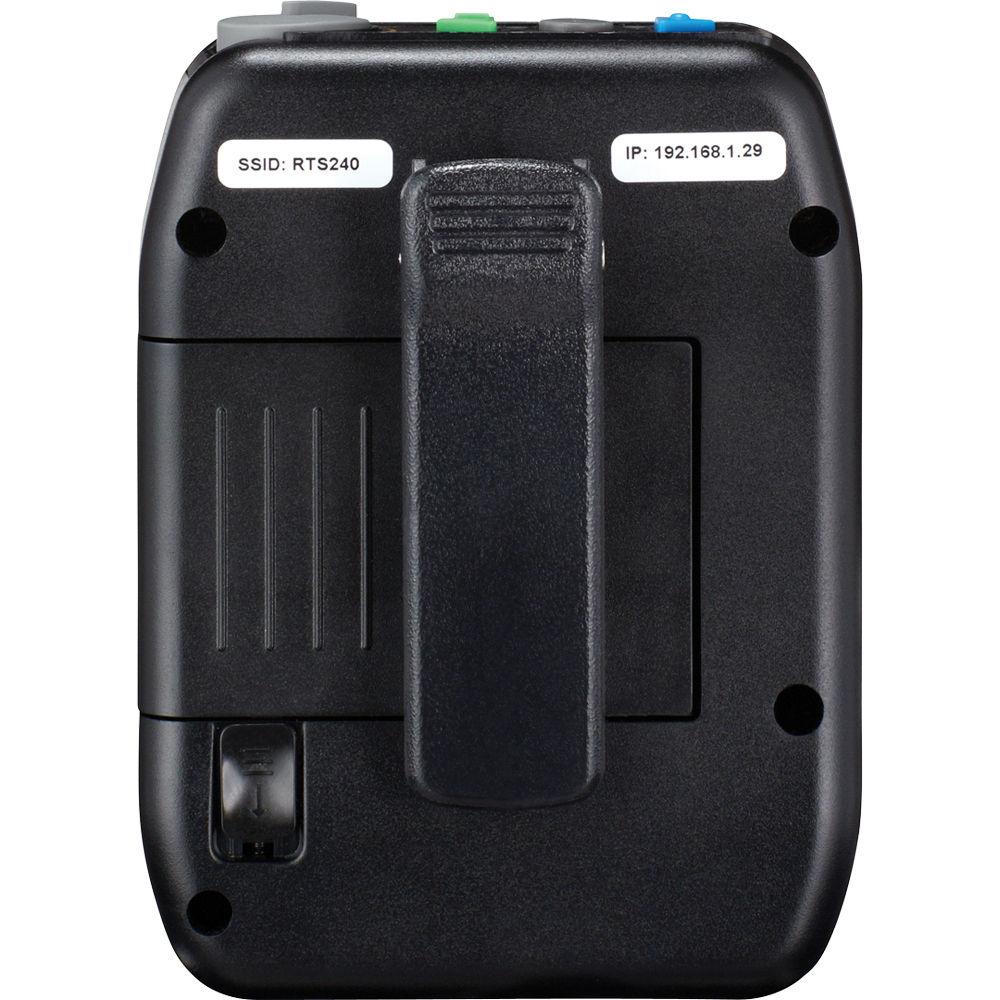

Product description The Telex TR-240 2.4 GHz Wireless Intercom Beltpack (A4F / RTS) offers high-quality communication and versatile options. The durable ABS beltpack works in conjunction with a BTR-240 base station to provide clear wireless communication using license-free 2.4 GHz IEEE 802.11b WLAN technology. Up to 8 beltpacks can work together in full-duplex mode, while a virtually unlimited number of half-duplex beltpacks can also be added. You can expand your coverage range by adding BTR-24 access points to your system, and the beltpack itself can also act as an access point.
The TR-240 has multi-level security and audio encryption to ensure that your conversations stay private. ClearScan channel selection will automatically choose the best available wireless channel. The beltpack also has a 2-/4-wire intercom interface to support wired operation. The A4F / RTS headset connector can automatically detect whether your headset has an electret or dynamic microphone, and will adjust accordingly.
The beltpack has easy-to-use color-coded controls for convenient operation. The TR-240 uses a removable rechargeable Li-ion battery that provides up to 8 hours of operation per charge. Note: BTR-240 base station, BTR-24 access point, and additional beltpacks available separately. - The compact ABS housing provides lasting durability for daily use
- Works in conjunction with a BTR-240 base station to provide clear wireless communication using license-free 2.4 GHz IEEE 802.11b WLAN technology
- Up to 8 beltpacks can work together in full-duplex mode, while a virtually unlimited number of half-duplex beltpacks can also be added
- You can expand your coverage range by adding BTR-24 access points to your system, and the beltpack itself can also act as an access point
- Multi-level security and audio encryption ensure that your conversations stay private
- A 2-/4-wire intercom interface supports wired operation
- The A4F / RTS headset connector can automatically detect whether your headset has an electret or dynamic microphone, and will adjust accordingly

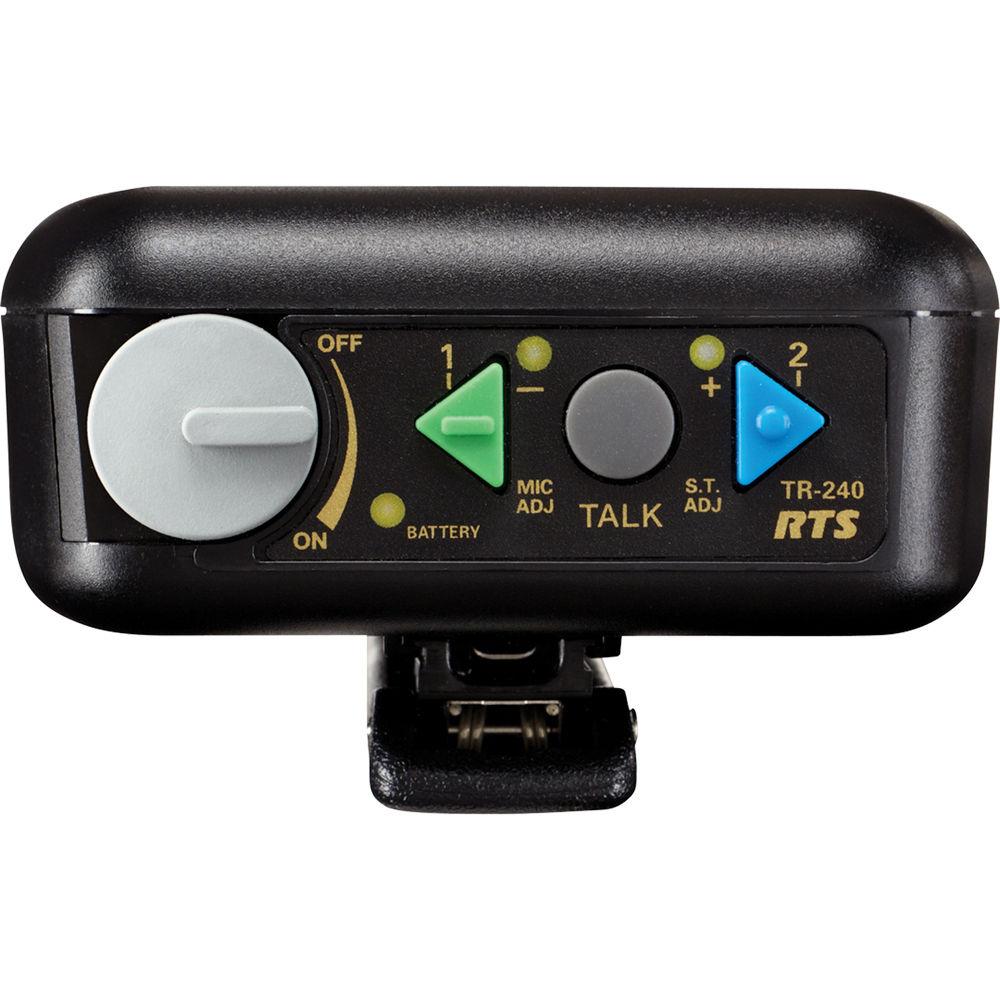

- The easy-to-use color-coded controls provide convenient operation
- The TR-240 uses a removable rechargeable Li-ion battery that provide up to 8 hours of operation per charge and can withstand a wide temperature range
UPC: 800549586276 In the Box Telex TR-240 2.4 GHz Wireless Intercom Beltpack (A4F / RTS) Li-Ion Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex TR-240 2.4 GHz Wireless Intercom Beltpack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex TR-240 Specs | Frequency Band | 2.4 GHz 802.11b WLAN | | Channels | 2 | | Frequency Band | North America: 2.412 to 2.462 GHz | | Transmitter Power | North America: 50 mW (conducted) | | Antennas Type | Internal Dipoles | | Dynamic Range | ≥ 62 dB | | Local Headset Output | 70 mW into 300 Ohms | | Programming Port | Ethernet, RJ45 | | Battery Life | Up to 8 hours | | Connector | A4F / RTS headset connector | | Temperature Range | -4 to 130°F / -20 to 55°C | | Dimensions (HxWxL) | 5.24 x 3.74 x 1.77" / 133 x 95 x 45 mm | | Weight | 13.05 oz / 370 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 13.3 x 8.6 x 3.6" |
