Telex TR-240 Wireless Intercom Communication Kit

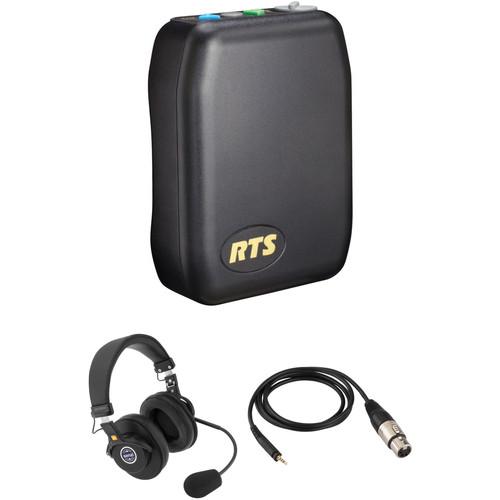

User Manual for Telex TR-240 Wireless Intercom Communication Kit with Dual-Sided Headset

• Product category: Transmitters & Receivers Telex
• Brand: Telex
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Telex Transmitters & Receivers

Product description

• Telex TR-240 2.4 GHz Wireless Intercom Beltpack (A4M / Telex) The Telex TR-240 2.4 GHz Wireless Intercom Beltpack (A4M / Telex) offers high-quality communication and versatile options. The durable ABS beltpack works in conjunction with a BTR-240 base station to provide clear wireless communication using license-free 2.4 GHz IEEE 802.11b WLAN technology. Up to 8 beltpacks can work together in full-duplex mode, while a virtually unlimited number of half-duplex beltpacks can also be added. You can expand your coverage range by adding BTR-24 access points to your system, and the beltpack itself can also act as an access point.

  The TR-240 has multi-level security and audio encryption to ensure that your conversations stay private. ClearScan channel selection will automatically choose the best available wireless channel. The beltpack also has a 2-/4-wire intercom interface to support wired operation. The A4M / Telex headset connector can automatically detect whether your headset has an electret or dynamic microphone, and will adjust accordingly.

  The beltpack has easy-to-use color-coded controls for convenient operation. The TR-240 uses a removable rechargeable Li-ion battery that provides up to 8 hours of operation per charge. Note: BTR-240 base station, BTR-24 access point, and additional beltpacks available separately.
  • The compact ABS housing provides lasting durability for daily use
  • Works in conjunction with a BTR-240 base station to provide clear wireless communication using license-free 2.4 GHz IEEE 802.11b WLAN technology
  • Up to 8 beltpacks can work together in full-duplex mode, while a virtually unlimited number of half-duplex beltpacks can also be added
  • You can expand your coverage range by adding BTR-24 access points to your system, and the beltpack itself can also act as an access point
  • Multi-level security and audio encryption ensure that your conversations stay private
  • A 2-/4-wire intercom interface supports wired operation
  • The A4M / Telex headset connector can automatically detect whether your headset has an electret or dynamic microphone, and will adjust accordingly
  • The easy-to-use color-coded controls provide convenient operation
  • The TR-240 uses a removable rechargeable Li-ion battery that provide up to 8 hours of operation per charge and can withstand a wide temperature range
  UPC: 800549584074
• Senal SMH-1020CH Communication Headset (Dual-Sided) Designed for wired and wireless communications alike, the Senal SMH-1020CH is a dual-sided communications headset for use in TV or radio broadcast settings, as well as sports applications and behind-the-scenes theater environments. First, you'll notice its deep, padded ear cushions, which offer not only comfort, but isolation and noise-reduction in noisy scenarios. Behind the ear cushions, 40mm neodymium drivers give you a wide frequency response of 20 Hz to 20 kHz, as well as an expansive dynamic range.

  The microphone supplied with the SMH-1020CH is a cardioid dynamic capsule, designed to minimize pickup of off-axis sound while capturing your voice clearly and intelligibly. It sits upon a durable gooseneck that can be rotated 180°. This configuration can be used on the left or right side of the SMH-1020CH. Additionally, a switch is built into the gooseneck that automatically mutes the signal when it's swiveled into the vertical position; thus, to mute your microphone, all you have to do is flip the gooseneck into the upright position.

  The SMH-1020CH interfaces with a variety of cables that offer compatibility with many major wired and wireless systems, such as Telex and PortaCom. You can also use this communication headset with broadcast consoles, mixers, and computers. Simply plug your separately-available, corresponding cable into the SMH-1020CH's twist-locking jack, and you're good to go. The headphones are also collapsible, making storage and transportation a cinch. Note: Please note, the SMH-1020CH does not ship with an output cable; for a list of compatible cables, please see our various kit configurations, or contact one of our specialists online, over the phone, or at our illustrious SuperStore.
  Intelligible Speech Reproduction
  • A cardioid dynamic microphone has been deployed for clear and intelligible voice reproduction
  40mm Neodymium Drivers
  • The dual-sided headphone utilizes a 40mm neodymium driver, which offers a wide frequency response and expansive dynamic range for accurate monitoring
  Passive Noise Reduction
  • The SMH-1020CH offers a closed-back, over-the-ear design, which provides isolation in noisy environments; this allows you to hear what's coming over the headphones, such as cues from the director, instructions from the team leader, or coaching from the sidelines
  Precise Microphone Positioning
  • The microphone is mounted on a durable gooseneck that swivels 180°; it can be used on the left or right side
  Detachable Twist-Locking Cable Design
  • The twist-locking jack allows for easy attachment of cables and accessories
  Compatibility with Multiple Terminations
  • The SMH-1020CH can be used with various cables, allowing you to work with multiple wired and wireless communications systems
  Comfortable Fit
  • Soft, deep, and replaceable ear cushions—as well as a padded headband—provide comfort throughout long listening sessions
  Durable Design
  • This headset is designed to stand up to studio and field use, offering a reliable performance even in the most demanding environments
  Folding Design
  • The SMH-1020CH's folding design allows you to store and transport your headphones as needed
  UPC: 847628586765
• Senal SMH-H4X Cable for Senal SMH-Series Communication Headsets The Senal SMH-H4X is a replacement cable intended for use with SMH-series communication headsets. It can also be used to augment your headset's versatility, giving you the ability to plug into a Clear-Com or PortaCom system if you already have cabling for a different broadcast console or mixer on hand.

  At one end, you'll find the 3.5mm TRRS connector and corresponding locking jack. This twists into your SMH-1010CH or SMH-1020CH communication headset, establishing a secure and reliable connection all the while.

  At the other end, you'll note a female, 4-pin XLR connector, allowing you to connect the headset to PortaCom and Clear-Com systems. In fact, the SMH-H4X is part of a whole ecosystem of SMH-series cables, all of which let you swap between the pin-outs of different communication and broadcast systems with ease.
  Compatible with Senal SMH-Series Headsets
  • The SMH-H4X fits perfectly into the twist-lock of your SMH-1010CH or SMH-1020CH, ensuring a secure connection to your headset.
  Compatible with PortaCom & Clear-Com Systems
  • This cable terminates in a 4-pin XLR female plug. This allows you to connect your SMH-series headset to a PortaCom or Clear-Com system. In this way, you can take advantage of the full-duplex communication between ProLink beltpacks and an unbalanced party-line system.
  UPC: 847628003378

• TR-240 2.4 GHz Wireless Intercom Beltpack (A4M / Telex) ysbfauauzburssxy
• Li-Ion Battery
• Limited 1-Year Warranty

• Senal - SMH-1020CH Communication Headset (Dual-Sided) ysbfauauzburssxy

• Senal - SMH-H4X Cable for Senal SMH-Series Communication Headsets

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Telex TR-240 2.4 GHz Wireless Intercom Beltpack (A4M / Telex)

  Frequency Band	2.4 GHz 802.11b WLAN
  Channels	2
  Frequency Band	North America: 2.412 to 2.462 GHz
  Transmitter Power	North America: 50 mW (conducted)
  Antennas Type	Internal Dipoles
  Dynamic Range	≥ 62 dB
  Local Headset Output	70 mW into 300 Ohms
  Programming Port	Ethernet, RJ45
  Battery Life	Up to 8 hours
  Connector	A4M / Telex headset connector
  Temperature Range	-4 to 130°F / -20 to 55°C
  Dimensions (HxWxL)	5.24 x 3.74 x 1.77" / 133 x 95 x 45 mm
  Weight	13.05 oz / 370 g

  Box Dimensions (LxWxH)	13.2 x 8.6 x 3.6"

• Senal SMH-1020CH Communication Headset (Dual-Sided)

  Element	Moving coil, dynamic
  Polar Pattern (Microphone)	Cardioid
  Frequency Range	50 Hz to 18 kHz
  Sensitivity	-79 dB ±3 dB (0 dB = 1 V/microbar, 1 kHz indicated by open circuit)
  Impedance	200 Ohms ±30% at 1 kHz

  Ear Cup	Dual-Sided
  Speaker Dimensions	1.6" / 40.0 mm
  Magnet Type	20 Hz to 20 kHz
  Sensitivity	84 dB
  Impedance	200 Ohms, parallel
  Distortion	<5%
  Weight	9.4 oz / 266.5 g

  Box Dimensions (LxWxH)	10.0 x 6.4 x 4.4"

• Senal SMH-H4X Cable for Senal SMH-Series Communication Headsets

  Connectors	TRRS to XLR female (4-pin)
  Compatible with	PortaCom and Clear-Com systems
  Length	48.3" / 122.6 cm
  Weight	2.4 oz / 68 g

  Box Dimensions (LxWxH)	6.5 x 5.0 x 1.1"
