Telex TR-300 - Wireless Portable Beltpack

Search your instruction manual in PDF to download

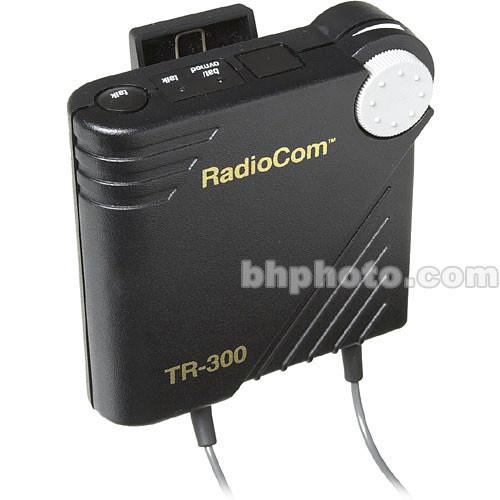

User Manual for Telex TR-300 - Wireless Portable Beltpack Transceiver - 813B2

Click to enlarge the picture
Telex TR-300 - Wireless Portable Beltpack Transceiver - 813B2 Contents of the user manual for the Telex TR-300 - Wireless Portable Beltpack
  • Product category: Transmitters & Receivers Telex
  • Brand: Telex
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Telex Transmitters & Receivers

User manual for the Telex TR-300 - Wireless Portable Beltpack contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Telex product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!



Product description

The Telex TR-300 portable belt-pack transceiver is designed for use with the BTR-300 single channel VHF base station. The TR-300 transceiver sends and receives audio to and from the base station and additional transceivers, via a VHF frequency band of 150 - 216 MHz. The unit features dual 1/4 wave "whip" antenna, crystal controlled frequency stabilization, internal compression, and a 50 mW transmission output, resulting in minimal RF interference and drop-out. The TR-300's rugged construction makes it worthy for use on the road, and the unit is powered for up to 24 hours (continuously) on 6 "AA" alkaline batteries.
    DTV Stabilized
  • High VHF frequency transmission range, high output, avoids DTV transmissions
    Operating Range
  • Belt-packs operate at ranges of up to 2000 feet line of sight
    Small Rugged Design
  • Compact, roadworthy, durable molded construction
    Extended Battery Life
  • Powered via 6 "AA" batteries for up to 24 hours of continuous use
    Full Duplex
  • Full duplex, simultaneous talk and listen
In the Box Telex TR-300 - Wireless Portable Beltpack Transceiver - 813B2
  • 1 Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Telex TR-300 - Wireless Portable Beltpack Transceiver - 813B2 in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Telex TR-300 Specs

    Transmitter Type Crystal Controlled
    Receiver Type Dual Conversion Superheterodyne, FM
    RF Frequency Range 150 - 216 MHz
    Transmit Power 50 mW
    Microphone Input 30 Ohms - 3500 Ohms
    Antenna Type 1/4 wave attached
    Signal-to-Noise Ratio 90 dB
    Local Headset Output 32 mW into 600 Ohms
    Frequency Response 300 Hz - 5 kHz
    Power Requirements 6 "AA" Alkaline Batteries (NiMH-optional)
    Current Draw: Typical 82 mA
    Battery Life 24 Hours (continuous)
    Dimensions 4.25 x 4.125 x 2.0" (108 x 105 x 51mm)(WxHxD)
    Weight 13.5 oz. with batteries (384 g)
    Package Weight 0.85 lb
    Box Dimensions (LxWxH) 10.0 x 7.0 x 3.0"
