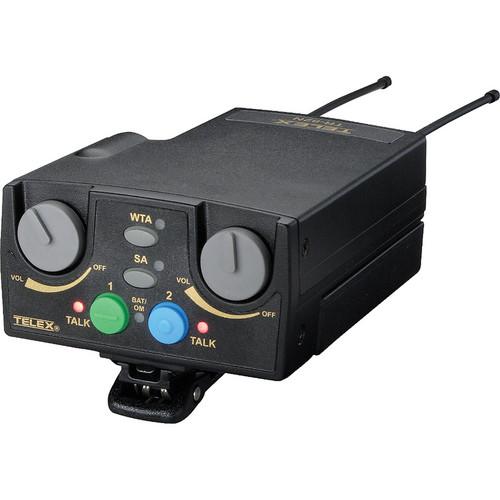

User Manual for Telex TR-82N 2-Channel UHF Beltpack Transceiver Click to enlarge the picture
Contents of the user manual for the Telex TR-82N 2-Channel UHF Beltpack Transceiver
- Product category: Transmitters & Receivers Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Transmitters & Receivers
|
User manual for the Telex TR-82N 2-Channel UHF Beltpack Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex TR-82N is a 2-channel, binaural UHF frequency-agile wireless beltpack for use with the BTR-800. The unit features a durable met-cast magnesium case, an LCD based graphical user interface, and stage announce activation.
The TR-82N is designed with several advanced technology functions, including wireless talk around (ISO) activation, the patented Enhanced ClearScan channel search, detachable antennas and an auto-sensing headset connector that automatically switches between electret and dynamic headset mics.
This unit has an A4F RTS headset jack and works in the F3: 482-500MHz Receive/650-668MHz Transmit frequency range. - Narrow Band wireless provides 25kHz of modulated band width which allow more users per channel in the cramped UHF spectrum
- Rugged all-metal 2-channel wireless UHF beltpack with detachable, color coded 1/4 Wave antennas on stud type connectors
- Dual, latchable A and B channel talk buttons, full LED complement for all functions
- Cast magnesium construction for increased durability, lighter weight
- Huge selection of UHF frequencies in 18 MHz operational bands, 24 factory preset groups
- 1000' line-of-sight range, AA or NiMH rechargeable battery operation with up to 12 hours of continuous battery life
- Proprietary Intelligent Power Control decreases output power of beltpack in closer proximity to Base Station by 10dB, eliminates Base Station front-end overload and desensing
- Individual On/Off and Volume control knobs, talk buttons with latching function with easy top panel access
- Top panel Battery/Overmodulation and Talk LED lights
- Automatic dynamic or electret mic type detection
- Menu and Set, Up and Down rear panel parameter and navigation buttons with LCD display for simplified control
In the Box Telex TR-82N 2-Channel UHF Beltpack Transceiver (A4F RTS, F3: 482-500MHz Receive/650-668MHz Transmit) 2 x 1/4 Wave Detachable Antennas NiMH Battery Pack Screwdriver Owner's Manual 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex TR-82N 2-Channel UHF Beltpack Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex TR-82N Specs | Transmitter Type | Synthesized, 712 Channels | | Receiver Type | Dual Conversion Superheterodyne, Synthesized, 712 Channels, FM | | RF Frequency Range | F3: 482-500MHz Receive/650-668MHz Transmit | | Transmit Power | 50mW max | | Microphone Input | A4F RTS, 7mV sensitivity | | Antenna Type | 2 x 1/4 Wave | | Signal-to-Noise Ratio | Not specified by manufacturer | | Local Headset Output | 40 mV Output into 600 Ohms (1% distortion) | | Frequency Response | 300Hz - 8kHz | | Power Requirements | 6 x AA Alkaline
1 x NiMH Rechargeable | | Battery Life | AA: 12 hours (Continuous)
NiMH: 11 hours (Continuous) | | Dimensions | 3.75 x 5.05 x 1.65" (95 x 128 x 42mm) | | Weight | 21 oz (595g) |
