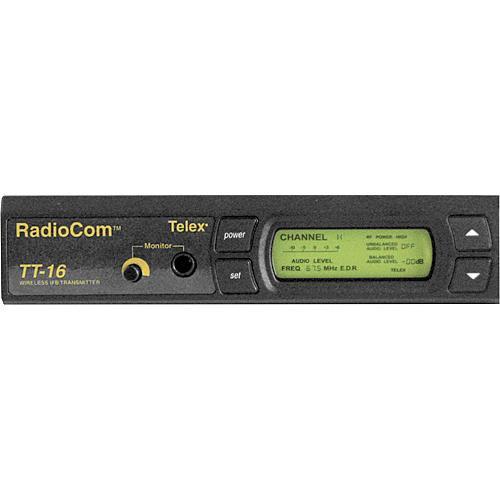

Product description The Telex TT-16 is a wireless base station transmitter for IFB or personal monitoring use, operating in the low VHF range from 64 to 68 MHz with a reliable transmission range of over 750'. The TT-16 offers 16-channel frequency-agile synthesized technology, enabling users to switch RF channels directly from the front panel to avoid interference. The TT-16 is equipped with a balanced 3-Pin XLR connector and a selector switch for compatibility with Telex and RTS-TW systems, and a 1/4" unbalanced connector for use with Clear-Com hardwired intercom systems. - 16-channel 64.5 - 67.5 MHz band VHF frequency-agile transmitter base for IFB on-air talent or personal monitoring use with 750' transmission range
- Front panel rotary frequency selector knob, headphone monitoring output with dedicated volume control
- Input LED bar graph level meter
- Simultaneous operation of up to 5 units in same locale
- 8 tunable frequencies in TV channel 3 band, 8 assigned to channel 4 band for improved interference-free frequency agility
- Balanced Switchable RTS Ch.1, 2 and Audiocom, unbalanced ClearCom compatibility
- RF power switch with 50mW maximum RF output
- Balanced XLR and Unbalanced 1/4" inputs with dedicated level trim controls
UPC: 800549417907 In the Box Telex TT-16 - 16-Channel Wireless IFB Base Station AC Adapter 50 Ohm Detachable Whip Antenna 3 Year Warranty User Manual PDF 421.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex TT-16 - 16-Channel Wireless IFB Base Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex TT-16 Specs | Output Connectors | No | | Input Connectors | 1 x 3-pin XLR, Balanced
1 x 1/4" TS Phone, Unbalanced
1 x BNC Antenna
1 x Coaxial Power In | | Output Level | 50mW max.(Hi)
5mW (Low) | | Input Level | Not Specified by Manufacturer | | Input Impedance | Balanced:
RTS 1, 2 Selected: 200 Ohms
Telex Selected: 300 Ohms
Unbalanced: 10 kOhms | | Frequency Response | 100 Hz - 10 kHz | | THD + N | <2% | | Minimum Common Mode Rejection | Not Specified by Manufacturer | | Voltage Gain | 30dB (with AGC) | | Voltage Output | Not Specified by Manufacturer | | Call Signaling | No | | Sidetone | No | | Microphone Type | No | | Microphone Input | No | | Phantom Power | No | | Headset Connector | 1 x 1/4" Stereo Phone | | Maximum Current Capacity | 300mA | | Maximum # of Belt Packs | 5 | | Input Power Requirement | 13VAC @ 300mA
15 - 24VDC @ 300mA | | Power Adapter | Yes | | Dimensions | 7.5 x 1.75 x 7" (190.5 x 44.45 x 177.8mm) | | Weight | 3.9 lb (1.8 kg) | | | | Package Weight | 3.836 lb | | Box Dimensions (LxWxH) | 18.1 x 11.3 x 3.8" |
