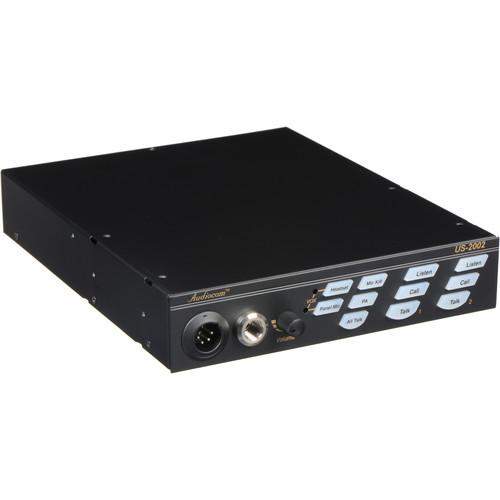

Product description The Telex US-2002 is a 2-channel, full-duplexing wired intercom user station, offering headset and panel microphone connectivity with Voice Activation control, backlit function keys, speaker and PA system outputs, standard XLR or DB9 program inputs, and expansion capability. The US-2002 features Clear-Com compatibility for integration with existing systems, flexible self-contained or in-line powering options, tabletop or rackmount use, and professional, rugged construction. - Multi-Channel User headset and speaker wired Intercom Station with full duplexing and call capability
- Headset and Microphone front panel connectors with Volume control knob, Voice Activation; separate backlit Vox control buttons for each microphone
- Backlit Listen, Call and Talk keys for each channel
- PA output with dedicated key eneables panel or headset mic communication over external PA system
- Red, flashing Incoming Call light indications with selectable beep tone
- Mic Kill Key turns off all microphoness on channel for quick channel clearance
- Separate Program Input for each channel allows connection to line level audio sources for headset or speaker monitoring or routing to intercom channel; assignable interrupt for to-channel audio while speaking on channel
- Intercom Channel unbalanced operation mode for Clear-Com compatibility; dedicated Balanced/Unbalanced operation mode switch
- Mic Mute function for off-microphone conversation ensures privacy, eliminates background noise
UPC: 800549427494 In the Box Telex US-2002 - 2-Channel Wired Intercom User Station 4 x Rubber Feet Termination Plug Owner's Manual 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex US-2002 - 2-Channel Wired Intercom User Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex US-2002 Specs | Output Connectors | 2 x 3-pin XLR Male Ch 1, 2
2 x RCA Phono Speaker Out Jacks
1 x 1/8" Stereo Mini PA Output Jack
1 x 1/8" Stereo Mini Expansion Out Jack
1 x 4-pin XLR Male Headset | | Input Connectors | 2 x 3-pin XLR Female Ch 1, 2
1 x DB9F Program Input
1 x 12-15 VDC Power In
1 x 1/4" TRS Panel Microphone In
1 x Headset | | Output Level | Program Input: 1.0 Vrms nominal, 2.3 Vrms maximum
Intercom Channels, Balanced Mode: 1.0 Vrms nominal
Intercom Channels, Unbalanced Mode: 1.0 Vrms +/-10%
PA Output: 235 mVrms nominal
Speaker Output: 0 db(1.0 Vrms)nominal | | Input Level | Program Input: 100 mV Maximum | | Input Impedance | Program Input: 75 kOhms
Intercom Channels, Balanced Mode: 300 Ohms
Intercom Channels, Unbalanced Mode: 150 Ohms | | Frequency Response | Headphone Amplifier: 200 Hz - 8 kHz +1/-3 db
Panel Microphone Preamp: 200 Hz - 8 kHz +1/-3 db | | THD + N | Headphone Amplifier: <0.2% at 200mW
Panel Microphone Preamp: <0.2% at Channel Output | | Minimum Common Mode Rejection | >50 dB(Program Input/Intercom Channels, Balanced Mode) | | Voltage Gain | Program Input: 25 +/-3 dB:
Headphone Amplifier: 30 +/-3 dB
Panel Microphone Preamp:
Mic to Channel: 25 +/-3 dB before limiting
Mic to Headphone: 45 dB +/-10% max. into 150 Ohms
Mic to PA: 15 +/-3 dB, 235 mVrms +/-10% | | Voltage Output | 24 VDC | | Call Signaling | Send: 20 kHz +/-100 Hz, 0.5 Vrms +/-10%
Receive: 20 kHz +/-800 Hz, 100 mVrms | | Sidetone | Intercom Channels, Balanced Mode: -40 dB, 35 dB range
Headphone Amplifier: 18 db +/-2 dB, adjustable | | Microphone Type | No | | Microphone Input | Yes, 1/4" TRS | | Phantom Power | Yes, 24 VDC Nominal | | Headset Connector | 4-pin XLR Male | | Maximum Current Capacity | Not Specified by Manufacturer | | Maximum # of Belt Packs | Not Applicable | | Input Power Requirement | 100 - 240 Volts, 50/60 Hz | | Power Adapter | 12 - 15 VDC, 65 to 150 mA | | Dimensions | 1.75 x 8.25 x 10.31" (44.5 x 209.5 x 261.9mm) | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 12.65 x 11.75 x 3.0" |
