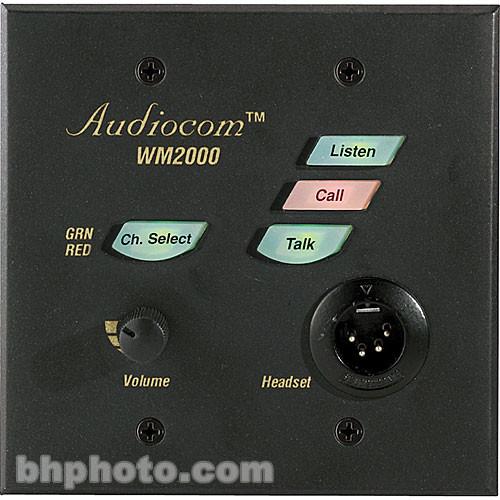

User Manual for Telex WM-2000 - 2-Channel Wall Mount Wired Intercom Headset Station Click to enlarge the picture
Contents of the user manual for the Telex WM-2000 - 2-Channel Wall Mount
- Product category: Wired Intercoms Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Wired Intercoms
|
User manual for the Telex WM-2000 - 2-Channel Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex WM-1000 is a professional 2-channel wall mount headset station for wired intercoms, featuring a dedicated channel select switch allowing access to either of the two available channels. The station accepts either party line or local power, and mounts in a standard double-wide type electrical outlet box. The WM-1000 is equipped with a mic limiter circuit, back-lit control buttons for low-light operation, Talk and Listen buttons with momentary/latching operation, and monitoring volume control. The Call send button offers a call receive indicator light, and a Call receive beep tone is available with an on/off selector. The WM-1000 also provides a dedicated Mic kill receive with on/off selection, Side Tone trim control, and quick-connect wire clamp terminals for party line wire connections. The 4-pin male XLR connector accepts headsets with balanced or unbalanced microphones, and is Clear-Com compatible. - Wall mount headset stations for wired intercoms with Audiocom and Clear-Com compatibility
- Accepts local power supply or remote party line phantom power
- Backlit Momentary or hands-free Latching selectable listen key
- Backlit Call key for call signal send, incoming call indication
- Backlit Momentary and Latching Talk key
- Two-color green (Ch.1) and red (Ch.2) backlit front panel channel selector switch
- 4-pin XLR headset connector accepts Monaural headphones and balanced or unbalanced dynamic microphones
- Mic kill receive feature allows remote operator to turn off talk key
- Front panel volume control, internal configuration DIP switches, sidetone trim control and Audiocom/Clear-Com selector switch
UPC: 800549426381 In the Box Telex WM-2000 - 2-Channel Wall Mount Wired Intercom Headset Station 4 x Mounting Screws Owner's Manual 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex WM-2000 - 2-Channel Wall Mount Wired Intercom Headset Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex WM-2000 Specs | Frequency Response | 100 Hz - 20kHz | | Gain | 35dB Adjustable Range (sidetone) | | Microphone Input Type | 4-pin XLR Male (Headset Only) | | Limiter | Yes, built-in | | Power Output | 1 Vrms nominal | | Speaker | No | | SPL | Not Applicable | | Signal-to-Noise Ratio | <-70dB | | THD + N | Not Specified by Manufacturer | | Panel Microphone Preamp | No | | Program Amplifier | Not Specified by Manufacturer | | Speaker Amplifier | No | | Input Level | Not Specified by Manufacturer | | Input Impedance | 50 - 200 Ohms(Headset Microphone)
150 - 600 Ohms(Headphones) | | Internal Connectors | Six-position Terminal Block (screw-in wire clamps) | | Internal Controls | 2 x Sidetone Trim
3 x Call Beep/DC Call Enable/Headset Mic Type Dip Switches
1 x Audiocom/Clearcom Selector Switch | | Front Panel Controls and Indicators | 1 x Volume Knob
1 x Listen Button
1 x Call Button
1 x Talk Button
1 x Channel Select Switch | | Power Requirements | Local: 12 - 15VDC, 65 to 150mA
Phantom: 24VDC nominal, 65 to 150mA | | Dimensions | Mounts in standard two-gang electrical box | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 6.6 x 6.3 x 4.9" |
