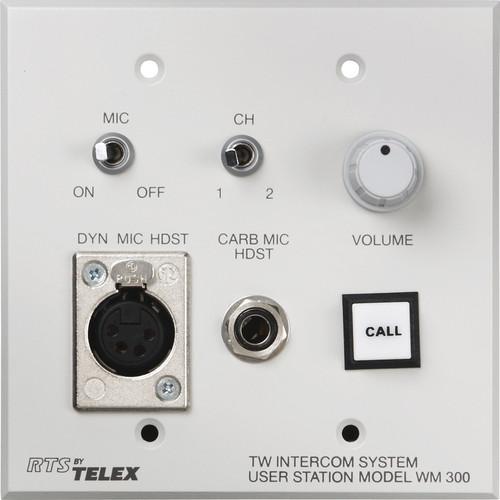

Product description The WM-300L Wall Mount User Station w/ an A4F Headset Connector from Telex is a two-channel select wall mount headset station. It features a channel select switch, call light and headset volume control. It is designed to fit directly into a standard 4" (101.6mm) square (2-gang) electrical conduit box 2.25" (57.2mm) deep.Almost any type of headset may be used with the WM-300L; low-Z or high-Z headphones, with dynamic or carbon microphone. The carbon microphone headset port also accepts Plantronics telephone-type headsets. - The WM-300L Wall Mount User Station w/ an A4F Headset Connector works with the TW Intercom System as a private listening headset station
- It is designed to fit directly into a standard 4" (101.6mm) square (2-gang) electrical conduit box 2.25" (57.2mm) deep
- The rear section is not enclosed and uses the back-box to provide a housing when installed
- The user station is perfect for permanent installations where a wall-mounted station can provide an unobtrusive operating position. Most often it is located where the operator can conveniently attend to on-going operations while wearing a headset. A handset can be used in place of a headset if desired
- Practical operating features include two-channel selection, a latching-action microphone on-off switch, a momentary-action microphone on-off switch, and a headphone volume control The
- The WM-300L uses a 4-pin dynamic mic headset connector. User-oriented features include a microphone limiter circuit for equalizing levels, a powerful headphone amplifier, silent channel- select switching and well-placed controls for ease of operation
- A standard call light signaling option can be ordered on the WM-300L, however this feature deletes the momentary microphone on-off switch. Most any type of headset may be used with the WM-300L; low-Z or high-Z headphones, with dynamic or carbon microphone. The carbon microphone headset port also accepts Plantronics telephone-type headsets
- Screw terminals mounted on the circuit board are provided for user station interconnection to the line. A two-pair shield cable such as Belden 8723 or equivalent is recommended since it allows each channel to be carried over a separate shielded pair, reducing the possibility of crosstalk between channels
UPC: 800549425063 In the Box Telex WM-300L Wall Mount User Station w/ an A4F Headset Connector 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex WM-300L Wall Mount User Station w an A4F Headset Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex WM300L A4F Specs | Headset Connector | Dynamic microphone: XLR type 4 or 5-pin female available
Carbon microphone: Standard 3-circuit 0.25" (6.4mm) phone jack | | Input Line Connector | Screw terminals | | Power Consumption | Quiescent: 10-40 mA
Operating: 25 Ω phones: 50mA
Operating: 25 Ω phones + call light: 75mA | | Finish | Light gray enamel paint | | Dimensions (HxWxD) | 4.5 x 4.5 x 1.8" (114.3 x 114.3 x 46mm) | | Weight | 0.6 lb. (0.3kg) |
