User Manual for Telex WMS-300L Wall Mount User Station w A4F Headset Connector Click to enlarge the picture
Contents of the user manual for the Telex WMS-300L Wall Mount User Station
- Product category: Wired Intercoms Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Wired Intercoms
|
User manual for the Telex WMS-300L Wall Mount User Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|

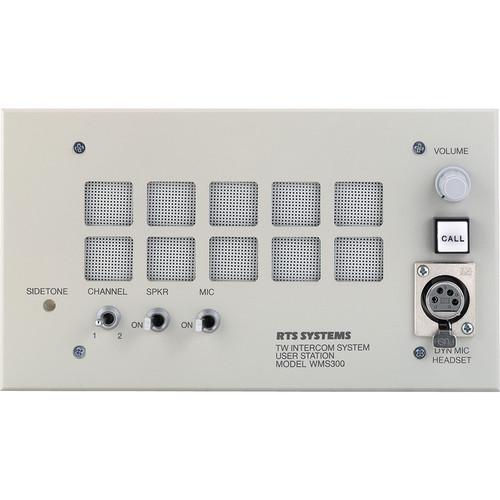

Product description The WMS-300L Wall Mount User Station w/ A4F Headset Connector from Telex is designed to work with the TW Intercom System. The WMS-300L can operate in an open listening mode with the panel mounted loudspeaker as well as with a headset or a handset. In this mode, almost any headset or handset can be used while the loudspeaker is turned off. This method can be extended by using the loudspeaker for monitoring and the headset or handset for conversation.The WMS-300L is perfect for permanent installations and includes the following features: a speaker on-off switch, two-channel selection, headphone/loudspeaker volume control, a sidetone control and latching and momentary-action microphone on-off switches. - The WMS-300L wall mount speaker station is designed to work within the TW Intercom System
- It fits directly into a standard 4-gang electrical conduit box (2.25" (57.2mm) deep)
- The rear section is not enclosed and sets the back-box to provide a housing when installed
- This user station is perfect for permanent installations where a wall mounted station can provide an unobtrusive operating position
- Most often it is located where the operator can conveniently attend to on-going operations while wearing a headset or listening to the loudspeaker
- Typically, the WMS-300L is a very practical user station since it can operate in an open-listening mode with the panel-mounted loudspeaker as well as privately with a headset or a handset. In the open-listening operating mode, with both the loudspeaker and an external microphone turned on, acoustic feedback is suppressed by adjustment of a front panel sidetone (balance) control. This control cancels the originating microphone signal in the local loudspeaker
- Most any type of microphone can be used, a hand held push-to-talk microphone, a headset or handset microphone
- In the private operating mode, almost any headset or handset can be used while the loudspeaker is turned off. This method can be extended by using the loudspeaker for monitoring and the headset or handset for conversation
- Practical operating features include two-channel selection, latching and momentary-action microphone on-off switches, a speaker on-off switch, a sidetone control and a headphone/loudspeaker volume control
- Screw terminals counted on the circuit card are provided for user station interconnection to line. A two pair shielded cable such as Belden 8723 or equivalent is recommended since it allows each channel to be carried over a shielded pair, reducing the possibility of crosstalk between channels
UPC: 800549425360 In the Box Telex WMS-300L Wall Mount User Station w/ A4F Headset Connector 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex WMS-300L Wall Mount User Station w A4F Headset Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex WMS300L A4F Specs | Headset Connector | Dynamic microphone
XLR type 4 or 5-pin connector version available | | Input Line Connector | Screw terminals | | Power Consumption | Quiescent: 10-40 mA
Operating: 25 Ω phones: 50mA
Operating: 25 Ω phones + call light: 70mA | | Finish | Light gray enamel paint | | Dimensions (H x W x D) | 4.5 x 8 x 1.8" (114.3 x 44.5 x 44.5mm) | | Weight | 1 lb (0.5kg) |
