Telmax Futura 15" LCD Teleprompter with

Search your instruction manual in PDF to download

User Manual for Telmax Futura 15" LCD Teleprompter with 15" LCD Monitor

Click to enlarge the picture
Telmax Futura 15" LCD Teleprompter with 15" LCD Monitor Contents of the user manual for the Telmax Futura 15" LCD Teleprompter with
  • Product category: Teleprompters Telmax
  • Brand: Telmax
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Telmax Teleprompters

Telmax Futura 15" LCD Teleprompter with 15" LCD Monitor Telmax Futura 15" LCD Teleprompter with 15" LCD Monitor Telmax Futura 15" LCD Teleprompter with 15" LCD Monitor Telmax Futura 15" LCD Teleprompter with 15" LCD Monitor Telmax Futura 15" LCD Teleprompter with 15" LCD Monitor Telmax Futura 15" LCD Teleprompter with 15" LCD Monitor Telmax Futura 15" LCD Teleprompter with 15" LCD Monitor Telmax Futura 15" LCD Teleprompter with 15" LCD Monitor Telmax Futura 15" LCD Teleprompter with 15" LCD Monitor
User manual for the Telmax Futura 15" LCD Teleprompter with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Telmax product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Telmax user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Telmax product will considerably shorten its lifespan!



Product description

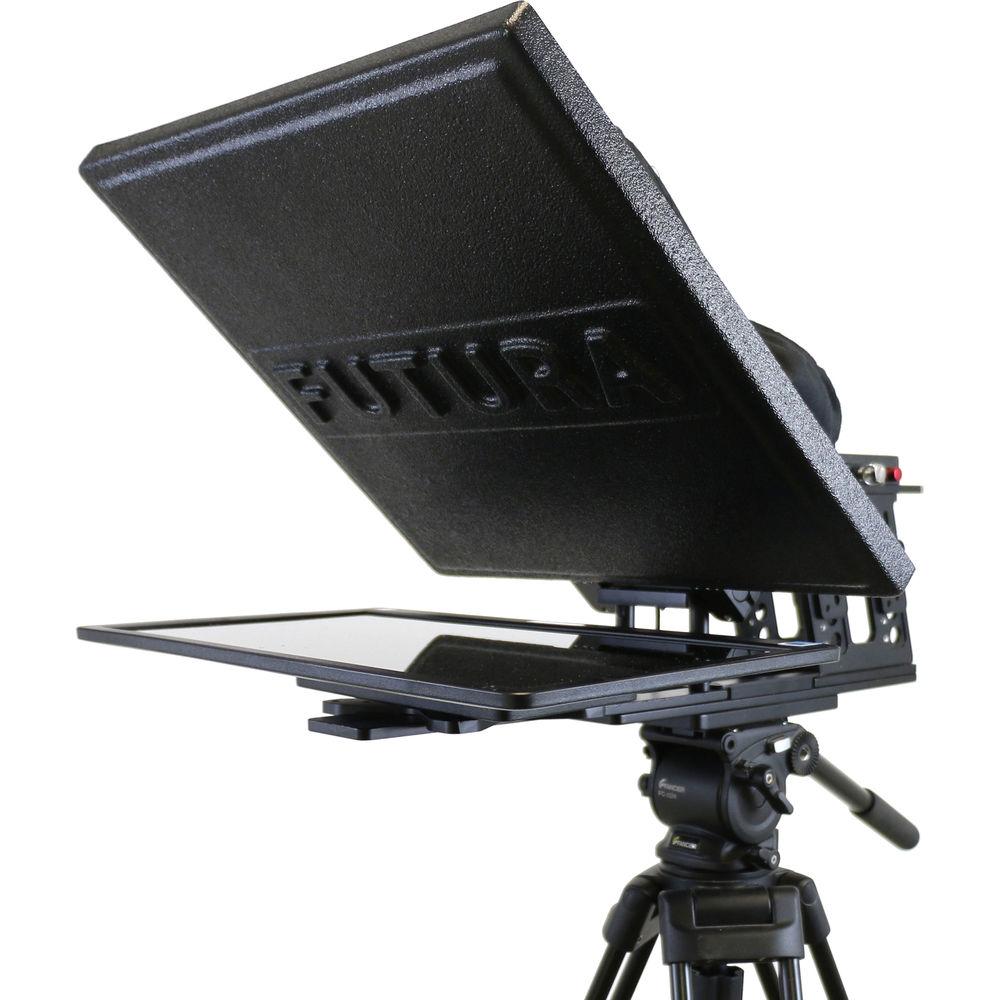

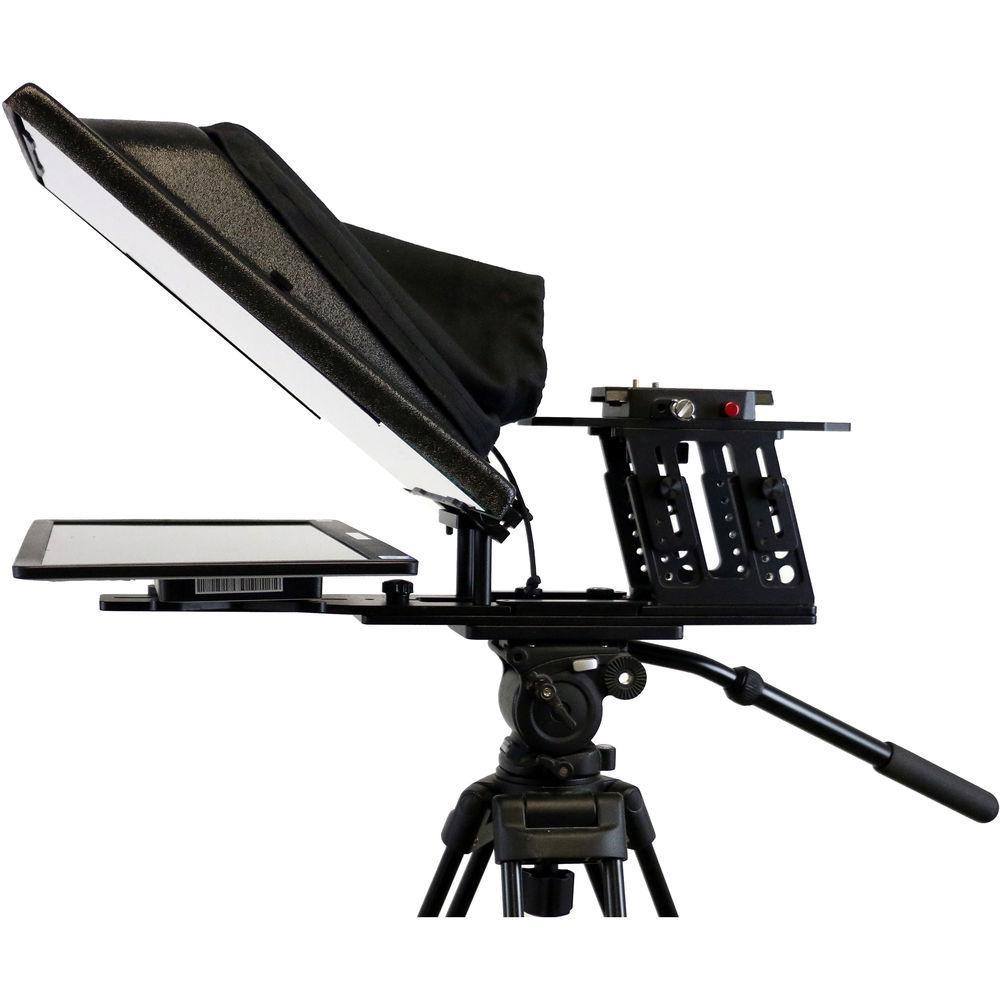

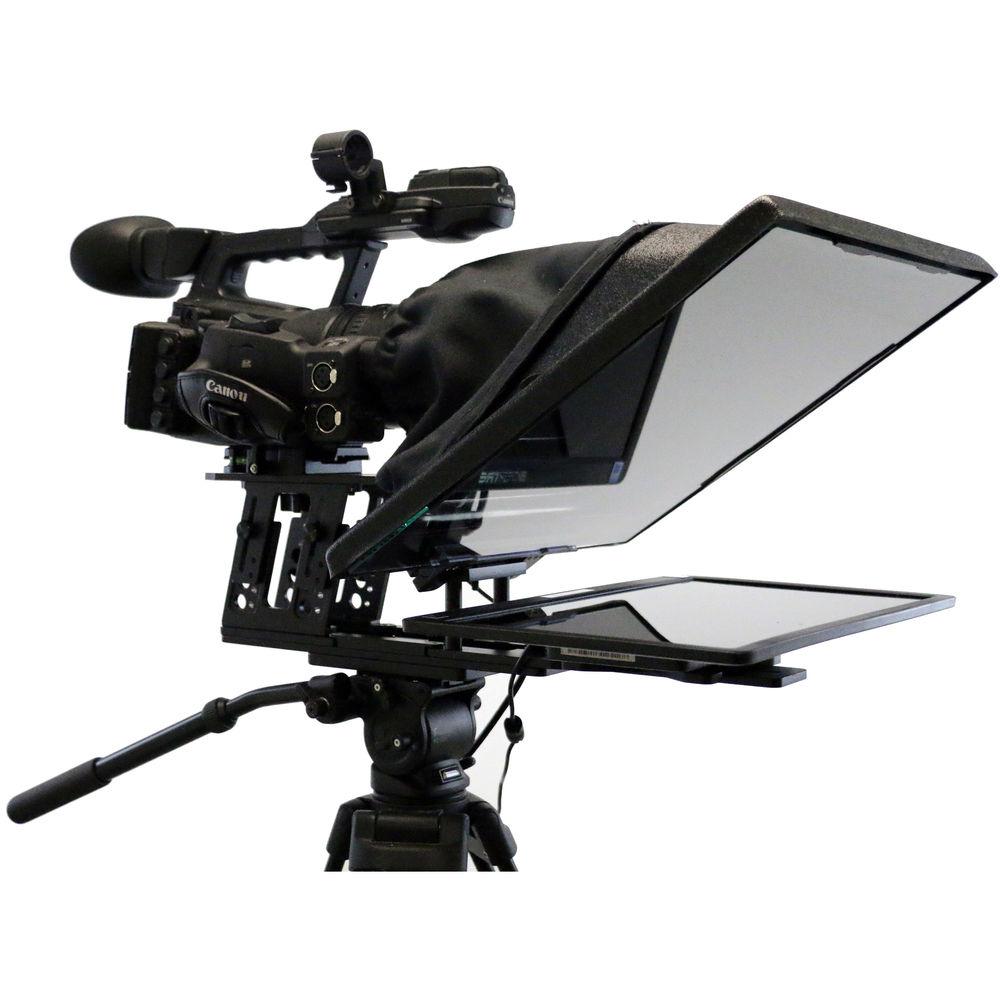

Anatomy of a Teleprompter Read More The Telmax Futura 15" LCD Teleprompter with 15" LCD Monitor features a reading range up to 20', and can support cameras from DSLR to full-sized ENG cameras. The Inclining Vertical Mount (IVM) camera riser provides simple and secure height adjustment that allows you to use a variety of cameras and center them in the mirror. The 70/30 beamsplitter provides good contrast and readability. The monitor accepts HDMI and VGA inputs, and includes a power cord and 25' long VGA cable.

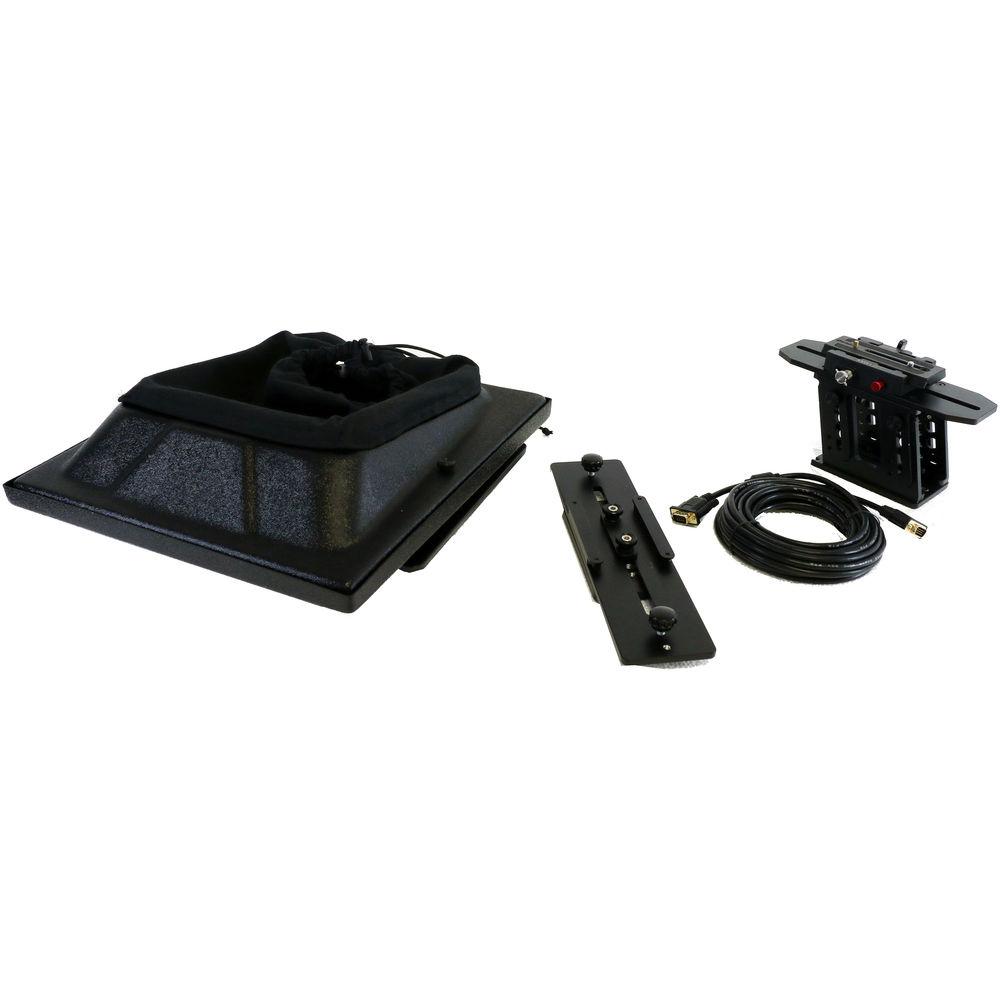

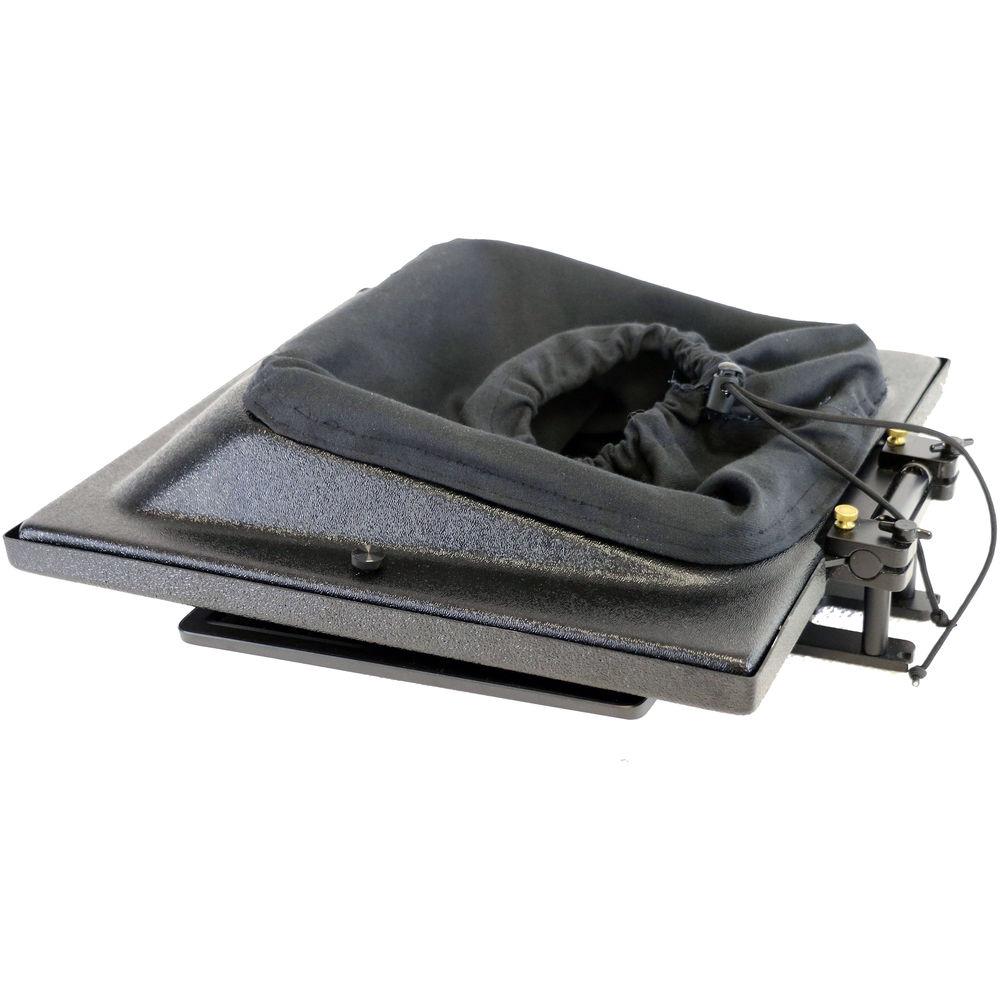

The prompter consists of three components: the baseplate, the head assembly, and the IVM, speeding assembly and breakdown. You can adjust the angle of the beamsplitter glass from completely flat up to approximately 45°, and it is secured using a springless system. A small fabric hood cinches around your lens preventing light from leaking around your lens and flaring your image. A plastic mirror cover protects your collapsed mirror from dust during transport and storage. The included downloadable ZaPrompt software can be loaded on up to four computers and provides the required mirroring functionality.
    • Fits camera bodies and styles from DSLR to full-sized ENG
    • Adjustable beamsplitter angle
    • Proprietary adjustable camera height adjustment
    • Folds flat for storage and transporting
    • 8" sliding baseplate adjustment
    • Readable up to 20'
    • Weighs only 21 pounds
    • Recommended tripod support weight of 25 pounds
    • 14 x 14", 70/30 beamsplitter glass
    • Anti-reflection coating on back of glass
    • HDMI and VGA input
    • 17" LCD
    • ABS Plastic mirror cover
    • ZaPrompt Pro license for four computers
    IVM (Inclining Vertical Mount)

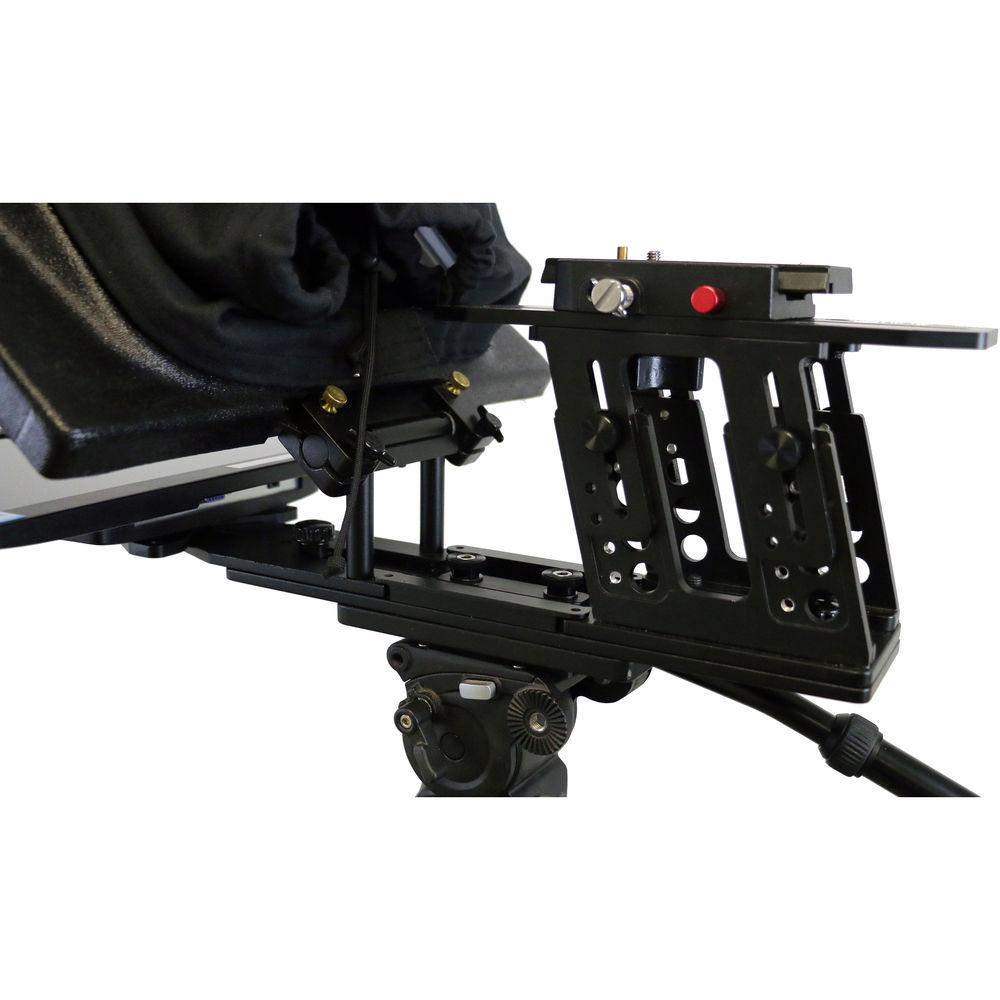

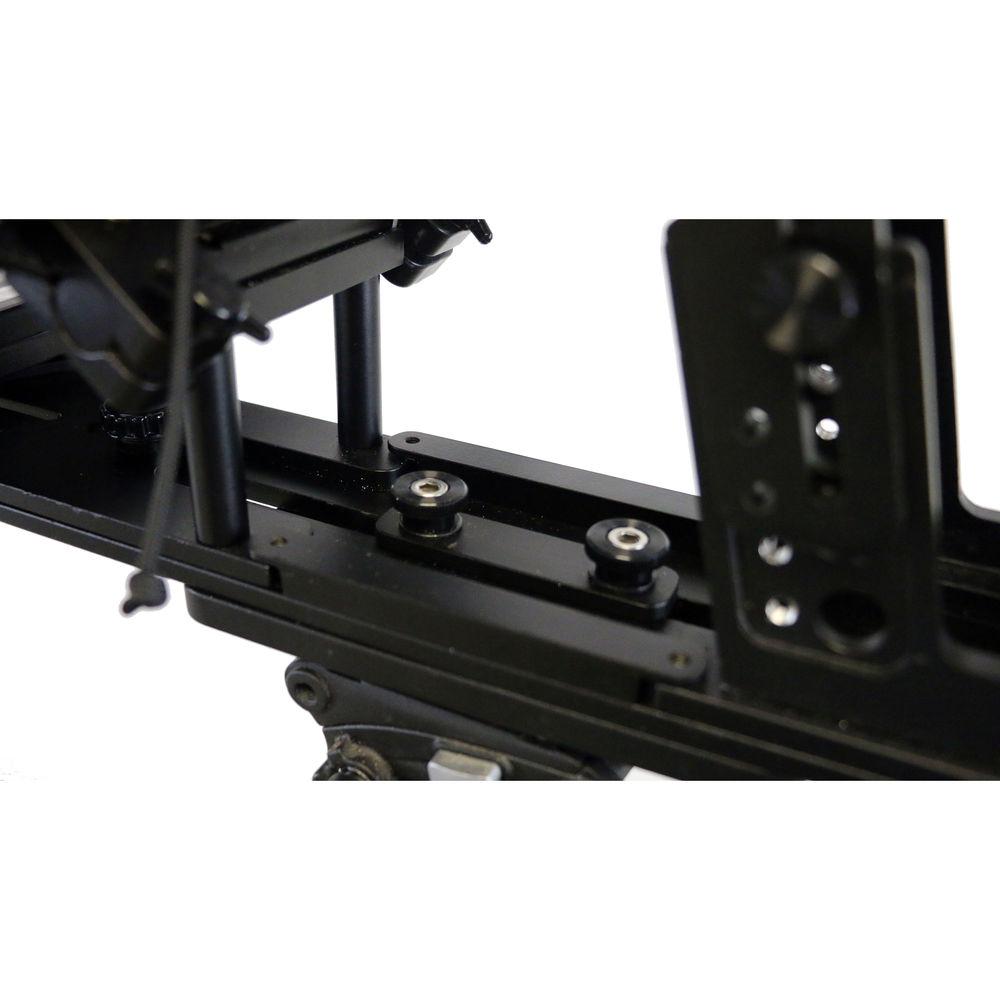

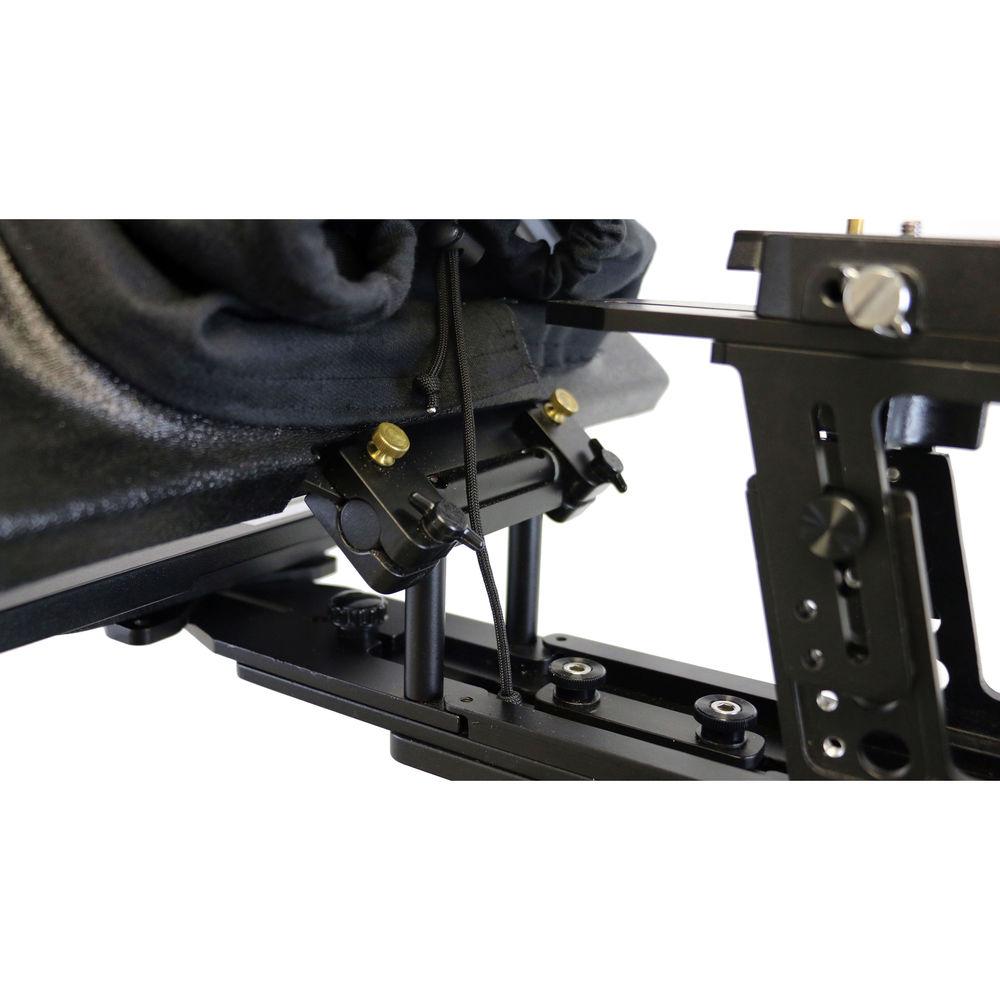

  • The IVM (Inclining Vertical Mount) is an adjustable or fixed variable height mount that, like the name indicates, inclines toward the mirror. The reason for the incline is that most cameras get shorter as they get smaller, so as you raise the camera platform the mount gets closer to the mirror. The IVM is held on to the baseplate by a knob, which has two possible configurations. The first configuration is to place the knob in a channel, which makes it easy to remove and re-install. The second configuration is to place the knob in a fixed threaded hole that will not allow the IVM to slip off the baseplate. Using the fixed position holes is preferable over the slipping channels, as it is more secure.
    Head Assembly

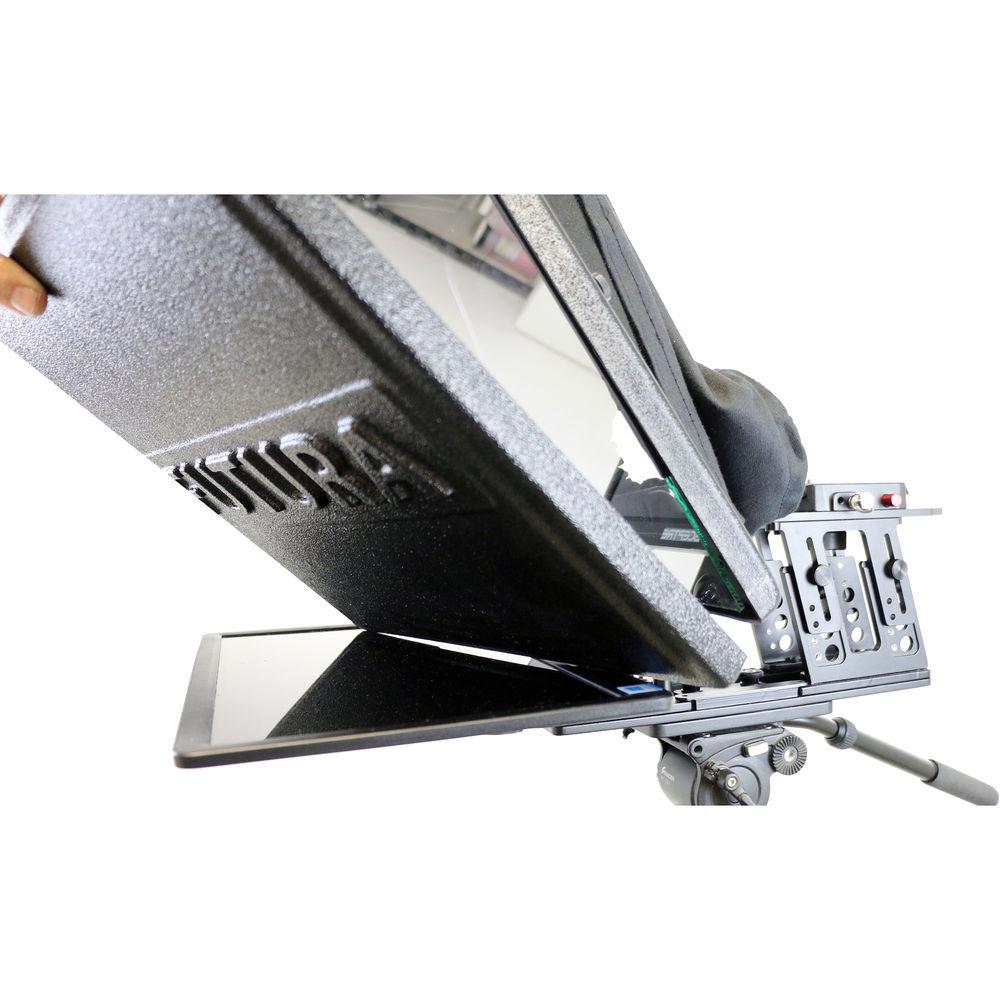

  • The Head Assembly is the home of the Mirror, Mirror Enclosure, monitor, and mounting brackets. The FUTURA uses an optical-grade 70/30 beamsplitter mirror. The Mirror Enclosure features a pin-lock adjustment system that will allow the mirror to fold flat, making it more portable, and with very little effort allow the user to lock the mirror in the desired 45 degrees +/- position.
UPC: 712155733176 In the Box Telmax Futura 15" LCD Teleprompter with 15" LCD Monitor
  • Power Supply
  • 14 x 14", 70/30 Beamsplitter Glass
  • 15" LCD Monitor
  • ZaPrompt Pro Software for Four Computers
  • 25' VGA Cable
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Telmax Futura 15" LCD Teleprompter with 15" LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Telmax TF15 Specs

    Reading Range 20' / 6.1 m
    Beamsplitter Size 14 x 14" / 36 x 36 cm
    Beamsplitter Material Glass
    Size (Diagonal) 15" / 38.1 cm
    Input 1 x HDMI
    1 x VGA
    Supported Operating Systems Windows, Mac
    Material of Construction Aluminum
    Weight 21 lb / 9.5 kg
    Package Weight 17.75 lb
    Box Dimensions (LxWxH) 22.25 x 22.0 x 12.25"
