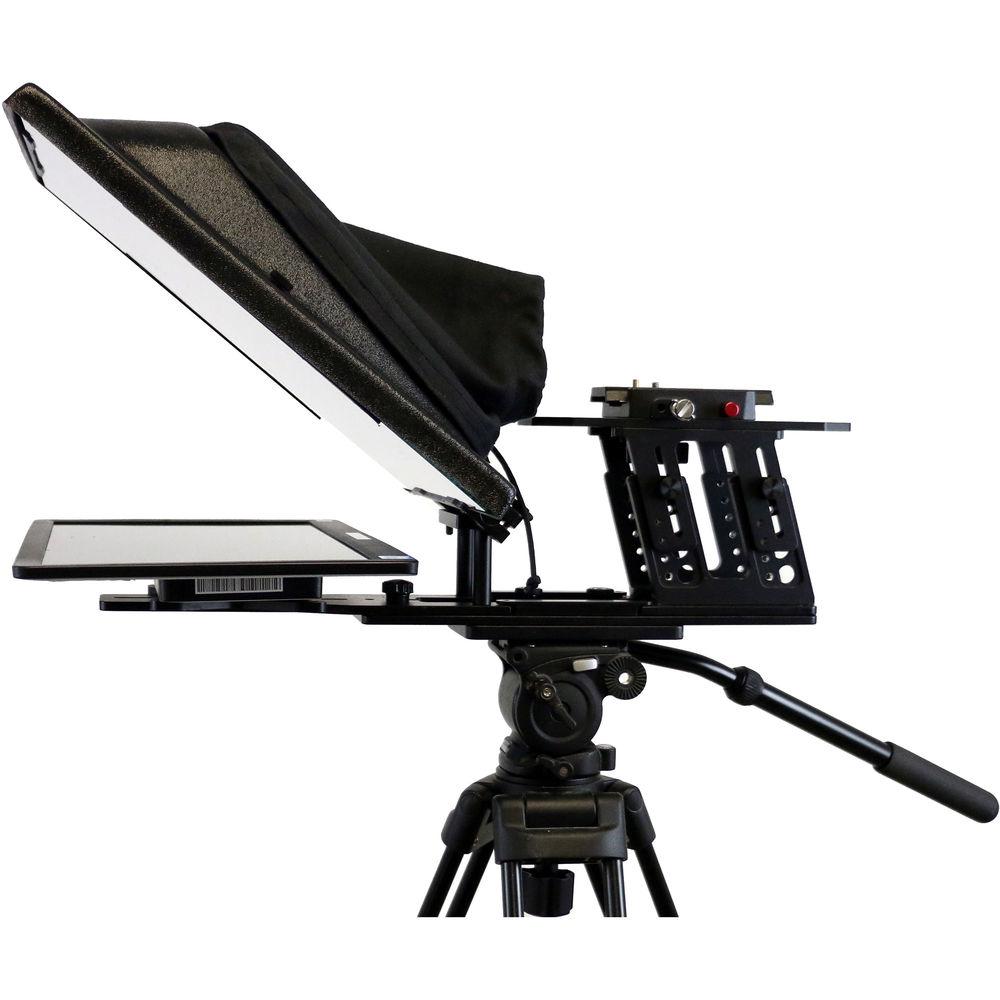

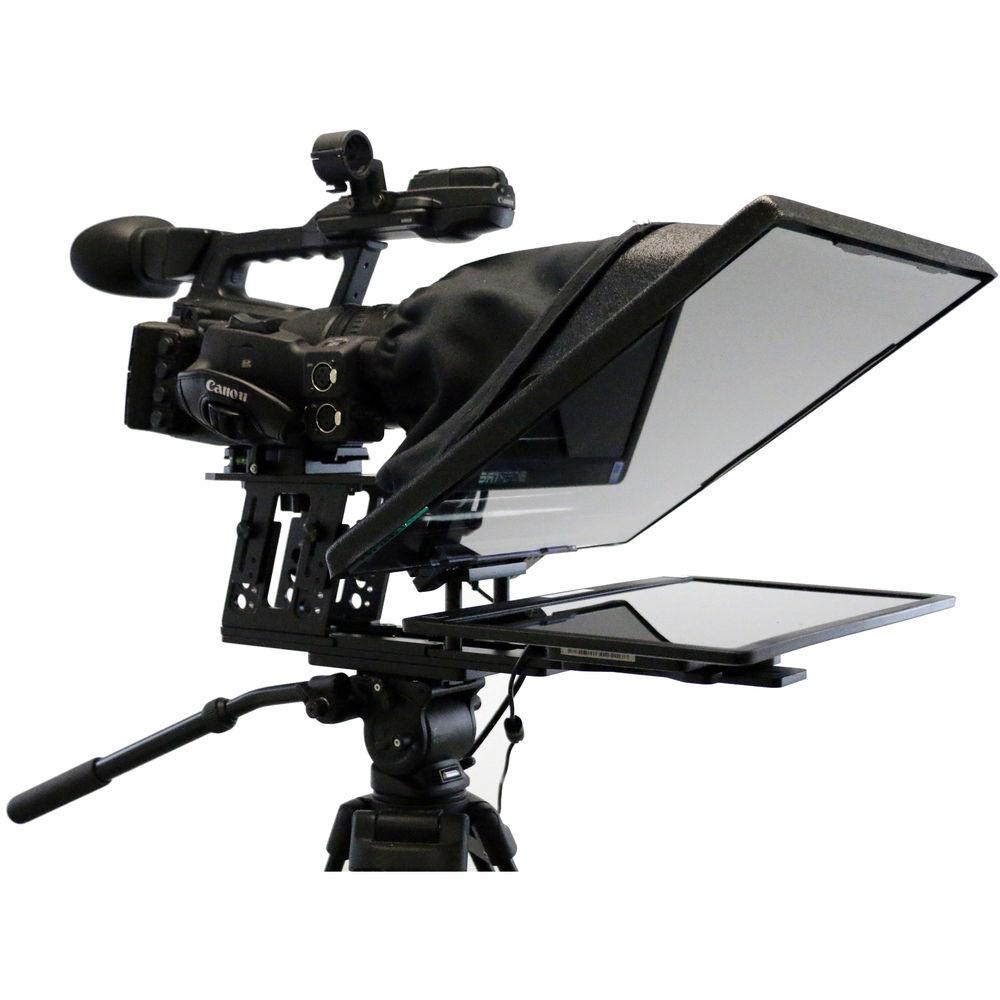

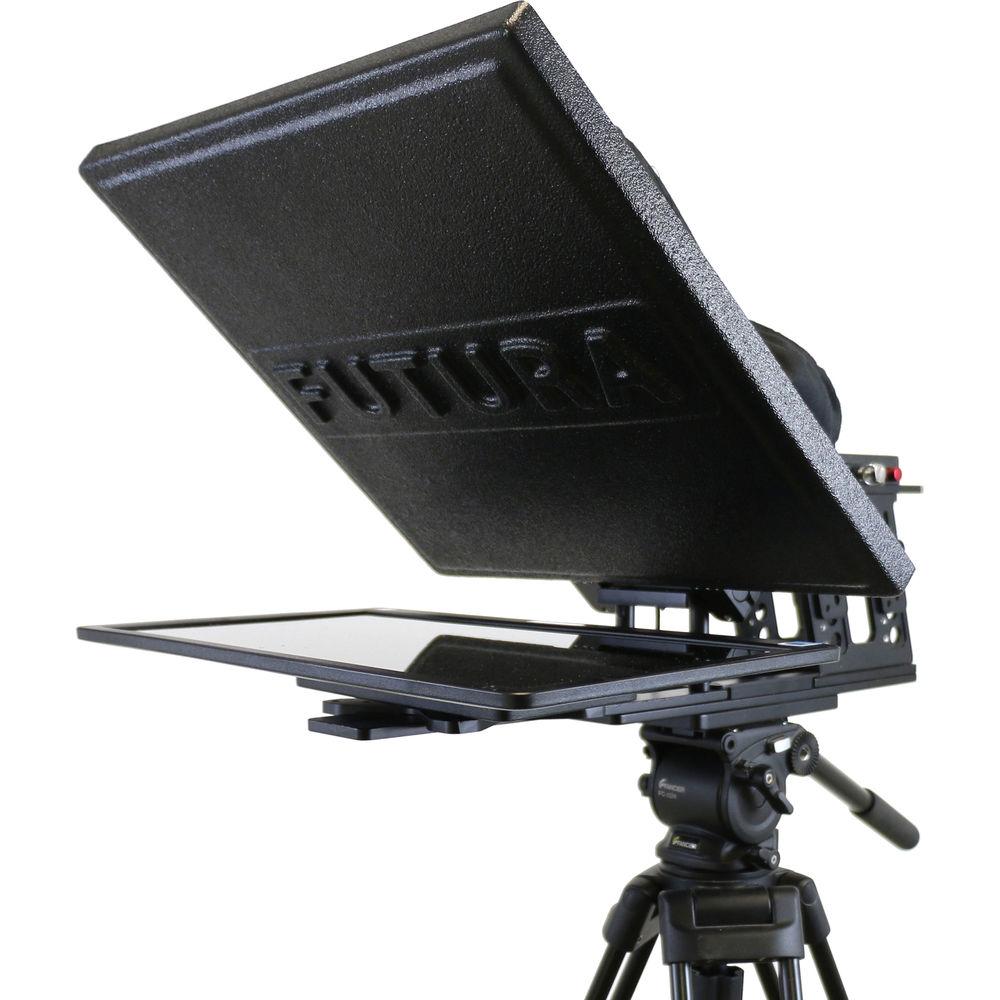

Product description Anatomy of a Teleprompter Read More The Telmax Futura 17" LCD Teleprompter with 17" LCD Monitor features a reading range up to 25', and can support cameras from DSLR to full-sized ENG cameras. The Inclining Vertical Mount (IVM) camera riser provides simple and secure height adjustment that allows you to use a variety of cameras and center them in the mirror. The 70/30 beamsplitter provides good contrast and readability. The monitor accepts a VGA input, and includes a power cord and 25' long VGA cable.

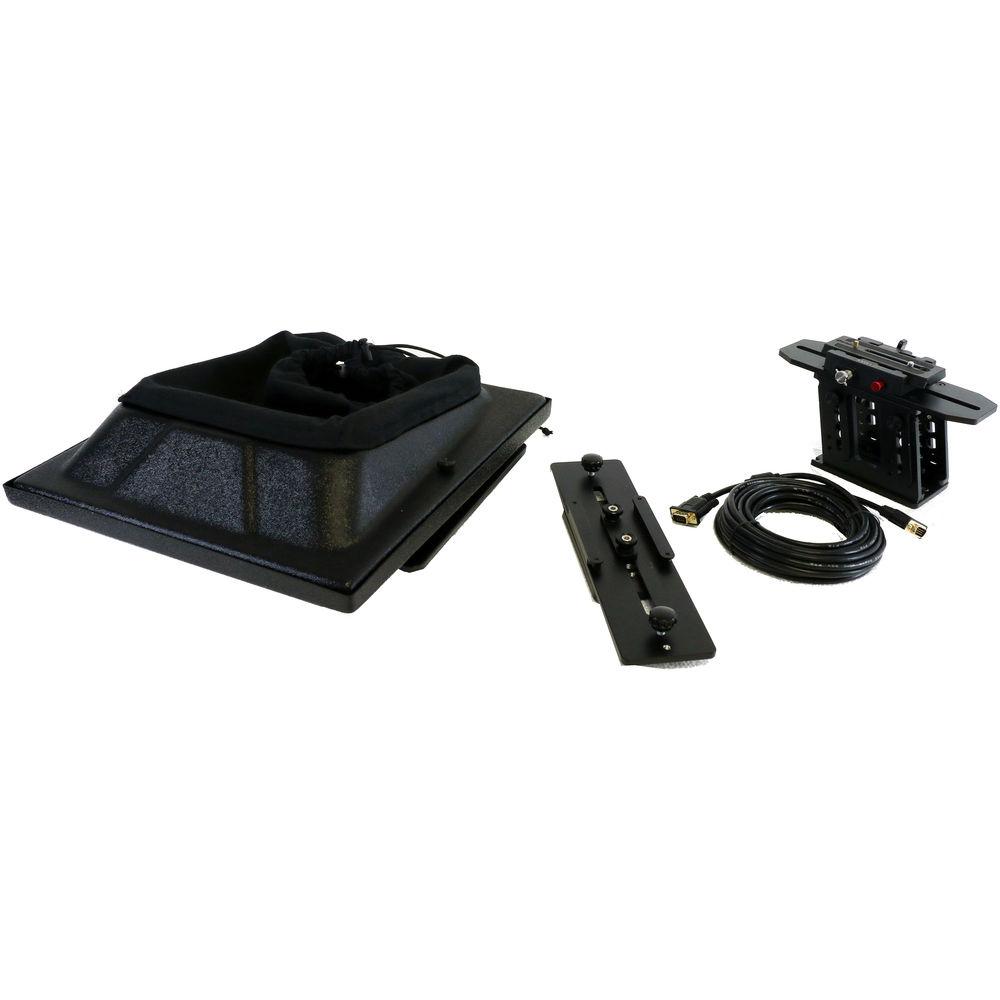

The prompter consists of three components: the baseplate, the head assembly, and the IVM, speeding assembly and breakdown. You can adjust the angle of the beamsplitter glass from completely flat up to approximately 45°, and it is secured using a springless system. A small fabric hood cinches around your lens preventing light from leaking around your lens and flaring your image. A plastic mirror cover protects your collapsed mirror from dust during transport and storage. The included downloadable ZaPrompt software can be loaded on up to four computers and provides the required mirroring functionality. -
- Fits camera bodies and styles from DSLR to full-sized ENG
- Adjustable beamsplitter angle
- Proprietary adjustable camera height adjustment

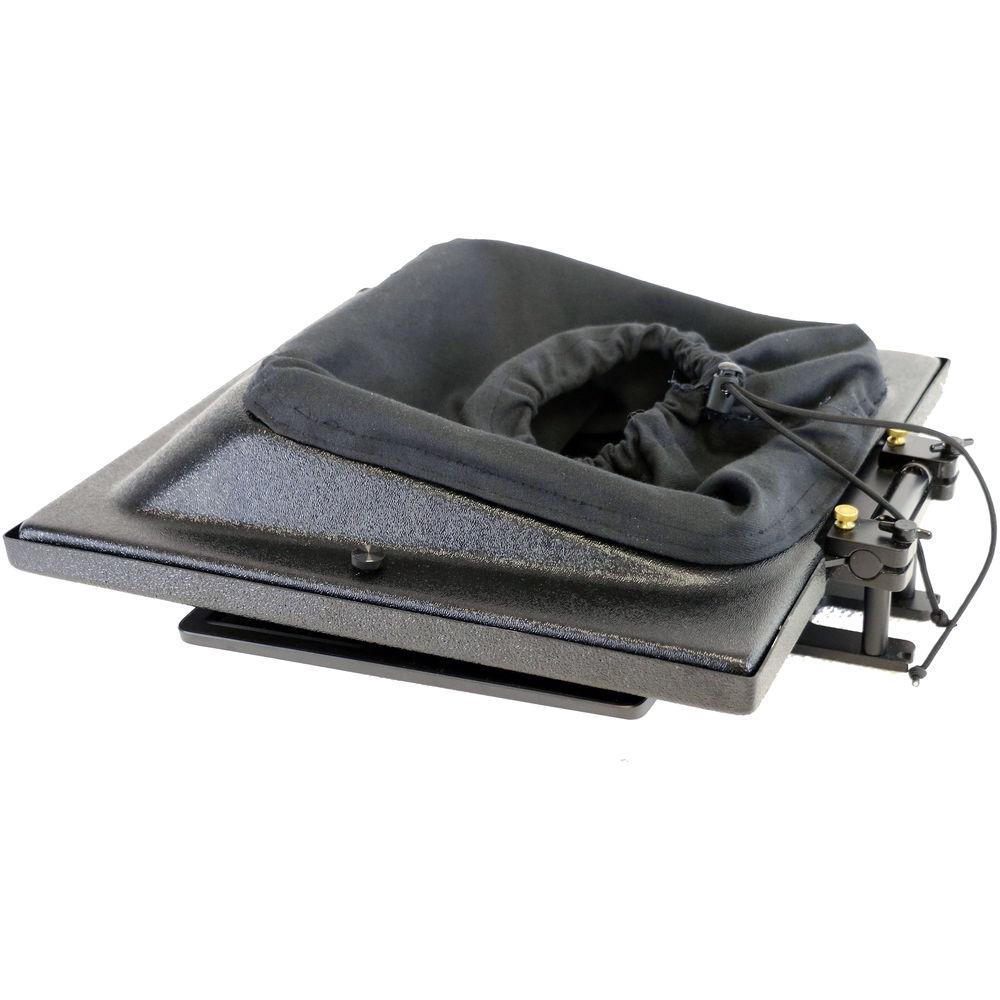

- Folds flat for storage and transporting
- 8" sliding baseplate adjustment
- Readable up to 25'
- Weighs only 22 pounds
- Recommended tripod support weight of 25 pounds
- 14 x 16", 70/30 beamsplitter glass
- Anti-reflection coating on back of glass
- HDMI and VGA input
- 17" LCD
- ABS Plastic mirror cover
- ZaPrompt Pro license for four computers
- IVM (Inclining Vertical Mount)

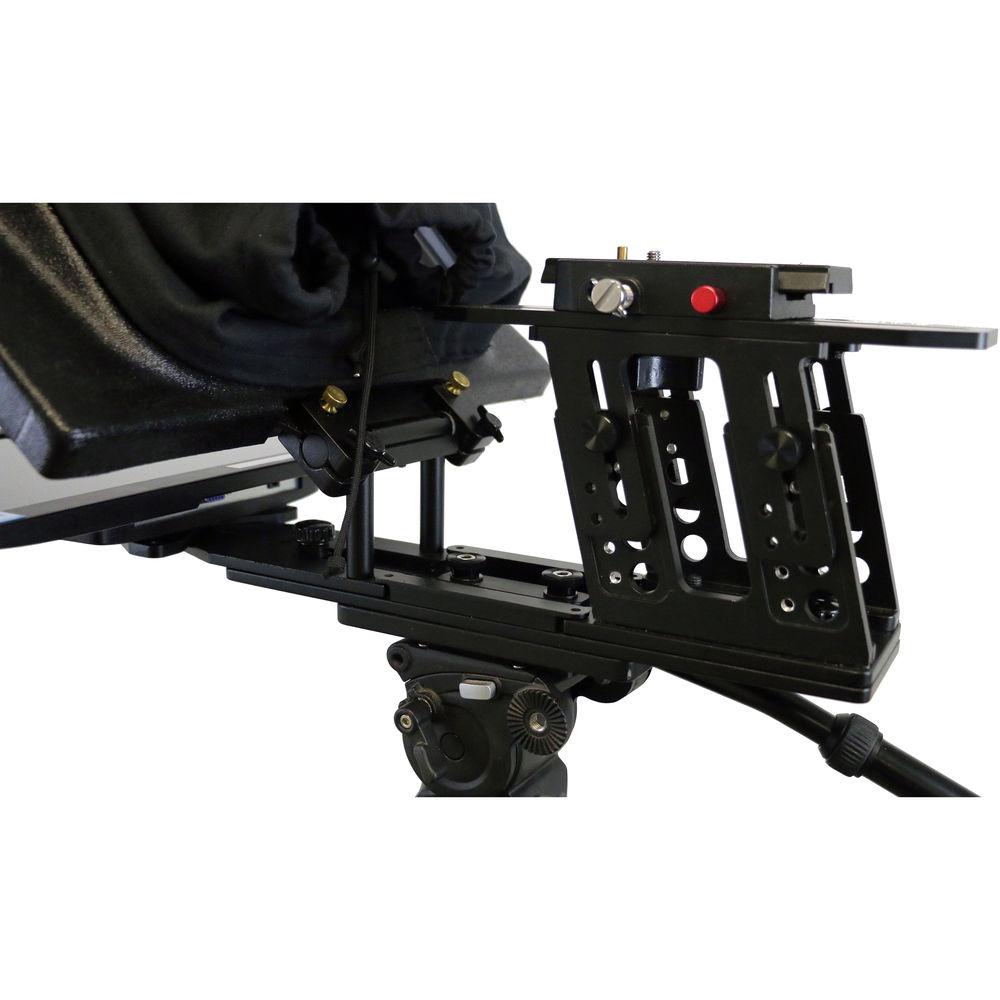

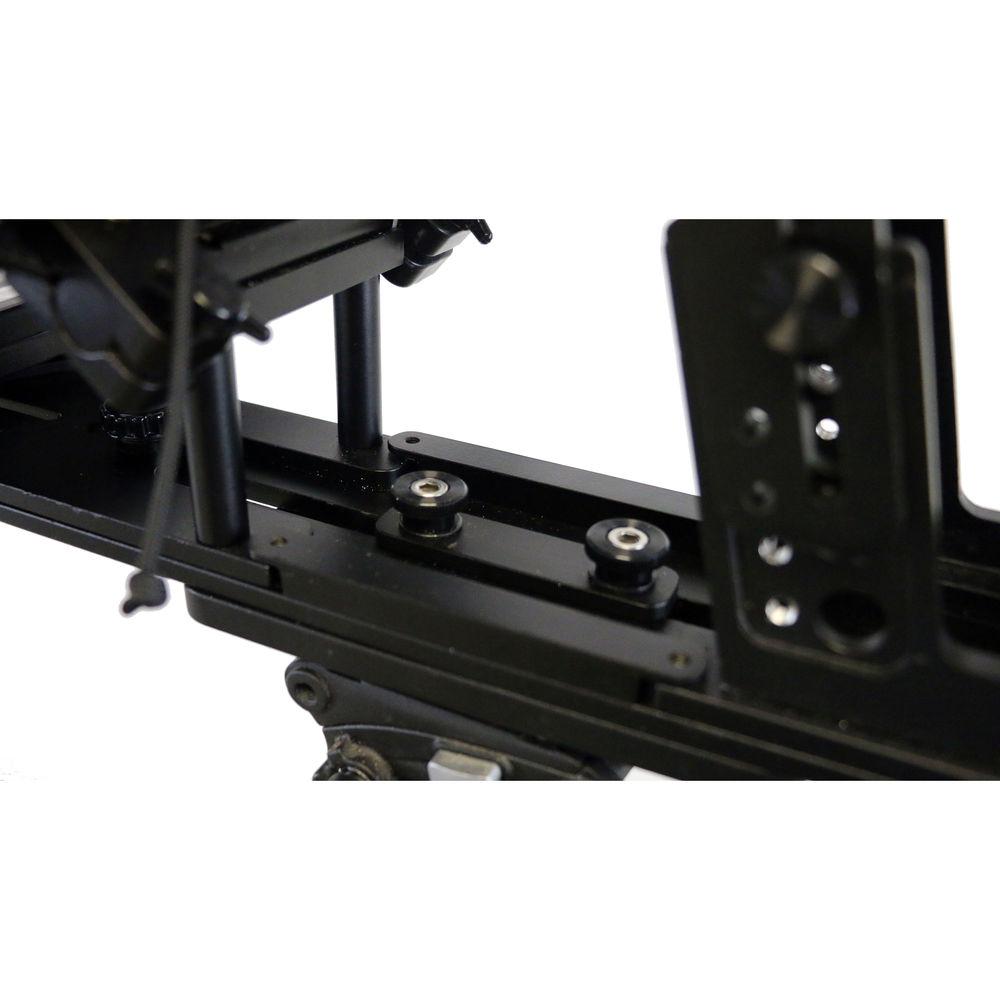

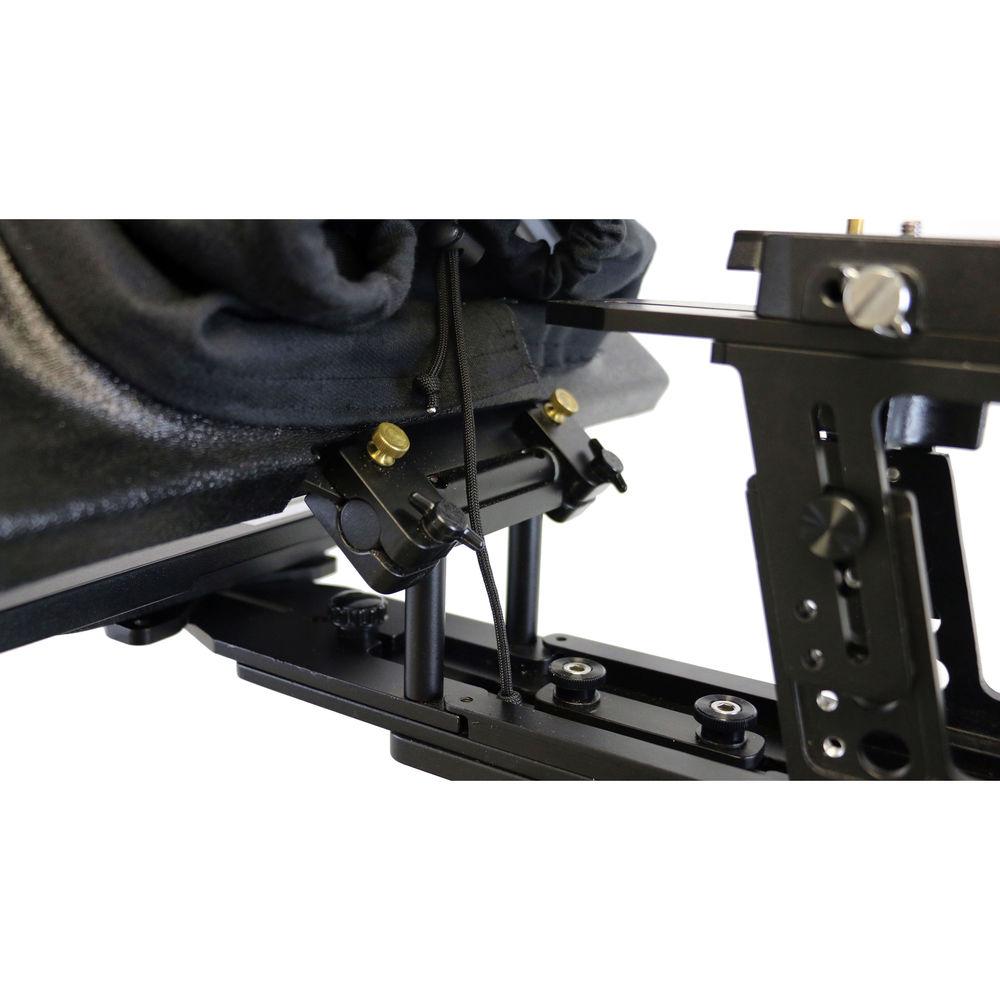

- The IVM (Inclining Vertical Mount) is an adjustable or fixed variable height mount that, like the name indicates, inclines toward the mirror. The reason for the incline is that most cameras get shorter as they get smaller, so as you raise the camera platform the mount gets closer to the mirror. The IVM is held on to the baseplate by a knob, which has two possible configurations. The first configuration is to place the knob in a channel, which makes it easy to remove and re-install. The second configuration is to place the knob in a fixed threaded hole that will not allow the IVM to slip off the baseplate. Using the fixed position holes is preferable over the slipping channels, as it is more secure.
- Head Assembly

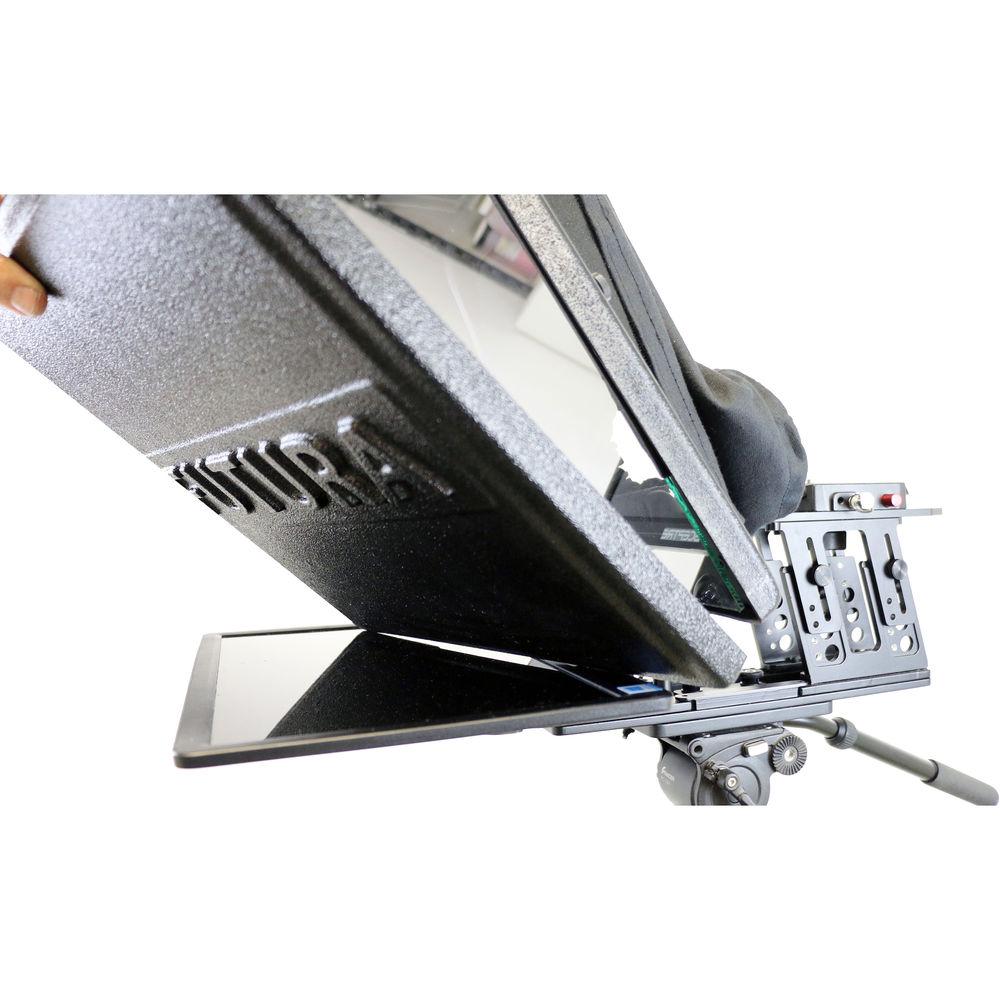

- The Head Assembly is the home of the Mirror, Mirror Enclosure, monitor, and mounting brackets. The FUTURA uses an optical-grade 70/30 beamsplitter mirror. The Mirror Enclosure features a pin-lock adjustment system that will allow the mirror to fold flat, making it more portable, and with very little effort allow the user to lock the mirror in the desired 45 degrees +/- position.
UPC: 712155733183 In the Box Telmax Futura 17" LCD Teleprompter with 17" LCD Monitor Power Supply 14 x 16", 70/30 Beamsplitter Glass 17" LCD Monitor ZaPrompt Pro Software for Four Computers 25' VGA Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telmax Futura 17" LCD Teleprompter with 17" LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelmax TF17 Specs | Reading Range | 25' / 7.6 m | Beamsplitter Size | 14 x 16" / 36 x 41 cm | Beamsplitter Material | Glass | | Size (Diagonal) | 17" / 43.2 cm | Input | 1 x VGA | | Supported Operating Systems | Windows, Mac | | Material of Construction | Aluminum | Weight | 22 lb / 10.0 kg | | Package Weight | 20.95 lb | Box Dimensions (LxWxH) | 22.0 x 22.0 x 12.0" |
