User Manual for Tentacle Sync Sync E Timecode Generator with Bluetooth Click to enlarge the picture
Contents of the user manual for the Tentacle Sync Sync E Timecode Generator
- Product category: Time Code Generators & Readers Tentacle Sync
- Brand: Tentacle Sync
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tentacle Sync Time Code Generators & Readers
 |
User manual for the Tentacle Sync Sync E Timecode Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tentacle Sync product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tentacle Sync user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tentacle Sync product will considerably shorten its lifespan!
|

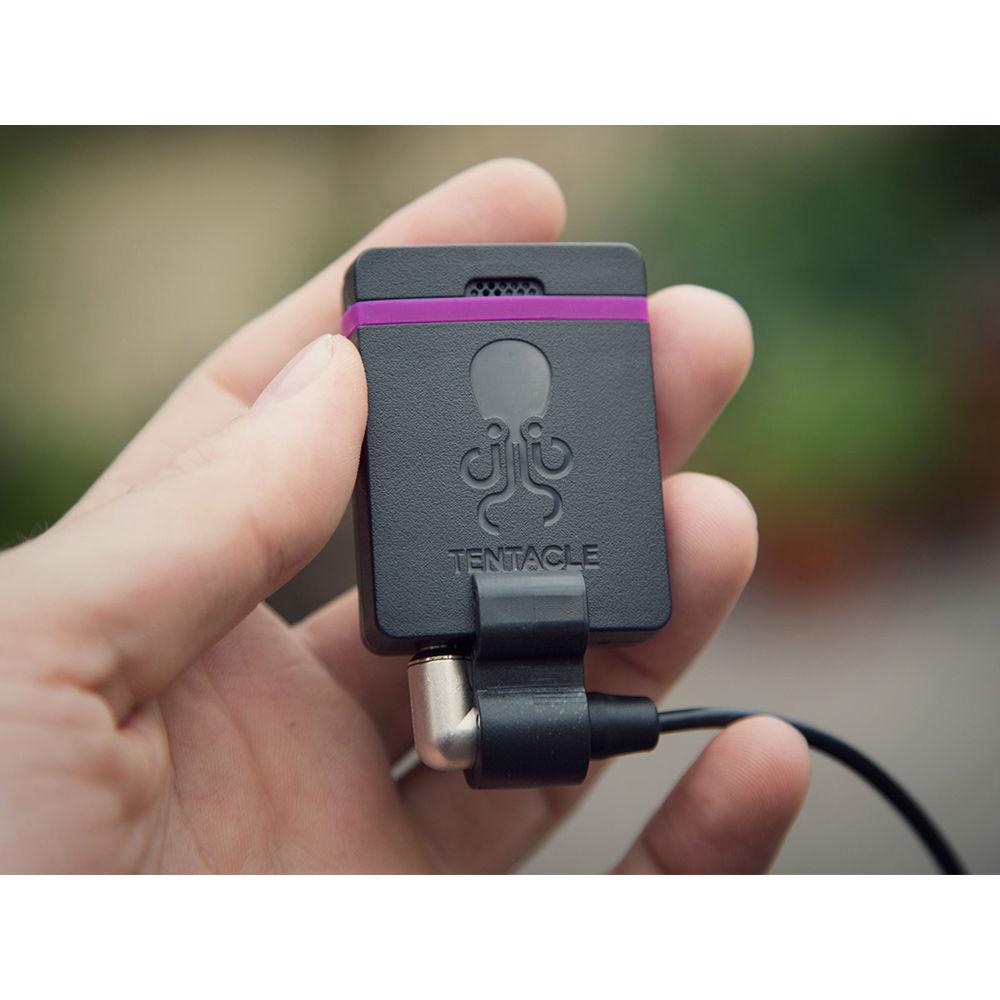

Product description The compact, lightweight Tentacle Sync E Single Set includes two timecode generators, and two downloadable Tentacle Sync Studio software license (macOS). This successor to the Tentacle Sync features Bluetooth setup and monitoring, enabling you to easily view frame-accurate readings on your iOS or Android smartphone device. Use this updatable generator to extend Bluetooth-broadcast timecode to virtually any mobile device. The Sync E also features a locking clamp for its 3.5mm cable, ensuring compatibility with a wide array of devices without the need for an adapter.The Tentacle E functions as a master clock, or to jam-sync to an external timecode source. Compatible with pro equipment, the Tentacle outputs SMPTE-12M-standard LTC timecode and supports all SMPTE TC rates. The Tentacle E's integrated, high-quality mic enables you to record both timecode and ambient sound simultaneously.Each Tentacle E TC generator is powered by a built-in LiPo battery with a runtime lasting up to 35 hours. The battery charges via the unit's USB Type-C interface. A handy industrial-strength hook-and-loop surface is built into the back side of each box for secure mounting to your rig. -
- Timecode generator functions as a master clock or can jam-sync devices when used with an external timecode source

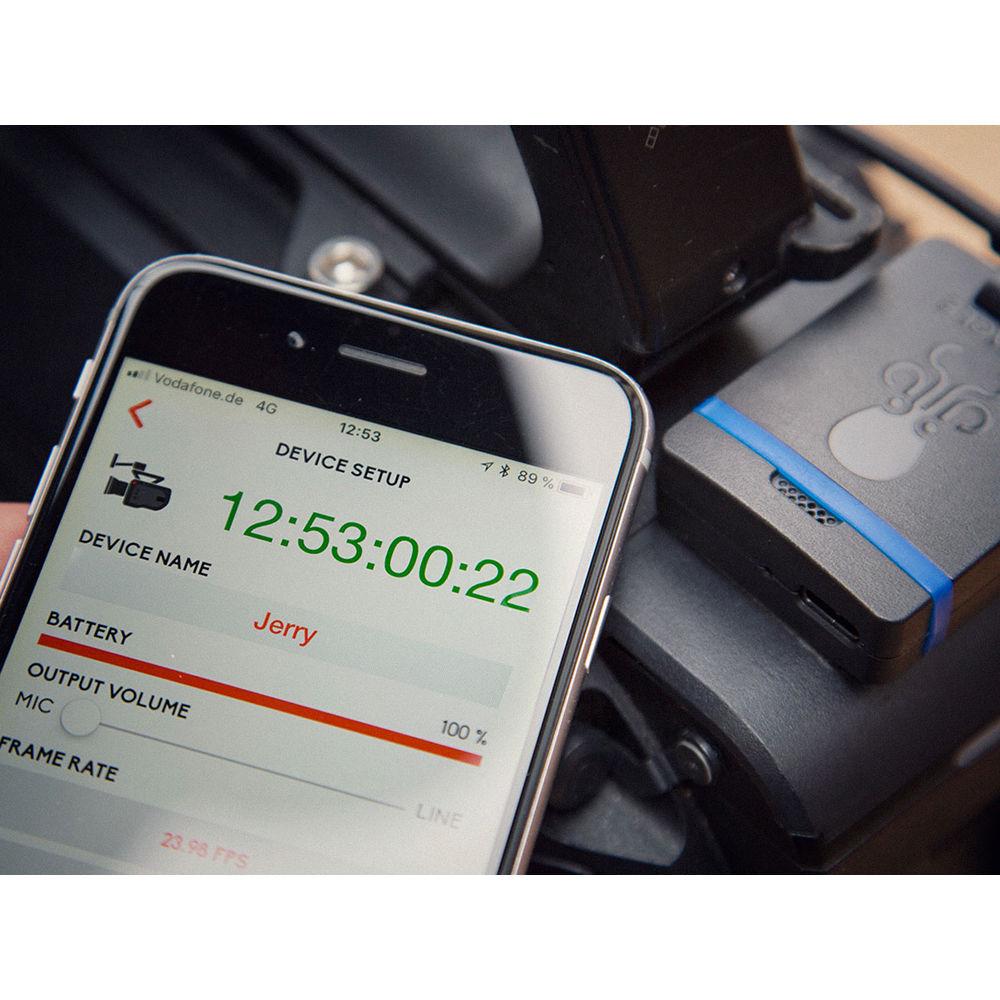

- Bluetooth connectivity for cable-free setup and monitoring, iOS and Android–compatible
- Includes two Tentacle Sync Studio Software licenses
- Supports SMPTE 23.98/24/25/29.97/29.97DF/30 fps TC rates in 12M-standard
- Connects via 3.5mm mic jack; includes a locking clamp
- Integrated LiPo battery lasts up to 35 hours
- Highly accurate with <1 frame/day drift
- Built-in hook-and-loop surface on the unit's back for attaching to your rig

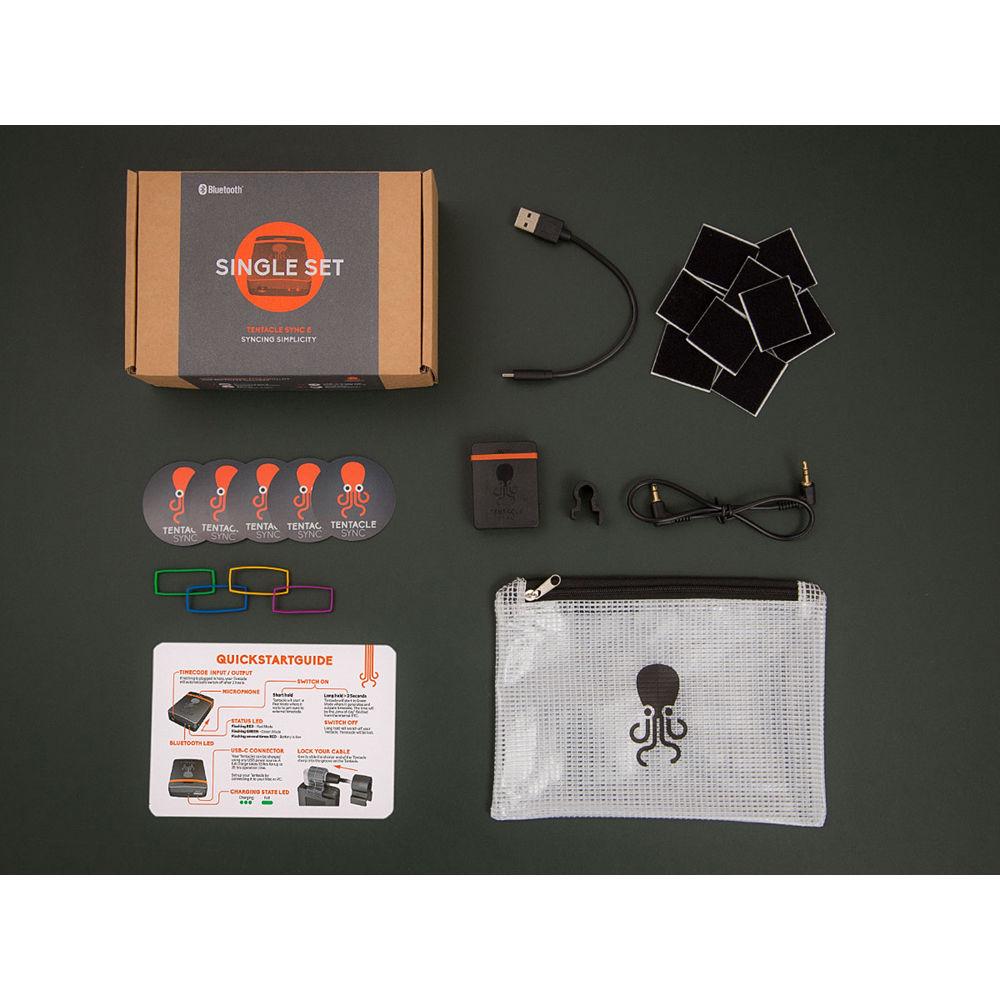

In the Box Tentacle Sync Sync E Timecode Generator with Bluetooth (Dual Set) 2 x Tentacle Sync Studio Licenses 2 x 3.5mm Mini Jack Cables (Right Angle) 2 x USB Type-C Cables 2 x Cable Clamps 10 x Hook-and-Loop Pads 4 x Colored Rubber Bands Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tentacle Sync Sync E Timecode Generator with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTentacle Sync TE2 Specs | Smartphone Apps | iOS, Android | | Timecode Support | LTC timecode, SMPTE-12M standard | | Drift | <1 frame> | | SMPTE Timecode Rates | 23.98/24/25/29.97/29.97DF/30 fps | | Timecode Input & Output | 3.5 mm mic jack | | Audio | Built-in reference mic | | Power | Built-In Battery: Lithium-ion polymer (LiPo)
Operating Time: Up to 35 hours
Fast Charging via USB Type-C: 1.5 hours (maximum) | | Operating temperature | -22 to 185°F (-30 to 85°C) | | Dimensions | 1.5 x 2 x 0.6" (38 x 50 x 15 mm) | | Weight | 1.1 oz (30 g) | | | | Package Weight | 0.52 lb | | Box Dimensions (LxWxH) | 6.75 x 4.55 x 2.5" |
