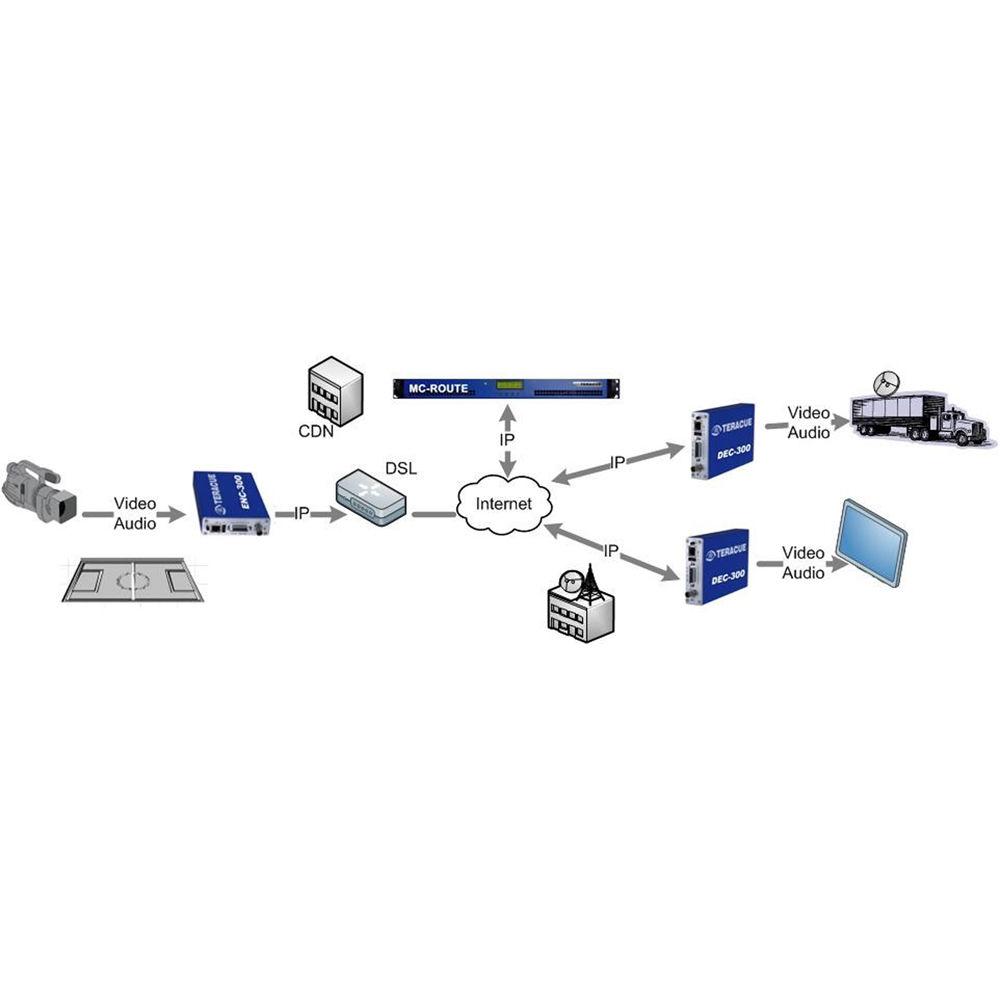

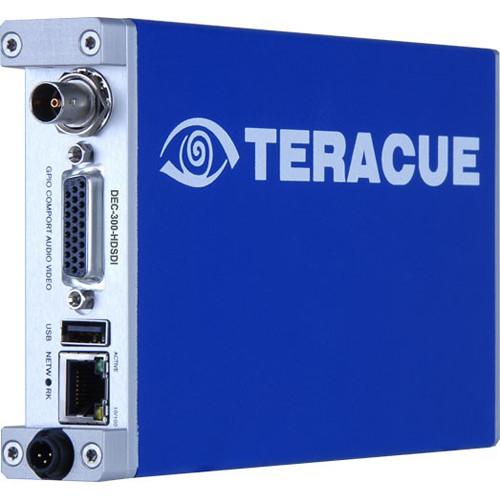

Product description The DEC-300 H.264/MPEG-2 HD/SD Decoder Blade from Teracue is a compact H.264 and MPEG-2 HD/SD video and audio stream receiver and IPTV decoder. It is designed for network IP video system integration. As an output decoder device for streaming media, it provides easy access to DVB IP and IPTV streams on HD-SDI and analog video outputs. The decoder can be installed inside the optional FR-2000-24 (4 RU) or FR-610 (1 RU) multichannel racks - Real-time hardware HD/SD device
- H.264 and MPEG-2 HD/SD decoder
- Forward error correction Pro-MPEG FEC
- Talkback for audio conferencing
- Export and import of presets
- UDP and TCP (error correction) streaming
- Extended temperature range

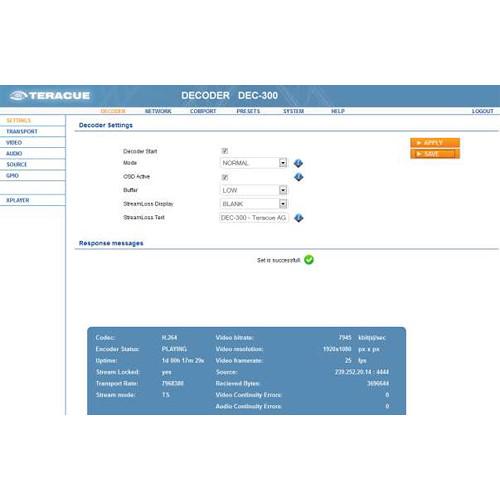

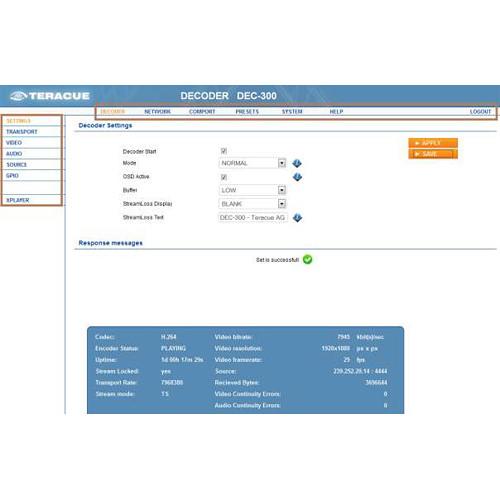

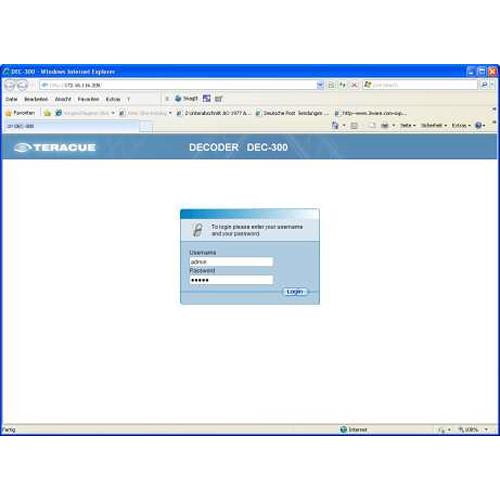

- Intuitive graphical user interface can be accessed on a standard web browser from any PC on a network
- Remote network configuration is also supported over SNMP by Telnet and by control over the local COM port
- Different types of DEC decoder blades, ENC encoder blades, and DVB/IP video gateways can be mixed and matched inside the FR-frame series
- Applications
-
- Broadcast and CDN IP contribution
- Wireless and mobile streaming
- Digital signage streaming
- IPTV/OTT streaming
- Medical and campus TV
- Telemedicine
- Security monitoring
- Stadium and event TV
- Training and research
- Video monitoring
- Control rooms and command centers
In the Box Teracue DEC-300 H.264/MPEG-2 HD/SD Decoder Blade with Embedded Audio & Analog A/V Out Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teracue DEC-300 H.264 MPEG-2 HD SD Decoder Blade with Embedded Audio & Analog A V Out in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeracue DEC-300 Specs | Standards | 1080p 25/30
1080i 50/60
720p 50/60

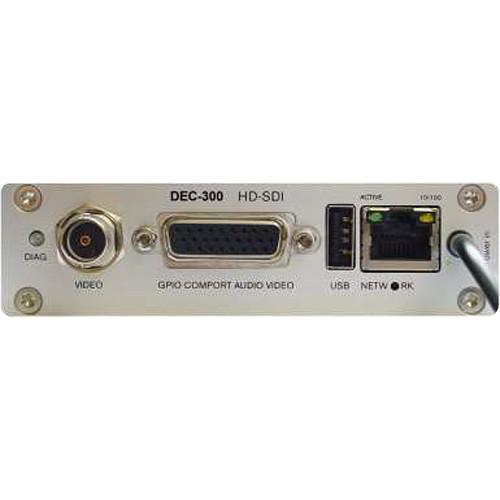

PAL, NTSC | | Video Inputs | HD-SDI Output: 0.8 Vpp, 75 Ohms (BNC, embedded audio support) | | Outputs | Breakout Cable Outputs:
Composite
S-Video
Component | | Video Resolutions | Full D1: 720 x 480/576 (H x V)
Half-D1: 352 x 480/576 (H x V)
CIF/SIF: 360/384 x 288/240 (H x V)
QCIF: 176 x 144/120 (H x V)
1080p 25/30
1080i 50/60
720p 50/60 | | Audio Outputs | Unbalanced analog stereo, consumer line level | | Audio Inputs | Talkback: Analog stereo, consumer line and mic level | | Video Codecs | MPEG-2 (ISO/IEC 13818-2)
Main profile at main level (MP at ML), 4:2:0
High profile at main level (HP at ML), 4:2:0
MPEG-4 AVC/H.264 (ISO/IEC 14496-10)
Main profile at level 3.1 (MP at L3)
Baseline profile at level 3.1 (BP at L3), 4:2.0
High profile at level 4 (HP at L4) | | Stream Type | Elementary A/V | | Audio Codecs | MPEG-1 Audio Layer 1, 2 (ISO/IEC 11172-3 layer 1, 2)
MPEG-4 AAC LC (ISO/IEC 14496-3) | | Network | 10/100TX Ethernet, RJ45, half/full duplex, auto-sensing | | Traffic Control | Streaming Traffic: Unicast and multicast traffic supported, TCP, RTP | | Protocols | IP Protocols: HTTP (web browser), TCP/IP control protocol, UDP/TCP streaming, IGMPv2, SNMP, DHCP | | Error Correction | Pro-MPEG FEC (forward error correction) and TCP | | Control Ports | RS-232 connection via console (remote control for non-IP devices via TCP/IP RS-232/422 command tunneling) | | GPI In/Out | 1/1, isolated | | USB Port | Yes | | Management | Web browser, SNMP, Telnet, and RS-232 (software updates via web browser)
Fault measurement with log generation, authorization via user password, RTC (Real Time Clock) support | | Agency Approvals | CE, RoHS compliant
Conforms to IEC 60297-3/-4 | | Humidity | Up to 90%, non-condensing | | Temperature | -13 to 113°F / -25 to 45°C | | Power | 5 VDC ±10% / 8 W | | Dimensions (H x W x D) | 0.7 x 5.1 x 7.4" / 2.0 x 13.0 x 19.0 cm
Europe Card (3HE): 6.2 x 3.9" / 16.0 x 10.0 cm | | Weight | 4.5 oz / 130 g | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
