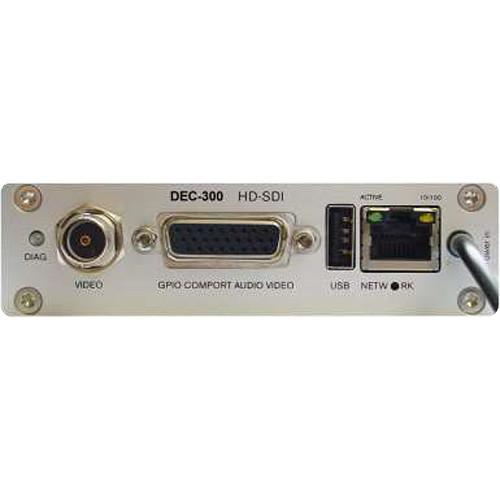

User Manual for Teracue DEC-300 H.264 MPEG-2 HD SD Portable Decoder with Embedded Audio Click to enlarge the picture
Contents of the user manual for the Teracue DEC-300 H.264 MPEG-2 HD SD
- Product category: Signal Converters Teracue
- Brand: Teracue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teracue Signal Converters
 |
User manual for the Teracue DEC-300 H.264 MPEG-2 HD SD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teracue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teracue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teracue product will considerably shorten its lifespan!
|

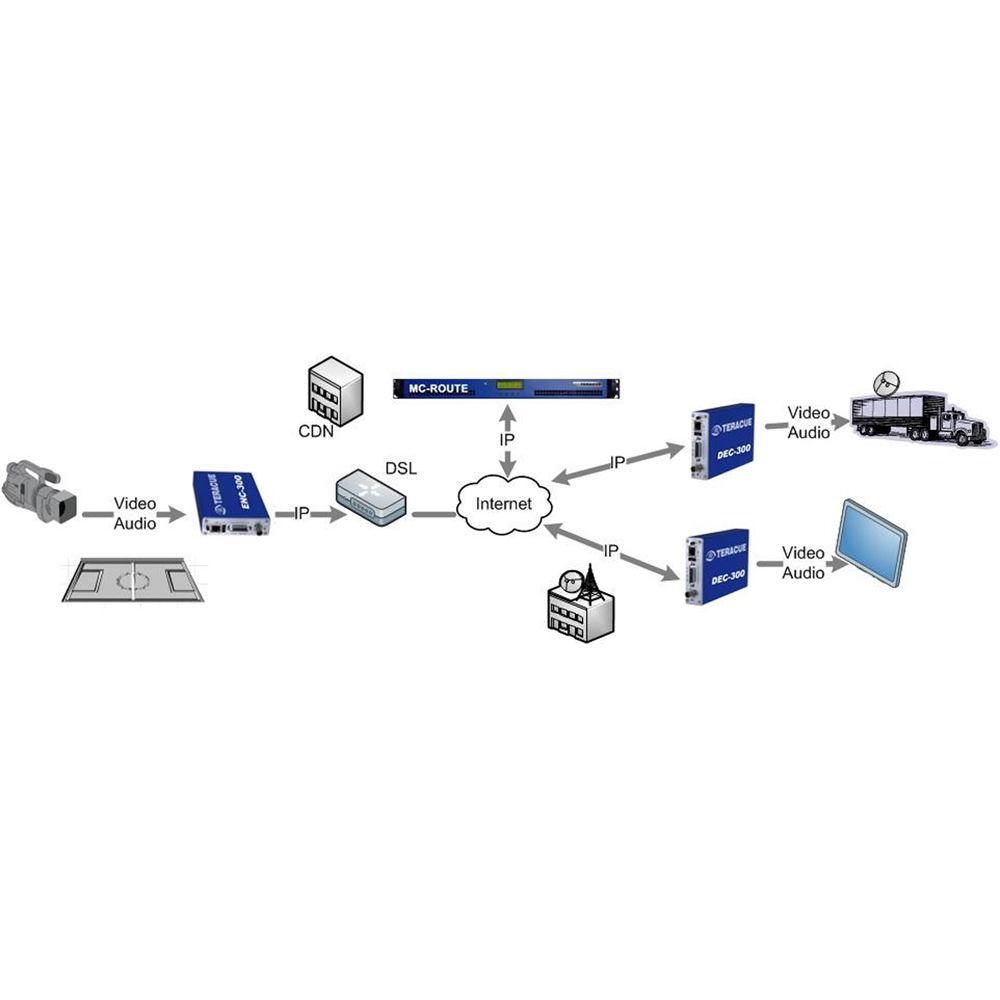

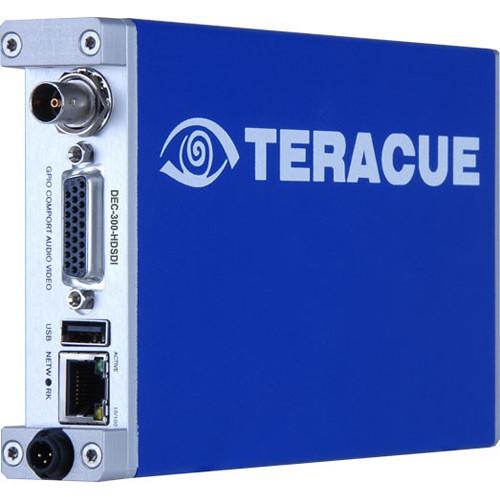

Product description The DEC-300 H.264/MPEG-2 HD/SD Portable Decoder from Teracue is a compact H.264 SD/HD and MPEG-2 SD/HD video/audio stream receiver and IPTV decoder. The decoder is designed for network IP video system integration. As an output decoder device for streaming media, it provides easy access to DVB IP and IPTV streams on HD-SDI and analog video outputs. In addition, the decoder comes with a power supply. - Key Features
-
- Real-time hardware HD/SD device
- Fanless design
- H.264 and MPEG-2 HD/SD decoder
- Forward error correction (Pro-MPEG FEC)
- Low-delay support
- Talkback for audioconferencing
- Export and import of presets
- UDP and TCP (error correction) streaming
- Low power consumption
- Extended temperature range

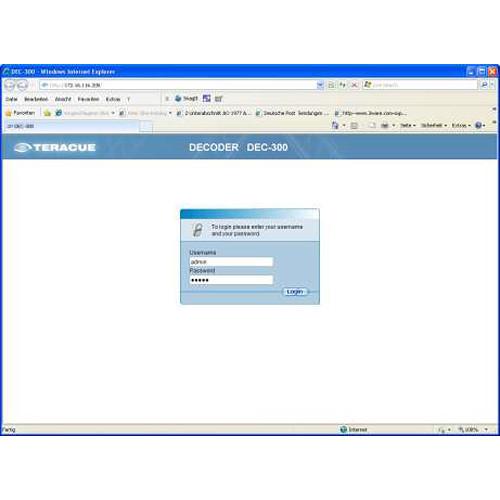

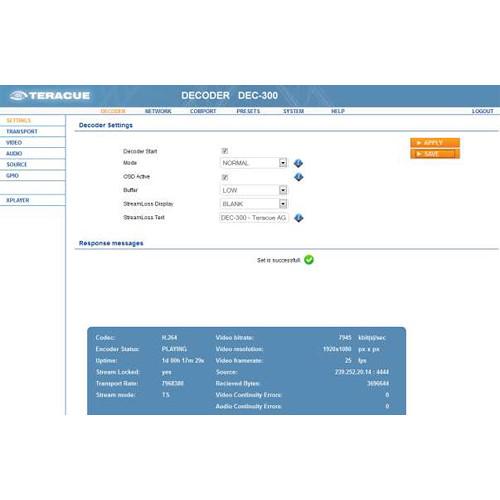

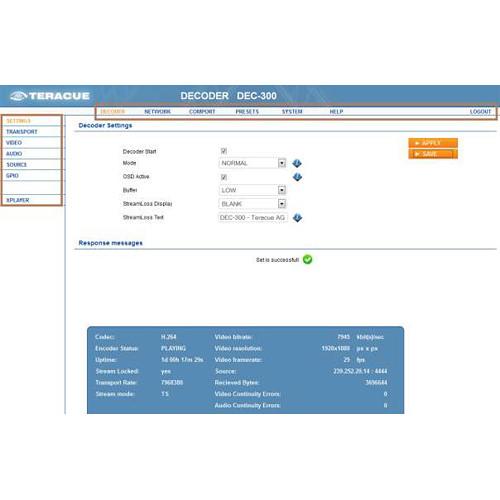

- Intuitive graphical user interface can be accessed on a web browser from any PC on a network
- Remote network configuration is supported over SNMP by Telnet and by control over the local COM port
- Applications
-
- Broadcast and CDN IP contribution
- Wireless and mobile streaming
- Digital signage streaming
- IPTV/OTT streaming
- Medical and campus TV
- Telemedicine
- Security monitoring
- Stadium and event TV
- Training and research
- Video monitoring
- Control rooms and command centers
In the Box Teracue DEC-300 H.264/MPEG-2 HD/SD Portable Decoder with Embedded Audio Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teracue DEC-300 H.264 MPEG-2 HD SD Portable Decoder with Embedded Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeracue DEC-300 Specs | Standards | PAL, NTSC | | Video Inputs | HD-SDI Output: 0.8 Vpp, 75 Ohms (BNC, embedded audio support) | | Outputs | Breakout Cable Outputs: Composite, S-Video, component | | Video Resolutions | Full D1: 720 x 480/576 (H x V)
Half D1: 352 x 480/576 (H x V)
CIF/SIF: 360/384 x 288/240 (H x V)
QCIF: 176 x 144/120 (H x V)
1080p 25/30
1080i 50/60
720p 50/60 | | Audio Outputs | Unbalanced analog stereo, consumer line level | | Audio Inputs | Talkback: Analog stereo, consumer line/mic level | | Video Codecs | MPEG-2 (ISO/IEC 13818-2), Main Profile at Main Level (MP at ML), 4:2:0; High Profile at Main Level (HP at ML), 4:2:0
MPEG-4 AVC/H.264 (ISO/IEC 14496-10), Main Profile at Level 3.1 (MP at L3); Baseline Profile at Level 3.1 (BP at L3), 4:2.0; High Profile at Level 4 (HP at L4) | | Stream Type | Elementary A/V | | Audio Codecs | MPEG-1 Audio Layer 1, 2 (ISO/IEC 11172-3 Layer 1, 2)
MPEG-4 AAC LC (ISO/IEC 14496-3) | | Network | 10/100TX Ethernet, RJ45, half/full duplex, auto-sensing | | Traffic Control | Streaming Traffic: Unicast and multicast traffic supported, TCP, RTP | | Protocols | IP Protocols: HTTP (web browser), TCP/IP control protocol, UDP/TCP streaming, IGMPv2, SNMP, DHCP | | Error Correction | Pro-MPEG FEC (forward error correction) and TCP | | Control Ports | RS-232 connection via console (remote control for non-IP devices via TCP/IP RS-232/422 command tunneling) | | GPI In/Out | 1/1, isolated | | USB Port | Yes | | Management | SNMP, Telnet and RS-232
Software updates via web browser
Fault measurement with log generation, authorization via user password, RTC (Real-Time Clock) support | | Agency Approvals | CE, RoHS compliant
Conforms to IEC60297-3/-4 | | Humidity | Up to 90%, non-condensing | | Temperature | -13 to 113°F / -25 to 45°C | | Power | 5 VDC, ±10% | | Dimensions (H x W x D) | 1.1 x 4 x 7.5" / 2.8 x 10.4 x 19.2 cm | | Weight | 24.6 oz / 700 g |
