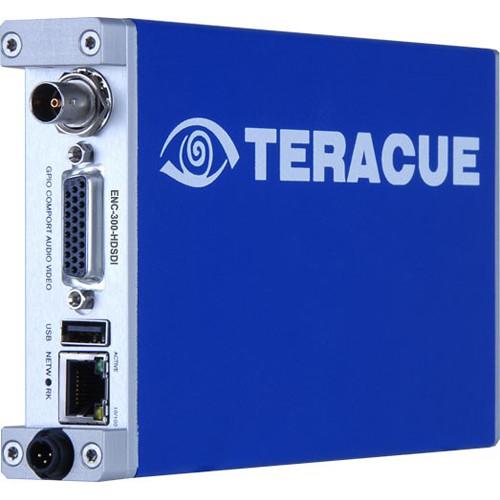

Product description The ENC-300-HDSDI MPEG-4 AVC H.264 SD/HD Encoding Blade from Teracue is a compact H.264 HD/SD video encoding and live streaming blade designed for applications where single TV channels, camera signals, or monitoring feeds are distributed or published on a network or the Internet. It provides real-time compression of video and audio inputs. The encoder creates and transmits video streams inside LAN and intranet networks. You can input video/audio signals on the ENC encoder and view these streams directly via network on PCs, TVs, or other display devices.
The encoder incorporates low-latency signal compression, creating video streams in HD or SD resolution. To access the intuitive graphical user interface, use your web browser from any PC on the network; no special or additional tools are required. The remote network configuration is also supported over SNMP, by Telnet, and by control over the local COM port. Furthermore, the ENC-300-HDSDI supports talkback, allowing for audioconferencing and communication between encoder standpoint and viewer. Talkback to ENC encoders is supported by PCs. - Key Features
-
- Transmission of multicast and unicast streams
- Supports H.264 SD/HD
- Supports AAC-LC
- Supports UDP and RTP transport streaming (TS)
- Supports SNMP and RS-232/RS-422
- Talkback for audioconferencing
- Configuration by web interface
- Direct and real-time encoding of HD/SD-SDI, composite, component, S-Video, and analog RGB/VGA signals
- SDI and component resolution up to 1080i60 and 1080p30
- RGB/VGA resolution up to 1280 x 1024 at 60 Hz
- Adjustable frame rate
- Low-latency compression technology
- Supports 3G-SDI
- IPTV streams fully ISO/IEC compliant
In the Box Teracue ENC-300-HDSDI MPEG-4 AVC H.264 SD/HD Encoding Blade Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teracue ENC-300-HDSDI MPEG-4 AVC H.264 SD HD Encoding Blade in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeracue ENC-300 Specs | Standards | PAL, NTSC | | Video Input | 1 x BNC, 3G/HD/SD-SDI
0.8 Vpp, 75 Ohms
Embedded audio support
SMPTE 259M, SMPTE 292M, SMPTE 424M | | Breakout Cable Connectors | Composite: 1 Vpp, 75 Ohms
S-Video: 1 Vpp (Y), 0.3 Vpp (C-Pal), 0,286 Vpp (C-NTSC), 75 Ohms
Component: 1 Vpp (Y), 0.7 Vpp (PbPr), 75 Ohms
VGA (RGB): 0.7 Vpp, 75 Ohms (Sync: 0.3 Vpp) | | Video Encoding | H.264 (MPEG-4 AVC Part 10; ISO/IEC 14496-10)
Bit Rates: 250 Kb/s to 10 Mb/s, CBR/VBR, low-latency support | | Video Resolutions | 1920 x 1080p 30/29.97/25
1920 x 1080i 60/59.94/50
1280 x 720p 60/59.94/5030/29.97/25
720 x 576i 60/59.94/50
720 x 480i 60/59.94/50 | | VGA Resolution | 1280 x 1024 60 Hz
1024 x 768 60 Hz
800 x 600 60 Hz
Frame rates can be reduced with the adjustable frame rate divider | | Audio Inputs | 1 x Stereo, unbalanced, AC-coupled
Audio Nominal Level: -10 dBV (0,316 Vrms)
Maximum Level: 2 Vpp
Microphone Nominal Level: -60 dBV (1 mVrms), gain control for mic and line input
Minimum Load Resistance: 20 kOhms
SDI-embedded audio, 2-channel (SMPTE 272M, SMPTE 299M) | | Audio Encoding | MPEG-4 AAC LC (ISO/IEC 14496-3) | | Supported Sample Rate | 48 kHz, 16-bit sample rate, 16 to 576 kb data rate | | Audio Outputs | 1 x Stereo, unbalanced, AC-coupled
Output gain adjustment from -78 (off) to 9 dB
Talkback: 16-bit stereo, PCM
Sample Rate: 48 kHz | | Multiplex Operation | ISO/IEC 13818-1 transport
ISO/IEC 14496-10 NAL (Network Abstraction Layer)
Stream Types: Transport stream, Elementary A/V stream | | Network | 10/100TX Ethernet, RJ45, half/full duplex, auto-sensing or manual control | | Streaming | Unicast and multicast traffic supported | | IP | HTTP, TCP/IP control protocol, UDP/IP streaming, RTP, IGMPv2, SAPv2, unicast/multicast, SNMPv2, DHCP | | USB | 1 x USB 2.0 Type-A (blade connector), high-speed
1 x USB 2.0 Type-A (onboard connector), high-speed | | Port | RS-232/RS-422: Connection via console (remote control for non-IP devices via TCP/IP serial command tunneling)
GPIO:
1 x Input, isolated, TTL 4 mA
1 x Output, isolated, TTL 20 mA | | Management | Software updates via web browser
Fault measurement with log file generation, authorization via user password, RTC (Real-Time Clock) support | | Agency Approvals | CE, RoHS, EN 55103-1, EN 55103-2, EN 55022 | | Humidity | Up to 90%, non-condensing | | Temperature | 32 to 95°F / 0 to 35°C | | Power | 5 VDC ±5% / 9 W per blade | | Dimensions | 0.7 x 5.1 x 7.5" / 2.0 x 13.0 x 19.0 cm | | Weight | 5.64 oz / 160 g |
