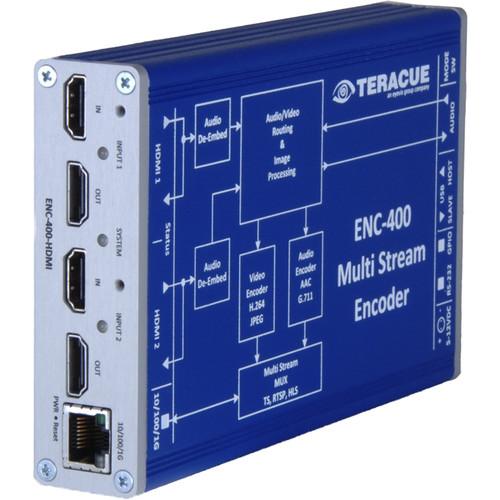

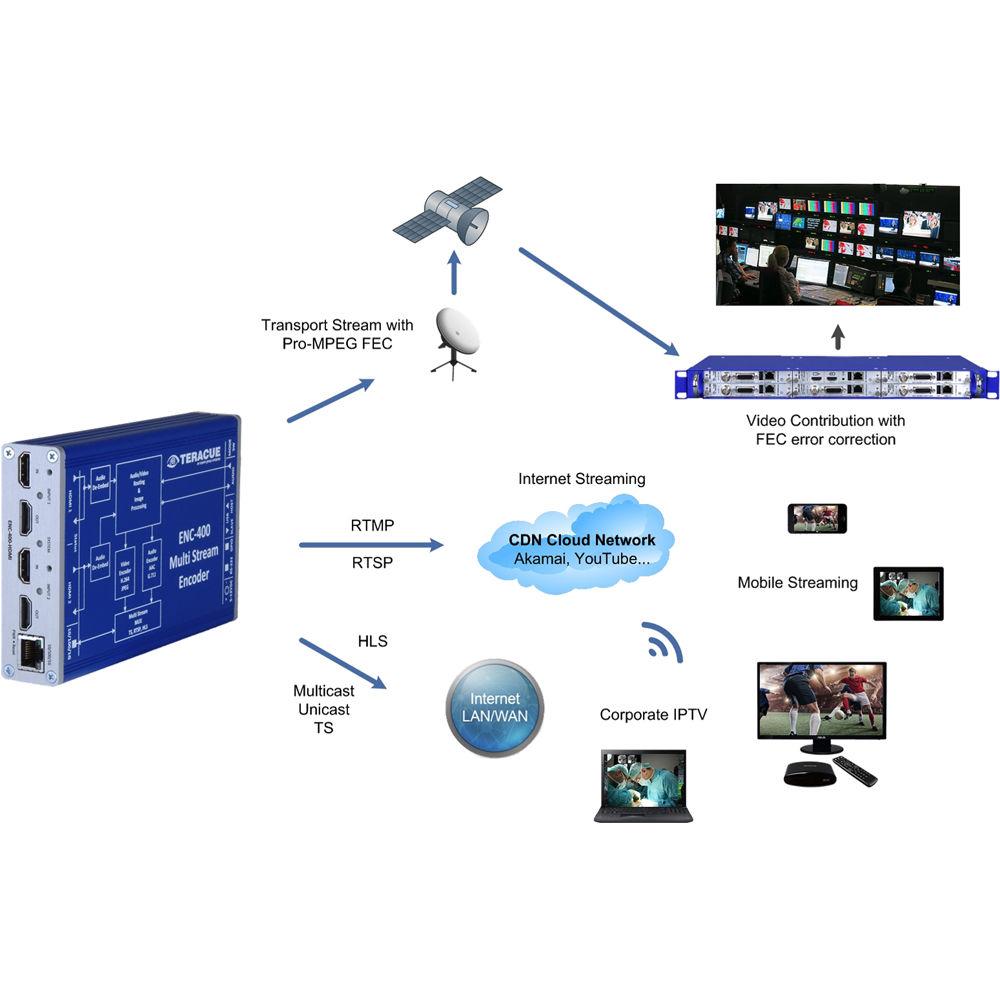

Product description The ENC-400 Dual-HDMI HD/SD H.264 and MJPEG Encoder from Teracue delivers multiple streams, in multiple bit rates and protocols, to multiple destinations. The frame synchronizer stabilizes signal processing. It provides loop-through outputs and can be used for redundancy switching or as sources for individual encoding. Besides the H.264 encoding technology, it also features MJPEG both for live streaming and recording. - Key Features
-
- Up to 4K resolution
- Simultaneous encoding video/audio 3/2
- H.264 baseline, main, high-profile, and MJPEG
- Up to 1920 x 1200p60, 3440 x 1440p 24, or 4K @ 15 Hz
- Embedded and analog audio inputs
- Logo, time, and text inserter
- Adjustable frame rate and auto scaler
- Up- and down-scaling with cropping
- Frame synchronizer for seamless switching
- Teracrypt and AES encryption
- Motion detection app
- Pro MPEG FEC
- TS, RSTP, and RTMP streaming
- HLS with adaptive bit rate support
- Simultaneously stream and record in various formats
- WebGUI, Telnet, and SNMP configuration
- A/V multiplexer, stream container, RTSP, RTMP, TS, HLS
- Stream synchronization, time stamping, source, NTP
- Adaptive bit rate switching
- Motion analysis
- Transport stream with constant bit rate
- Teracrypt/AES encryption
- Redundant input switching
- Simultaneous streaming and recording to USB drive (TS and MP4)
- RS-232 console mode for local control, com-server mode for RS-232 IP bridging
- 1 x GPI in TTL level, 1 x GPO out 20mA TTL
In the Box Teracue ENC-400 Dual-HDMI HD/SD H.264 and MJPEG Encoder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teracue ENC-400 Dual-HDMI HD SD H.264 and MJPEG Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeracue ENC-400-HDMI2 Specs | HDMI Input | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2; loop-through (without HDCP) | | Video Encoding | Profiles: H.264 (MPEG-4 AVC Part 10; ISO/IEC 14496-10) and MJPEG (ISO/ITU)
Baseline, main profile, high-profile, encoder can be scaled up to 3 instances
Bit Rates: 300 Kb/s to 16 Mb/s, low-latency support, adaptive CBR | | HDMI Resolutions | 3840 x 2160p 15
3440 x 1440p 24
2560 x 1600p 30
2048 x 1536p 30
2048 x 1080p 60
1920 x 1200p 60
1680 x 1050p 60
1600 x 1200p 60
1600 x 900p 60
1280 x 1024p 60
1280 x 960p 60
1280 x 800p 60
1280 x 768p 60
1024 x 768p 60
800 x 600p 60
640 x 480p 60 | | Interface | HDMI Graphics
2 x Input
2 x Loop-through output | | Resolution | 1 x 3840 x 2160p 15
1 x 2560 x 1600p 30
1 x 1920 x 1200p 60
2 x 1920 x 1080p 60 | | Encoding | 1 x 3840 x 2160p 15
1 x 2560 x 1600p 30
1 x 1920 x 1200p 60
1 x 1920 x 1080p 60
1 x 1920 x 1080p 30
2 x 1920 x 1080p 30
1 x 1280 x 720p 60
1 x 720 x 480p 30 | | Video Resolutions | 1920 x 1080p 60/59.94/50/30/29.97/25/24
1920 x 1080i 60/59,94/50
1280 x 720p 60/59.94/50
720 x 576i 50
720 x 480i 59.94 | | Audio Inputs | 2 x Stereo-embedded HDMI
1 x 3.5 mm mini stereo, unbalanced, AC-coupled, 10 kOhms
Mic/Line Level: +4/0/-3/-6 dBU, selectable | | Audio Encoding | MPEG-4 AAC LC (ISO/IEC 14496-3), 48 kHz, 16-bit sample rate, 32 to 256 kb data rate | | Audio Outputs | 1 x 3.5 mm mini stereo, unbalanced, AC-coupled
Output Gain: -78 to +9 dB, 16-bit stereo, PCM, sample rate 48/44.1/32/16/8 kHz | | Multiplexer | ISO/IEC 13818-1 transport, ISO/IEC 14496-10 NAL (Network Abstraction Layer) | | Streaming | Up to 3 simultaneous unicast or multicast streams
TS over UDP, TS over RTP, TS with Pro-MPEG FEC, TS video only, TS audio only, TS over TCP, RTP/RTSP (UDP or interleaved, RFC 3984), RTMP push, HLS | | Protocols | IP: HTTP, TCP/IP control protocol, UDP/RTP/TCP streaming, IGMP, SAP, unicast/multicast, SNMPv2, DHCP, IPV4, DNS, NTP | | USB | USB host and slave device (recording or KVM mode) | | Network | 10/100/1000 TX Ethernet, RJ45, half/full duplex, auto-sensing or manual control | | Synchronizer | Up-/down-scaling and cropping for each encoder, adjustable frame rate divider, auto-scaling for seamless switching and fixed resolution, or output-follows-input | | Management | SNMP, SSH/Telnet and RS-232
Software updates via web browser | | Security | Fault measurement with log generation, authorization via user password, IEEE802.1X, RTC, (Real-Time Clock) support | | Housing | Closed, lightweight aluminum case, no fan | | Agency Approvals | CE, RoHS | | Humidity | Up to 90%, non-condensing | | Temperature | 32 to 113°F / -0 to 45°C | | Power | 5 to 12 VDC, <5 W per blade | | Dimensions | 1.2 x 4.13 x 6.69" / 3.0 x 10.5 x 17.0 cm | | Weight | 14.1 oz / 400 g |
