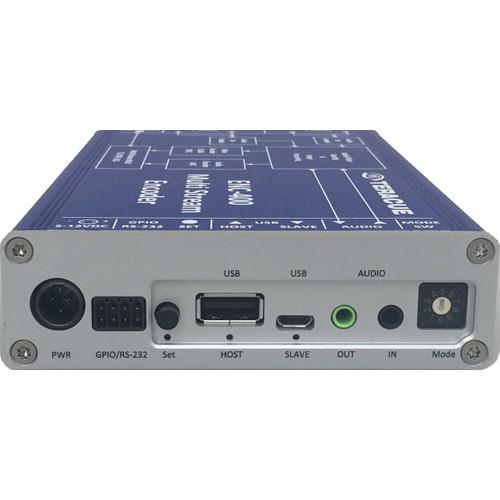

Product description The ENC-400 HD/SD H.264 and MJPEG Encoder from Teracue delivers multiple streams, in multiple bit rates and protocols, to multiple destinations. The frame synchronizer stables signal processing. It provides loop-through outputs, and can be used for redundancy switching or as sources for two individual encodings. Aside from the H.264 encoding technology, it also features MJPEG support for live streaming and recording. - Key Features
-
- Up to 1920 x 1080p60 Full HD resolution support
- Simultaneous encoding video/audio 3/2
- H.264 baseline, main, high-profile, and MJPEG
- Full support for 3G-SDI, HD-SDI, and SD-SDI
- Embedded and analog audio input
- Logo, time, and text inserter
- Adjustable frame rate and auto scaler
- Up- and down-scaling with cropping
- Frame synchronizer for seamless switching
- Teracrypt and AES encryption
- Pro MPEG FEC
- TS, RSTP, and RTMP streaming
- HLS with adaptive bit rate support
- Simultaneous stream and record in various formats
- Lightweight aluminum chassis
- Web GUI, Telnet, and SNMP configuration
- RS-232 console mode for local control, com-server mode for RS-232 IP bridging
- 1 x GPI in TTL level, 1 x GPO out 20mA TTL
- A/V multiplexer, stream container, RTSP, RTMP, TS, HLS, TCP
- Stream synchronization, time stamping, source, NTP
- Adaptive bit rate switching
- Motion analysis
- Transport stream with constant bit rate
- Redundant input switching
In the Box Teracue ENC-400 HD/SD H.264 and MJPEG Encoder with Dual HD-SDI Input Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teracue ENC-400 HD SD H.264 and MJPEG Encoder with Dual HD-SDI Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeracue ENC-400 Specs | HD-SDI Input | YCbCr 4:2:2; loop-through | | Video Encoding | Profile: H.264 (MPEG-4 AVC Part 10; ISO/IEC 14496-10) and MJPEG (ISO/ITU)
Baseline, Main Profile, High Profile
Signal can be scaled up to 3 instances
Bit Rates: 300 kb/s to 16 Mb/s, low-latency support, adaptive CBR | | Video Resolutions | 1080p 60/59,94/50/30/29,97/25/24
1080i 60/59,94/50
720p 60/59.94/50
576i 50
480i 59.94 | | Audio Inputs | 1 x Stereo 2-channel per embedded HD-SDI input (selectable from 4 embedded groups)
1 x 3.5 mm mini stereo, unbalanced, AC-coupled, 10 kOhms
Mic/Line Level: +4/0/-3/-6 dBU-selectable | | Audio Encoding | MPEG-4 AAC LC (ISO/IEC 14496-3), 48 kHz, 16-bit sample rate, 32 to 320 kb data rate | | Audio Outputs | 1 x 3.5 mm stereo mini, unbalanced, AC-coupled
Output Gain: -78 to 9 dB, 16-bit stereo, PCM, sample rate 48/44.1/32/16/8 kHz | | Multiplexer | ISO/IEC 13818-1 Transport, ISO/IEC 14496-10 NAL (Network Abstraction Layer) | | Streaming | Up to 3 simultaneous unicast or multicast

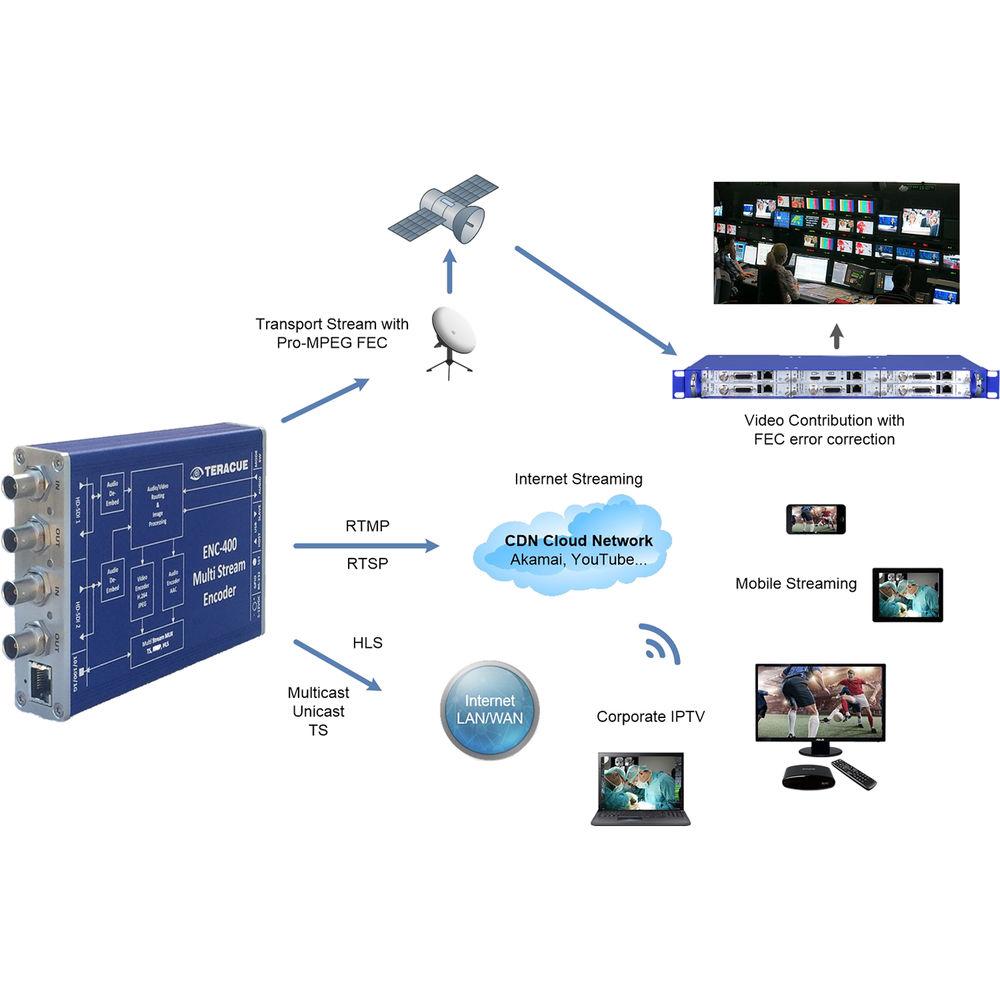

TS over UDP, TS over RTP, TS with Pro-MPEG FEC, TS video only, TS audio only, TS over TCP, RTP/RTSP (UDP or interleaved, RFC 3984), RTMP push, HLS | | Protocols | IP: HTTP, TCP/IP control protocol, UDP/RTP/TCP streaming, IGMP, SAP, unicast/multicast, SNMPv2, DHCP, IPV4, DNS, NTP | | USB | USB host and slave device (Recording or KVM mode) | | Network | 10/100/1000 TX Ethernet, RJ45, half/full duplex, auto-sensing, or manual control | | Synchronizer | Up- and down-scaling and cropping for each encoder
Adjustable frame rate divider, auto-scaling for seamless switching and fixed resolution or output follows input | | Management | SNMP, SSH/Telnet, and RS-232
Software updates via web browser | | Security | Fault measurement with log generation, authorization via user password, IEEE802.1X, and RTC (Real-Time Clock) support | | Housing | Lightweight closed aluminum case | | Agency Approvals | CE, RoHS | | Humidity | Up to 90%, non-condensing | | Temperature | 32 to 113°F / -0 to 45°C | | Power | 5 to 12 VDC, <5 W per blade | | Dimensions | 1.2 x 4.13 x 6.69" / 3.0 x 10.5 x 17.0 cm | | Weight | 14.1 oz / 400 g |
