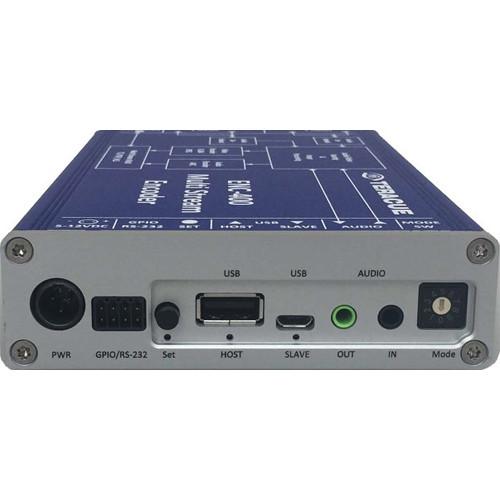

User Manual for Teracue ENC-400 HD SD H.264 and MJPEG Portable Encoder with Dual HDMI Input

Click to enlarge the picture
Teracue ENC-400 HD SD H.264 and MJPEG Portable Encoder with Dual HDMI Input Contents of the user manual for the Teracue ENC-400 HD SD H.264 and
  • Product category: Signal Converters Teracue
  • Brand: Teracue
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Teracue Signal Converters

Teracue ENC-400 HD SD H.264 and MJPEG Portable Encoder with Dual HDMI Input Teracue ENC-400 HD SD H.264 and MJPEG Portable Encoder with Dual HDMI Input
User manual for the Teracue ENC-400 HD SD H.264 and contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Teracue product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Teracue user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Teracue product will considerably shorten its lifespan!



Product description

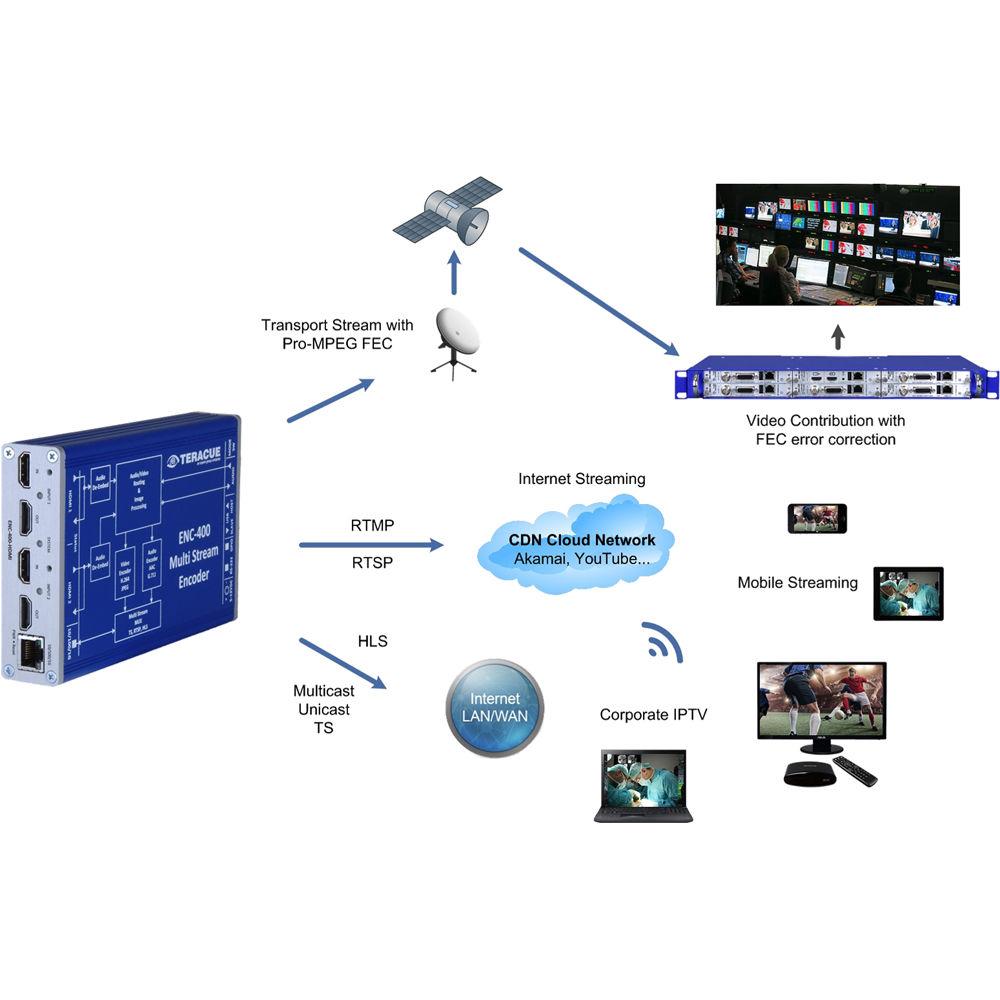

The Teracue ENC-400 HD/SD H.264 and MJPEG Portable Encoder with Dual HDMI Input delivers multiple streams, in multiple bit rates and protocols, to multiple destinations. The built-in frame synchronizer stables signal processing. It provides loop-through outputs, and can be used for redundancy switching or as sources for two individual encoders. Aside from the H.264 encoding technology, it also features MJPEG for live streaming and recording. This compact, fanless, and lightweight aluminum portable unit is suitable for broadcast contribution, IPTV, and webcasting.
    Key Features
    • Up to 4K resolution
    • Simultaneous encoding video/audio 3/2
    • H.264 baseline, main, high-profile, and MJPEG
    • Up to 1920 x 1200p60, 3440 x 1440p24, or 4K @ 15 Hz
    • Embedded and analog audio inputs
    • Logo, time, and text inserter
    • Adjustable frame rate and auto scaler
    • Up- and down-scaling with cropping
    • Frame synchronizer for seamless switching
    • Teracrypt and AES encryption
    • Motion detection app
    • Pro MPEG FEC
    • TS, RSTP, and RTMP streaming
    • HLS with adaptive bit rate support
    • Simultaneous stream and record in various formats
    • Fanless, lightweight aluminum chassis
    • Web GUI, Telnet, and SNMP configuration
    • A/V multiplexer, stream container, RTSP, RTMP, TS, HLS
    • Stream synchronization, time stamping, source, NTP
    • Adaptive bit rate switching
    • Motion analysis
    • Transport stream with constant bit rate
    • Teracrypt/AES encryption
    • Redundant input switching
    • Simultaneous streaming and recording to USB drive (TS and MP4)
    • RS-232 console mode for local control, com-server mode for RS-232 IP bridging
    • 1 x GPI in TTL level, 1 x GPO out 20mA TTL
In the Box Teracue ENC-400 HD/SD H.264 and MJPEG Portable Encoder with Dual HDMI Input
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Teracue ENC-400 HD SD H.264 and MJPEG Portable Encoder with Dual HDMI Input in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Teracue ENC-400-HDMI-PORTABLE Specs

    HDMI Input RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2; loop-through (without HDCP)
    Video Encoding Profiles: H.264 (MPEG-4 AVC Part 10; ISO/IEC 14496-10) and MJPEG (ISO/ITU)
    Baseline, main profile, high profile
    Signal can be scaled up to 3 instances

    Bite Rates: 300 kb/s to 16 Mb/s, low-latency support, adaptive CBR
    HDMI Resolutions 3840 x 2160p 15
    3440 x 1440p 24
    2560 x 1600p 30
    2048 x 1536p 30
    2048 x 1080p 60
    1920 x 1200p 60
    1680 x 1050p 60
    1600 x 1200p 60
    1600 x 900p 60
    1280 x 1024p 60
    1280 x 960p 60
    1280 x 800p 60
    1280 x 768p 60
    1024 x 768p 60
    800 x 600p 60
    640 x 480p 60
    Interface HDMI Graphics
    2 x Input
    2 x Loop-through output
    Resolution 1 x 3840 x 2160p 15
    1 x 2560 x 1600p 30
    2 x 1920 x 1200p 60
    1 x 1920 x 1080p 60
    Encoding 1 x 3840 x 2160p 15
    1 x 2560 x 1600p 30
    1 x 1920 x 1200p 60
    1 x 1920 x 1080p 60
    1 x 1920 x 1080p 30
    2 x 1920 x 1080p 30
    1 x 1280 x 720p 60
    1 x 720 x 480p 30
    Video Resolutions 1080p 60/59.94/50/30/29.97/25/24
    1080i 60/59,94/50
    720p 60/59.94/50
    576i 50
    480i 59.94
    Audio Inputs 2 x Stereo-embedded HDMI
    1 x 3.5 mm mini stereo, unbalanced, AC-coupled, 10 kOhms
    Mic/Line Level: +4/0/-3/-6 dBU-selectable
    Audio Encoding MPEG-4 AAC LC (ISO/IEC 14496-3), 48 kHz, 16-bit sample rate, 32 to 320 kb data rate
    Audio Outputs 1 x 3.5 mm mini stereo, unbalanced, AC-coupled
    Output Gain: -78 to +9 dB 16-bit stereo, PCM, sample rate 48/44.1/32/16/8 kHz
    Multiplexer ISO/IEC 13818-1 transport, ISO/IEC 14496-10 NAL (Network Abstraction Layer)
    Streaming Up to 3 simultaneous unicast or multicast streams
    TS over UDP, TS over RTP, TS with Pro-MPEG FEC, TS video only, TS audio only, TS over
    TCP, RTP/RTSP (UDP or interleaved, RFC 3984), RTMP push, HLS
    Protocols IP: HTTP, TCP/IP control protocol, UDP/RTP/TCP streaming, IGMP, SAP, unicast/multicast, SNMPv2, DHCP, IPV4, DNS, NTP
    USB USB host and slave device (recording or KVM mode)
    Network 10/100/1000 TX Ethernet, RJ45, half/full duplex, auto-sensing, or manual control
    Synchronizer Up- and down-scaling and cropping for each encoder
    Adjustable frame rate divider, auto scaling for seamless switching and fixed resolution or output follows input
    Management SNMP, SSH/Telnet, and RS-232
    Software updates via web browser
    Security Fault measurement with log generation, authorization via user password, IEEE802.1X, and RTC (Real-Time Clock) support
    Housing Lightweight closed aluminum case, no fan
    Agency Approvals CE, RoHS
    Humidity Up to 90%, non-condensing
    Temperature 32 to 113°F / -0 to 45°C
    Power 5 to 12 VDC, <5 W per blade
    Dimensions 1.2 x 4.13 x 6.69" / 3.0 x 10.5 x 17.0 cm
    Weight 14.1 oz / 400 g
