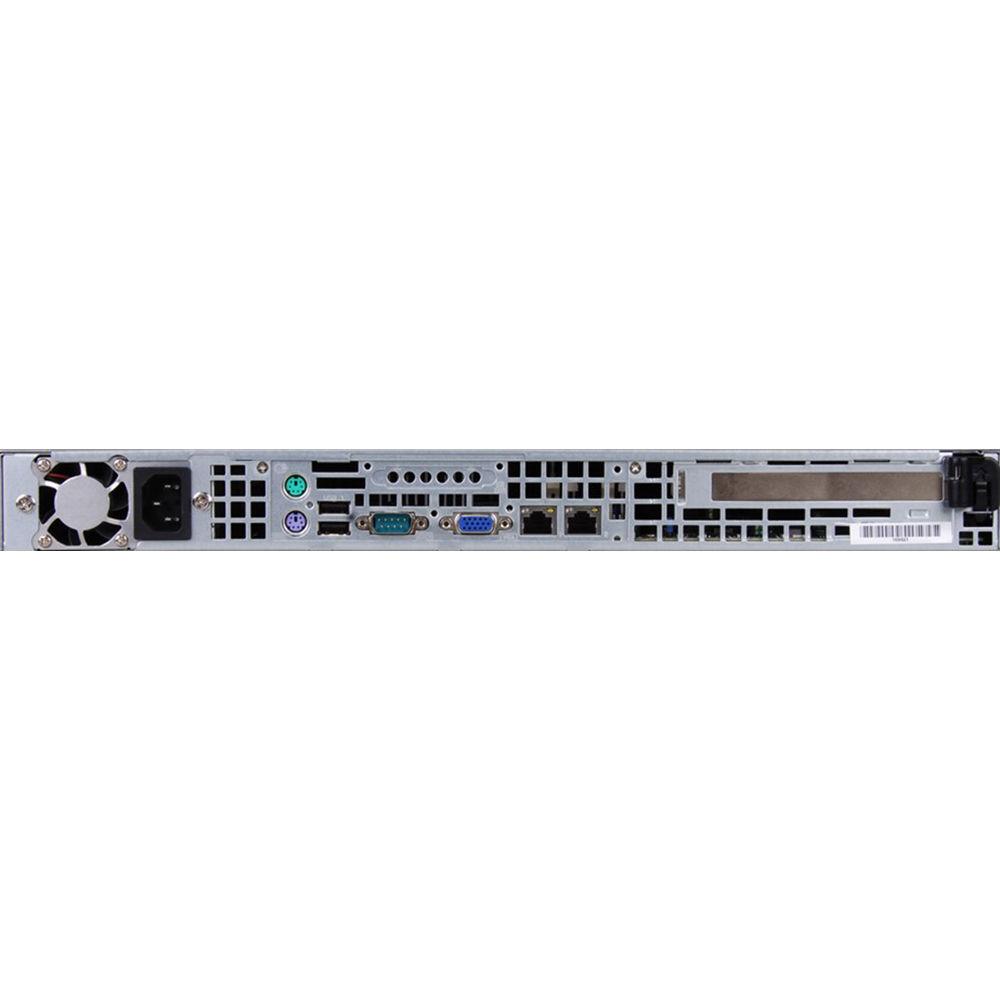

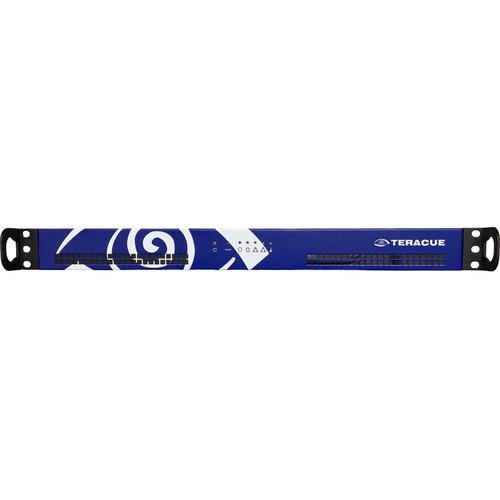

User Manual for Teracue Rackmount IPTV Stream Router with MC-ROUTE Software Click to enlarge the picture
Contents of the user manual for the Teracue Rackmount IPTV Stream Router with
- Product category: Streaming Media Solutions Teracue
- Brand: Teracue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teracue Streaming Media Solutions
 |
User manual for the Teracue Rackmount IPTV Stream Router with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teracue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teracue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teracue product will considerably shorten its lifespan!
|
Product description The 1 RU Rackmount IPTV Stream Router from Teracue is suitable for a variety of different streaming tasks in the intranet and internet. It can be operated in-house or on the cloud. The router can also be operated by its simple integrated web interface or over external remote protocol. It comes with the pre-installed MC-ROUTE software for easy setup and operation. In addition, the router can transport streams via UDP, RTP, TCP, and HTTP. - Multiple input and output streams
- Redundant input stream switching
- AES encryption and decryption
- RTSP server and MPEG-TS over TCP
- Remote control by web services/SOAP web service
- Forward error correction Pro-MPEG FEC
- RAM-disc for HLS streaming
- Stream monitoring and status email
- HLS streaming for iOS devices, Android, and Google TV

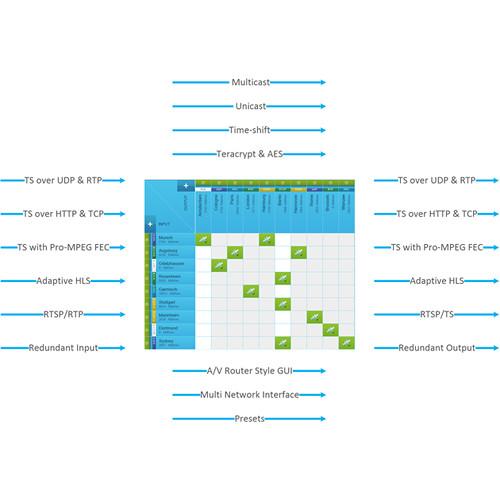

- A/V switcher-style routing matrix
- Adjustable time-shift and stream delay
- Unicast/multicast with TS over UDP/RTP
- 1 RU appliance with pre-installed MC-ROUTE software license for easy setup
- Software package for server or public cloud installation
- Multi-network interface support
In the Box Teracue Rackmount IPTV Stream Router with MC-ROUTE Software (1 RU) Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teracue Rackmount IPTV Stream Router with MC-ROUTE Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeracue MC-ROUTE Specs | | | Input | Stream Protocol: TS over UDP, TS over RTP, TS over TCP, HLS, TS over HTTP, RTSP/RTP | | Output | Stream Protocol: TS over UDP, TS over RTP, TS over TCP, HLS, RTSP/TS | | Control | Stream Control: RTSP server and client | | Multiplexing | Formats: ISO/IEC 13818-1 transport, ISO/IEC 14496-10 NAL (Network Abstraction Layer) | | Protocols | IP: HTTP, TCP/IP control protocol, UDP/RTP/TCP streaming, IGMP, SAP, unicast/multicast, SNMP traps, DHCP | | Error Correction | PRO-MPEG FEC (forward error correction) and TCP | | Encryption and Authentication | TeraCrypt, AES-128 | | Buffer | Jitter: Adjustable size 1 to 15 sec | | Management | Web browser, SNMP traps, SOAP web service, TCP frame work protocol | | System Requirements | CPU: Intel Core i3 and higher
RAM: 4 GB
Network Interfaces: 1 GbE or 10 GbE
Operating System: Microsoft Windows 7/8.1/10/2008/2012
Needed Windows OS Components: Internet Information Services v7.0 or higher with version 6.0 compatibility, .NET Framework v3.5 or higher, .NET Framework v4.5 | | | | CPU | Intel Core i3 | | RAM | 8 GB | | Operating system | Win 10 Pro, 64-bit | | Network | 2 x 10/100/1000TX Ethernet, RJ45, half/full duplex, auto-sensing or manual control | | Traffic Control | Streaming: Up to 500 Mb/s | | Time Shift | Capacity: 150 GB (24 h at 14 Mb/s) | | Chassis | 19" / 48.26 cm, 1 RU | | Temperature | 41 to 140°F / 5 to 60°C | | Power Supply | 260 W PSU | | Dimensions (H x W x D) | 1.7 x 18.9 x 16" / 4.3 x 48.2 x 40.7 cm | | Weight | 13.5 lb / 6.15 kg |
