Product description

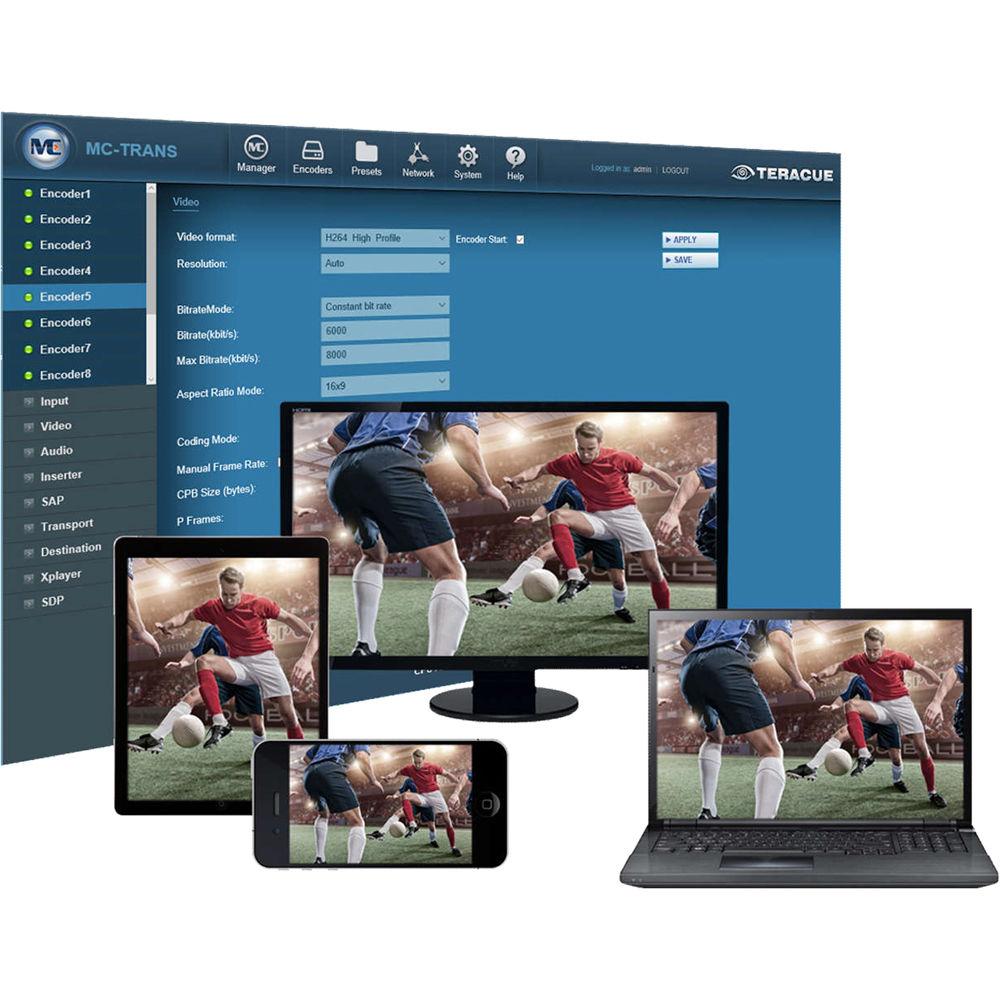

The 1 RU Rackmount IPTV Stream Router from Teracue is a live stream transcoder platform for IPTV headends, OTT broadcast channels, and mobile streaming. It can convert HD/SD streams to any H.264 or MPEG-2 format, bit rate, and resolution. The router supports transport streams and Apple’s HTTP Live Streaming (HLS) protocol for video streams.Additional internet radio streams can be accessed and transcoded to MPEG-TS, HLS. The included MC-TRANS software can be installed on your own server or virtual hardware and can also be deployed in the cloud. The router comes with a 260W power supply.
  • H.264 and MPEG-2 live transcoding
  • Scalable software transcoding
  • Baseline, main profile, and high profile with variable GOP
  • Downscaling, upscaling, and deinterlacing

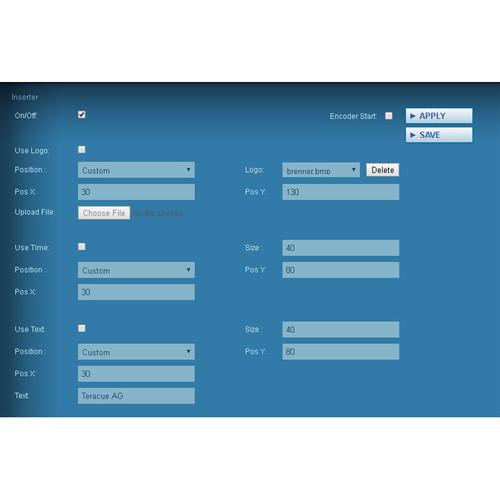

  • Logo, time and text inserter, and overlays
  • Adjustable frame rates (6 to 60 fps)
  • HTTP Live Streaming (HLS) for iOS devices, Android, and Google TV
  • Unicast/multicast with TS over UDP/RTP
  • Support for multiple IP ports for in, out, and management
  • Remote configuration via SOAP web service

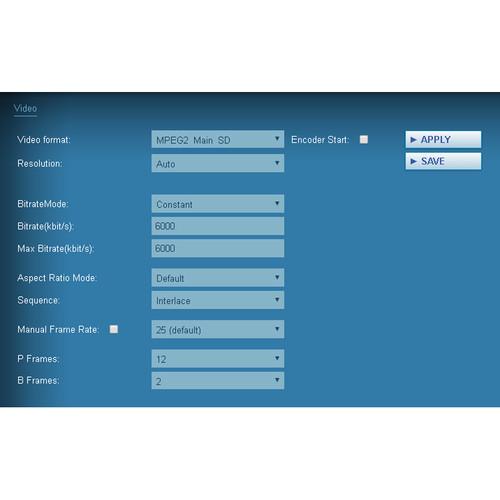

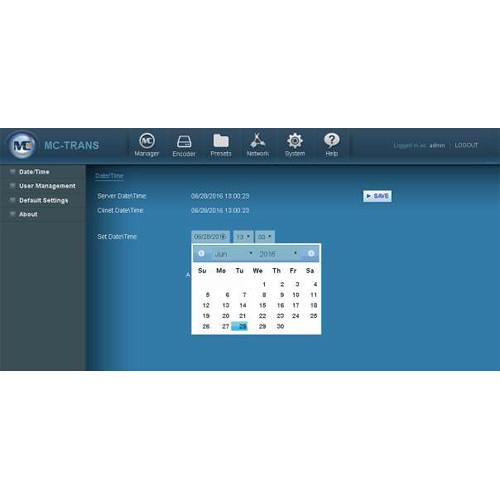

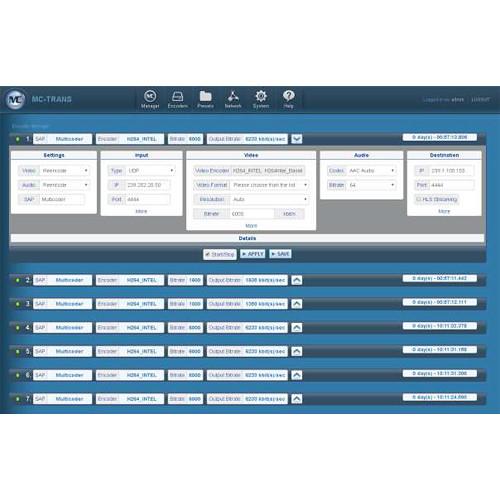

  • Easy configuration via web GUI
    Applications
    • IPTV live stream transcoding
    • OTT internet broadcasting
    • Transcoding for multi-screens and -devices
    • Transcoding for mobile clients
    • HD to SD conversion
    • H.264 to MPEG-2 for legacy STBs
    • Web radio transcoding to IPTV
In the Box Teracue Rackmount IPTV Stream Router with MC-TRANS Software (1 RU)
  • Power Supply
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Teracue Rackmount IPTV Stream Router with MC-TRANS Software in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Teracue MC-TRANS Specs

    Protocol Input: TS over UDP, TS over RTP, RTSP/RTP, Icecast, Shoutcast
    Output: TS over UDP, TS over RTP, HLS, TS over HTTP
    IP: HTTP, TCP/IP control protocol, UDP/RTP streaming, IGMP, SAP, unicast/multicast, SNMP traps, DHCP
    Codecs Input Video: MPEG-2, H.264
    Input Audio: MPEG-1/2, AAC, Dolby AC-3 pass-through

    Output Video: MPEG-2, H.264
    Output Audio: MPEG-1/2, AAC
    Video Encoding H.264 (MPEG-4 AVC Part 10, ISO/IEC 14496-10)
    Baseline, main profile, high profile
    MPEG-2 (ISO/IEC 13818-2), main profile, high profile
    Bit Rates Video Encoding: 250 kb/s to 20 Mb/s, CBR/VBR
    Video Resolutions 320 x 240 up to 1920 x 1080 (1080p)
    Audio Encoding MPEG-4 AAC Data Rate: 6 to 256 kb
    MPEG-1 Layer 2 Data Rate: 64 to 384 kb
    Sample Rates: 48 kHz, 16-bit
    Multiplex Operation Formats
    ISO/IEC 13818-1 transport
    ISO/IEC 14496-10 NAL (Network Abstraction Layer)
    Overlay Inserter and Overlay: BMP logo, text, and date/time
    Scaling Upscaling and downscaling from 320 x 240 to 1920 x 1080, adjustable frame rate divider
    Frame Rate Adjustable from 6 to 60 fps
    Management HTTP web browser, SNMP traps, SOAP web service
    Teracue framework protocol (AMX & Crestron support
    System Requirements Web server: IIS 6
    CPU: Intel Core i5 and higher, ideal Intel Core i7 5th or 6th generation, with Intel Pro Graphic card
    RAM: 4 GB
    HDD: 64 GB
    Network Interfaces: 1GbE or 10GbE
    Operating System: Microsoft Windows 7/8.1/10
    Following windows components are needed: Internet Information Services v6.0 or higher with version 6.0 compatibility, NET Framework v3.5 or higher, NET Framework v4.5
    CPU Intel core i7 6th generation with Intel Pro graphics card
    RAM 8 GB
    Performance Up to 18x SD MPEG-2, H.264 main profile
    Up to 8x HD 1080i H.264 high profile
    Operating system Windows 10 Pro, 64-bit

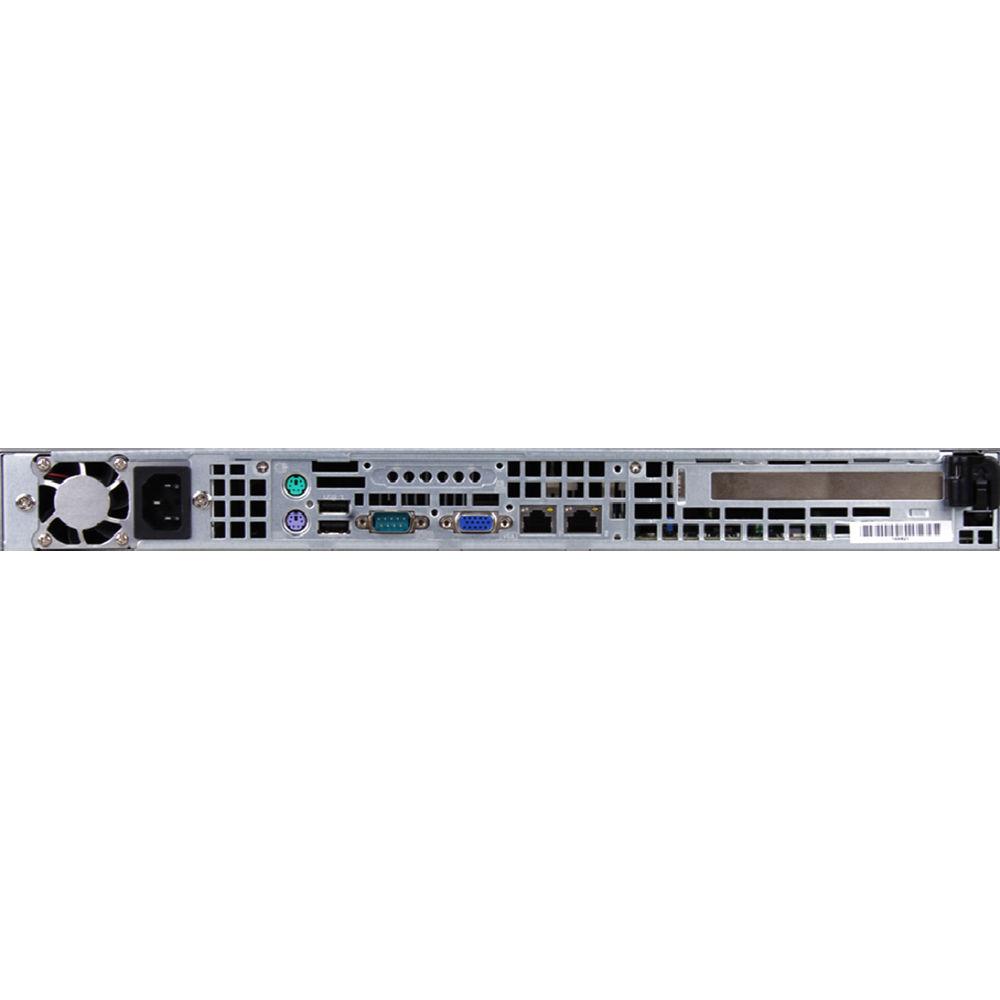

    Network 2 x 10/100/1000TX Ethernet, RJ45, half/full duplex, auto-sensing or manual control
    Chassis 19" / 48.3 cm, 1 RU
    Temperature 41 to 140°F / 5 to 60°C
    Agency Approvals CE, RoHS
    Power Supply 260 W PSU
    Typical: 120 W
    100 to 240 VAC, 47 to 63 Hz
    Dimensions (H x W x D) 1.6 x 18.9 x 16" / 4.3 x 48.2 x 40.7 cm
    Weight 13.5 lb / 6.15 kg
