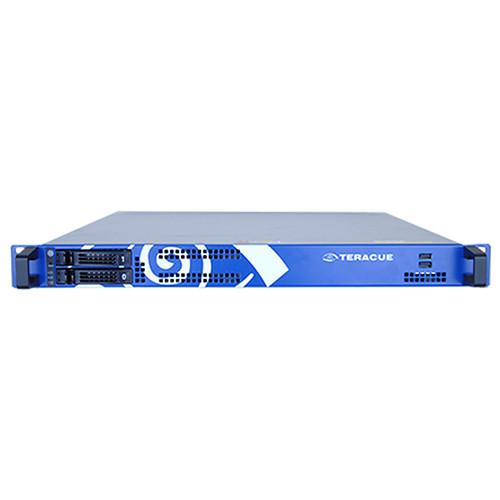

User Manual for Teracue UHD 4K HD SD HDMI H.264 Encoder Click to enlarge the picture
Contents of the user manual for the Teracue UHD 4K HD SD HDMI
- Product category: Signal Converters Teracue
- Brand: Teracue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teracue Signal Converters
|
User manual for the Teracue UHD 4K HD SD HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teracue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teracue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teracue product will considerably shorten its lifespan!
|
Product description The 1 RU UHD 4K HD/SD HDMI H.264 Encoder from Teracue is designed for IPTV and live streaming applications. It is suitable for use in places where single computer-based DVI or HDMI signals are distributed or published on a network or the internet. It is well suited for medical, military, control room, and training applications where high-resolution signals up to UHD 4K HDMI from medical instruments and cameras, radar devices, digital signage players, or any kind of PC desktop views need to be shared, published, distributed, and recorded. - Real-time encoding of HDMI and DVI signals
- H.264 and MPEG-2 encoding
- Resolutions up to UHD 4K (3840 x 2160)
- Logo, time, and text inserter
- Applications
-
- Digital signage streaming
- Medical and campus TV
- Telemedicine
- Security monitoring
- Video monitoring
- Military IP transmission
- Training and research
- Broadcast and CDN IP contribution
- Wireless and mobile streaming
- IPTV/OTT streaming
- Control rooms and command centers
- Stadium and event TV
In the Box Teracue UHD 4K HD/SD HDMI H.264 Encoder (1 RU) Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teracue UHD 4K HD SD HDMI H.264 Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeracue MC-ENC-4K Specs | Video Input | 2 x HDMI | | Video Resolution | 3840 x 2160 30/25
1920 x 1080p 60/50/30/25/24
1920 x 1080i 60/50
1280 x 720p 60/50
1280 x 1024p 60
1280 x 960p 60
1024 x 768p 60
800 × 600p 60
720 x 576p 50
720 x 480p 60
640 x 480p 60 | | Audio Input | HDMI embedded audio | | Audio Format | Stereo / 16-bit / 32000 to 48000 Hz | | Video Encoding | H.264 (MPEG-4 AVC Part 10, ISO/IEC 14496-10)
Profiles: Baseline, Main, High
MPEG-2 (ISO/IEC 13818-2), Main profile, High profile | | Bitrates | Video Encoding: 250 kb/s to 50 Mb/s, CBR/VBR | | Video Resolutions | 320 x 240 up to 3840 x 2160 | | Audio Encoding | MPEG-4 AAC, data rate 6 TO 256 kb
MPEG-1 Layer 2, data rate 64 to 384 kb
Sample Rates: 48 kHz, 16-bit | | Multiplexing | Formats: ISO/IEC 13818-1 transport
ISO/IEC 14496-10 NAL (Network Abstraction Layer) | | Streaming Performance | Up to 1 × 4Kp30 or 2 x 1080p60 | | Streaming Protocols | TS over UDP, TS over RTP, TS over HTTP, HLS
ISO/IEC 14496-10 NAL (Network Abstraction Layer)
Multicast and unicast
IGMP, SAP | | Protocols | HTTP, TCP/IP control protocol, SNMP traps/alerts, DHCP | | Management | HTTP web browser, SOAP web service, Teracue API (AMX, Crestron, and third-party support) | | Operating System | Windows 7, 64-bit | | Network | 2 x 10/100/1000TX Ethernet, RJ45, half/full duplex, auto-sensing, or manual control | | Chassis | 19" / 48.3 cm, 1 RU | | Temperature | 41 to 140°F / 5 to 60°C | | Power Supply | 2 x 260 W PSU
Typical: 120 W
100 to 240 VAC, 47 to 63 Hz (hot swappable) | | Dimensions (H x W x D) | 1.6 x 18.9 x 16" / 4.3 x 48.2 x 40.7 cm | | Weight | 13.5 lb / 6.15 kg |
