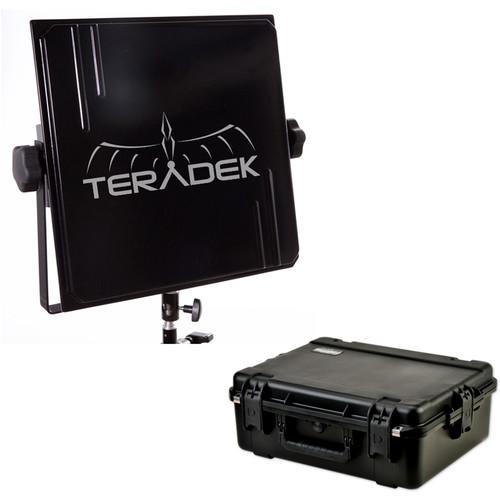

User Manual for Teradek Antenna Array for Bolt Receiver Click to enlarge the picture
Contents of the user manual for the Teradek Antenna Array for Bolt Receiver
- Product category: Wireless Transmission Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Transmission
|
User manual for the Teradek Antenna Array for Bolt Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|
Product description This Antenna Array from Teradek is a panel antenna designed to enhance wireless video transmission to Bolt receivers. This MIMO (Multiple In/Multiple Out) antenna focuses the RF signal and reduces interference, producing a more resilient transmission. It offers a boost in reception but does not increase the maximum transmission range.The panel array is composed of 3x16 dBi and 2x14 dBi antennas, and operates in the 5.1 to 5.8 GHz frequency range. The antenna comes with a mounting bracket, light stand adapter, and five cables. An included SKB waterproof carrying case stores the antenna and its accessories. - Boosts wireless video transmission
- Focuses wireless signal and reduces interference
- 5.1-5.8 GHz frequency range
- Array of 3x16 dBi and 2x14 dBi antennas
- Waterproof carrying case is included
UPC: 854980006039 In the Box Teradek Antenna Array for Bolt Receiver (with Case) Waterproof Carrying Case Receiver Mounting Bracket 3/8" Light Stand Adapter 5 x 12" N-Male to RP-SMA Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Antenna Array for Bolt Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 11-0028 Specs | Connector | RP-SMA plug | | Frequency Range | 5.1-5.8 GHz | | Antenna Gain | 3x16 dBi
2x14 dBi | | Protocol Support | 802.11n (MIMO standard) | | Material of Construction | UV-protected plastic, aluminum alloy | | Dimensions (LxWxD) | Antenna: 13.8 x 13.8 x 1.3" (35.0 x 35.0 x 3.2 cm)
Case: 24.3 x 19.5 x 8.9" (61.8 x 49.5 x 22.5 cm) | | Weight | Antenna: 2.5 lb (1.1 kg)
Case: 11 lb (4.9 kg) | | | | Package Weight | 19.25 lb | | Box Dimensions (LxWxH) | 24.3 x 19.8 x 9.5" |
