User Manual for Teradek Beam Transmitter & Receiver Set with Two Gold-Mount Plates Click to enlarge the picture
Contents of the user manual for the Teradek Beam Transmitter & Receiver Set
- Product category: Wireless Transmission Systems Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Transmission Systems
|
User manual for the Teradek Beam Transmitter & Receiver Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

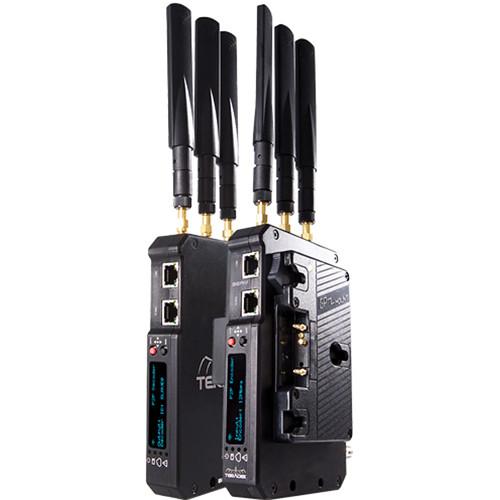

Product description The Teradek Beam system transmits up to 1080p60 video with audio for up to 2500 ft over the license-free 5GHz frequency. Latency is only 70ms-80ms, which comes out to approximately 2 frames. This set includes one transmitter with a 3G-SDI input and loop output, and one receiver with a 3G-SDI output, and Gold-mount battery plates are included for both units. The transmitter comes with a Gold-mount male plate on one side and female on the other and is meant to be sandwiched in between your camera and battery. Both units also offer RJ45 ports supporting wired LAN transfer and bidirectional serial control.
Video is encoded in the H.264 codec and delivered at 30 Mbps over the 5GHz band and 50 Mbps over a LAN. The system uses RTSP streaming and also includes an MPEG-TS streaming license that you can switch over to via the OLED menu display.
The transmitter has multicast capability in both 5GHz and LAN modes, supporting up to four receivers simultaneously. Both the transmitter and receiver also feature mic inputs and headphone outputs allowing two-way communication. Both units also offer 1/4"-20 mounting threads on the bottom. - Key Features
-
- Transmits up 1080p60 for up to 2500 ft over the 5GHz frequency
- 70ms-80ms latency (approximately 2 frames)
- 3G-SDI input and loop output / 3G-SDI output
- Includes Gold-mount plates for both the transmitter and receiver
- RJ45 ports supporting wired LAN transfer
- RJ45 ports for bidirectional serial control
- H.264 encoding
- 30 Mbps bit rate over 5 GHz and 50 Mbps over LAN
- RTSP and MPEG-TS streaming
- OLED menu display
- Mic and headphone connections allowing two way communication
- Dedicated bidirectional IFB channel
- Multicast capable, supporting up to 4 receivers
UPC: 854199005854 In the Box Teradek Beam Transmitter & Receiver Set with Two Gold-Mount Plates 3 x Transmitter Antennas 3 x Receiver Antennas Receiver Power Adapter Pelican Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Beam Transmitter & Receiver Set with Two Gold-Mount Plates in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 10-0581 Specs | Connections | Transmitter:
1x 3G/HD/SD-SDI input
1x 3G-SDI loop output
1x RJ45 LAN port
1x RJ45 serial port
1x Mic input
1x Headphone output
1x USB port
1x 2-pin LEMO power port
Receiver:
1x 3G/HD/SD-SDI output
1x RJ45 LAN port
1x RJ45 serial port
1x Mic input
1x Headphone output
1x USB port
1x 2-pin LEMO power port | | Supported Resolution | 480i 59.94/60, 576i50, 720p50, 720p 59.94/60, 1080PsF 23.98/24, 1080p 23.98/24, 1080p25, 1080p30, 1080i50, 1080i 59.94/60, 1080p50, 1080p 59.94/60 | | Transmission Distance | 2500 ft (762 m) line-of-sight | | Latency | 70 - 80 ms (min. 2 frames) | | Sampling | 4:2:0 | | Bit Rates | 30 Mbps over 5GHz frequency, 50 Mbps over LAN | | Codec | H.264 | | Streaming Method | RTPS or MPEG-TS | | Menu Display | OLED | | Mount Types | Gold-mount plates included for both transmitter and receiver
1/4"-20 thread on bottom of transmitter and receiver | | | | Package Weight | 10.8 lb | | Box Dimensions (LxWxH) | 15.6 x 12.2 x 8.7" |
