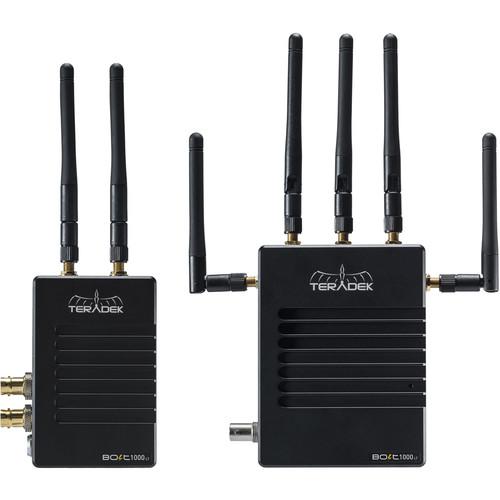

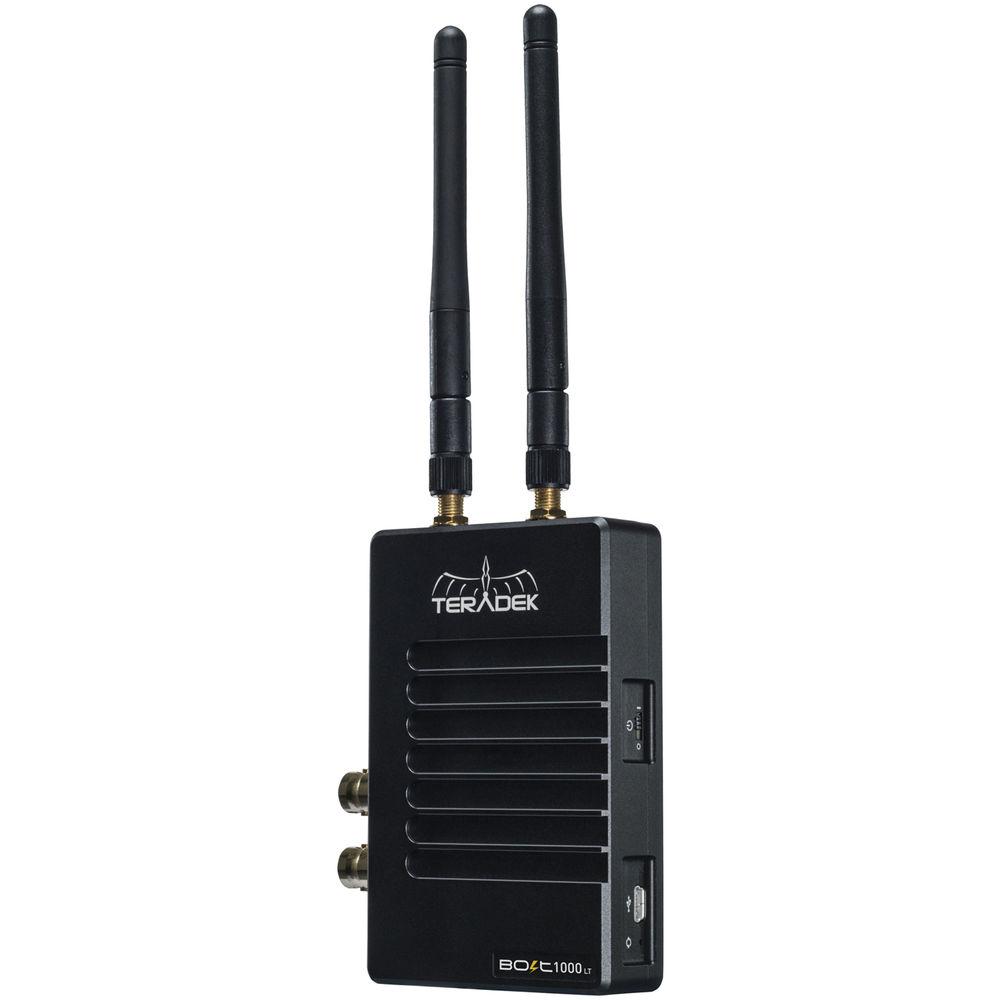

Product description The Teradek Bolt 1000 LT 3G-SDI Wireless Transmitter and Receiver Set includes one transmitter and one receiver. This enables you to immediately start transmitting up to 1080p60 video from an SDI source. The zero latency transmitter receiver pair features a 1000' line-of-site transmission distance when used together. You can send and receive visually lossless 3G-video signals from a Bolt 1000 transmitter with zero latency.

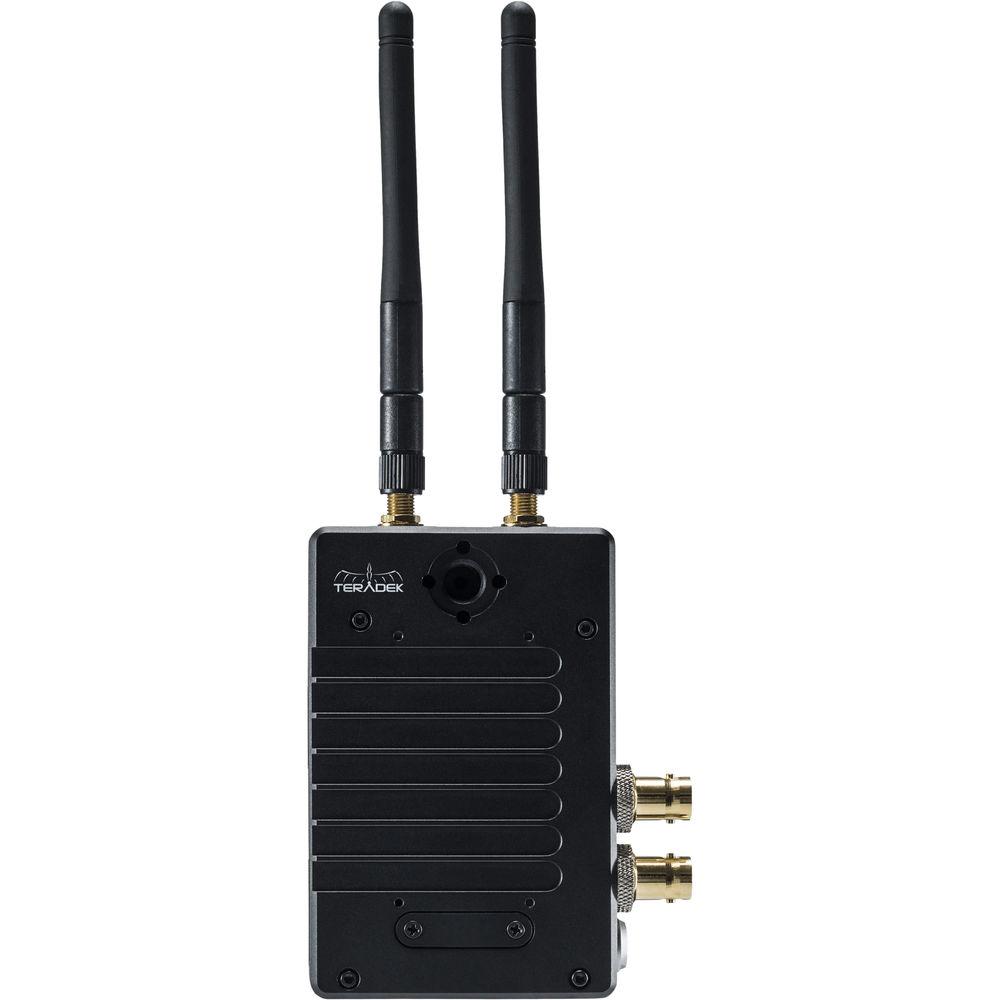

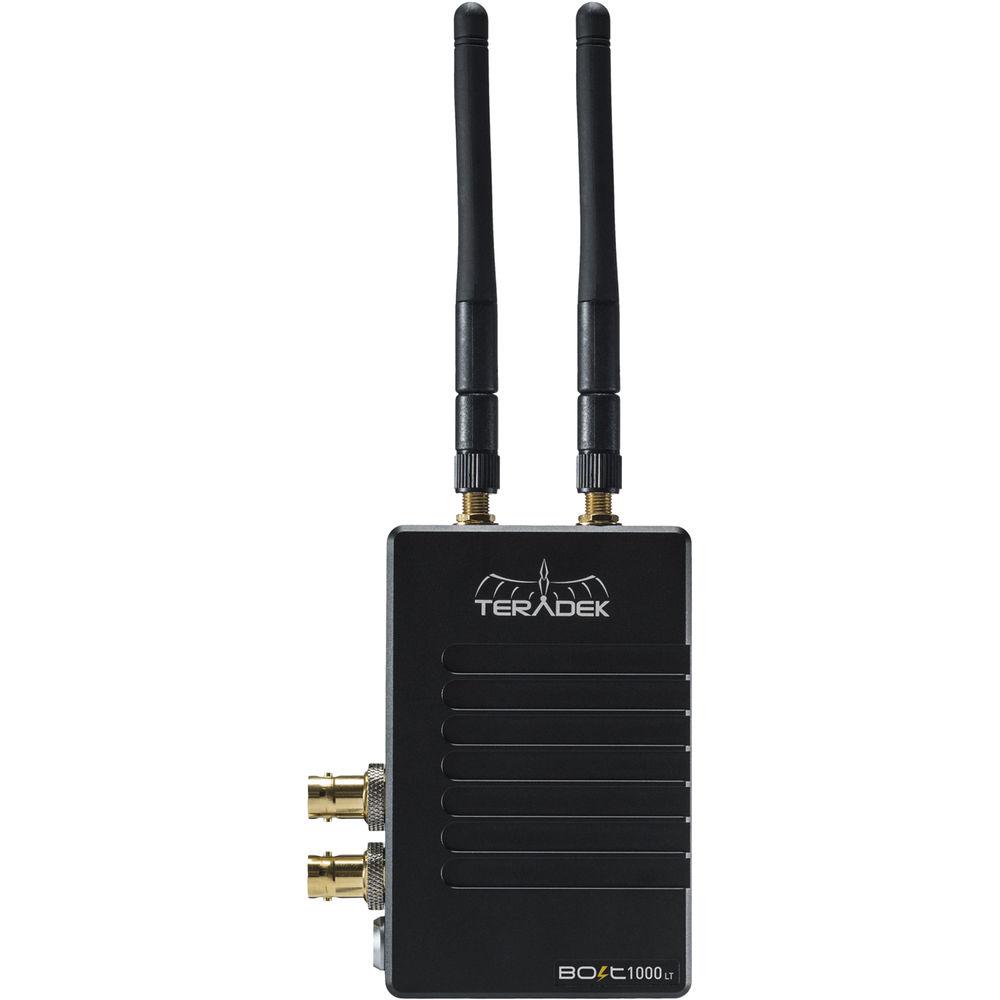

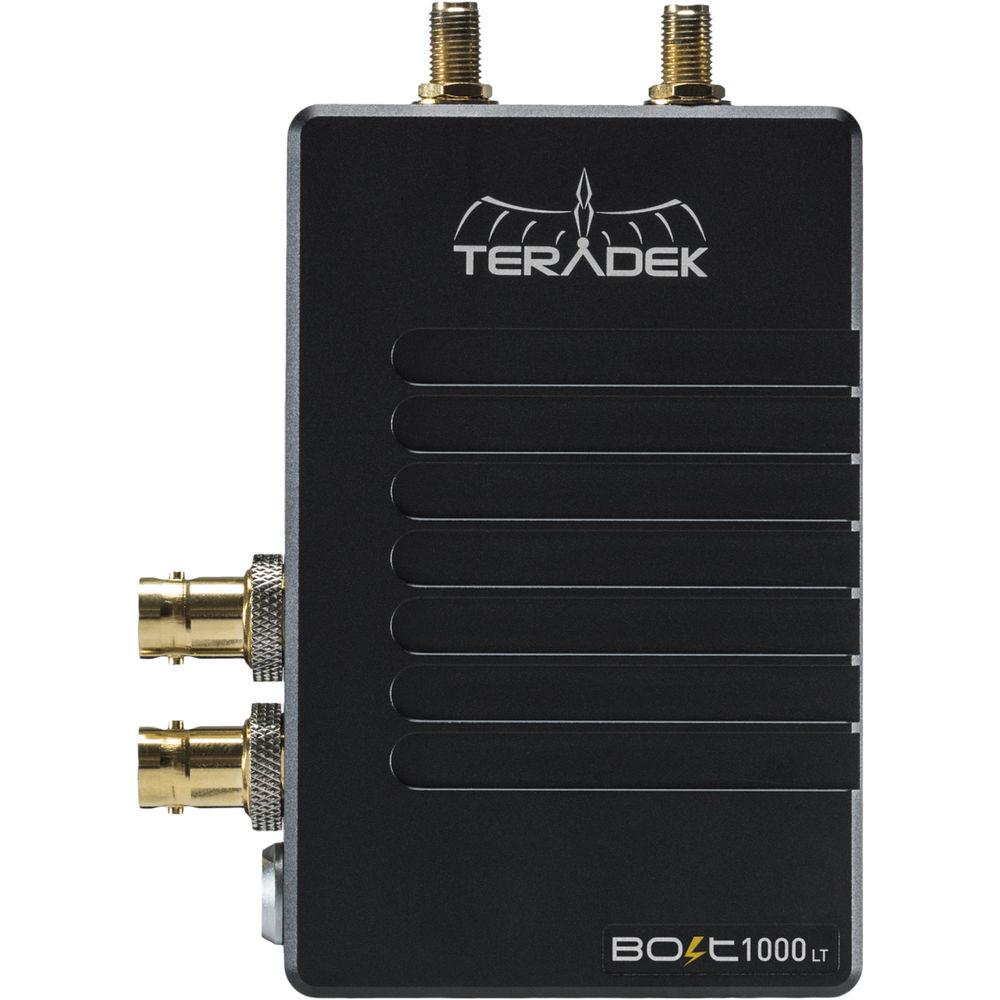

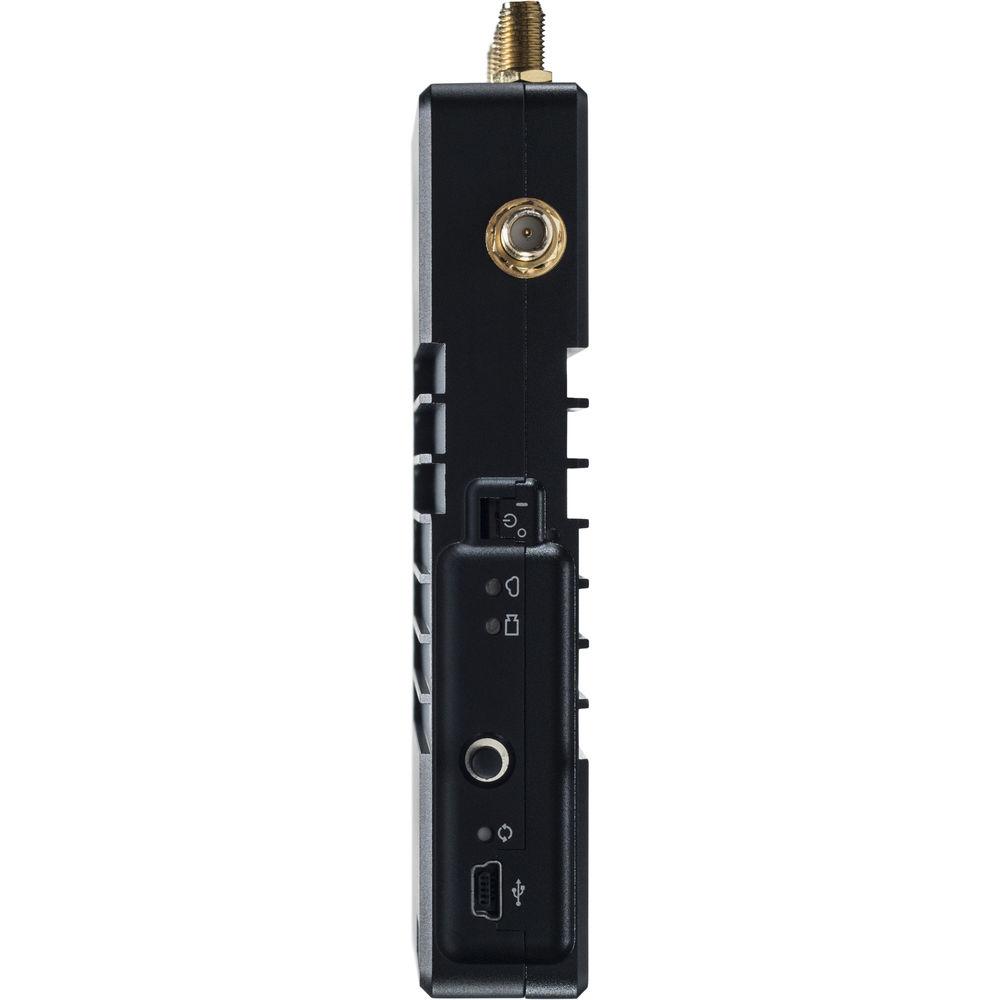

The receiver features SDI output, and the system supports digital SD and HD signals. Although the inputs and outputs support a variety of HD signals in both 50 and 60 Hz standards. You can transmit up to three other 3rd-generation Bolt receivers as the transmitter can support up to four receivers. The built-in AES 128-bit encryption helps to keep your transmitted video safe from prying eyes. - Bolt 1000 LT 3G-SDI Wireless TX With the Teradek Bolt LT 1000 3G-SDI Wireless Video Transmitter you can transmit visually lossless 3G video signals to a Bolt 1000 receiver with zero latency. The Bolt LT is compatible with existing 3rd-generation Bolt systems such as the Bolt 500, 1000, Sidekick II, and 703 Bolt, as well as the Bolt XT. The transmitter unit itself can be secured to a camera or other SDI video source via built-in 1/4"-20 threaded holes, M3, or ARRI-style connectors. The included antennas provide a powerful signal that can travel up to 500' line of sight.
A shoe mount is included for attaching to cameras without 1/4"-20 threads. For convenience, a standard BNC cable is included so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector. A D-Tap power cable is included for attaching to a battery. The transmitter supports up to four receivers and built-in AES 128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals. - Backwards compatible with 3rd generation Bolt 500, 1000, 300, Sidekick II and 703 Bolt
- 3G-SDI loop-through output
- SDI ancillary data support: Supports metadata, timecode, and start/stop flags from certain camera manufacturers.
- Smaller and lighter chassis design than other Bolt 500 transmitters

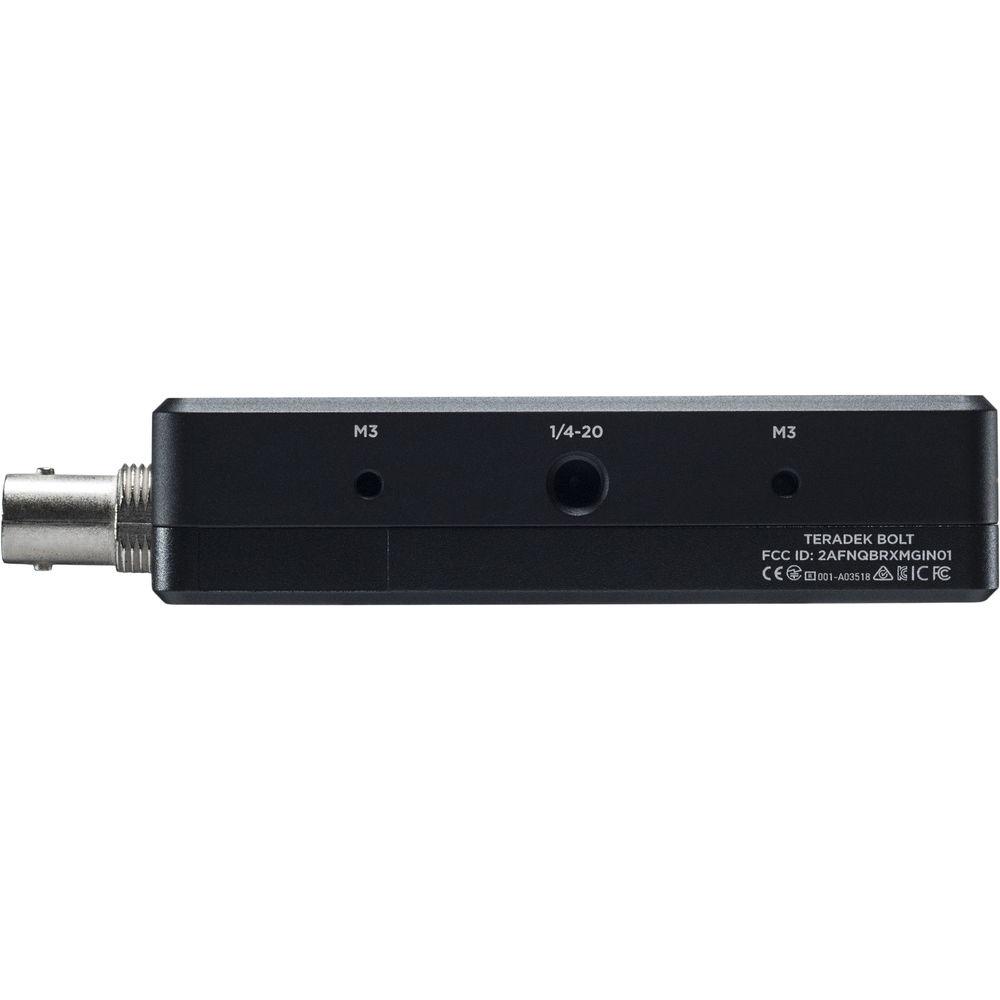

- 1/4"-20, M3, and 3/8" ARRI-style mounting points

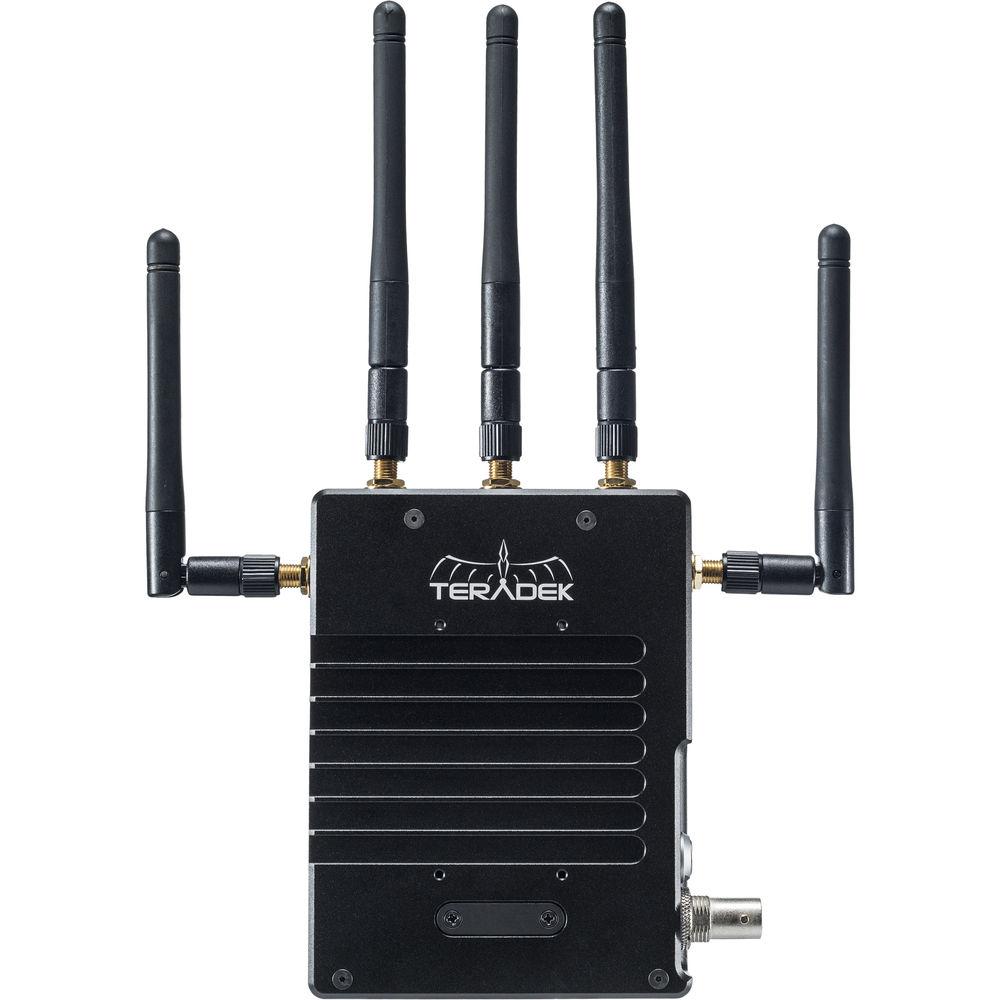

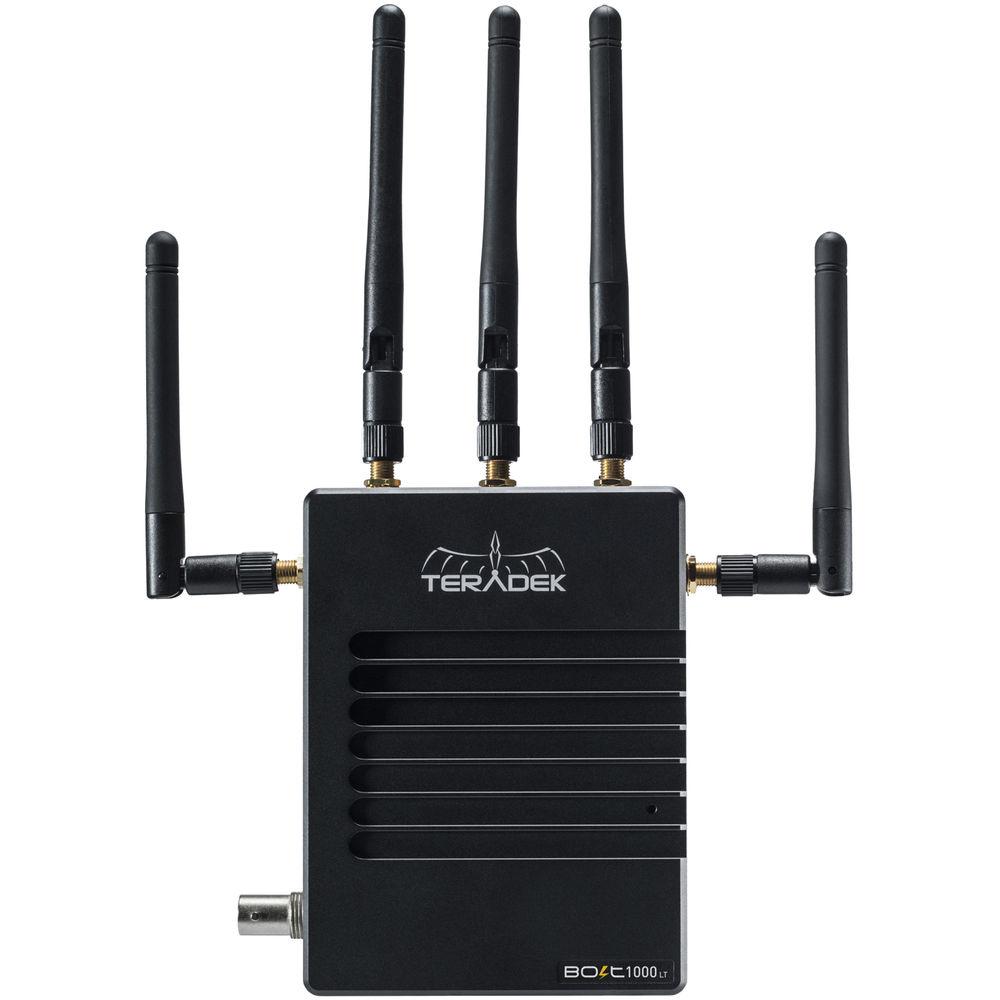

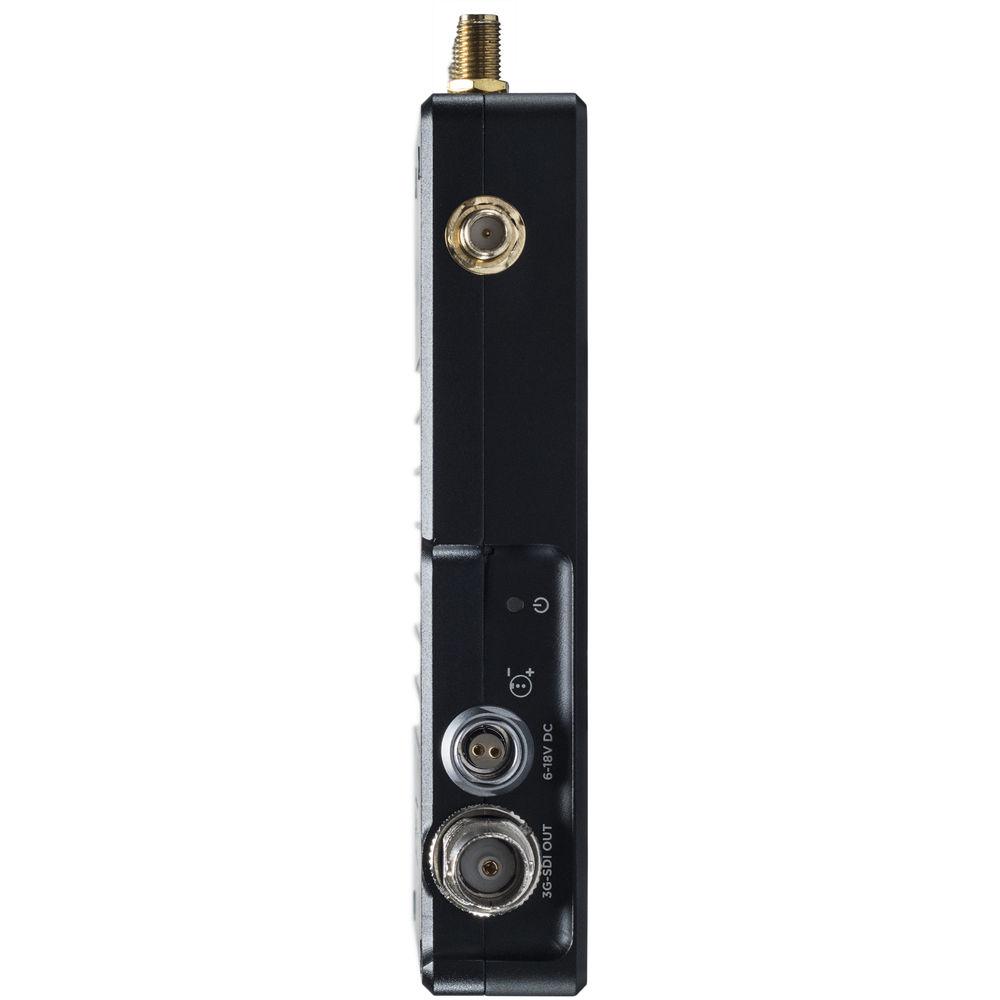

UPC: 818264023198 - Bolt 1000 LT 3G-SDI Wireless RX With the Teradek Bolt LT 1000 3G-SDI Wireless Video Receiver you can receive visually lossless 3G-video signals from a Bolt 1000 transmitter with zero latency. The Bolt LT is compatible with existing 3rd-generation Bolt systems such as the Bolt 500, 1000, Sidekick II, and 703 Bolt, as well as the Bolt XT. The receiver unit itself can be secured via built-in 1/4"-20 or M3 threaded holes.
A light stand adapter is included for mounting on stands. Power can be provided using the integrated 2-pin connector. A D-Tap power cable is included for attaching to a battery. The transmitter supports up to four receivers and built-in AES 128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals. - Backwards compatible with 3rd generation Bolt 500, 1000, 300, Sidekick II, and 703 Bolt
- SDI ancillary data support: supports metadata, timecode, and start/stop flags from certain camera manufacturers
- Smaller and lighter chassis design than other Bolt 1000 transmitters
- 1/4"-20, M3, and 3/8" ARRI-style mounting points
UPC: 818264023204 In the Box Bundle Items Bolt 1000 LT 3G-SDI Wireless TX cyyztfsveqsfxxvassbrdwzwatvbfxbd - USB Type-A to Micro-B Cable
Bolt 1000 LT 3G-SDI Wireless RX - Light Stand Adapter (1/4"-20)
- USB Type-A to Micro-B Cable
- PSU 2-Pin Connector to 18W AC Adapter Cable (6')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bolt 1000 LT 3G-SDI Wireless Transmitter and Receiver Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bolt 1000 LT 3G-SDI Wireless TX
| Construction | Milled aluminum (chassis) and regulation-compliant PCB | | Video Inputs | 3G/HD/SD-SDI: 1 x BNC (75 Ohms) | | Video Outputs | 3G/HD/SD-SDI: 1 x BNC (75 Ohms, loop-through out) | | Color Sampling | YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled) | | Latency | <0.001 seconds (TX to RX without format conversion) | | Supported Resolutions | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50 | | Video Processing | Compression
Visually lossless
Color Correction
CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color) | | Audio Compression | 48 kHz, 24-bit PCM | | Audio Input | Embedded | | Interfaces | Switches: On/Off and Reset
Desktop App: Feature-rich Bolt Manager application for OS X and Windows
USB Interface Functionality: Upgrade via mini-USB | | Wireless | Non-DFS Frequencies
UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz
EU & JP: 5.19 to 5.23 GHz
DFS Frequencies
US: 5.27 to 5.55 GHz and 5.67 GHz
EU & JP: 5.27 to 5.67 GHz | | RF Power | 17 dBm EIRP
| | Encryption | AES-128 | | Range | Up to 500' / 152.4 m line of sight | | Unicast Multicast | Unicast / Multicast | | Noise Rejection | Can coexist with Wi-Fi and 5 GHz cordless phones | | Power Input | 2-pin connector
7 to 17 VDC | | Power Consumption | Nominal 7.3 W (measured at 1080p60) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Mountable | Multiple mounting options with M3 and 1/4" holes
3/8" ARRI style accessory mount | | Dimensions | 0.95 x 2.6 x 4.47" / 2.41 x 6.6 x 11.35 cm | | Weight | 8 oz / 226 g | | | | Box Dimensions (LxWxH) | 6.7 x 6.6 x 4.8" | - Bolt 1000 LT 3G-SDI Wireless RX
| Construction | Milled aluminum (chassis) and regulation-compliant PCB | | Video Outputs | 3G/HD/SD-SDI: 1 x BNC (75 Ohms, loop-through out) | | Color Sampling | YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled) | | Latency | <0.001 seconds (TX to RX without format conversion) | | Supported Resolutions | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50 | | Video Processing | Compression
Visually lossless
Color Correction
CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color) | | Audio Compression | 48 kHz, 24-bit PCM | | Audio Input | Embedded | | Interfaces | Switches: On/Off and Reset
Desktop App: Feature-rich Bolt Manager application for OS X and Windows
USB Interface Functionality: 1 x USB 3.0 Micro | | Wireless | Non-DFS Frequencies
UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz
EU & JP: 5.19 to 5.23 GHz
DFS Frequencies
US: 5.27 to 5.55 GHz and 5.67 GHz
EU & JP: 5.27 to 5.67 GHz | | RF Power | 17 dBm EIRP
| | Encryption | AES-128 | | Range | Up to 1000' / 304.8 m line of sight | | Unicast Multicast | Unicast / Multicast | | Noise Rejection | Can coexist with Wi-Fi and 5 GHz cordless phones | | Power Input | 2-pin connector
7 to 17 VDC | | Power Consumption | Nominal 7.3 W (measured at 1080p60) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Mountable | Multiple mounting options with M3 and 1/4" holes
3/8" ARRI style accessory mount | | Dimensions | 1 x 3.4 x 4.5" / 2.54 x 8.64 x 11.43 cm | | Weight | 10.1 oz / 288 g | | | | Box Dimensions (LxWxH) | 6.8 x 6.4 x 4.8" |
