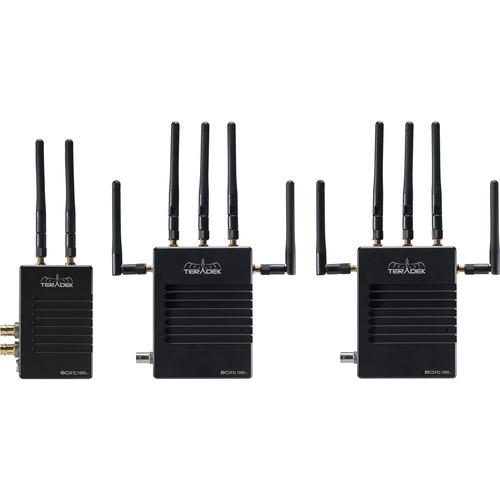

User Manual for Teradek Bolt 1000 LT One Transmitter, Two Receiver Deluxe Kit

• Product category: Wireless Transmission Systems Teradek
• Brand: Teradek
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Teradek Wireless Transmission Systems

Product description

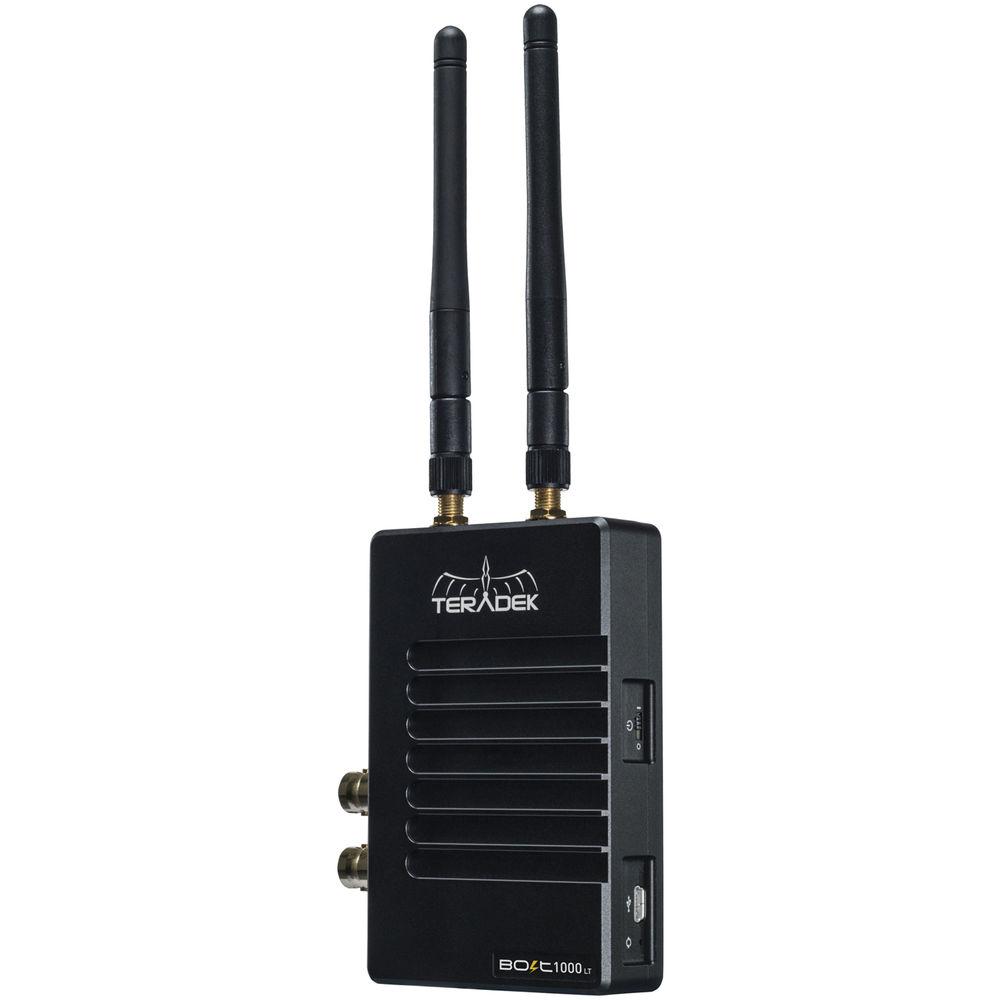

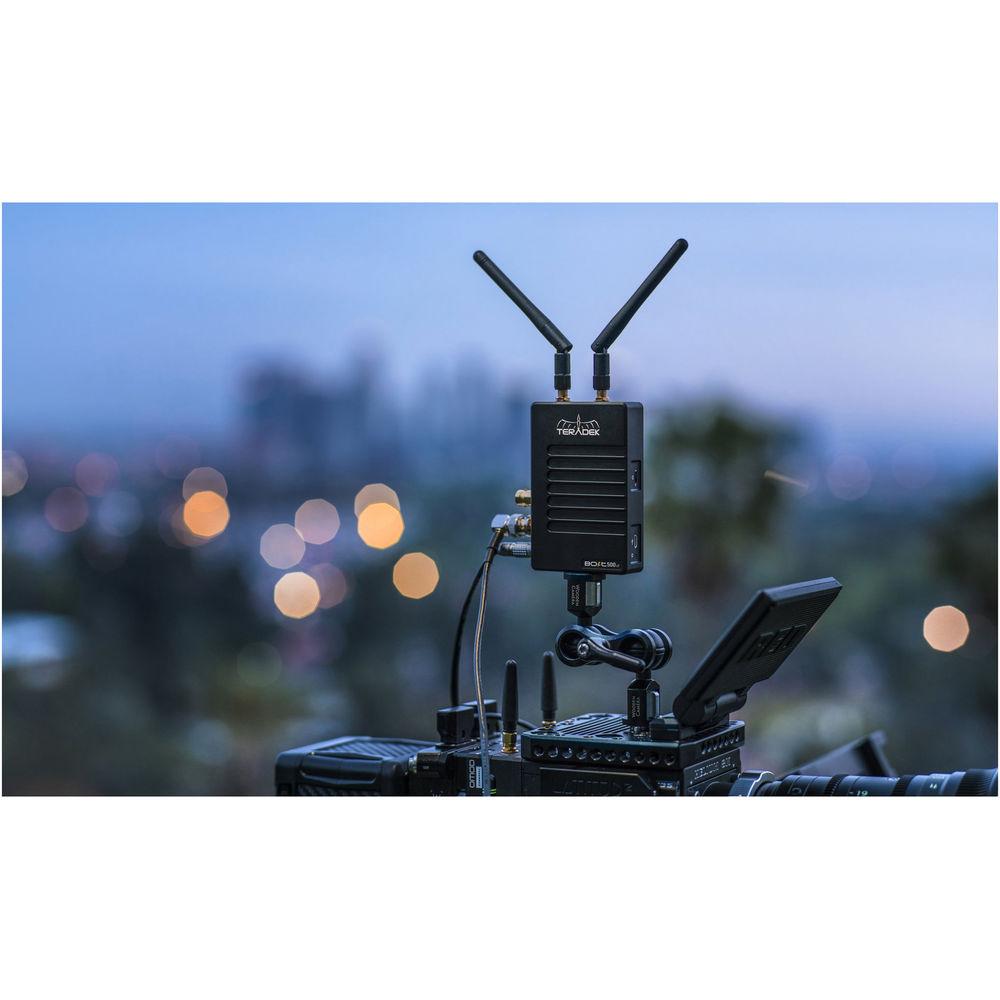

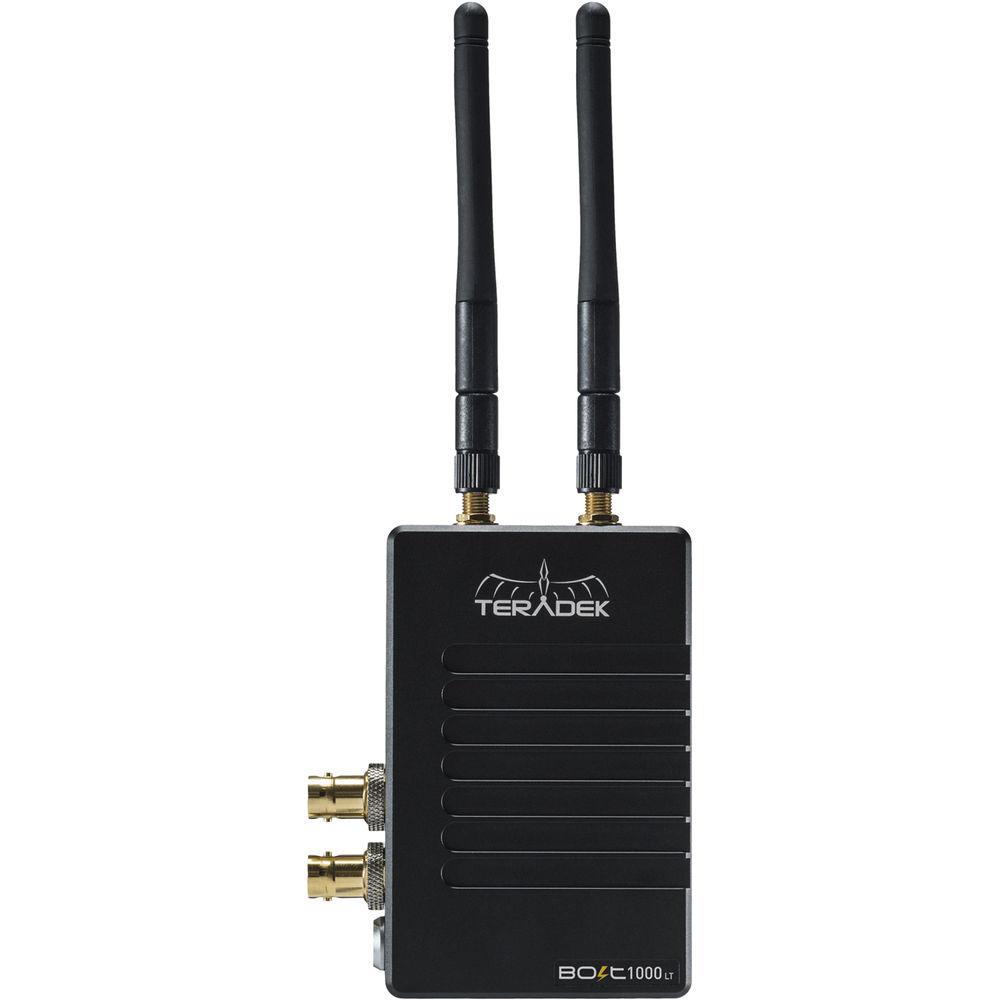

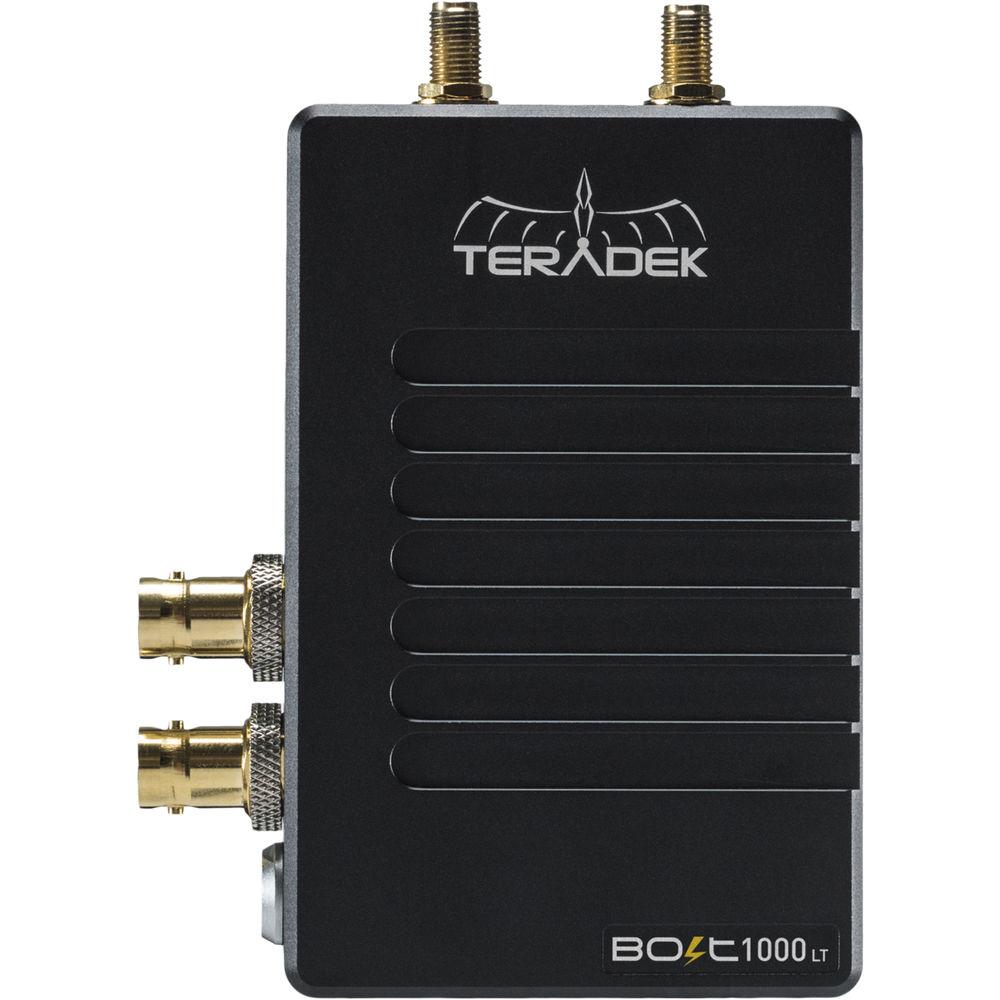

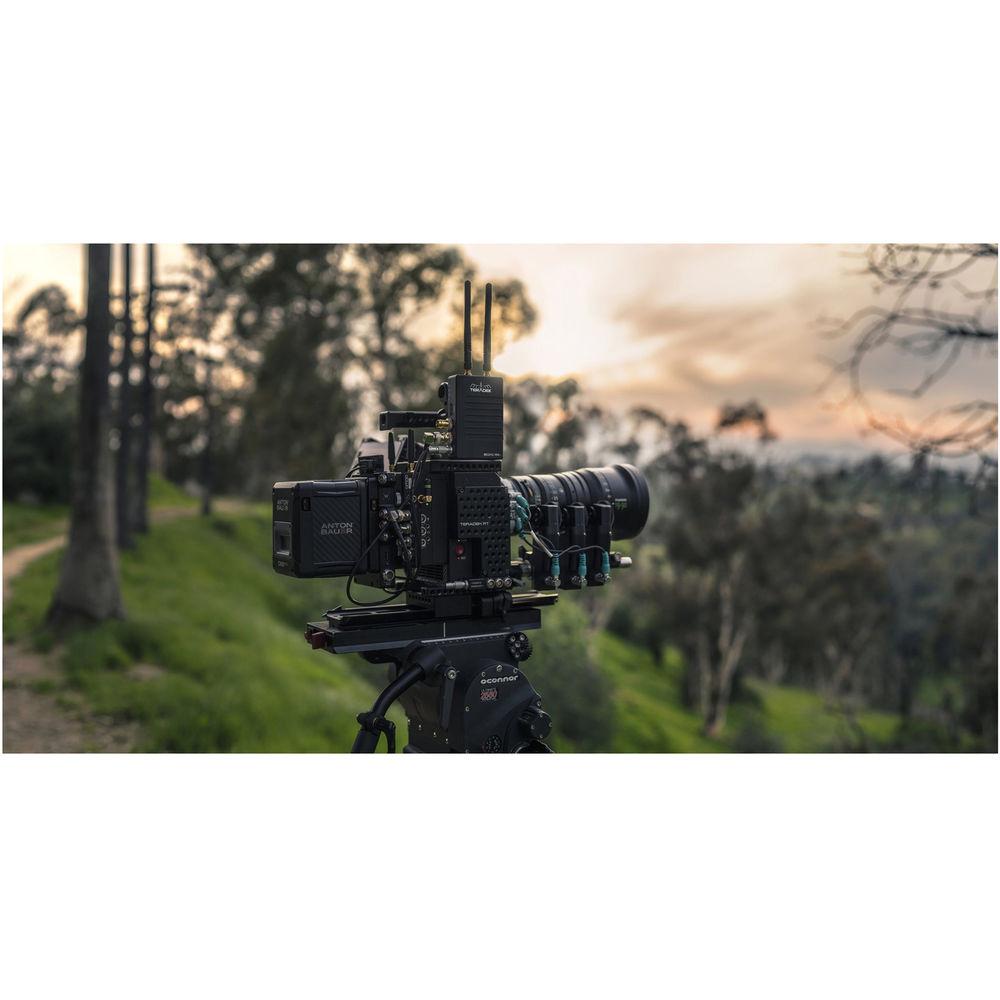

• Bolt 1000 LT 3G-SDI Wireless TX With the Teradek Bolt LT 1000 3G-SDI Wireless Video Transmitter you can transmit visually lossless 3G video signals to a Bolt 1000 receiver with zero latency. The Bolt LT is compatible with existing 3rd-generation Bolt systems such as the Bolt 500, 1000, Sidekick II, and 703 Bolt, as well as the Bolt XT. The transmitter unit itself can be secured to a camera or other SDI video source via built-in 1/4"-20 threaded holes, M3, or ARRI-style connectors. The included antennas provide a powerful signal that can travel up to 500' line of sight.

  A shoe mount is included for attaching to cameras without 1/4"-20 threads. For convenience, a standard BNC cable is included so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector. A D-Tap power cable is included for attaching to a battery. The transmitter supports up to four receivers and built-in AES 128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals.
  • Backwards compatible with 3rd generation Bolt 500, 1000, 300, Sidekick II and 703 Bolt
  • 3G-SDI loop-through output
  • SDI ancillary data support: Supports metadata, timecode, and start/stop flags from certain camera manufacturers.
  • Smaller and lighter chassis design than other Bolt 500 transmitters
  • 1/4"-20, M3, and 3/8" ARRI-style mounting points
  UPC: 818264023198

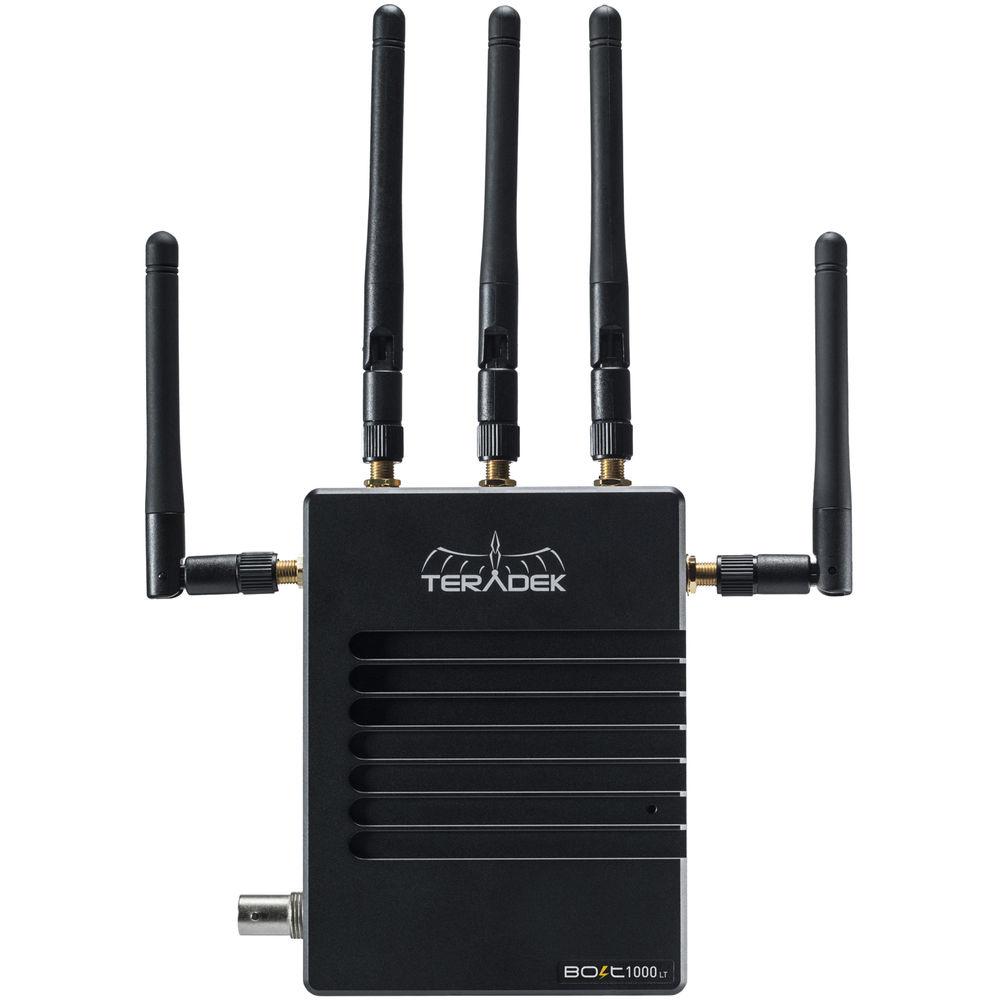

• Bolt 1000 LT 3G-SDI Wireless RX With the Teradek Bolt LT 1000 3G-SDI Wireless Video Receiver you can receive visually lossless 3G-video signals from a Bolt 1000 transmitter with zero latency. The Bolt LT is compatible with existing 3rd-generation Bolt systems such as the Bolt 500, 1000, Sidekick II, and 703 Bolt, as well as the Bolt XT. The receiver unit itself can be secured via built-in 1/4"-20 or M3 threaded holes.

  A light stand adapter is included for mounting on stands. Power can be provided using the integrated 2-pin connector. A D-Tap power cable is included for attaching to a battery. The transmitter supports up to four receivers and built-in AES 128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals.
  • Backwards compatible with 3rd generation Bolt 500, 1000, 300, Sidekick II, and 703 Bolt
  • 3G-SDI loop through
  • SDI ancillary data support: supports metadata, timecode, and start/stop flags from certain camera manufacturers
  • Smaller and lighter chassis design than other Bolt 1000 transmitters
  • 1/4"-20, M3, and 3/8" ARRI-style mounting points
  UPC: 818264023204
• NATO Lock Kit Quickly secure and detach accessories from your camera rig by adding this NATO Lock Kit from Wooden Camera. The rail attaches to your camera or cage system using the included 1/4"-20 or 3/8"-16 screws while the clamp attaches to the accessory itself via an additional set of 1/4"-20 and 3/8"-16 screws. The rail and clamp are compatible with other NATO standard accessories from RED, Zacuto, and other 3rd party manufacturers. UPC: 702534253265

• D-Tap Power Cable (18")

• Shoe Mount

• 2 x Antenna

• USB Type-A to Micro-B Cable

• SDI Cable (10")

• Limited 1-Year Warranty

• 5 x Antenna

• Thumbscrew

• Light Stand Adapter (1/4"-20)

• USB Type-A to Micro-B Cable

• BNC Cable (10")

• PSU 2-Pin Connector to 18W AC Adapter Cable (6')

• Limited 1-Year Warranty

• 2 x 1/4"-20 Screws

• 2 x 3/8"-16 Screws

• Short 1/4"-20 Thread

• Limited 1-Year Warranty

Also Includes

• WO233200
• Teradek Vinyl Zipper Bag
• SKB Case with Custom Foam (13.5 x 9.5 x 6.5")
• 2.5mm Hex Key
• 3/16" Hex Key
• 2 x Gold Mount Battery Plate, Factory Installed on Receiver

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Bolt 1000 LT 3G-SDI Wireless TX

  Construction	Milled aluminum (chassis) and regulation-compliant PCB
  Video Inputs	3G/HD/SD-SDI: 1 x BNC (75 Ohms)
  Video Outputs	3G/HD/SD-SDI: 1 x BNC (75 Ohms, loop-through out)
  Color Sampling	YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
  Latency	<0.001 seconds (TX to RX without format conversion)
  Supported Resolutions	1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480i: 59.94 576i: 50
  Video Processing	Compression Visually lossless Color Correction CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color)
  Audio Compression	48 kHz, 24-bit PCM
  Audio Input	Embedded
  Interfaces	Switches: On/Off and Reset Desktop App: Feature-rich Bolt Manager application for OS X and Windows USB Interface Functionality: Upgrade via mini-USB
  Wireless	Non-DFS Frequencies UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz EU & JP: 5.19 to 5.23 GHz DFS Frequencies US: 5.27 to 5.55 GHz and 5.67 GHz EU & JP: 5.27 to 5.67 GHz
  RF Power	17 dBm EIRP
  Encryption	AES-128
  Range	Up to 500' / 152.4 m line of sight
  Unicast Multicast	Unicast / Multicast
  Noise Rejection	Can coexist with Wi-Fi and 5 GHz cordless phones
  Power Input	2-pin connector 7 to 17 VDC
  Power Consumption	Nominal 7.3 W (measured at 1080p60)
  Operating Temperature	32 to 104°F / 0 to 40°C
  Mountable	Multiple mounting options with M3 and 1/4" holes 3/8" ARRI style accessory mount
  Dimensions	0.95 x 2.6 x 4.47" / 2.41 x 6.6 x 11.35 cm
  Weight	8 oz / 226 g

  Box Dimensions (LxWxH)	6.7 x 6.6 x 4.8"

• Bolt 1000 LT 3G-SDI Wireless RX

  Construction	Milled aluminum (chassis) and regulation-compliant PCB
  Video Outputs	3G/HD/SD-SDI: 1 x BNC (75 Ohms, loop-through out)
  Color Sampling	YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
  Latency	<0.001 seconds (TX to RX without format conversion)
  Supported Resolutions	1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480i: 59.94 576i: 50
  Video Processing	Compression Visually lossless Color Correction CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color)
  Audio Compression	48 kHz, 24-bit PCM
  Audio Input	Embedded
  Interfaces	Switches: On/Off and Reset Desktop App: Feature-rich Bolt Manager application for OS X and Windows USB Interface Functionality: 1 x USB 3.0 Micro
  Wireless	Non-DFS Frequencies UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz EU & JP: 5.19 to 5.23 GHz DFS Frequencies US: 5.27 to 5.55 GHz and 5.67 GHz EU & JP: 5.27 to 5.67 GHz
  RF Power	17 dBm EIRP
  Encryption	AES-128
  Range	Up to 1000' / 304.8 m line of sight
  Unicast Multicast	Unicast / Multicast
  Noise Rejection	Can coexist with Wi-Fi and 5 GHz cordless phones
  Power Input	2-pin connector 7 to 17 VDC
  Power Consumption	Nominal 7.3 W (measured at 1080p60)
  Operating Temperature	32 to 104°F / 0 to 40°C
  Mountable	Multiple mounting options with M3 and 1/4" holes 3/8" ARRI style accessory mount
  Dimensions	1 x 3.4 x 4.5" / 2.54 x 8.64 x 11.43 cm
  Weight	10.1 oz / 288 g

  Box Dimensions (LxWxH)	6.8 x 6.4 x 4.8"

• NATO Lock Kit

  Compatibility	RED Swat rails Zacuto Z-rails Other 3rd party NATO products
  Dimensions	1.9 x 1.9 x 0.7" (47.2 x 47.2 x 18.3 mm)
  Weight	0.1 lb (50 g)

  Box Dimensions (LxWxH)	3.2 x 2.7 x 0.85"
