Product description With the Teradek Bolt 1000 XT 3G-SDI/HDMI Wireless Receiver you can receive visually lossless 3G-video or HDMI signals from a Bolt 1000 transmitter with zero latency. The Bolt XT is compatible with the Sidekick II, and 703 Bolt, as well as the Bolt LT. The receiver unit itself can be secured via built-in 1/4"-20 or M3 threaded holes.
A lightstand adapter is included for mounting on stands. For convenience, a standard HDMI cable is included, so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector. A D-Tap power cable is included for attaching to a battery. The receiver can share the transmitter with up to three other receivers. It features built-in AES 128 encryption that protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals. The receiver features a built-in 3D LUT engine and a 5 GHz spectrum analyzer so you can find a clean signal path. - Backwards compatible with Bolt 1000 LT, Sidekick II, and 703 Bolt
- The receiver includes built-in cross conversion and Teradek's proprietary software utilities, including a manual frequency-selection tool, 3D LUT engine, and a 5 GHz spectrum analyzer to help you find a clean signal pathway.
- SDI ancillary data support: supports metadata, timecode, and start/stop flags from certain camera manufacturers.

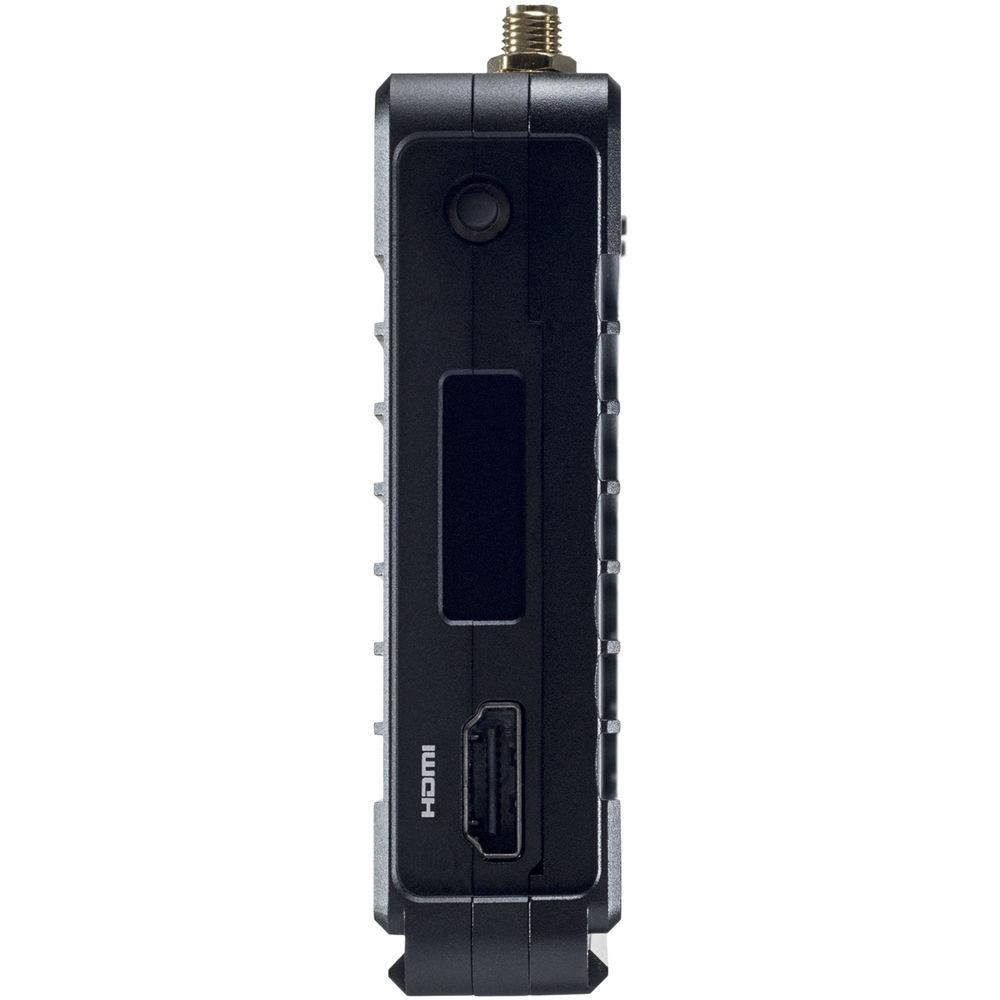

- OLED Screen with Menu Joystick Navigation.

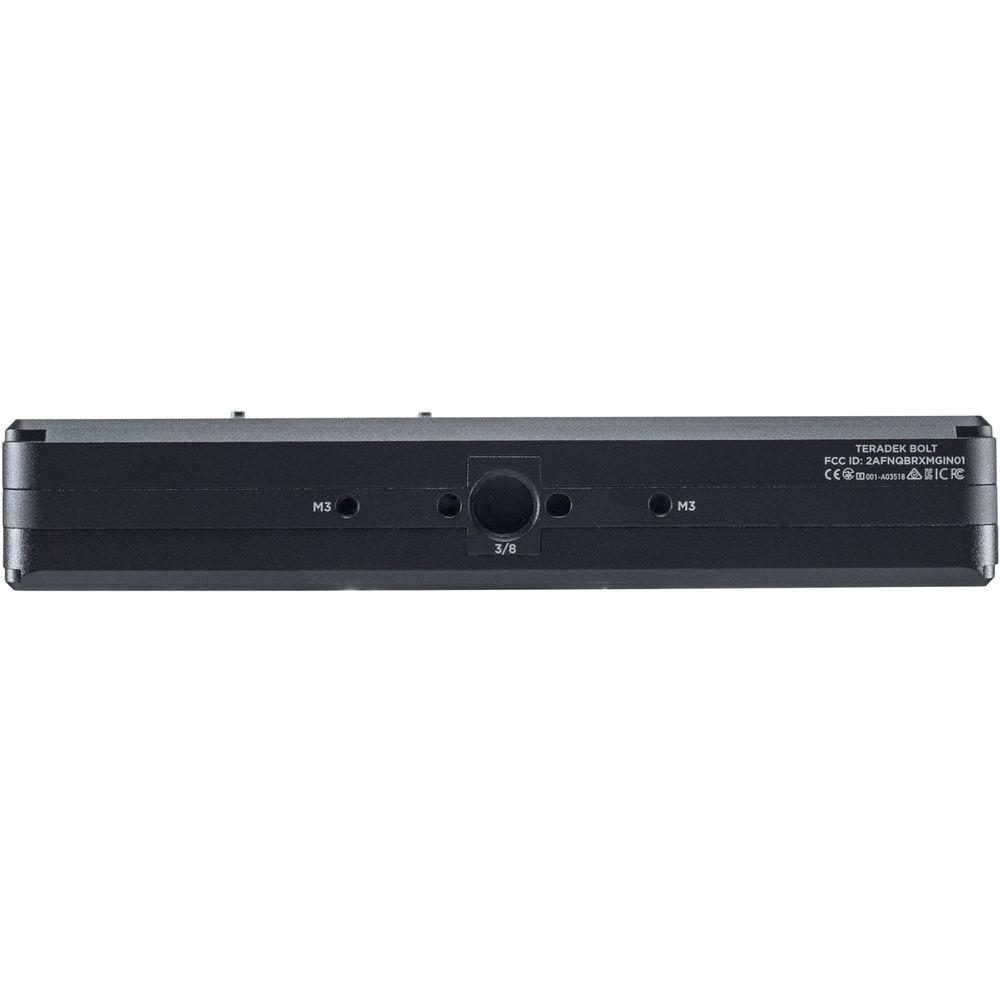

- 1/4"-20 and M3 mounting points

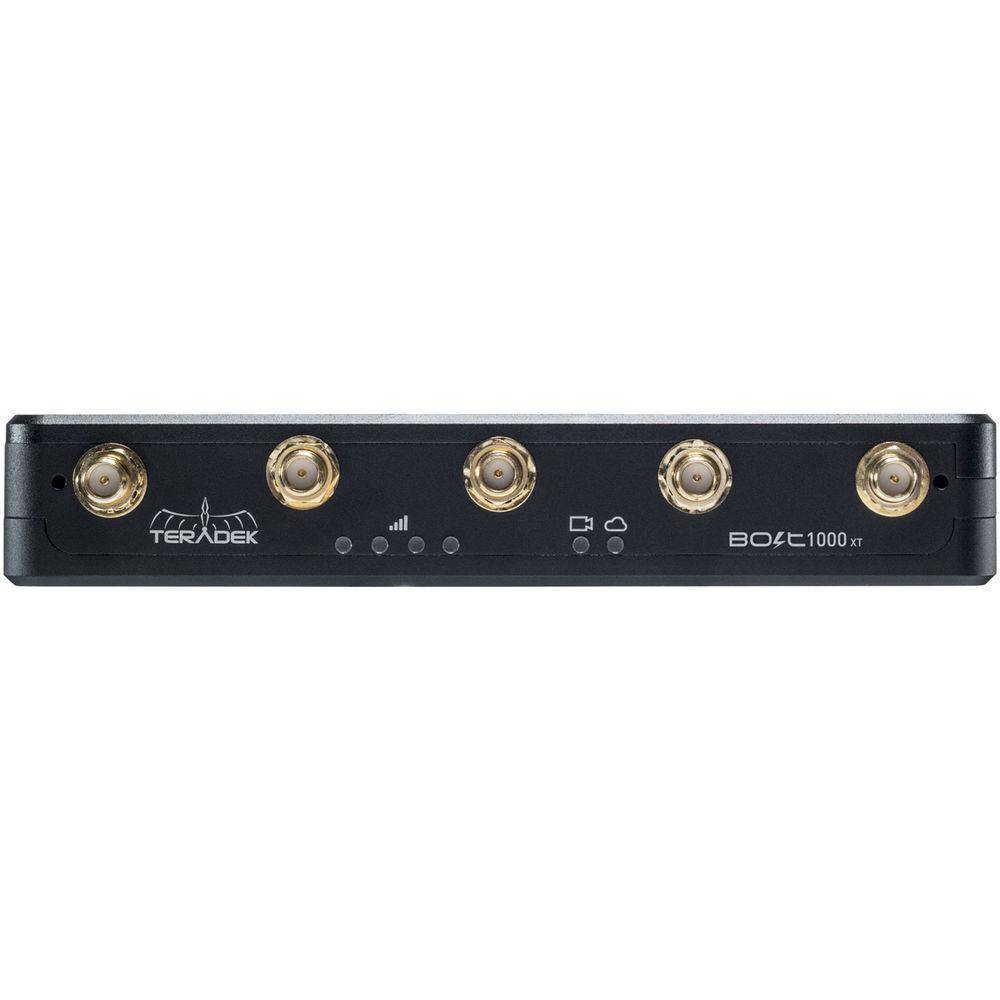

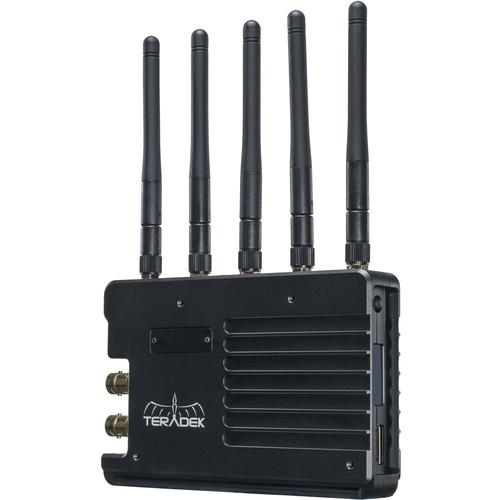

- 5 included antennas for the receiver enable it to pick up signals with clarity
UPC: 818264023327 In the Box Teradek Bolt 1000 XT 3G-SDI/HDMI Wireless Receiver Thumbscrew Light Stand Adapter (1/4"-20) BNC Cable (10") HDMI Cable Type A to Type A (18") PSU 2-Pin Connector to 18W AC Adapter Cable (6') 5 x Wireless Antennas USB 3.0 Cable Type-A to Micro-B (3') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bolt 1000 XT 3G-SDI HDMI Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

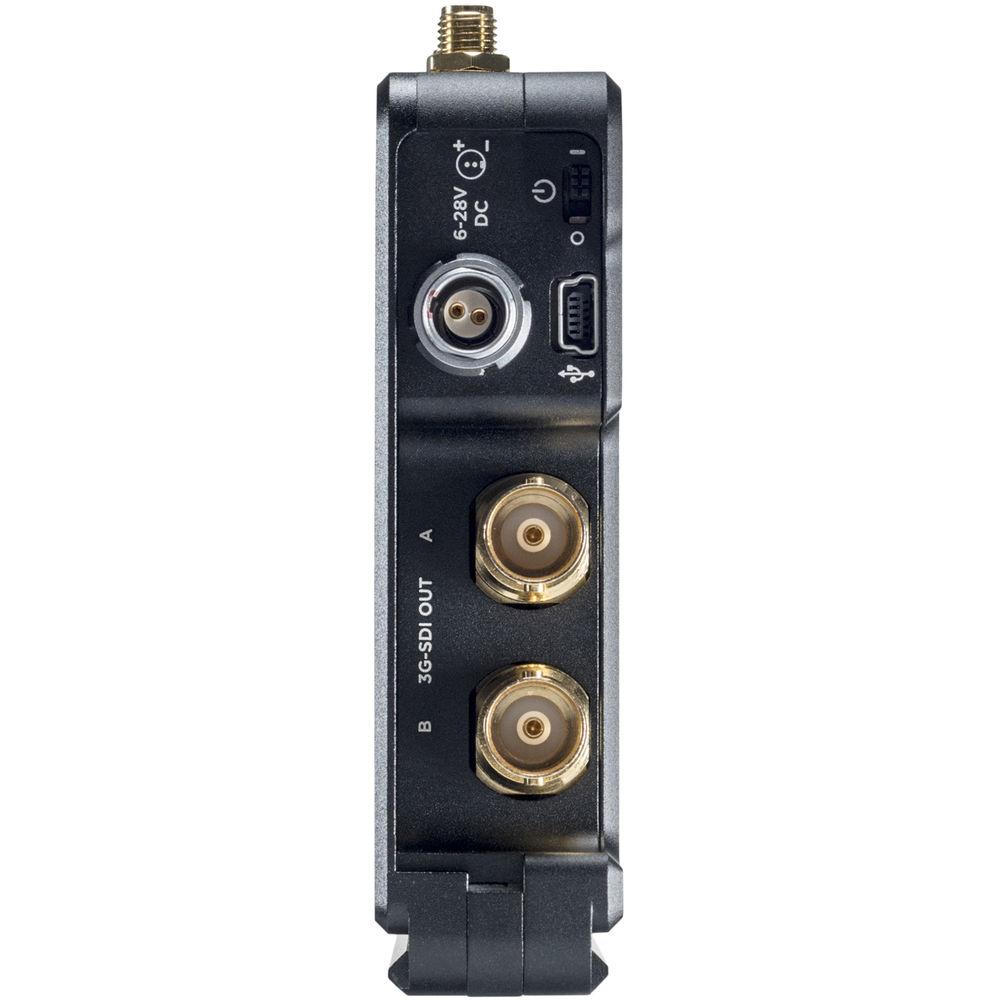

Technical parametersTeradek 1000 Specs | Construction | Milled aluminum (chassis) and regulation-compliant PCB | | Video Outputs | SDI: 1 x BNC (75 Ohm), 3G/HD/SD
HDMI: 1 x HDMI type A receptacle
USB: 1 x USB-type 3.0 Micro B receptacle | | SDI Ancillary Data Support | Supports metadata, timecode, and start/stop flags from select camera manufacturers. | | Color Sampling | SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
HDMI: RGB 4:4:4, 8-bit | | Latency | <0.001 seconds (Tx to Rx without format conversion) | | Supported Resolutions | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576P: 50 (via HDMI only)
480p: 59.94 (via HDMI only)
576i: 50
480i: 59.94 | | Video Processing | Compression
Visually lossless
Color Correction
CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color) | | Audio Compression | 48 kHz, 24-bit PCM | | Audio Input | Embedded | | Interfaces | Switches: On/Off and Reset
Desktop App: Feature-rich Bolt Manager application for Mac OS X and Windows
USB Interface Functionality: Upgrade via mini-USB | | Wireless | Non-DFS Frequencies UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz EU & JP: 5.19 to 5.23 GHz
DFS Frequencies US: 5.27 to 5.55 GHz and 5.67 GHz EU & JP: 5.27 to 5.67 GHz | | RF Power | 15 dBm EIRP
| | Encryption | AES-128 | | Range | Up to 500' / 152.4 m line of sight | | Unicast Multicast | Unicast / Multicast | | Noise Rejection | Can coexist with WiFi and 5 GHz cordless phones | | Power Input | 2-pin connector
7 to 28 VDC | | Power Consumption | Nominal 9 W (measured at 1080p60) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Mountable | 1 x 1/4"-20 threaded mounting hole
2 x M3 threaded mounting holes | | Dimensions | 3.5 x 5.4 x 0.95" / 8.89 x 13.72 x 2.41 cm | | Weight | 13.3 oz / 377 g | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 6.7 x 6.6 x 4.9" |
