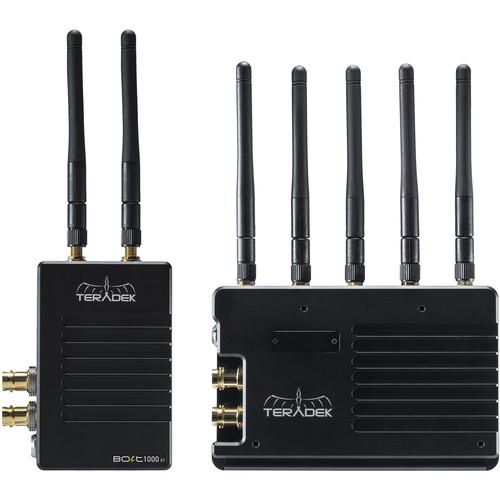

User Manual for Teradek Bolt 1000 XT 3G-SDI HDMI Wireless Transmitter and Receiver Set

• Product category: Wireless Transmission Systems Teradek
• Brand: Teradek
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Teradek Wireless Transmission Systems

Product description

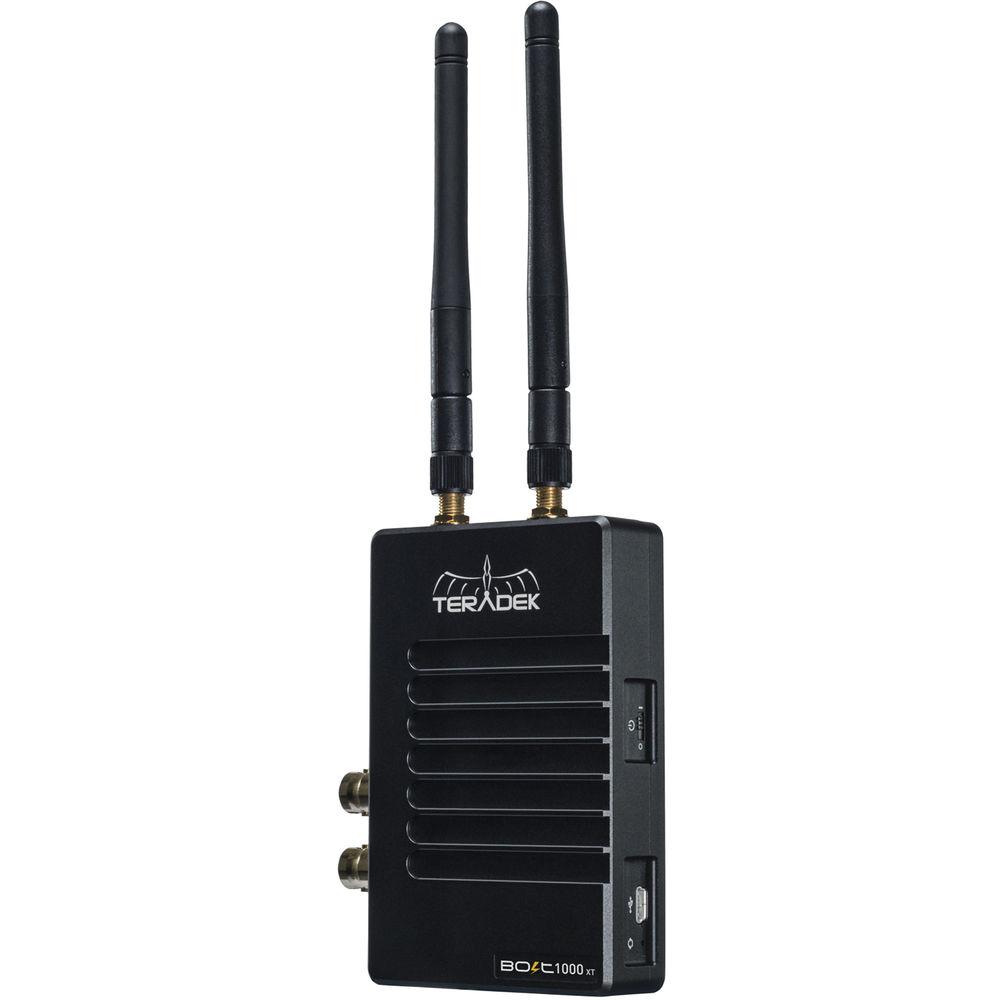

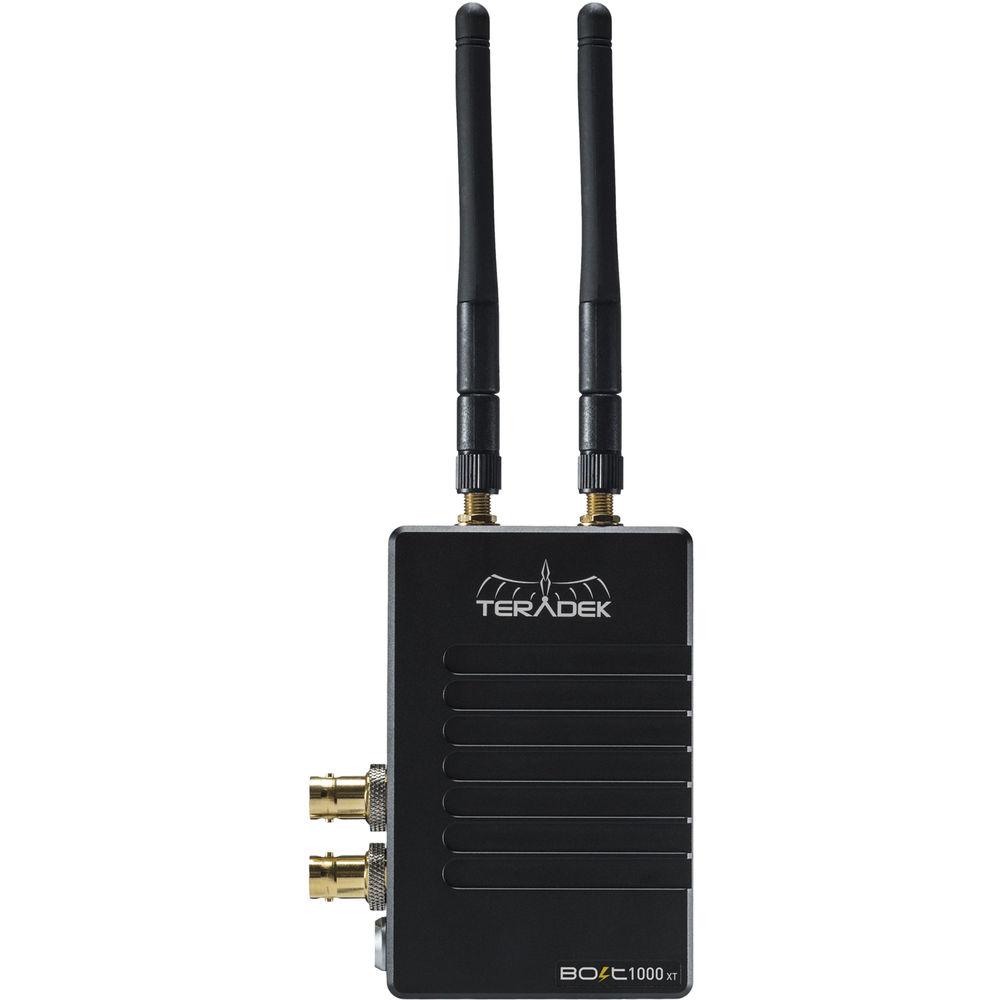

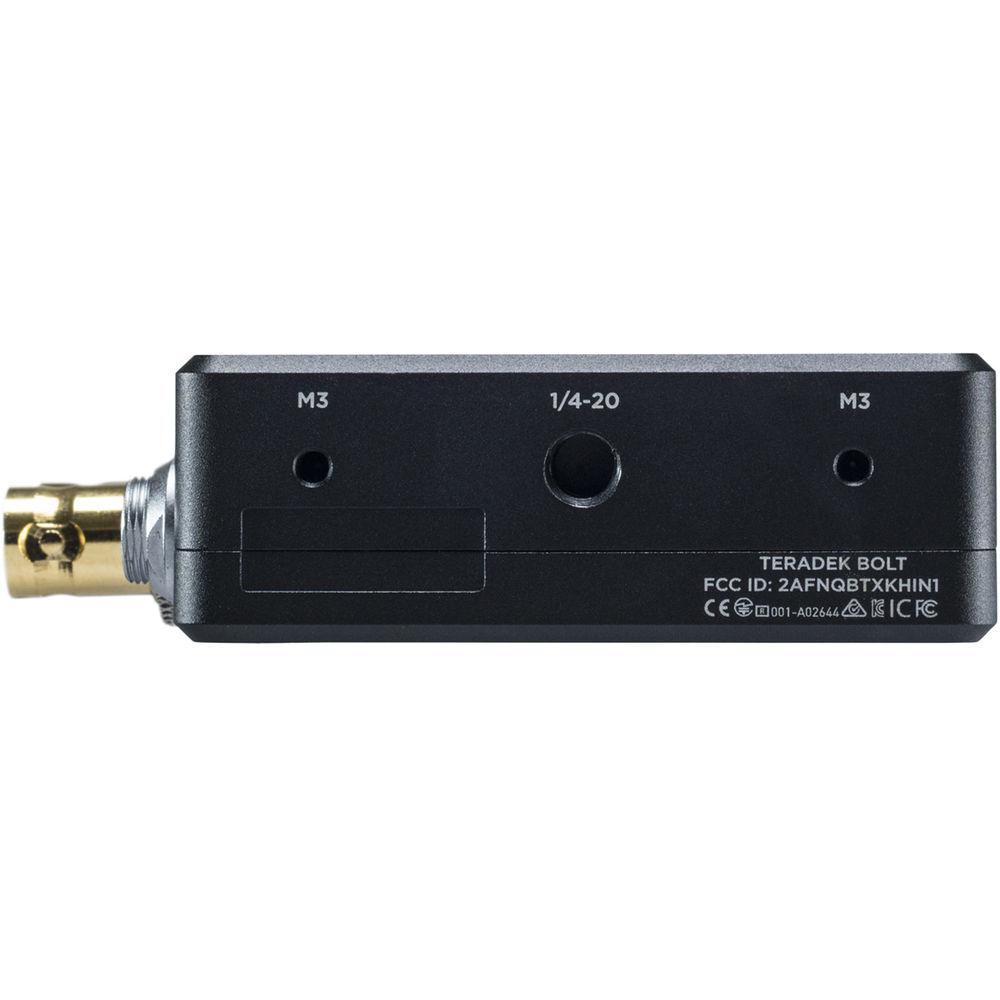

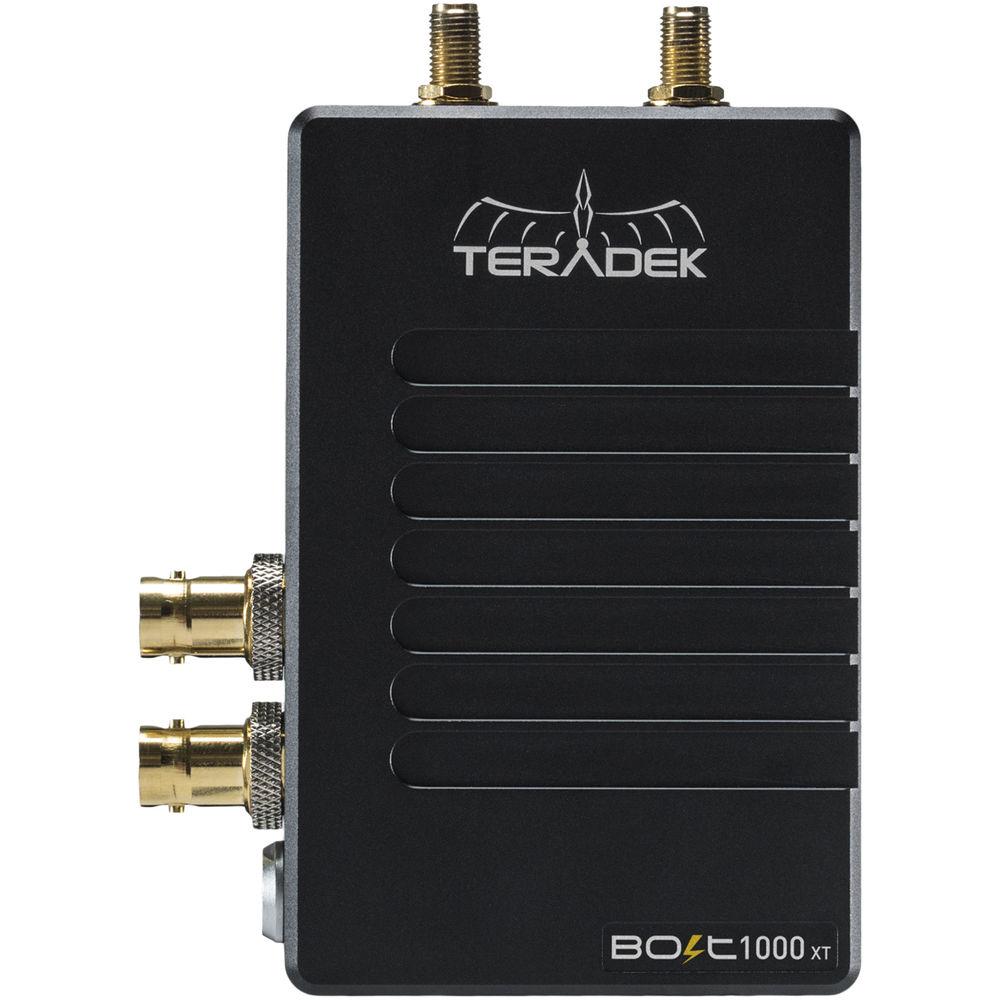

• Bolt 1000 XT 3G-SDI/HDMI Wireless Transmitter With the Teradek Bolt 1000 XT 3G-SDI/HDMI Wireless Transmitter you can transmit visually lossless 3G video signals to a Bolt 1000 receiver with zero latency. The Bolt XT is compatible with existing 3rd-generation Bolt systems, such as the Bolt 1000, Sidekick II, and 703 Bolt, as well as the Bolt 1000 LT. The transmitter unit itself can be secured to a camera or other SDI/HDMI video source via a built-in 1/4"-20 threaded hole, two M3 threaded holes, and a built-in 3/8"-16 ARRI accessory mount. The included antennas provide a powerful signal that can travel up to 1000' line-of-sight.

  A shoe mount is included for attaching to cameras without 1/4"-20 threads. For convenience, both a standard BNC cable and HDMI cable are included, so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector via the included D-Tap power cable. The transmitter supports up to four receivers, built-in AES 128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals.
  • Compatible with Bolt 1000 XT and LT, Sidekick II, and 703 Bolt
  • HDMI and 3G-SDI inputs, with 3G-SDI loop-through output on transmitter
  • 5 GHz Spectrum Analyzer
  • Manual channel selection
  • Supports 11 channels in the 40 MHz band
  • SDI ancillary data support: supports metadata, timecode, and start/stop flags from certain camera manufacturers.
  • 1/4"-20 and M3 mounting points
  UPC: 818264023310

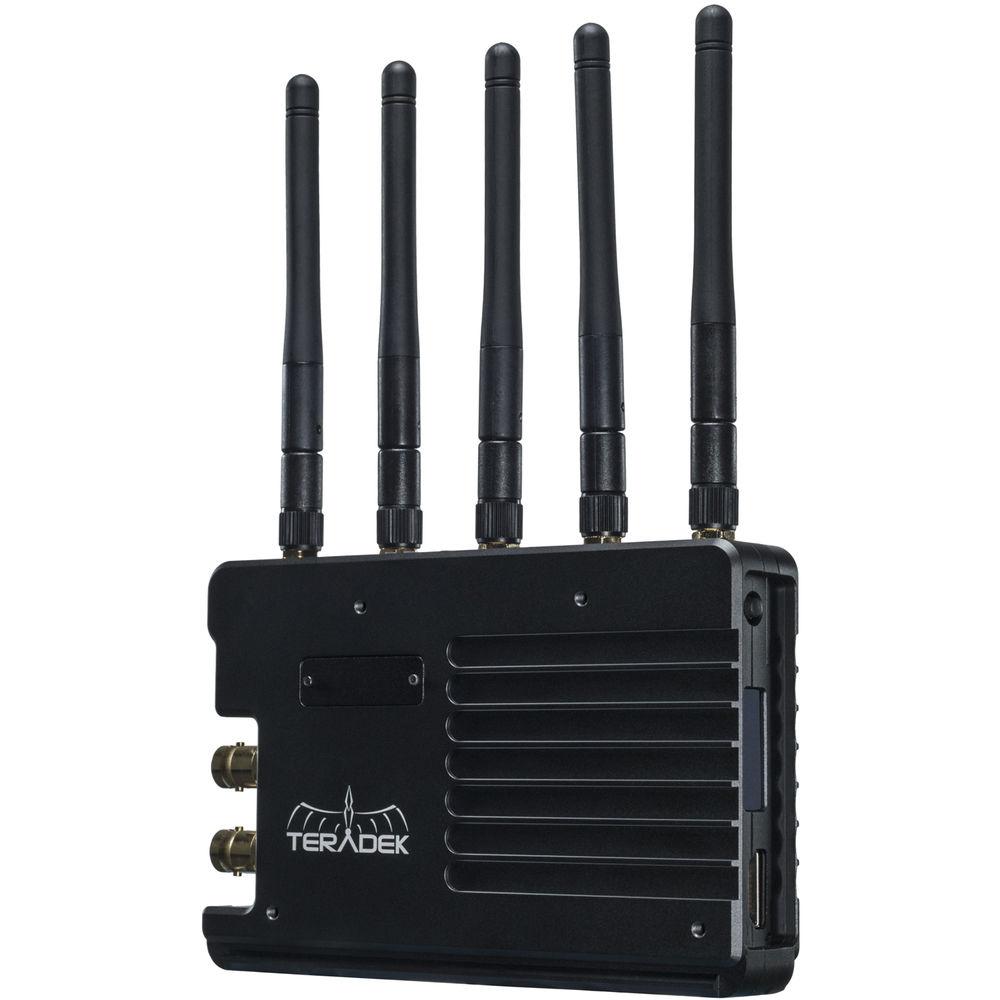

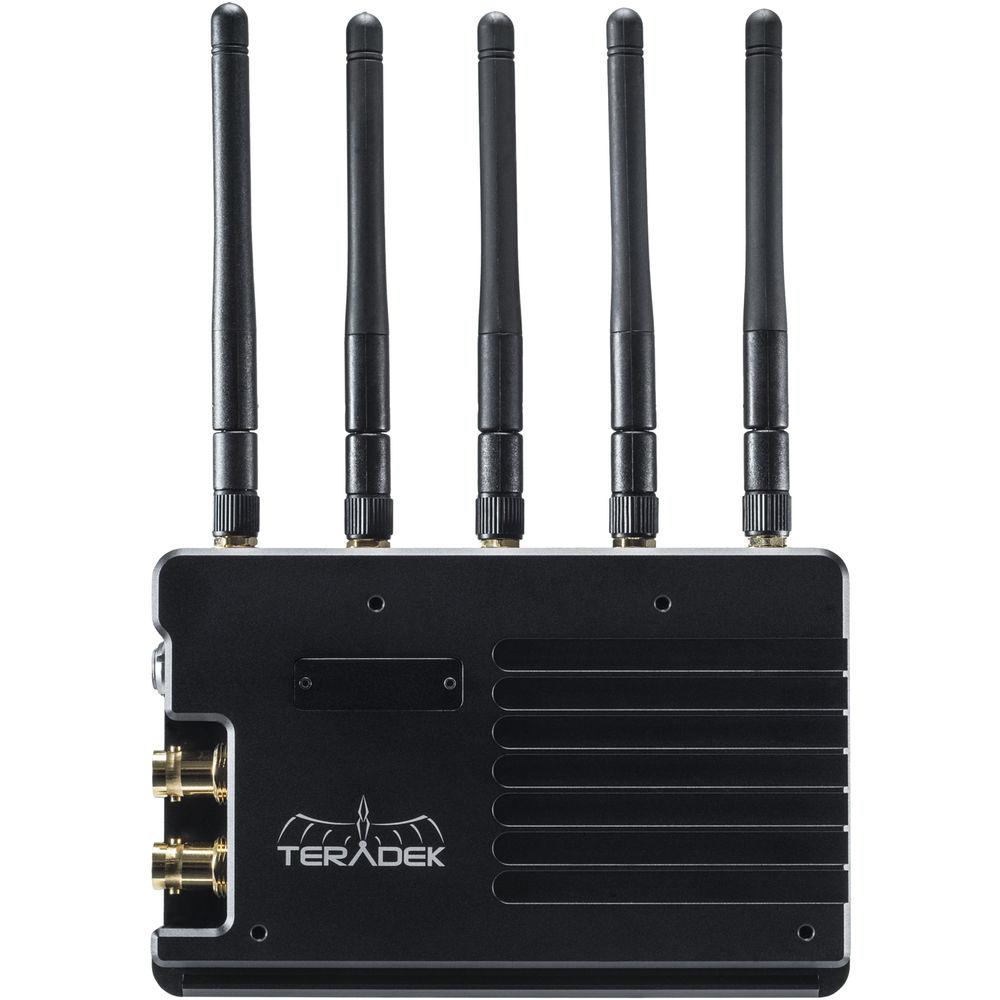

• Bolt 1000 XT 3G-SDI/HDMI Wireless Receiver With the Teradek Bolt 1000 XT 3G-SDI/HDMI Wireless Receiver you can receive visually lossless 3G-video or HDMI signals from a Bolt 1000 transmitter with zero latency. The Bolt XT is compatible with the Sidekick II, and 703 Bolt, as well as the Bolt LT. The receiver unit itself can be secured via built-in 1/4"-20 or M3 threaded holes.

  A lightstand adapter is included for mounting on stands. For convenience, a standard HDMI cable is included, so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector. A D-Tap power cable is included for attaching to a battery. The receiver can share the transmitter with up to three other receivers. It features built-in AES 128 encryption that protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals. The receiver features a built-in 3D LUT engine and a 5 GHz spectrum analyzer so you can find a clean signal path.
  • Backwards compatible with Bolt 1000 LT, Sidekick II, and 703 Bolt
  • The receiver includes built-in cross conversion and Teradek's proprietary software utilities, including a manual frequency-selection tool, 3D LUT engine, and a 5 GHz spectrum analyzer to help you find a clean signal pathway.
  • SDI ancillary data support: supports metadata, timecode, and start/stop flags from certain camera manufacturers.
  • OLED Screen with Menu Joystick Navigation.
  • 1/4"-20 and M3 mounting points
  • 5 included antennas for the receiver enable it to pick up signals with clarity
  UPC: 818264023327

• D-Tap Power Cable (18")

• Shoe Mount

• 2 x Antenna

• SDI Cable (10")

• HDMI Type A to Type A Cable

• Limited 1-Year Warranty

• Thumbscrew

• Light Stand Adapter (1/4"-20)

• BNC Cable (10")

• HDMI Cable Type A to Type A (18")

• PSU 2-Pin Connector to 18W AC Adapter Cable (6')

• 5 x Wireless Antennas

• USB 3.0 Cable Type-A to Micro-B (3')

• Limited 1-Year Warranty

Also Includes

• Vinyl Carry Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Bolt 1000 XT 3G-SDI/HDMI Wireless Transmitter

  Construction	Milled aluminum (chassis) and regulation-compliant PCB

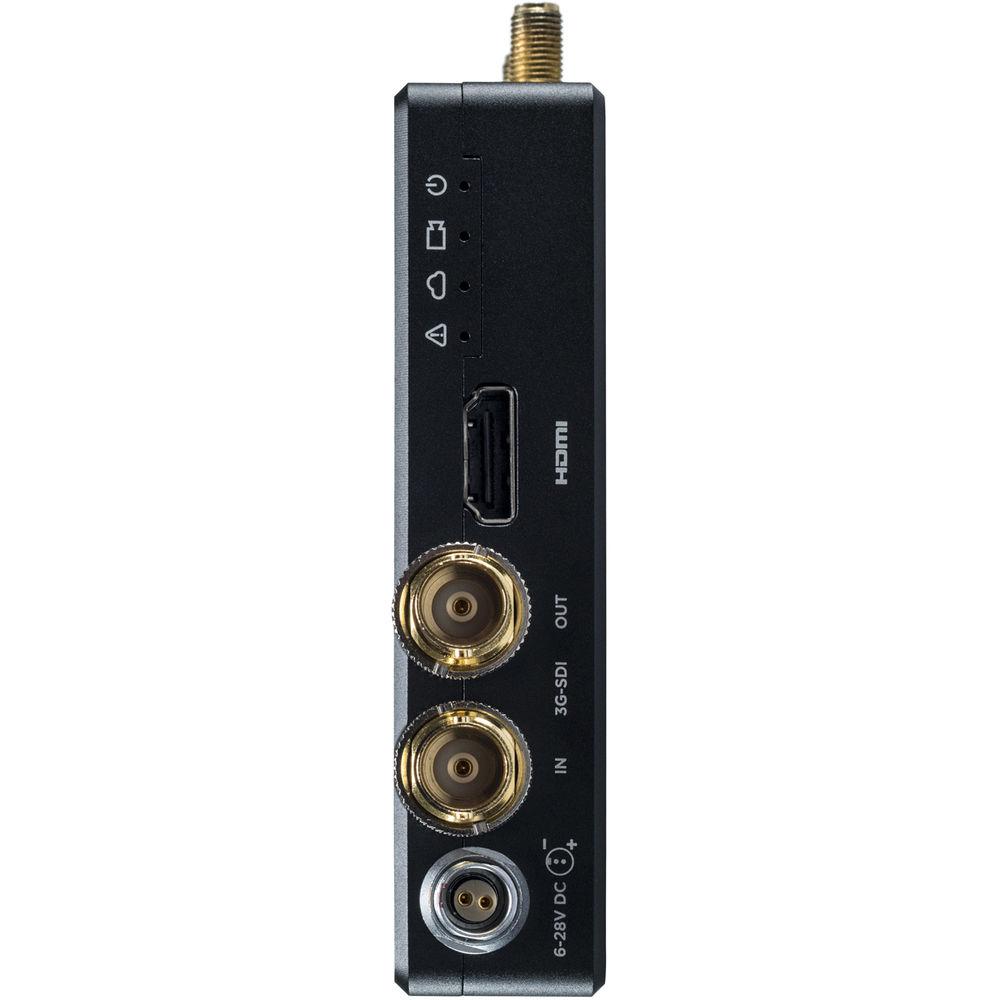

  Video Inputs	SDI: 1 x BNC (75 Ohm), 3G/HD/SD HDMI: 1 x HDMI type A receptacle
  Video Outputs	SDI: 1 x BNC (75 Ohm), 3G/HD/SD, loop through
  Color Sampling	SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled) HDMI: RGB 4:4:4, 8-bit
  Latency	<0.001 seconds (Tx to Rx without format conversion)
  Channels	40 MHz: 11 (USA)
  Supported Resolutions	1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480i: 59.94 576i: 50
  Video Processing	Compression Visually lossless Color Correction CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color)
  Audio Compression	48 kHz, 24-bit PCM
  Audio Input	Embedded

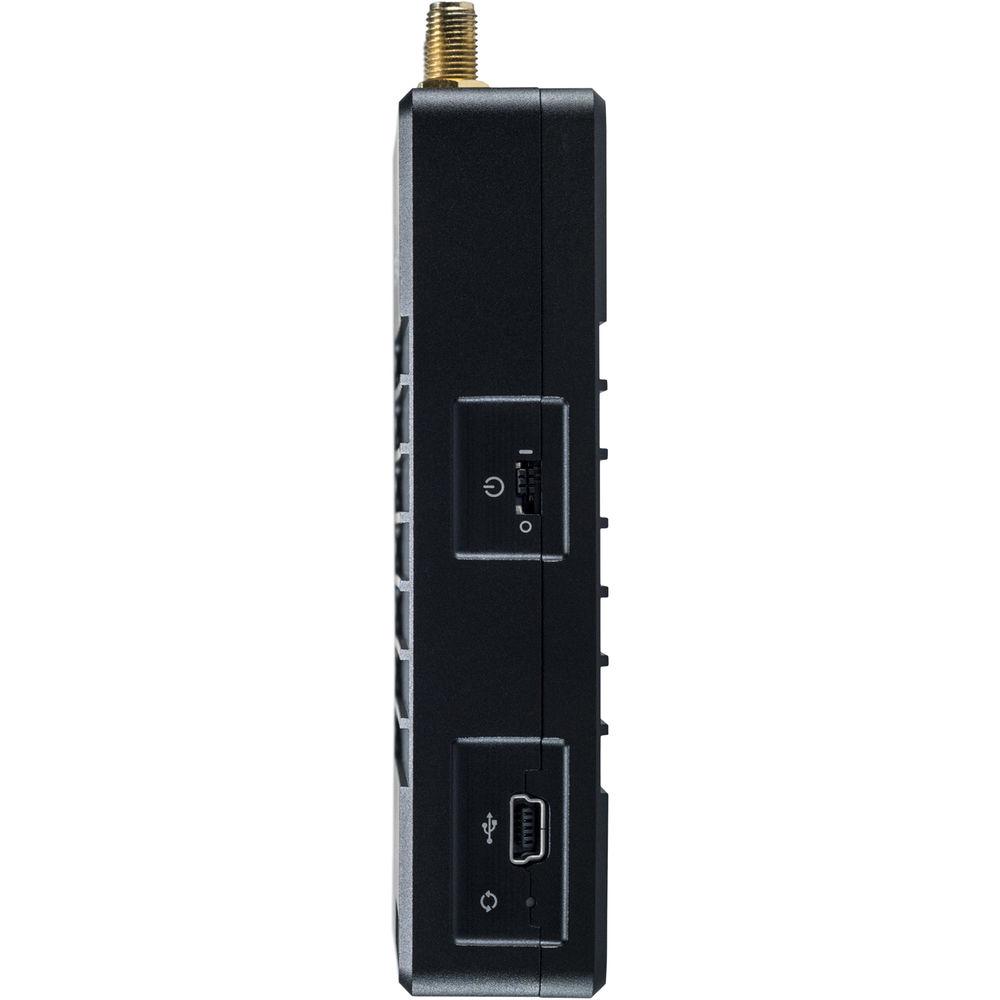

  Interfaces	Switches: On/Off and Reset Desktop App: Feature-rich Bolt Manager application for Mac OS X and Windows USB Interface Functionality: Upgrade via mini-USB
  Wireless	Non-DFS Frequencies UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz EU & JP: 5.19 to 5.23 GHz DFS Frequencies US: 5.27 to 5.55 GHz and 5.67 GHz EU & JP: 5.27 to 5.67 GHz
  RF Power	17 dBm EIRP
  Encryption	AES-128
  Range	Up to 500' / 152.4 m line of sight
  Unicast Multicast	Unicast / Multicast
  Noise Rejection	Can coexist with WiFi and 5 GHz cordless phones
  Power Input	2-pin connector 7 to 17 VDC
  Power Consumption	Nominal 7.3 W (measured at 1080p60)
  Operating Temperature	32 to 104°F / 0 to 40°C

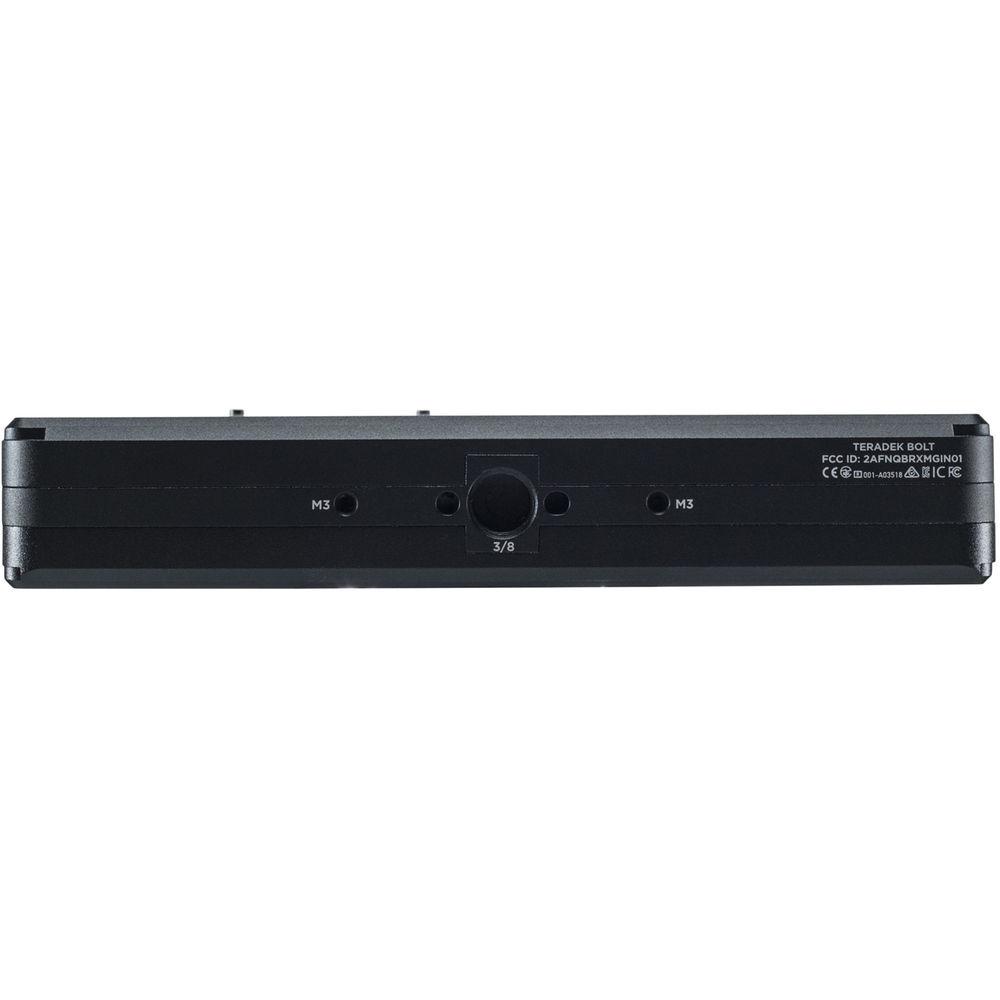

  Mountable	1 x 1/4"-20 threaded mounting hole 2 x M3 threaded mounting holes
  Dimensions	0.95 x 2.6 x 4.47" / 2.41 x 6.6 x 11.35 cm
  Weight	8 oz / 226 g

  Box Dimensions (LxWxH)	8.0 x 6.5 x 4.8"

• Bolt 1000 XT 3G-SDI/HDMI Wireless Receiver

  Construction	Milled aluminum (chassis) and regulation-compliant PCB
  Video Outputs	SDI: 1 x BNC (75 Ohm), 3G/HD/SD HDMI: 1 x HDMI type A receptacle USB: 1 x USB-type 3.0 Micro B receptacle
  SDI Ancillary Data Support	Supports metadata, timecode, and start/stop flags from select camera manufacturers.
  Color Sampling	SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled) HDMI: RGB 4:4:4, 8-bit
  Latency	<0.001 seconds (Tx to Rx without format conversion)
  Supported Resolutions	1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576P: 50 (via HDMI only) 480p: 59.94 (via HDMI only) 576i: 50 480i: 59.94
  Video Processing	Compression Visually lossless Color Correction CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color)
  Audio Compression	48 kHz, 24-bit PCM
  Audio Input	Embedded
  Interfaces	Switches: On/Off and Reset Desktop App: Feature-rich Bolt Manager application for Mac OS X and Windows USB Interface Functionality: Upgrade via mini-USB
  Wireless	Non-DFS Frequencies UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz EU & JP: 5.19 to 5.23 GHz DFS Frequencies US: 5.27 to 5.55 GHz and 5.67 GHz EU & JP: 5.27 to 5.67 GHz
  RF Power	15 dBm EIRP
  Encryption	AES-128
  Range	Up to 500' / 152.4 m line of sight
  Unicast Multicast	Unicast / Multicast
  Noise Rejection	Can coexist with WiFi and 5 GHz cordless phones
  Power Input	2-pin connector 7 to 28 VDC
  Power Consumption	Nominal 9 W (measured at 1080p60)
  Operating Temperature	32 to 104°F / 0 to 40°C
  Mountable	1 x 1/4"-20 threaded mounting hole 2 x M3 threaded mounting holes
  Dimensions	3.5 x 5.4 x 0.95" / 8.89 x 13.72 x 2.41 cm
  Weight	13.3 oz / 377 g

  Box Dimensions (LxWxH)	6.7 x 6.6 x 4.9"
