Product description

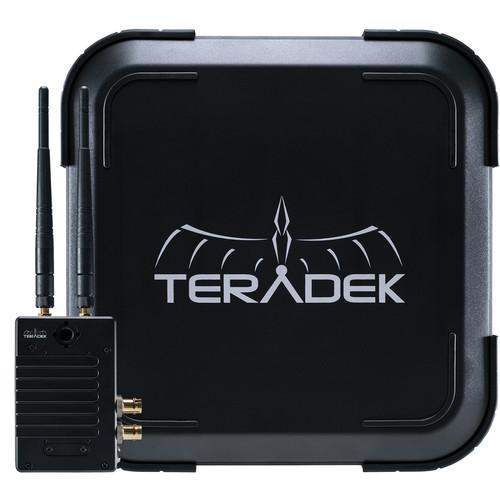

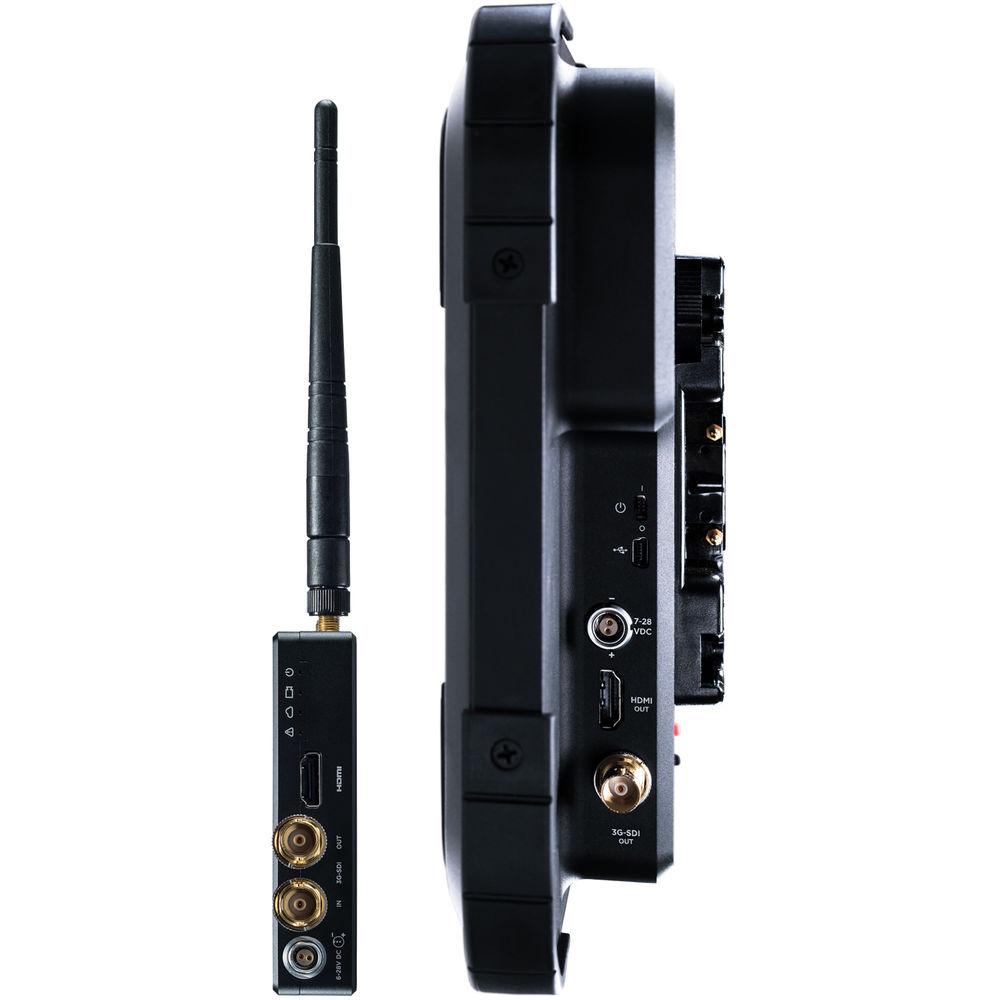

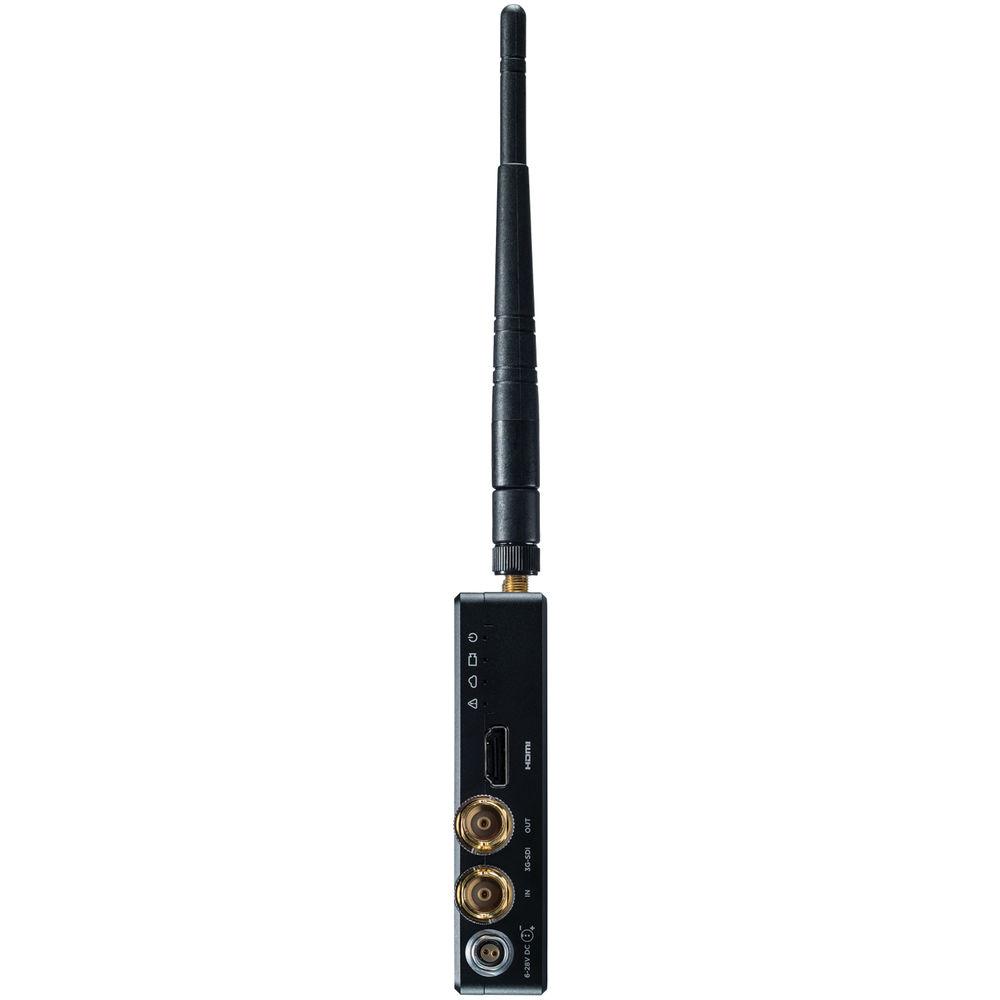

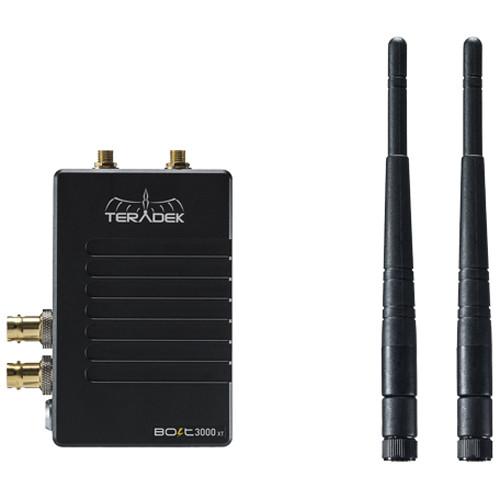

• Bolt 3000 XT 3G-SDI/HDMI Wireless Transmitter With the Teradek Bolt 3000 XT 3G-SDI/HDMI Wireless Transmitter you can transmit visually lossless 3G video signals to a Bolt 3000 receiver with zero latency. The Bolt XT is also compatible with the Sidekick II and 703 Bolt. The transmitter unit itself can be secured to a camera or other SDI/HDMI video source via a built-in 1/4"-20 threaded hole, as well as two M3 threaded holes. The included antennas provide a powerful signal that can travel up to 3000' line-of-sight.

  A shoe mount is included for attaching to cameras without 1/4"-20 threads. For convenience, both a standard BNC cable and HDMI cable are included so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector via the included D-Tap power cable. The transmitter supports up to four receivers and built-in AES 128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals.
  • Backwards compatible with the Teradek universal receivers the Sidekick II and 703 Bolt, which can receive Bolt 3000 XT signals up to 300' away
  • HDMI and 3G-SDI inputs, with 3G-SDI loop-through output on transmitter
  • SDI ancillary data support: supports metadata, timecode, and start/stop flags from certain camera manufacturers
  • 1/4"-20 and M3 mounting points

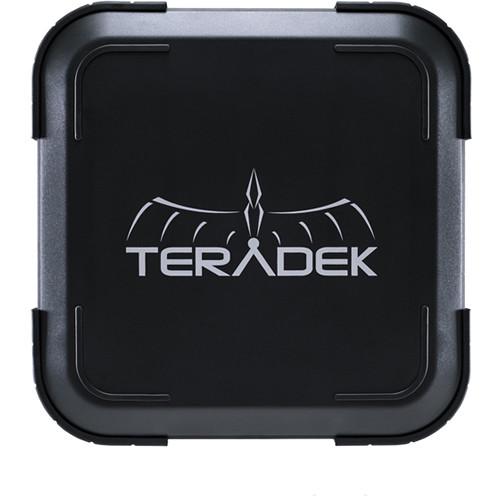

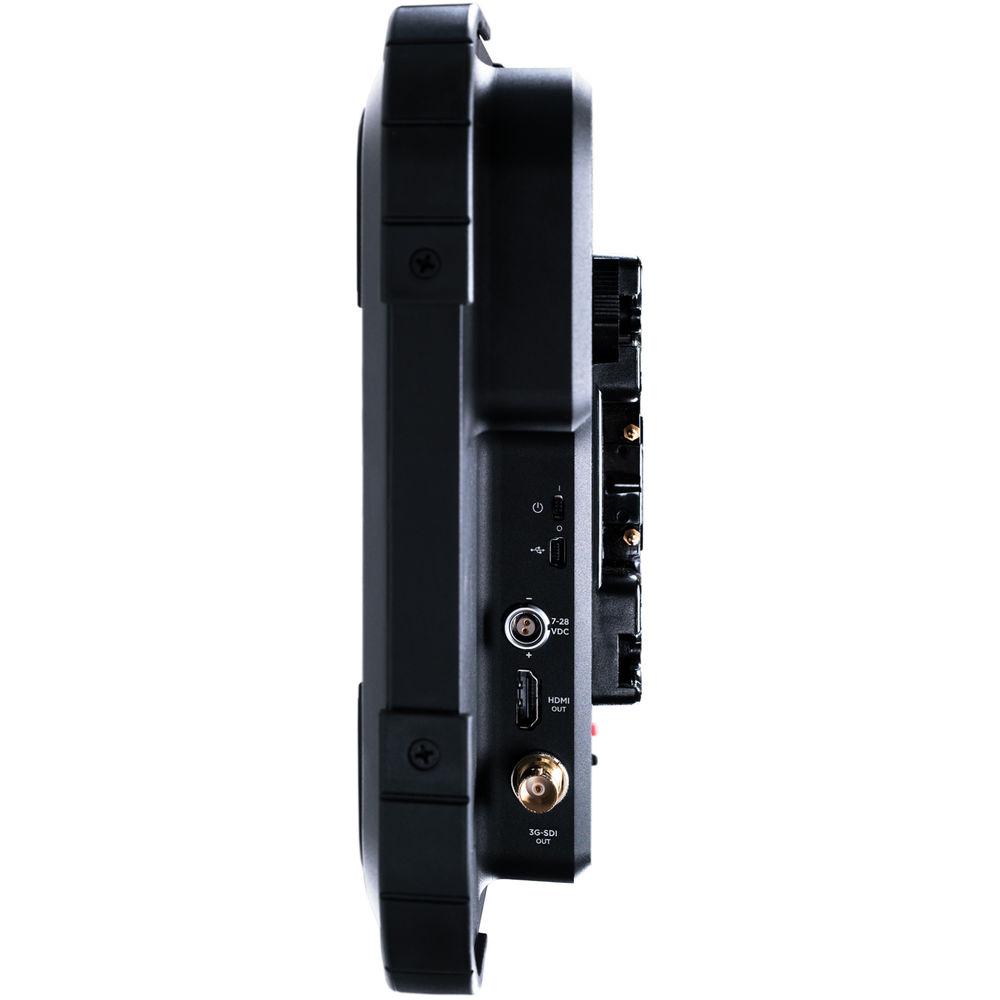

• Bolt 10K Wireless Receiver (Gold Mount) The Teradek Bolt 10K Wireless Receiver can receive an HD or SD video signal from a Teradek Bolt 3000 transmitter up to 10,000' away. Both SDI and HDMI outputs are available on the receiver, and incoming HDMI or SDI signals can be converted to either output. SDI metadata from many popular camera brands is supported, and passed through to outboard monitors or recorders. As part of the Bolt series, the Bolt 10K receiver works seamlessly alongside Bolt 3000, Sidekick II, and 703 Bolt gear. Power can be supplied via the included AC adapter, or, if you're in the field, a Gold mount battery on the integrated battery plate. An SDI cable, HDMI cable, USB cable, and light-stand mount are included, and everything fits inside the custom hard case.
  3D LUTS
  • Apply the look you're after directly to your wireless video feed using Bolt's integrated 3D LUT technology. Upload your own LUTs using the free Bolt Manager software or select from a number of built-in presets using Bolt's OSD.
  USB 3.0 Video Output
  • Bolt's USB 3.0 output makes it simple to ingest a video feed directly into a computer or your DIT cart without any added delay or loss of quality.
  UPC: 818264022641

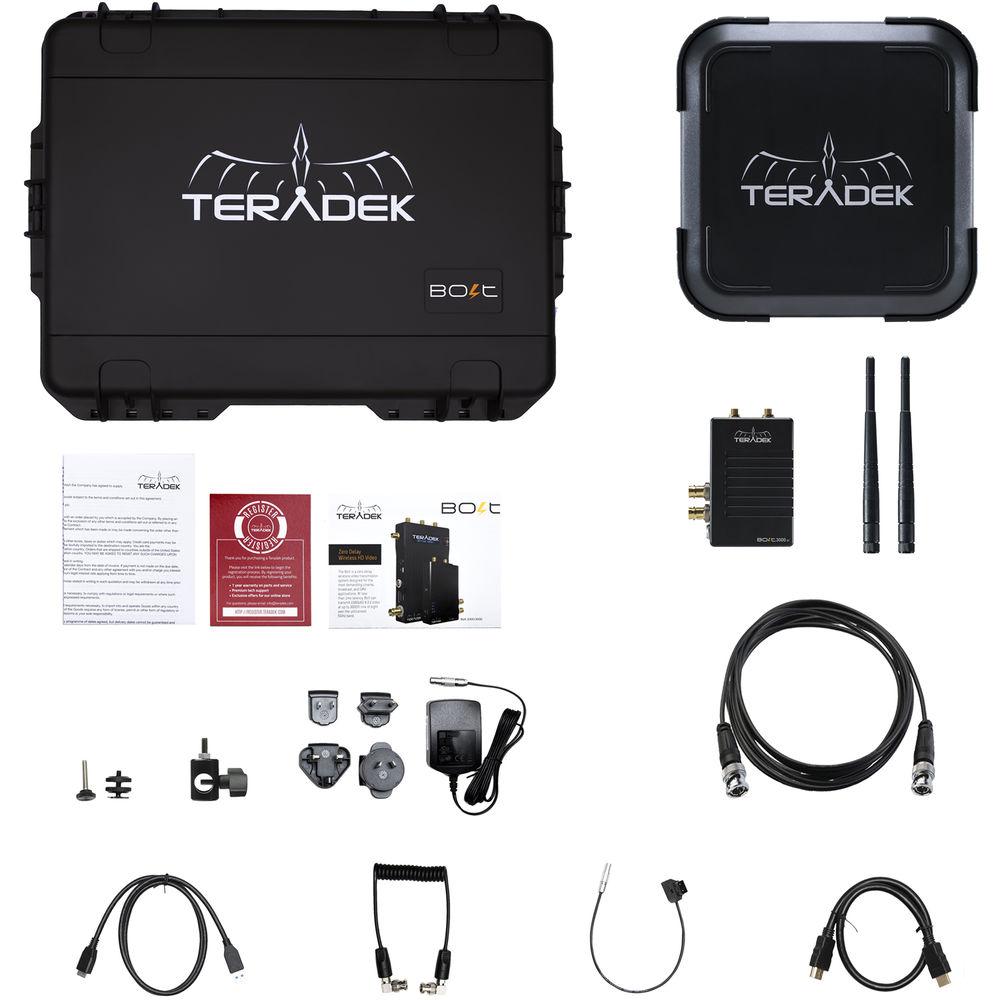

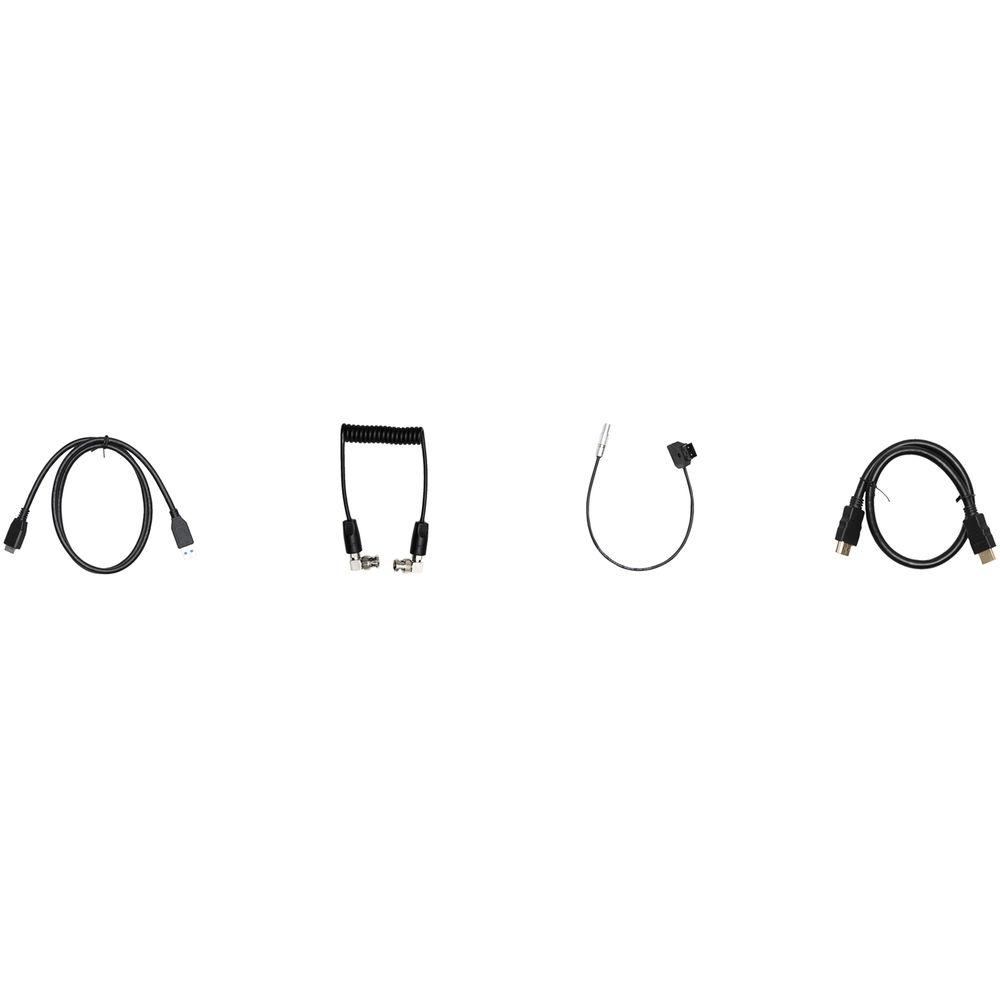

• D-Tap Power Cable (18")

• Shoe Mount

• 2 x Antennas

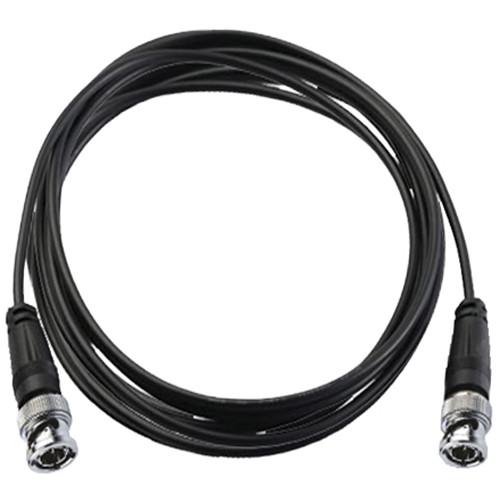

• SDI Cable (10")

• HDMI Type A to Type Cable (18")

• USB Cable Type-A to Mini-B

• Limited 1-Year Warranty

• SDI Cable

• HDMI Cable

• USB Cable

• Power Supply

• Light Stand Adapter

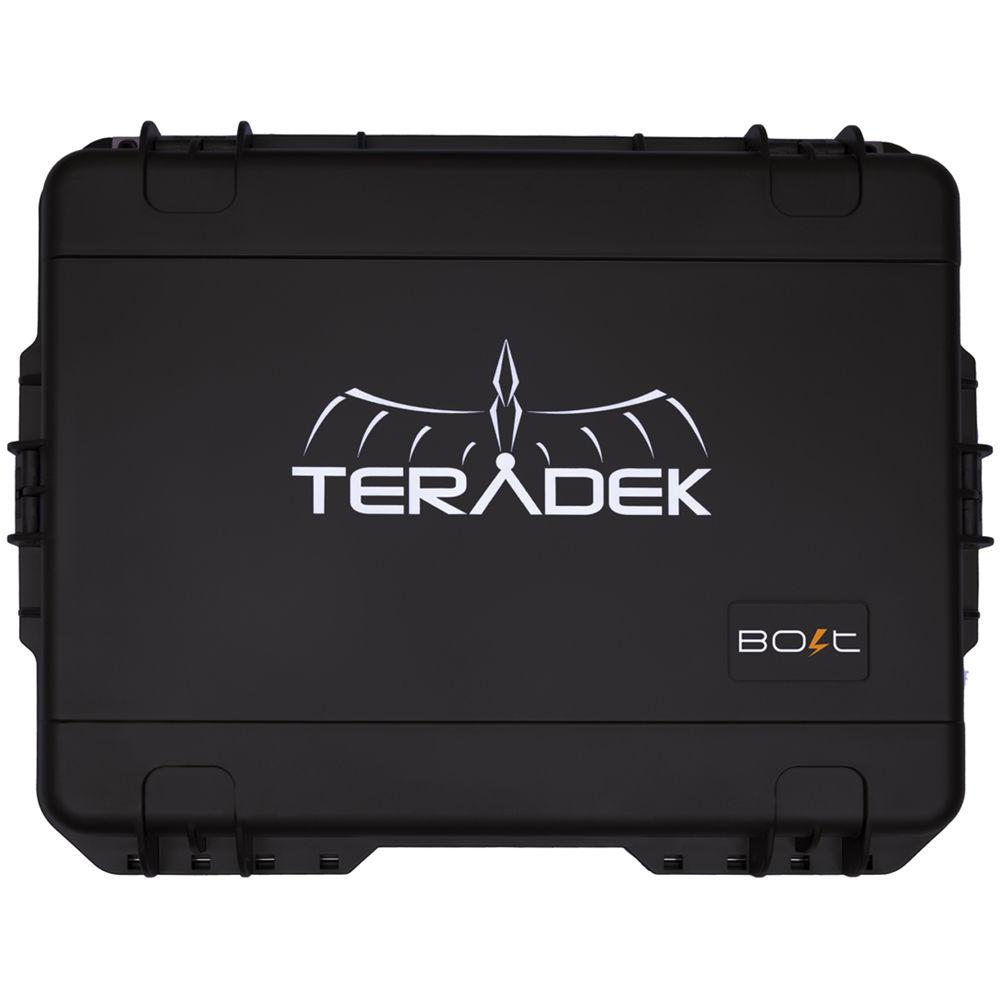

• Hard Case

• Limited 1-Year Warranty

Also Includes

• SKB Case with Custom Foam (13.5 x 9.5 x 6.5")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Bolt 3000 XT 3G-SDI/HDMI Wireless Transmitter

  Construction	Milled aluminum (chassis) and regulation-compliant PCB
  Video Inputs	SDI: 1 x BNC (75 Ohm), 3G/HD/SD HDMI: 1 x HDMI type A receptacle
  Video Outputs	SDI: 1 x BNC (75 Ohm), 3G/HD/SD, loop through
  Color Sampling	SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled) HDMI: RGB 4:4:4, 8-bit
  Latency	<0.001 seconds (Tx to Rx without format conversion)
  Supported Resolutions	1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480i: 59.94 576i: 50
  Video Processing	Compression Visually lossless Color Correction CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color)
  Audio Compression	48 kHz, 24-bit PCM
  Audio Input	Embedded
  Interfaces	Switches: On/Off and Reset Desktop App: Feature-rich Bolt Manager application for Mac OS X and Windows USB Interface Functionality: Upgrade via mini-USB
  Wireless	Non-DFS Frequencies UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz EU & JP: 5.19 to 5.23 GHz DFS Frequencies US: 5.27 to 5.55 GHz and 5.67 GHz EU & JP: 5.27 to 5.67 GHz
  RF Power	17 dBm EIRP
  Encryption	AES-128
  Range	Up to 500' / 152.4 m line of sight
  Unicast Multicast	Unicast / Multicast
  Noise Rejection	Can coexist with WiFi and 5 GHz cordless phones
  Power Input	2-pin connector 7 to 17 VDC
  Power Consumption	Nominal 7.3 W (measured at 1080p60)
  Operating Temperature	32 to 104°F / 0 to 40°C
  Mountable	1 x 1/4"-20 threaded mounting hole 2 x M3 threaded mounting holes
  Dimensions	0.95 x 2.6 x 4.47" / 2.41 x 6.6 x 11.35 cm
  Weight	8 oz / 226 g

• Bolt 10K Wireless Receiver (Gold Mount)

  Outputs	3G/HD/SD-SDI: 1 x BNC HDMI: 1 x HDMI type A USB: 1 x USB 3.0 micro-B
  Color Sampling	SDI: 10-bit 4:2:2 (8-bit with conversion enabled) HDMI: 8-bit 4:4:4 RGB
  Latency	< 0.001 sec (without format conversion)
  Range	Up to 10,000' / 3048 m
  Wireless Frequency Range	Non-DFS Frequencies: US: 5.19-5.23 GHz, 5.755-5.795 GHz EU/JP: 5.19-5.23 GHz DFS Frequencies US: 5.27-5.31 GHz, and 5.51-5.67 GHz EU/JP: 5.51-5.69 GHz
  Resolution Support	1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 NTSC PAL
  Video Processing	10-bit CDL/1024 1D LUT 10-bit 33-point 3D LUT
  Audio Sampling	24-bit, 48 kHz
  Power	Input: 2-pin LEMO Voltage: 7-28 VDC Power Consumption: 8.5 W (1080p60)
  Operating Temperature	32 to 122°F / 0 to 50°C
  Dimensions	9.3 x 9.3 x 2.6" / 23.6 x 23.6 x 6.6 cm
  Weight	2.6 lb / 1.2 kg

  Box Dimensions (LxWxH)	24.3 x 20.0 x 9.4"
