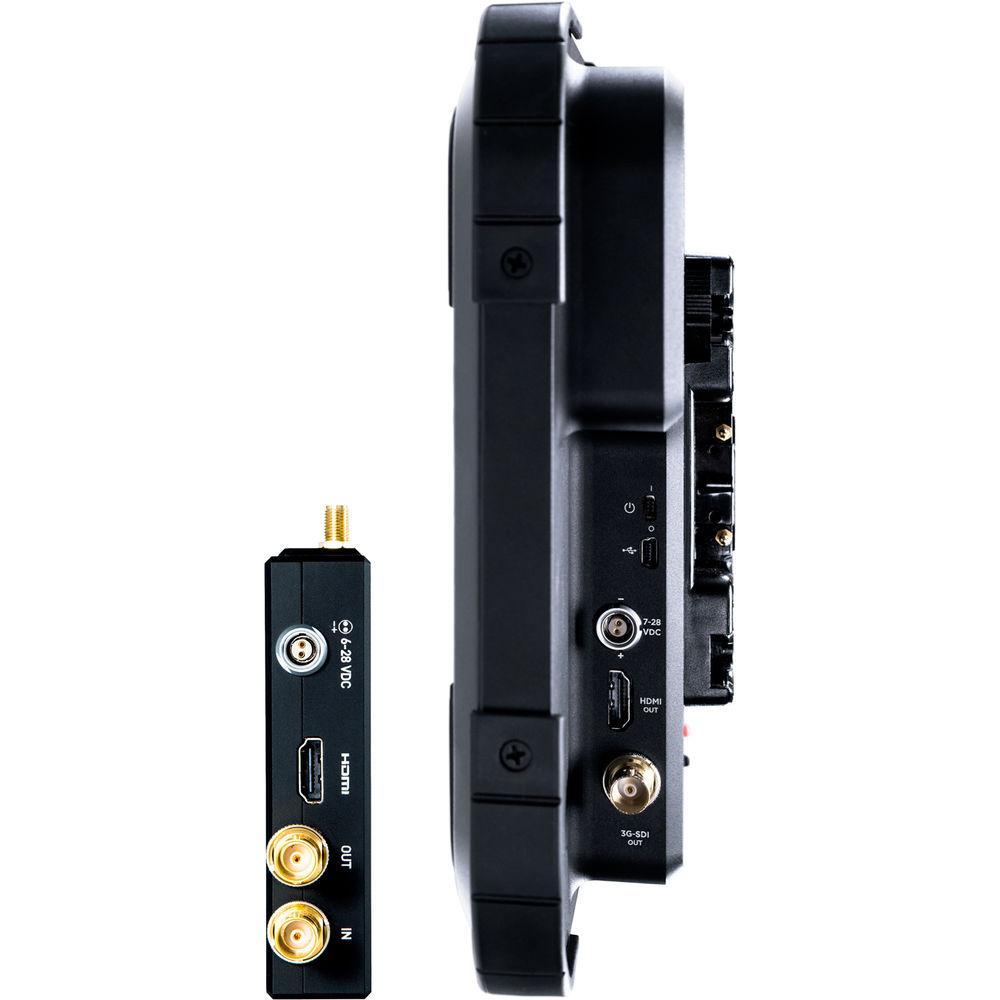

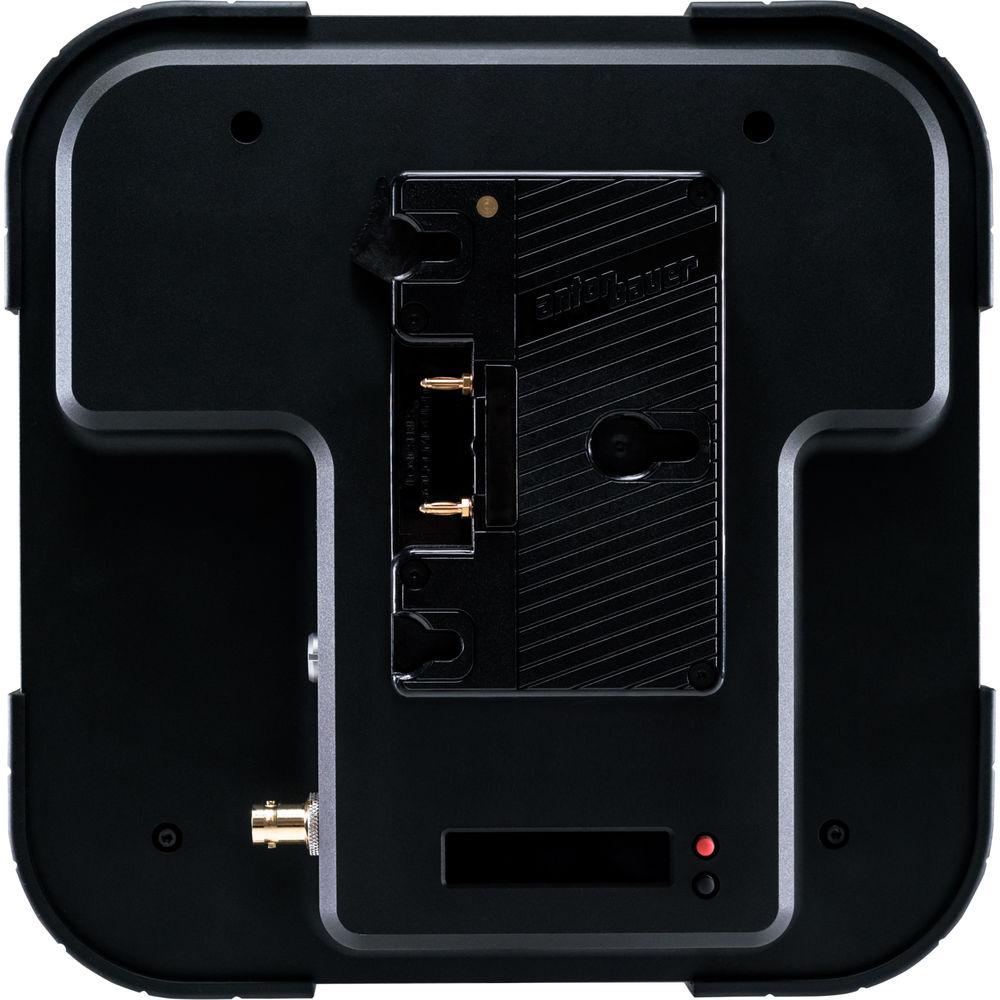

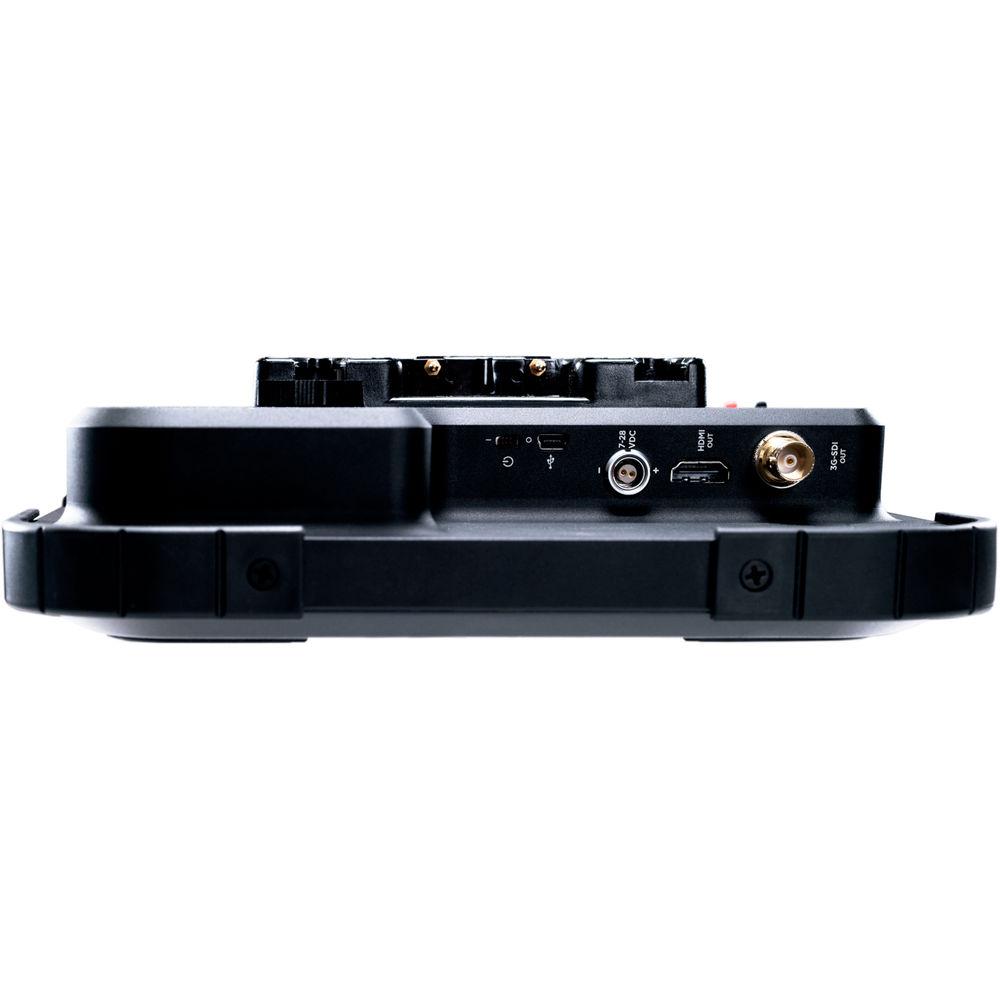

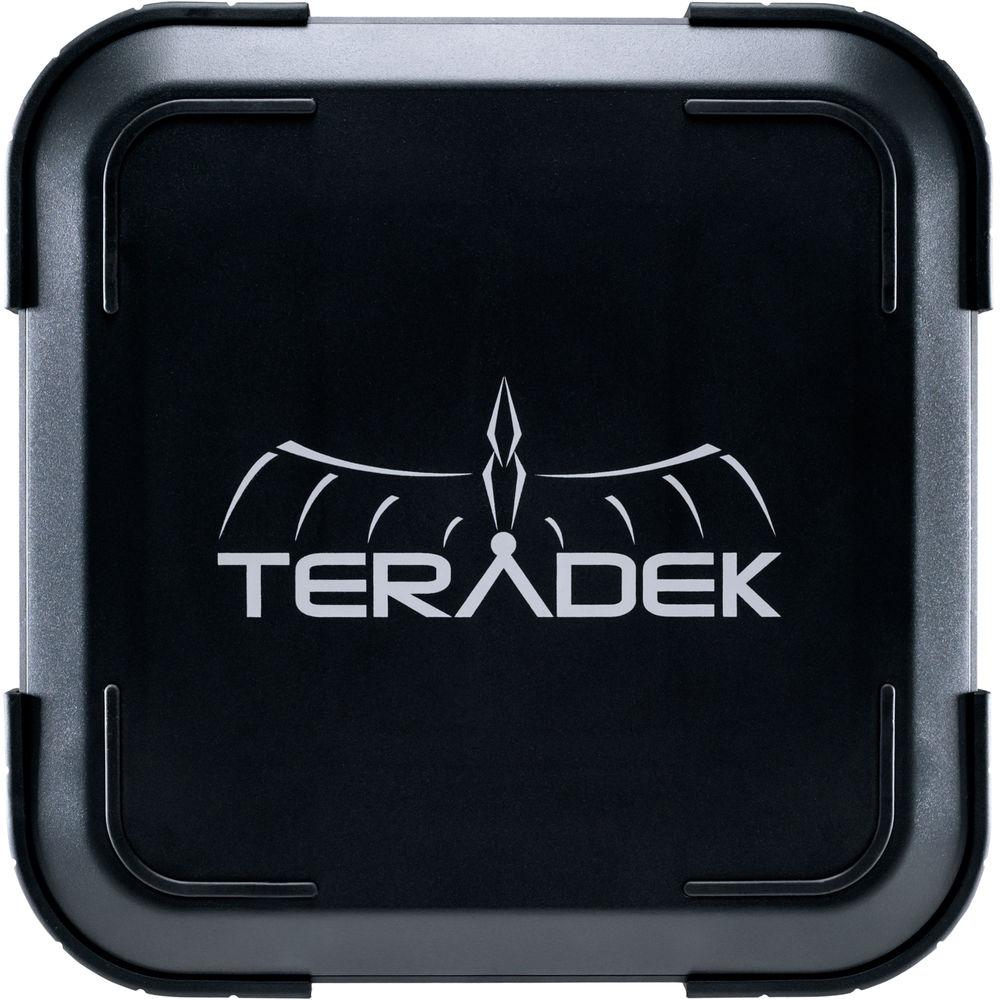

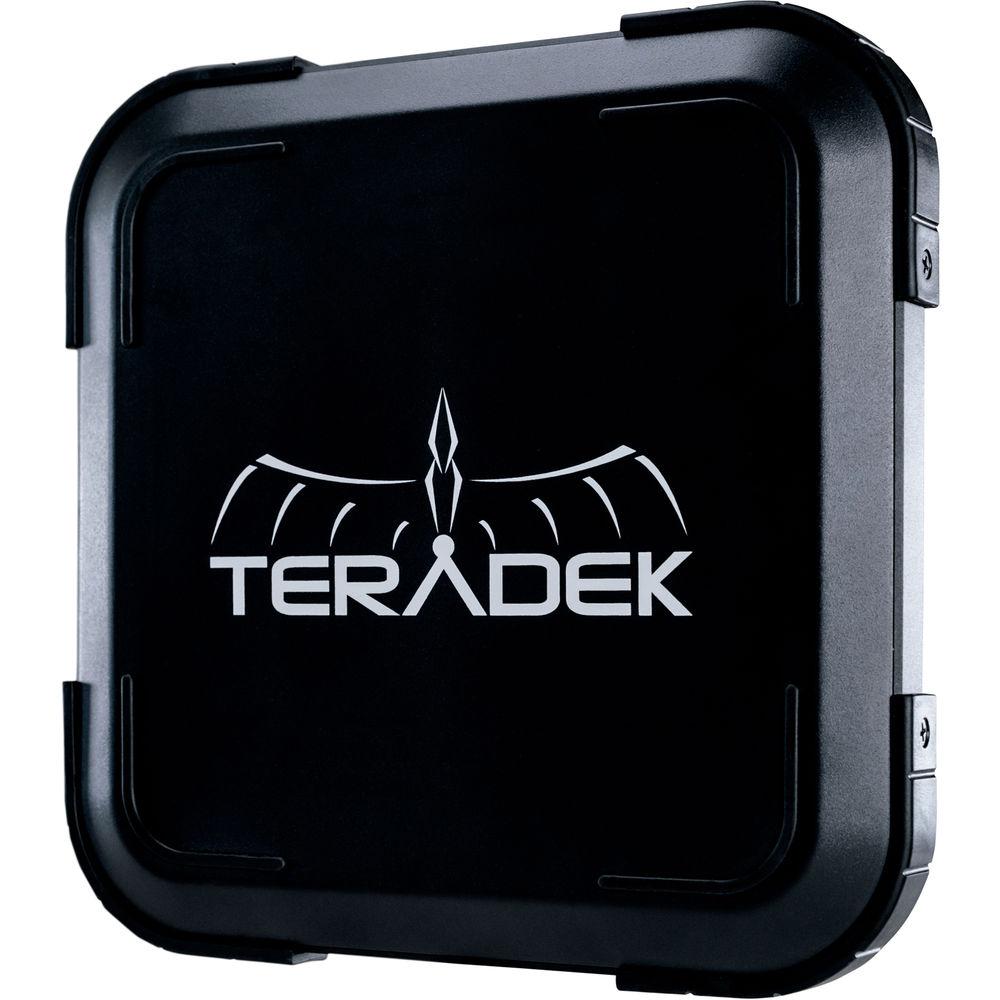

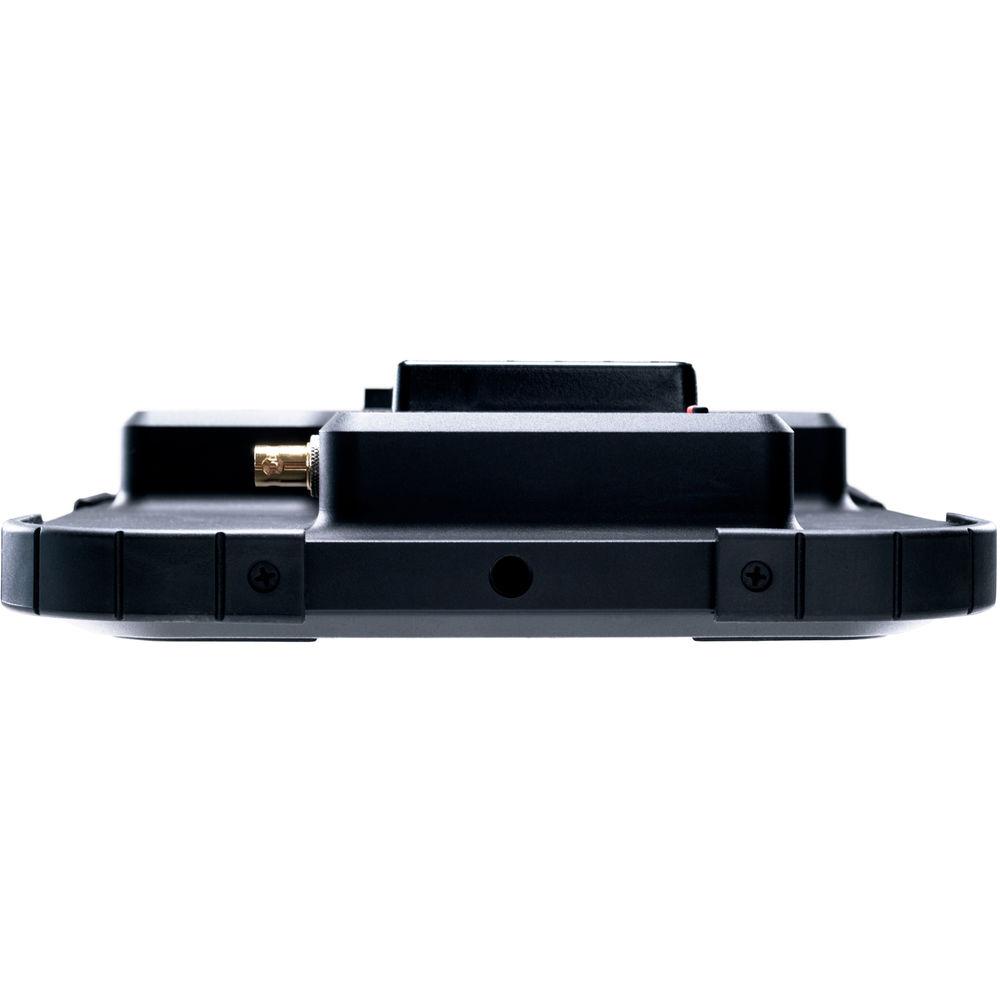

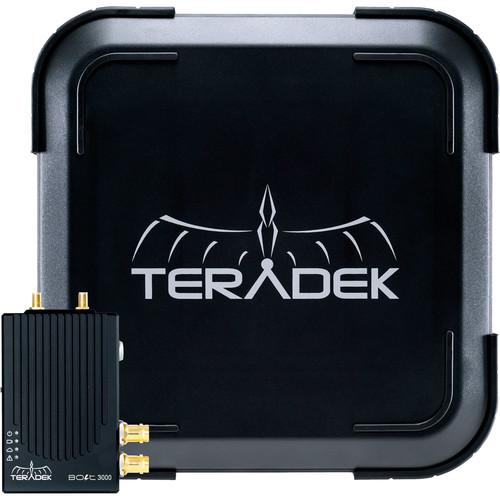

Product description Transmit and receive an HD video signal over 10,000' with the Teradek Bolt 10K Video Transmitter/Receiver Set. This set combines a single Bolt 3000 transmitter and a Bolt 10K receiver, for near-zero latency monitoring of video up to 1080p resolution at 60 fps. This high resolution combined with unnoticeable latency can be taken advantage of by focus pullers and directors. The small transmitter can be easily attached to a camera while it is handheld or mounted on a stabilizer. SDI and HDMI connections are available on the transmitter, as is an SDI loop output. The panel-like receiver unit can receive an HD or SD video signal from a Teradek Bolt 3000 transmitter up to 10,000' away. Both SDI and HDMI outputs are available on the receiver, and incoming HDMI or SDI signals can be converted to either output. SDI metadata from many popular camera brands is supported, and passed through to outboard monitors or recorders. As part of the Bolt series, the Bolt 10K receiver works seamlessly alongside Bolt 3000, Sidekick II, and 703 Bolt gear. The receiver can get power from the included power supply or from a separately available Gold mount battery. All antennas and connecting cables are included for both the transmitter and receiver. All the included equipment can be packed away into the included custom SKB hard case for protection during storage and transport. - Multicast Capable
- One transmitter can transmit to up to four receivers, so you can expand your Bolt setup to have more displays and recorders as necessary.
- Built-In Spectrum Analyzer
- Bolt XT receivers include a built-in spectrum analyzer, allowing you to detect congestion in the area and determine which frequency is best for your devices.
- AES-128 Encryption
- Our built-in encryption ensures your video footage is impossible to intercept, even if somebody tries to pair an unauthorized Bolt receiver to your system.
- Metadata Support
- Using the SDI connections, Bolt equipment supports timecode and start/stop for many camera manufacturers including RED, ARRI, Canon, Sony, and Panasonic.
- 3D LUT Support
- Apply the look you're after directly to your wireless video feed using Bolt's integrated 3D LUT technology. Upload your own LUTs using the free Bolt Manager software or select from a number of built-in presets using Bolt's OSD.
- USB 3.0 Video Output
- The 10K receiver features a direct USB 3.0 output, making it simple to ingest a video feed directly into a computer or your DIT cart without any added delay or loss of quality.
UPC: 818264022986 In the Box Teradek Bolt 10K Video Transmitter/Receiver Set (Gold Mount) 2 x BNC Cables 2 x HDMI Cables Bolt Pro 3000 SDI/HDMI Transmitter 2 x Transmitter Antennas D-Tap Power Cable for Transmitter Shoe Mount for Transmitter Bolt 10K Wireless Receiver (Gold Mount) Lightstand Adapter for Receiver Power Supply for Receiver USB 3.0 Cable Protective Utility SKB Case for Three Bolt Receivers and Antenna Array Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bolt 10K Video Transmitter Receiver Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek Bolt 10K Specs | Inputs | Transmitter:
SDI: 1 x BNC 3G/HD/SD-SDI
HDMI: 1 x HDMI type A | | Outputs | Transmitter:
SDI: 1 x BNC loop out
Receiver:
SDI: 1 x BNC 3G/HD/SD-SDI
HDMI: 1 x HDMI type A | | Other I/O | Transmitter:
1 x USB micro-B (firmware)
Receiver:
1 x USB micro-B (video stream output, firmware) | | Color Sampling | SDI: YCbCr 4:2:2, 10-bit (8-bit with format conversion)
HDMI: RGB 4:4:4, 8-bit | | Transmission Delay | <0.001 sec (without format conversion) | | Resolution Support | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 59.94 (HDMI only)
576i: 50
480i: 59.94 | | Frequency Selection | US: 5.27-5.55 GHz, 5.67 GHz
US (Non-DFS): 5.19-5.23 GHz, 5.755-5.795 GHz
EU/JP: 5.27-5.67 GHz
EU/JP (Non-DFS): 5.19-5.23 GHz | | RF Power | Transmitter: 22 dBm EIRP (with 2 x 5 dBi antennas)
Receiver: 17 dBm EIRP (with 1 x 2 dBi antenna) | | Power Input | Transmitter: 2-pin, 7-28 VDC
Receiver: 2-pin, 7-28 VDC | | Power Consumption | Transmitter: 7.5 W

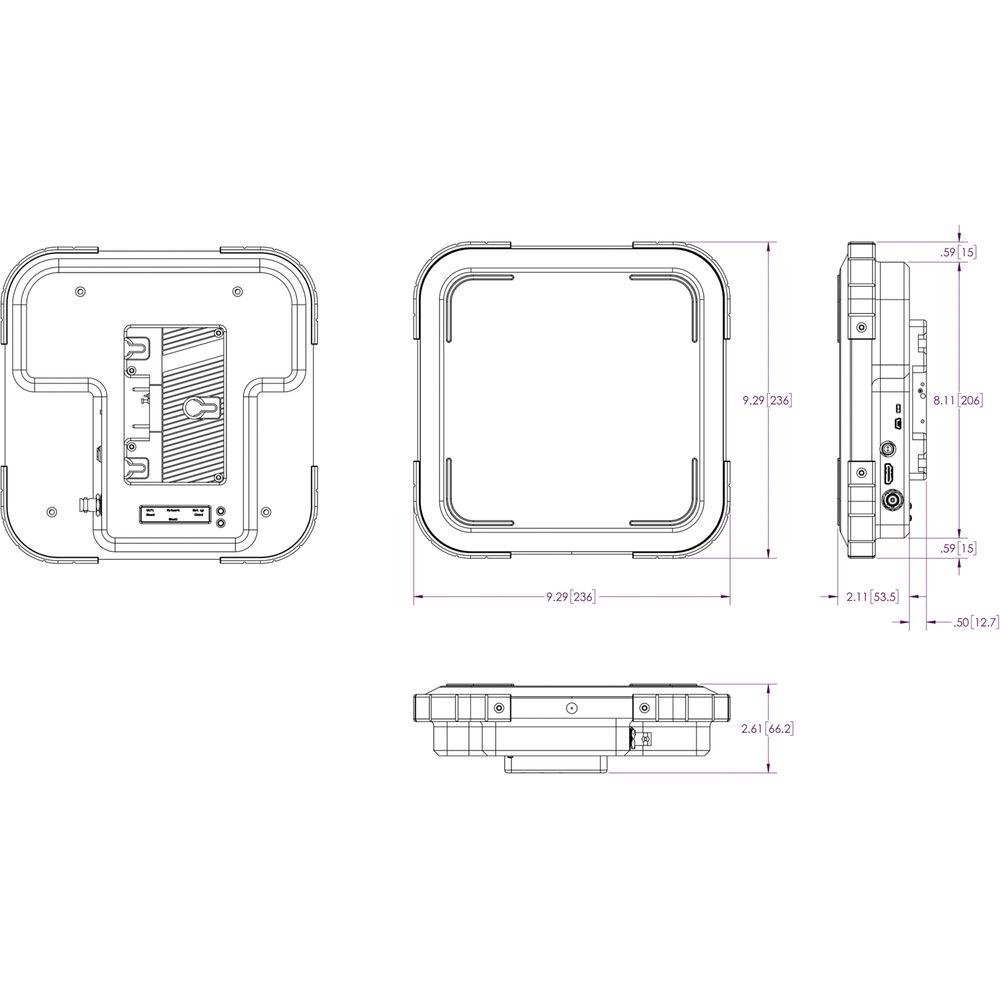

Receiver: 8.5 W (measured at 1080p60) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions | Transmitter: 1 x 2.6 x 4.5" / 2.6 x 6.6 x 10.2 cm
Receiver: 9.3 x 9.3 x 2.6" / 23.6 x 23.6 x 6.6 cm | | Weight | Transmitter: 8 oz / 226 g
Receiver: 2.6 lb / 1.2 kg | | | | Package Weight | 19.9 lb | | Box Dimensions (LxWxH) | 24.3 x 20.0 x 9.3" |
