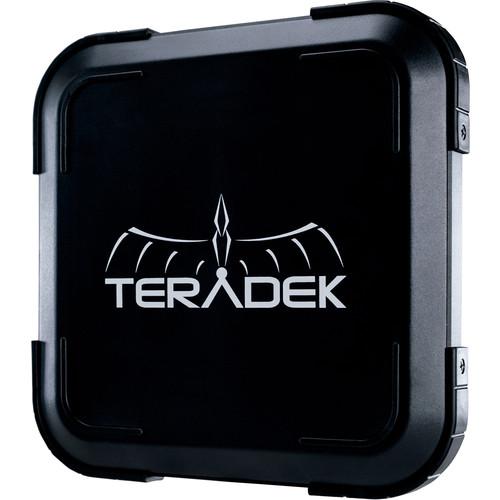

User Manual for Teradek Bolt 10K Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Teradek Bolt 10K Wireless Receiver
- Product category: Wireless Transmission Systems Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Transmission Systems
 |
User manual for the Teradek Bolt 10K Wireless Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

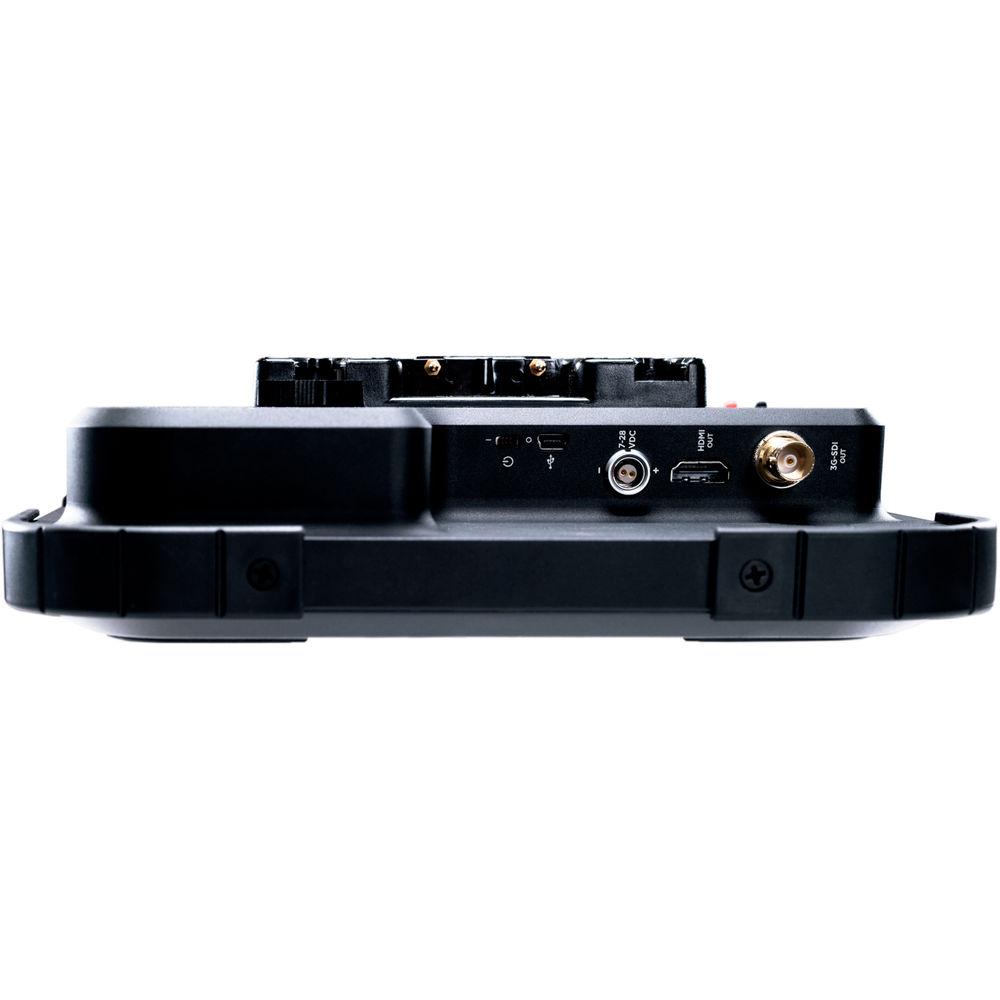

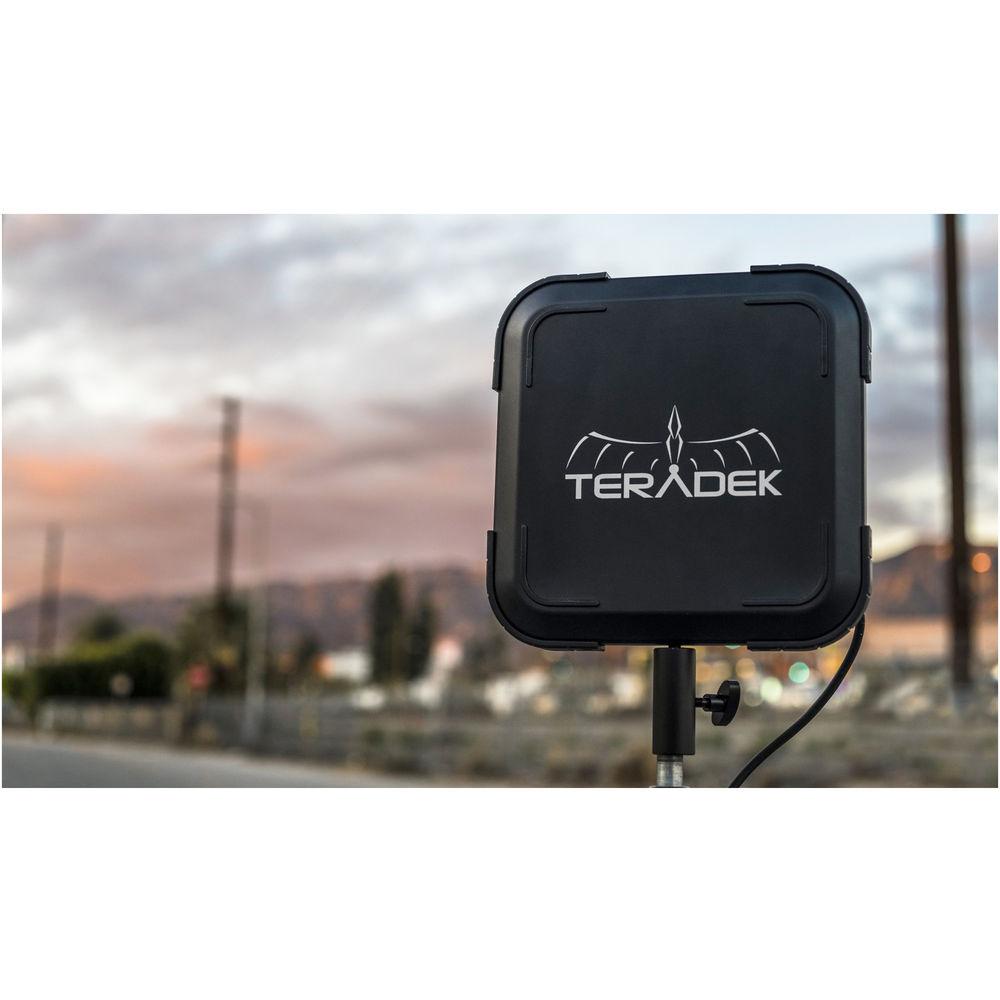

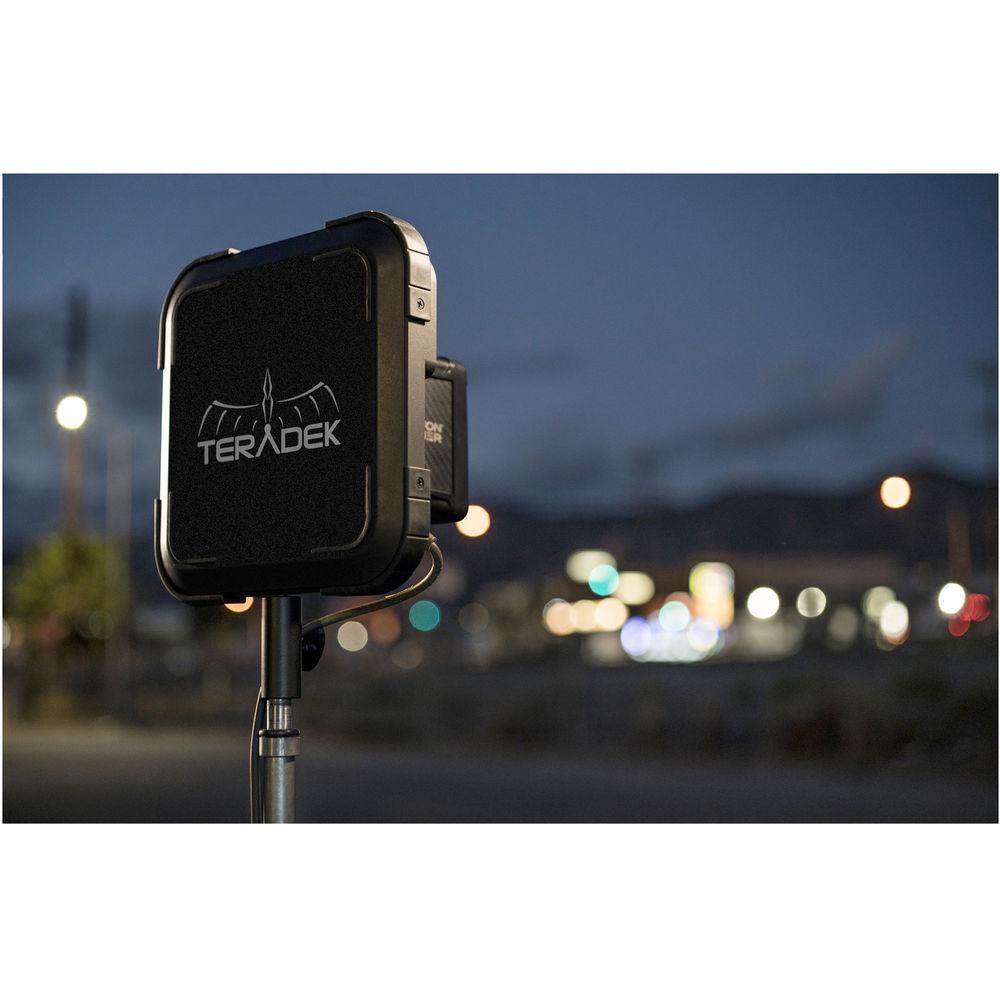

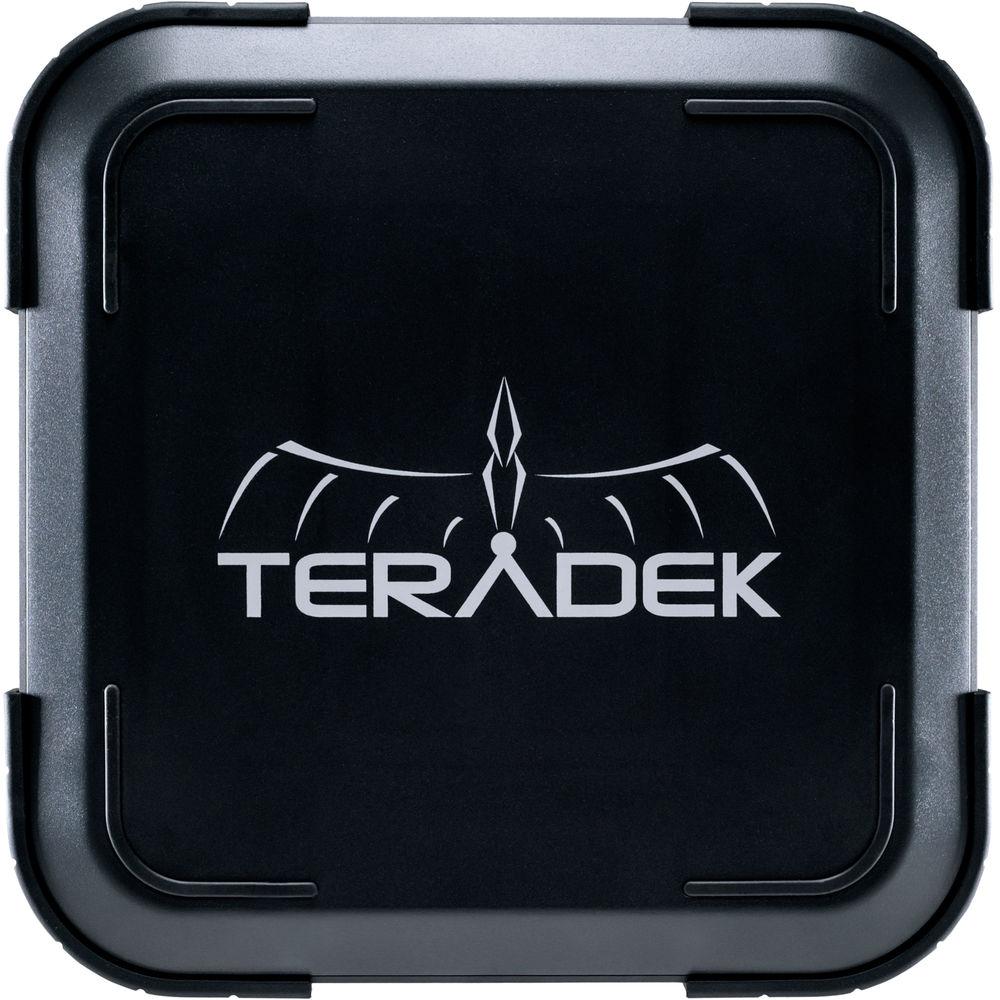

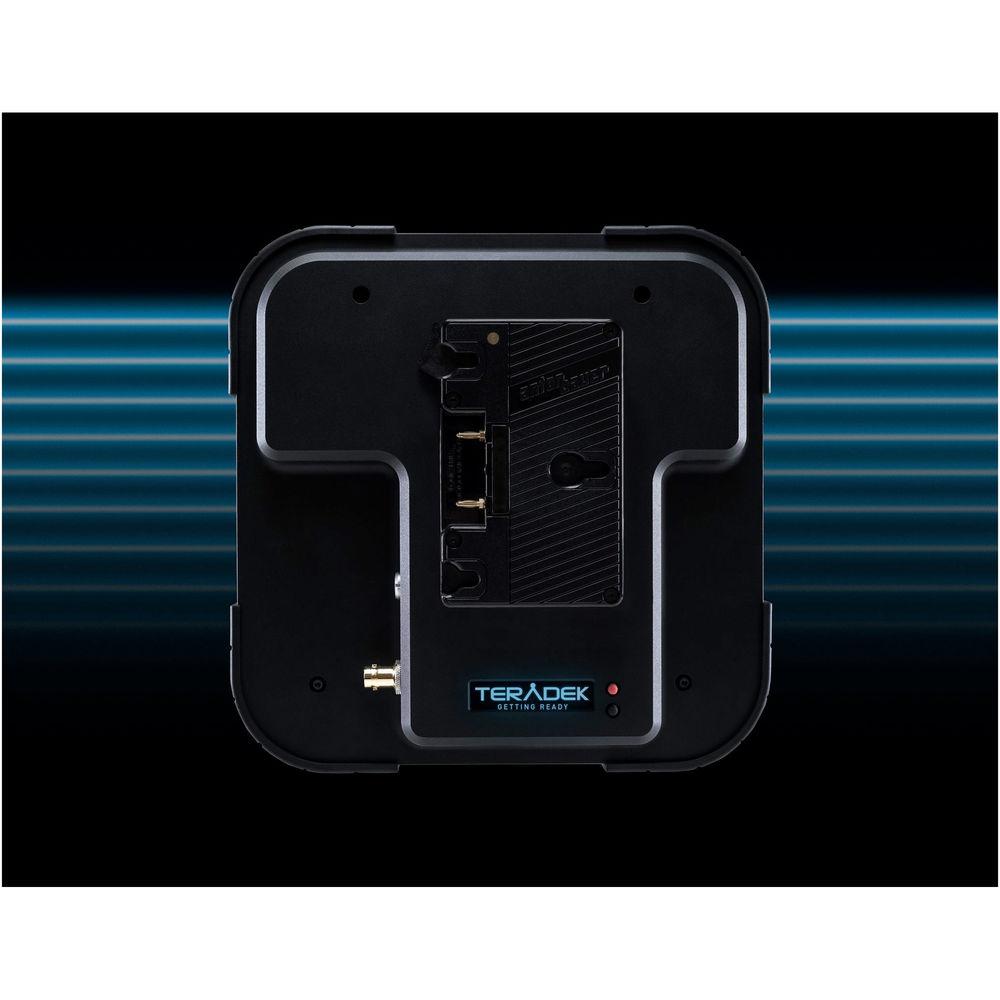

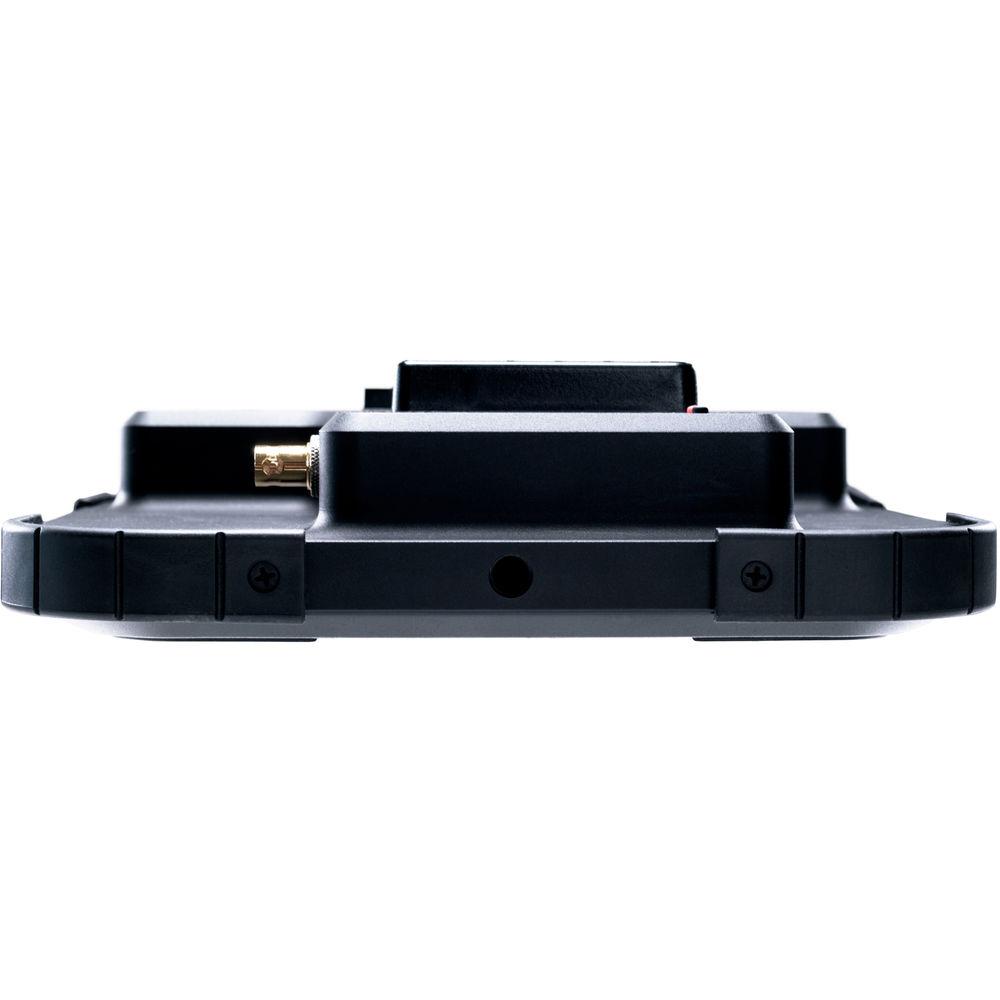

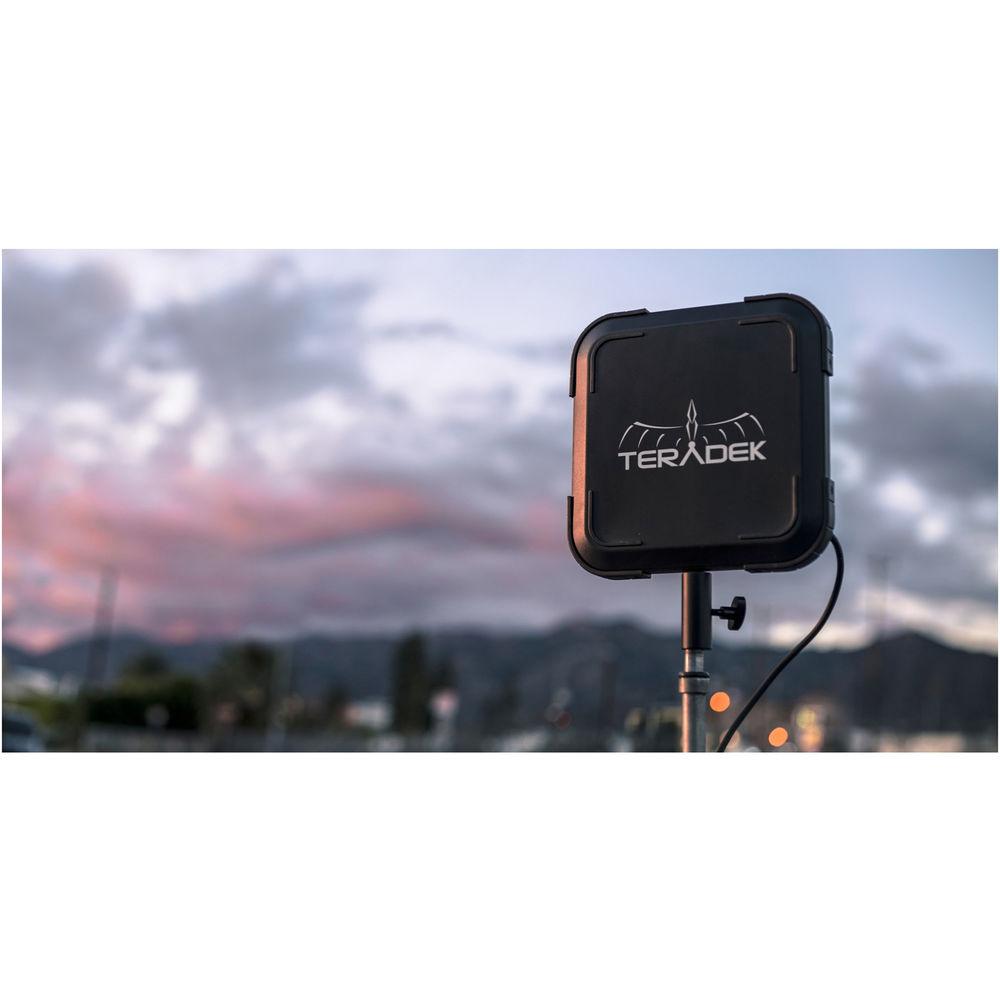

Product description The Teradek Bolt 10K Wireless Receiver can receive an HD or SD video signal from a Teradek Bolt 3000 transmitter up to 10,000' away. Both SDI and HDMI outputs are available on the receiver, and incoming HDMI or SDI signals can be converted to either output. SDI metadata from many popular camera brands is supported, and passed through to outboard monitors or recorders. As part of the Bolt series, the Bolt 10K receiver works seamlessly alongside Bolt 3000, Sidekick II, and 703 Bolt gear. Power can be supplied via the included AC adapter, or, if you're in the field, a V-mount battery on the integrated battery plate. An SDI cable, HDMI cable, USB cable, and light-stand mount are included, and everything fits inside the custom hard case. - 3D LUTS
- Apply the look you're after directly to your wireless video feed using Bolt's integrated 3D LUT technology. Upload your own LUTs using the free Bolt Manager software or select from a number of built-in presets using Bolt's OSD.
- USB 3.0 Video Output
- Bolt's USB 3.0 output makes it simple to ingest a video feed directly into a computer or your DIT cart without any added delay or loss of quality.
UPC: 818264022863 In the Box Teradek Bolt 10K Wireless Receiver (V-Mount) SDI Cable HDMI Cable USB Cable Power Supply Light Stand Adapter Hard Case Limited 1-Year Warranty Quick start Guide PDF 1.1mbfcswuzcx Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bolt 10K Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek Bolt 10K Specs | Outputs | 3G/HD/SD-SDI: 1 x BNC
HDMI: 1 x HDMI type A
USB: 1 x USB 3.0 micro-B | | Color Sampling | SDI: 10-bit 4:2:2 (8-bit with conversion enabled)
HDMI: 8-bit 4:4:4 RGB | | Latency | < 0.001 sec (without format conversion) | | Range | Up to 10,000' / 3048 m | | Wireless Frequency Range | Non-DFS Frequencies:
US: 5.19-5.23 GHz, 5.755-5.795 GHz
EU/JP: 5.19-5.23 GHz
DFS Frequencies
US: 5.27-5.31 GHz, and 5.51-5.67 GHz
EU/JP: 5.51-5.69 GHz | | Resolution Support | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
NTSC
PAL | | Video Processing | 10-bit CDL/1024 1D LUT
10-bit 33-point 3D LUT | | Audio Sampling | 24-bit, 48 kHz | | Power | Input: 2-pin LEMO
Voltage: 7-28 VDC

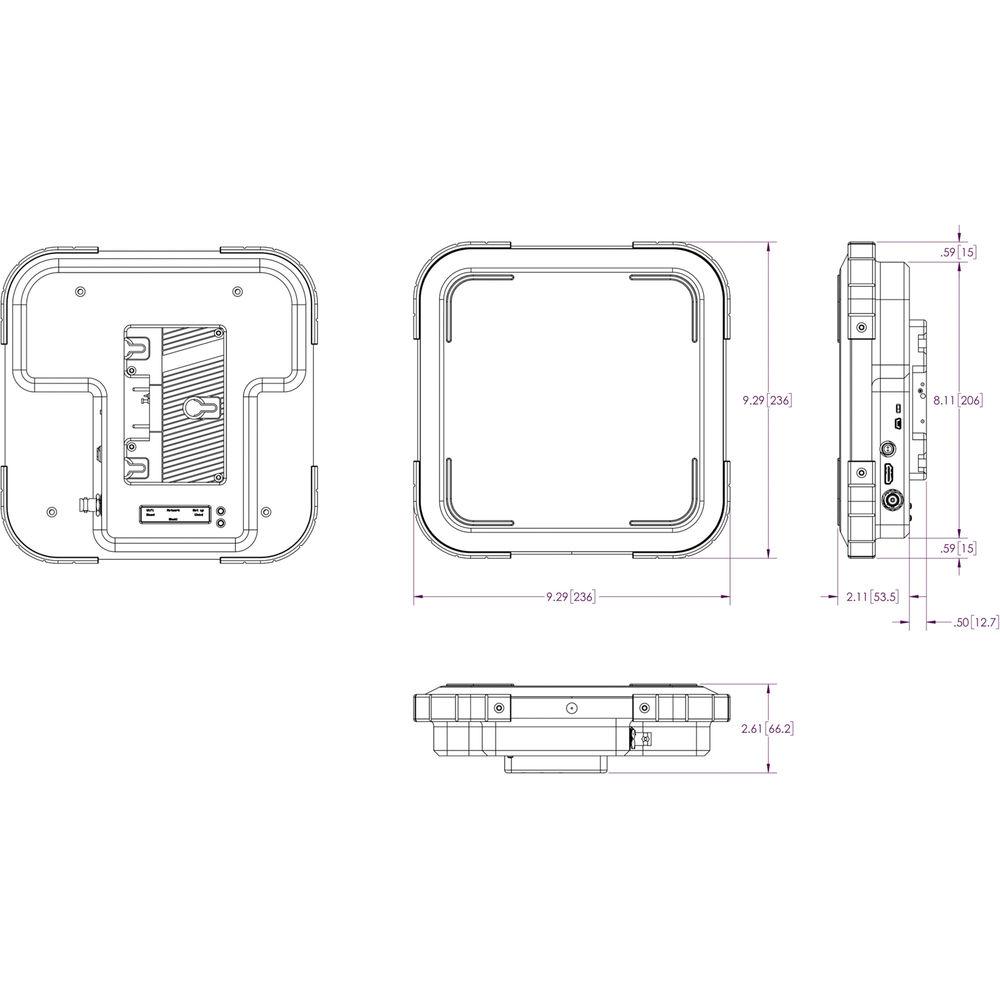

Power Consumption: 8.5 W (1080p60) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions | 9.3 x 9.3 x 2.6" / 23.6 x 23.6 x 6.6 cm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 19.35 lb | | Box Dimensions (LxWxH) | 24.3 x 20.2 x 9.4" |
