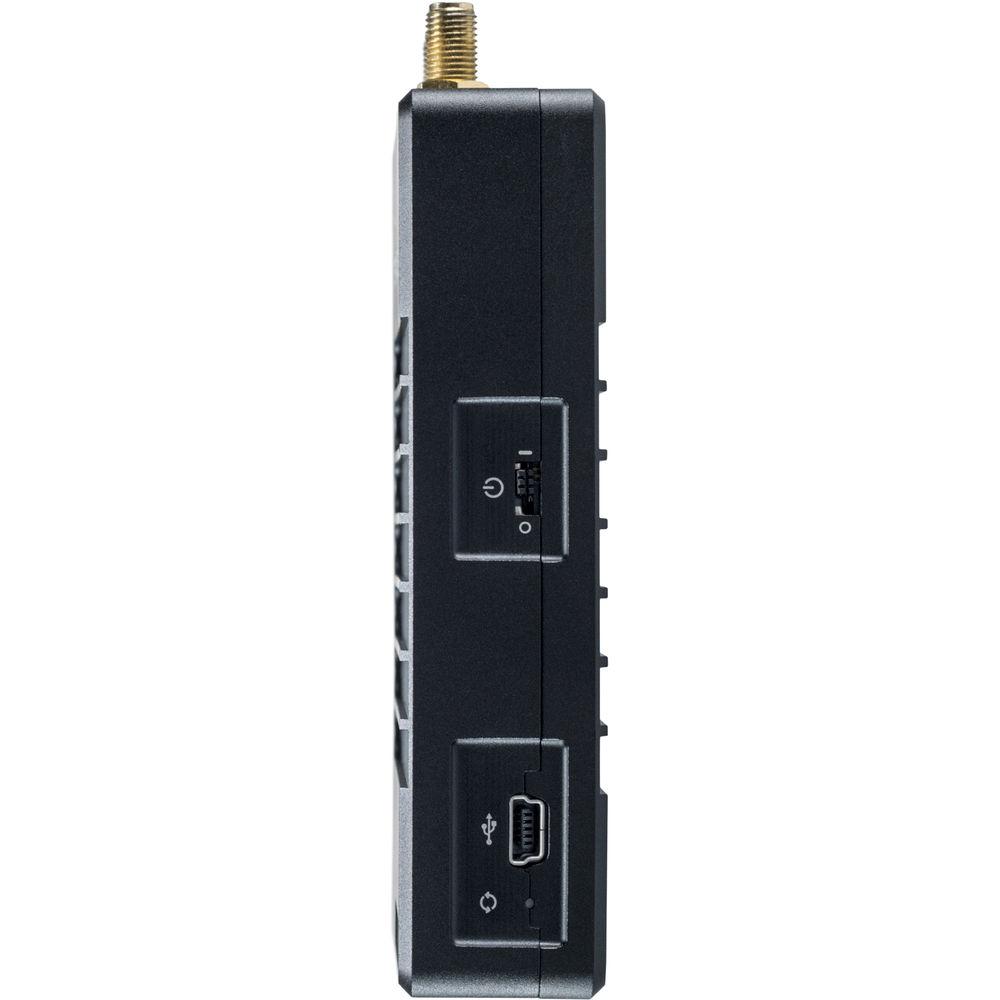

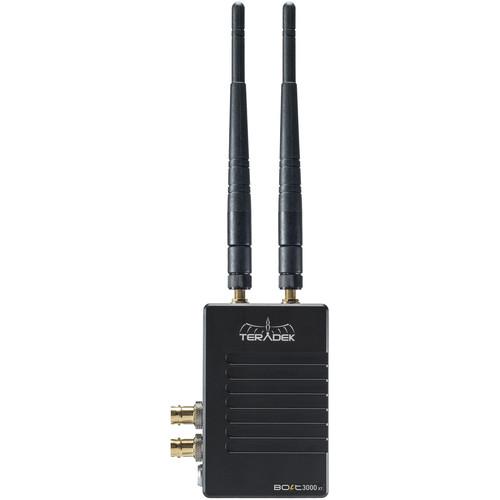

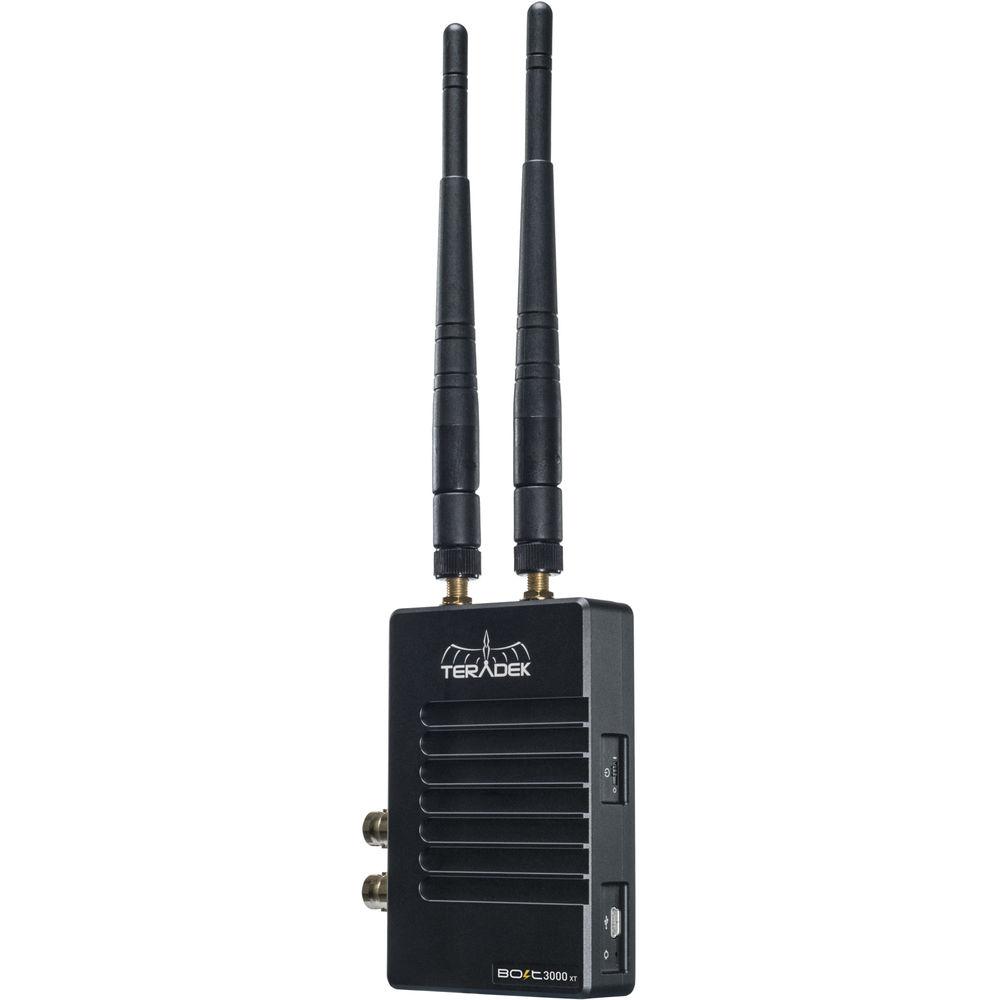

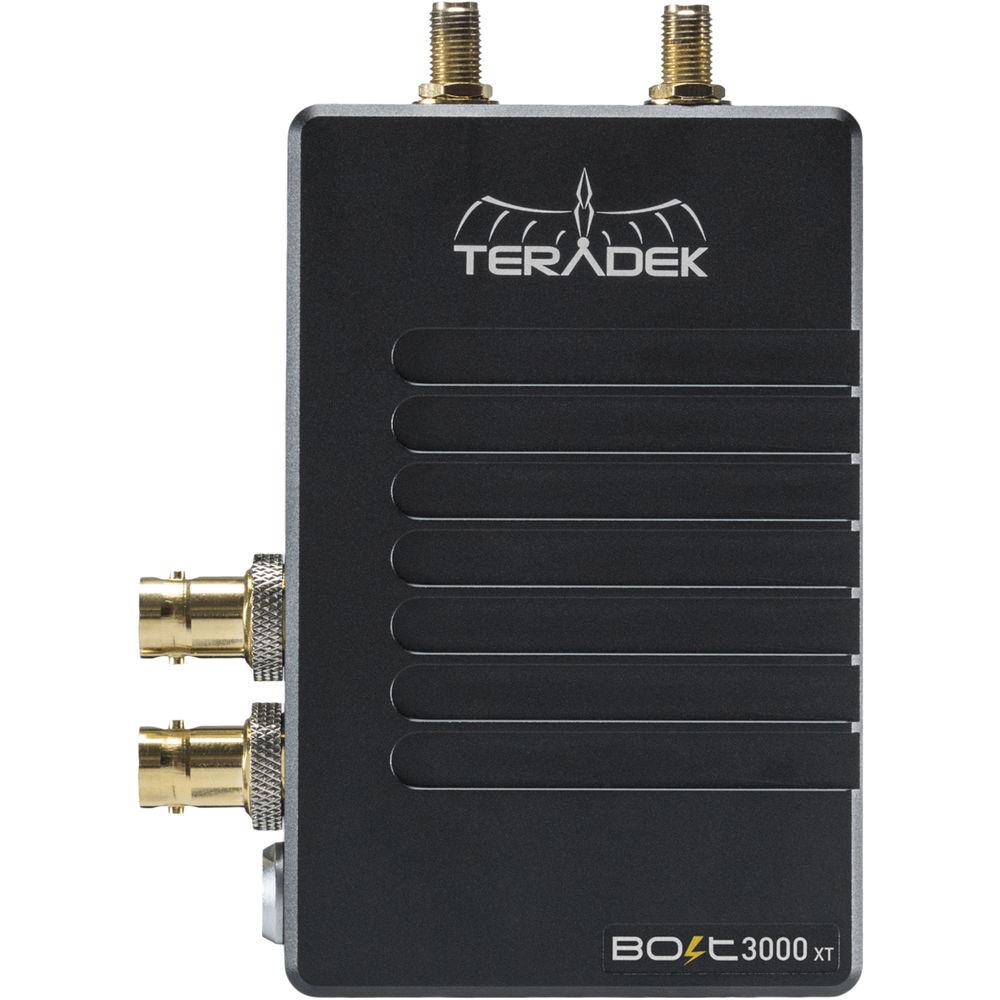

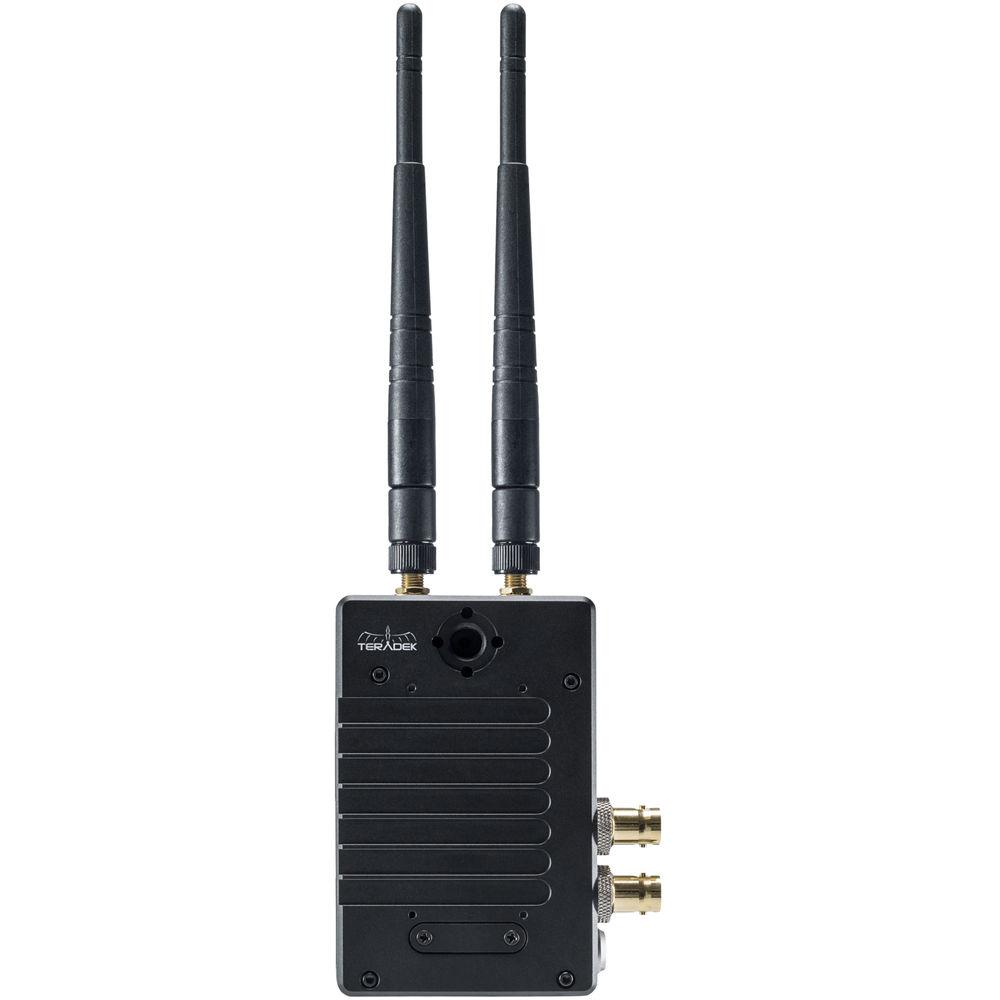

Product description With the Teradek Bolt 3000 XT 3G-SDI/HDMI Wireless Transmitter you can transmit visually lossless 3G video signals to a Bolt 3000 receiver with zero latency. The Bolt XT is also compatible with the Sidekick II and 703 Bolt. The transmitter unit itself can be secured to a camera or other SDI/HDMI video source via a built-in 1/4"-20 threaded hole, as well as two M3 threaded holes. The included antennas provide a powerful signal that can travel up to 3000' line-of-sight.
A shoe mount is included for attaching to cameras without 1/4"-20 threads. For convenience, both a standard BNC cable and HDMI cable are included so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector via the included D-Tap power cable. The transmitter supports up to four receivers and built-in AES 128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals. - Backwards compatible with the Teradek universal receivers the Sidekick II and 703 Bolt, which can receive Bolt 3000 XT signals up to 300' away

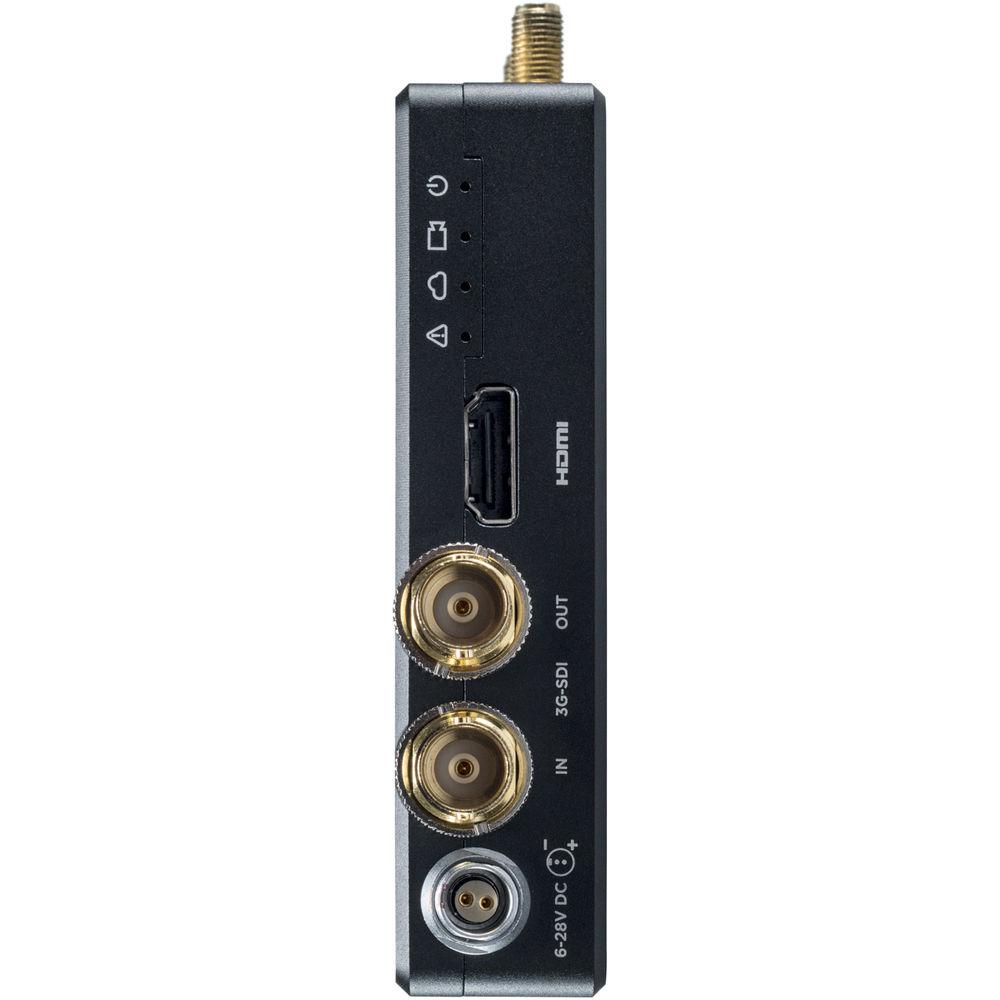

- HDMI and 3G-SDI inputs, with 3G-SDI loop-through output on transmitter
- SDI ancillary data support: supports metadata, timecode, and start/stop flags from certain camera manufacturers

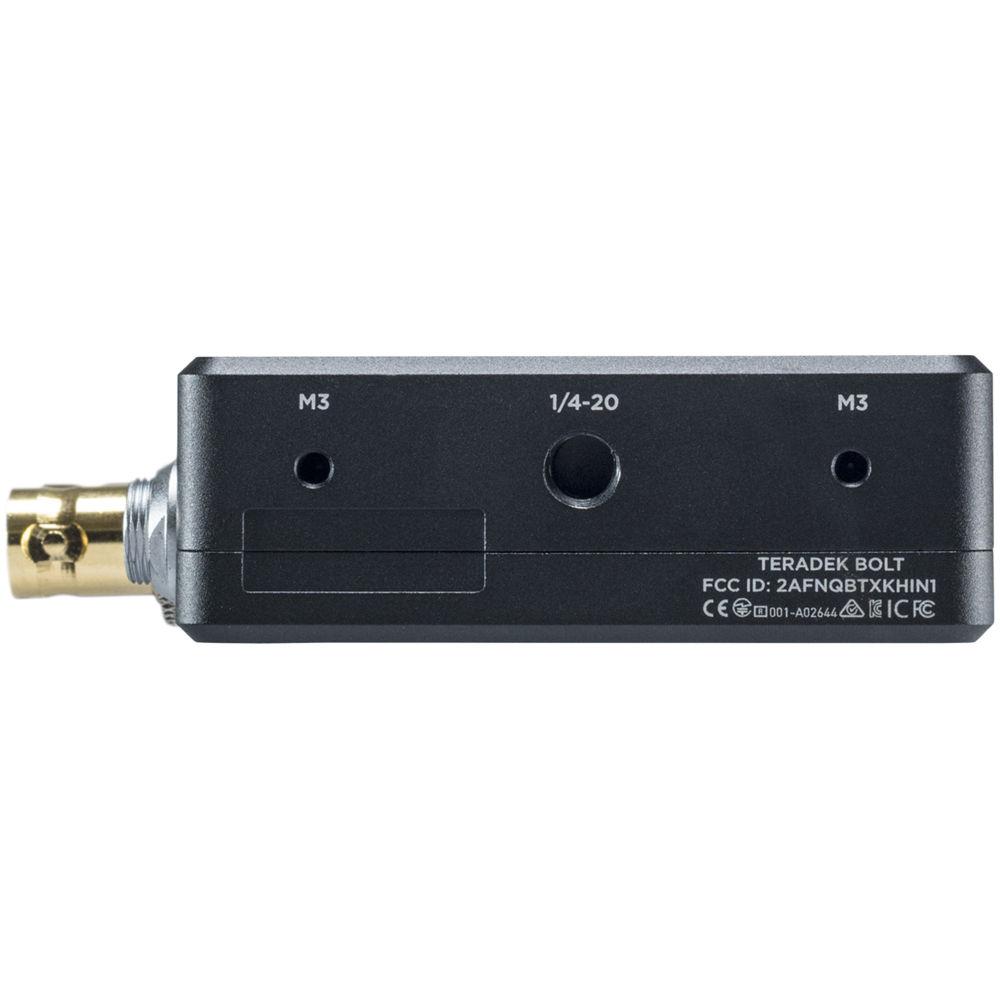

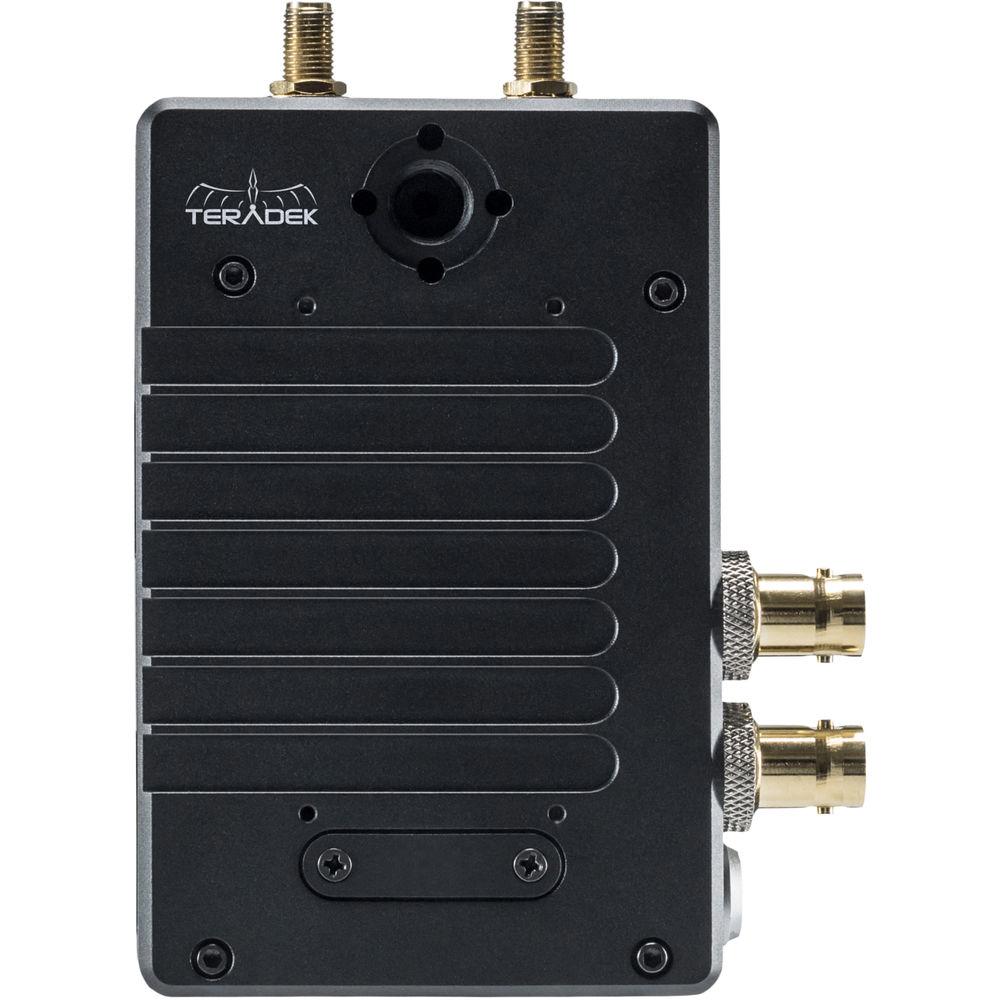

- 1/4"-20 and M3 mounting points
In the Box Teradek Bolt 3000 XT 3G-SDI/HDMI Wireless Transmitter D-Tap Power Cable (18") Shoe Mount 2 x Antennas SDI Cable (10") HDMI Type A to Type Cable (18") USB Cable Type-A to Mini-B Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bolt 3000 XT 3G-SDI HDMI Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 3000 Specs | | | Construction | Milled aluminum (chassis) and regulation-compliant PCB | | Video Inputs | SDI: 1 x BNC (75 Ohm), 3G/HD/SD
HDMI: 1 x HDMI type A receptacle | | Video Outputs | SDI: 1 x BNC (75 Ohm), 3G/HD/SD, loop through | | Color Sampling | SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
HDMI: RGB 4:4:4, 8-bit | | Latency | <0.001 seconds (Tx to Rx without format conversion) | | Supported Resolutions | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50 | | Video Processing | Compression
Visually lossless
Color Correction
CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color) | | Audio Compression | 48 kHz, 24-bit PCM | | Audio Input | Embedded | | Interfaces | Switches: On/Off and Reset
Desktop App: Feature-rich Bolt Manager application for Mac OS X and Windows
USB Interface Functionality: Upgrade via mini-USB | | Wireless | Non-DFS Frequencies UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz EU & JP: 5.19 to 5.23 GHz
DFS Frequencies US: 5.27 to 5.55 GHz and 5.67 GHz EU & JP: 5.27 to 5.67 GHz | | RF Power | 17 dBm EIRP
| | Encryption | AES-128 | | Range | Up to 500' / 152.4 m line of sight | | Unicast Multicast | Unicast / Multicast | | Noise Rejection | Can coexist with WiFi and 5 GHz cordless phones | | Power Input | 2-pin connector
7 to 17 VDC | | Power Consumption | Nominal 7.3 W (measured at 1080p60) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Mountable | 1 x 1/4"-20 threaded mounting hole
2 x M3 threaded mounting holes | | Dimensions | 0.95 x 2.6 x 4.47" / 2.41 x 6.6 x 11.35 cm | | Weight | 8 oz / 226 g |
