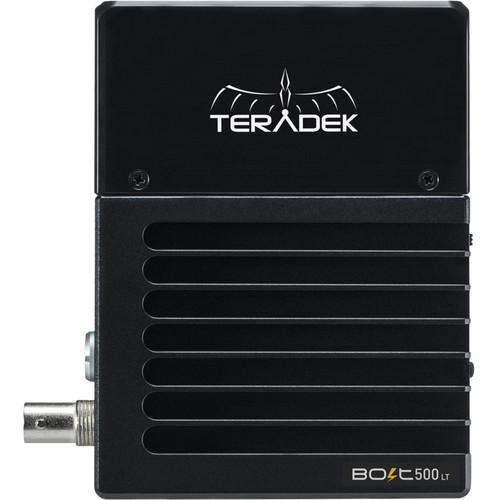

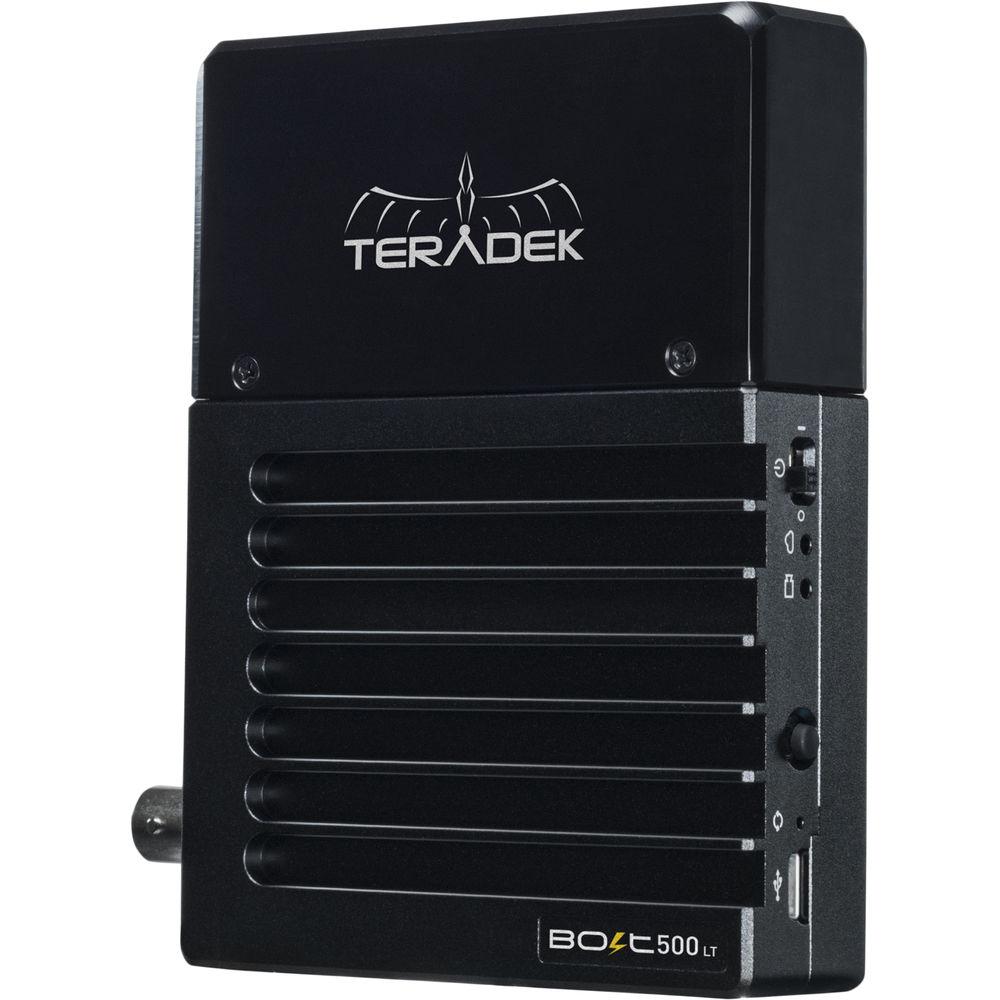

Product description With the Teradek Bolt LT 500 3G-SDI Wireless Video Receiver you can receive visually lossless 3G-video signals from a Bolt 500 LT transmitter with zero latency. The Bolt LT receiver is also compatible with the Bolt 500 XT transmitter. The receiver unit itself can be secured via built-in 1/4"-20 or M3 threaded holes.
A lightstand adapter is included for mounting on stands. For convenience, a standard HDMI cable is included, so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector. A D-Tap power cable is included for attaching to a battery. The transmitter supports up to four receivers and built-in AES 128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals. - Works with Bolt 500 LT and Bolt 500 XT transmitters
- SDI ancillary data support: supports metadata, timecode, and start/stop flags from certain camera manufacturers
- Smaller and lighter chassis design than other Bolt 500 transmitters

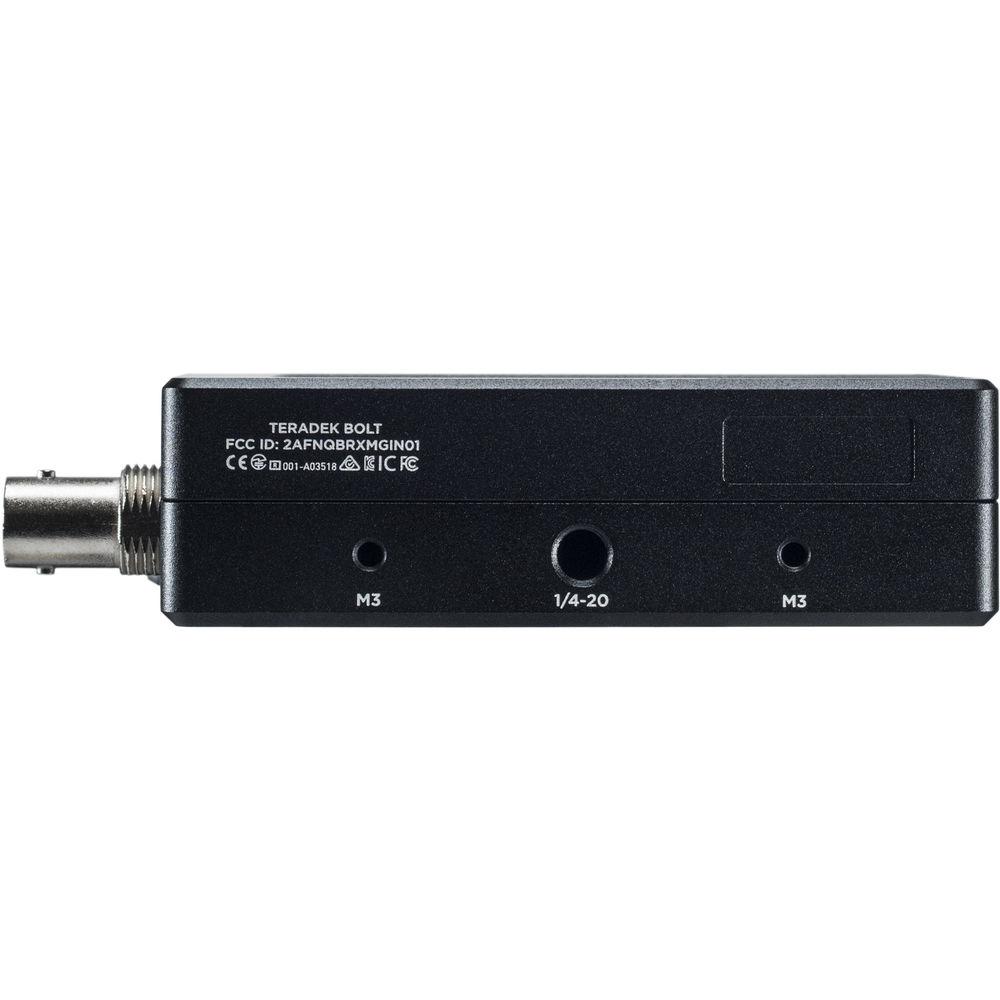

- 1/4"-20, M3, and 3/8" ARRI-style mounting points
UPC: 818264023105 In the Box Teradek Bolt 500 LT 3G-SDI Wireless RX Thumbscrew Lightstand Adapter (1/4"-20) USB 3.0 Cable Type-A to Micro-B BNC Cable (10") PSU 2-Pin Connector to 18W AC Adapter Cable (6') Limited 1-Year Warranty User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bolt 500 LT 3G-SDI Wireless RX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 500 Specs | Construction | Milled aluminum (chassis) and regulation-compliant PCB | | Video Outputs | 3G/HD/SD-SDI: 1 x BNC (75 Ohm, loop out) | | Color Sampling | YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled) | | Latency | <0.001 seconds (Tx to Rx without format conversion) | | Supported Resolutions | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080psF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50 | | Video Processing | Compression
Visually lossless
Color Correction
CDL/1024 1D LUT (supports 10-bit color)

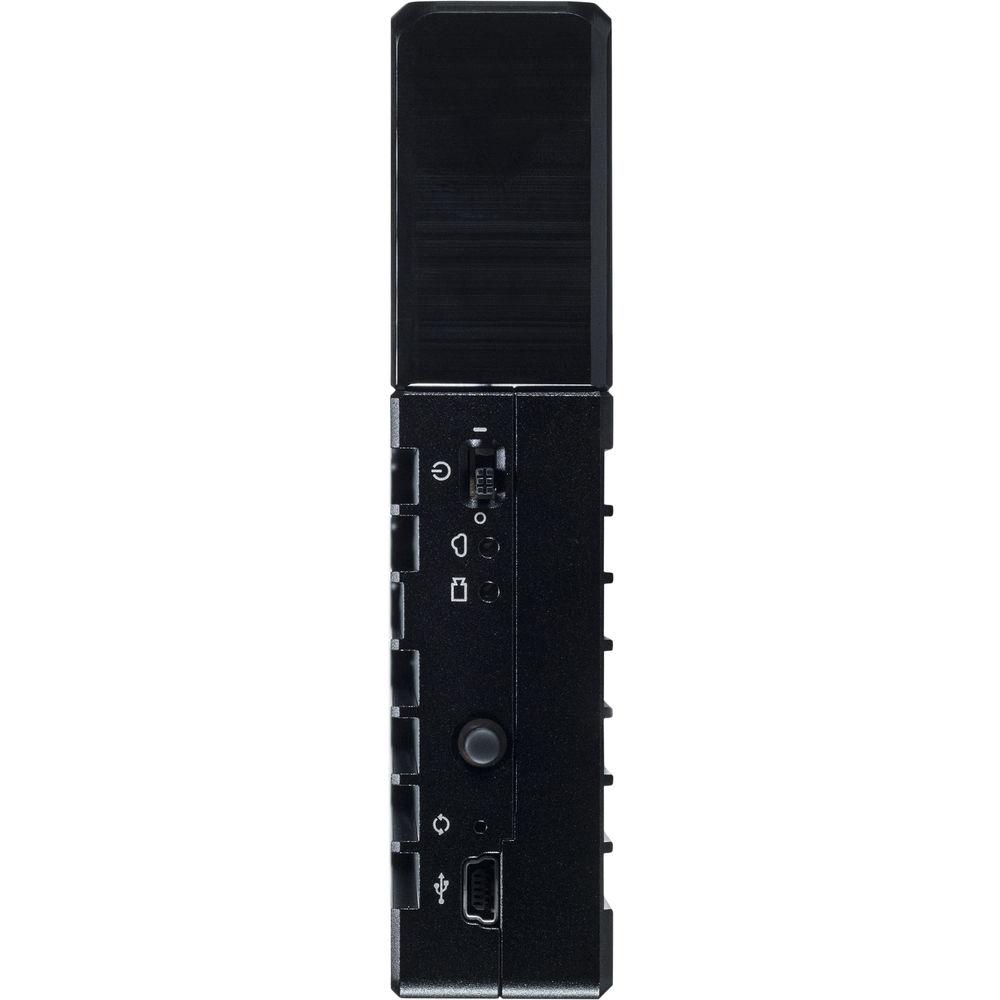

33x33x33 3D LUT (supports 10-bit color) | | Audio Compression | 48 kHz, 24-bit PCM | | Audio Input | Embedded | | Interfaces | Switches: On/Off and Reset
Desktop App: Feature-rich Bolt Manager application for Mac OS X and Windows
USB Interface Functionality: 1 x USB 3.0 Micro | | Wireless | Non-DFS Frequencies UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz EU & JP: 5.19 to 5.23 GHz
DFS Frequencies US: 5.27 to 5.55 GHz and 5.67 GHz EU & JP: 5.27 to 5.67 GHz | | RF Power | 17 dBm EIRP
| | Encryption | AES-128 | | Range | Up to 500' / 152.4 m line of sight | | Unicast Multicast | Unicast / Multicast | | Noise Rejection | Can coexist with WiFi and 5 GHz cordless phones | | Power Input | 2-pin connector

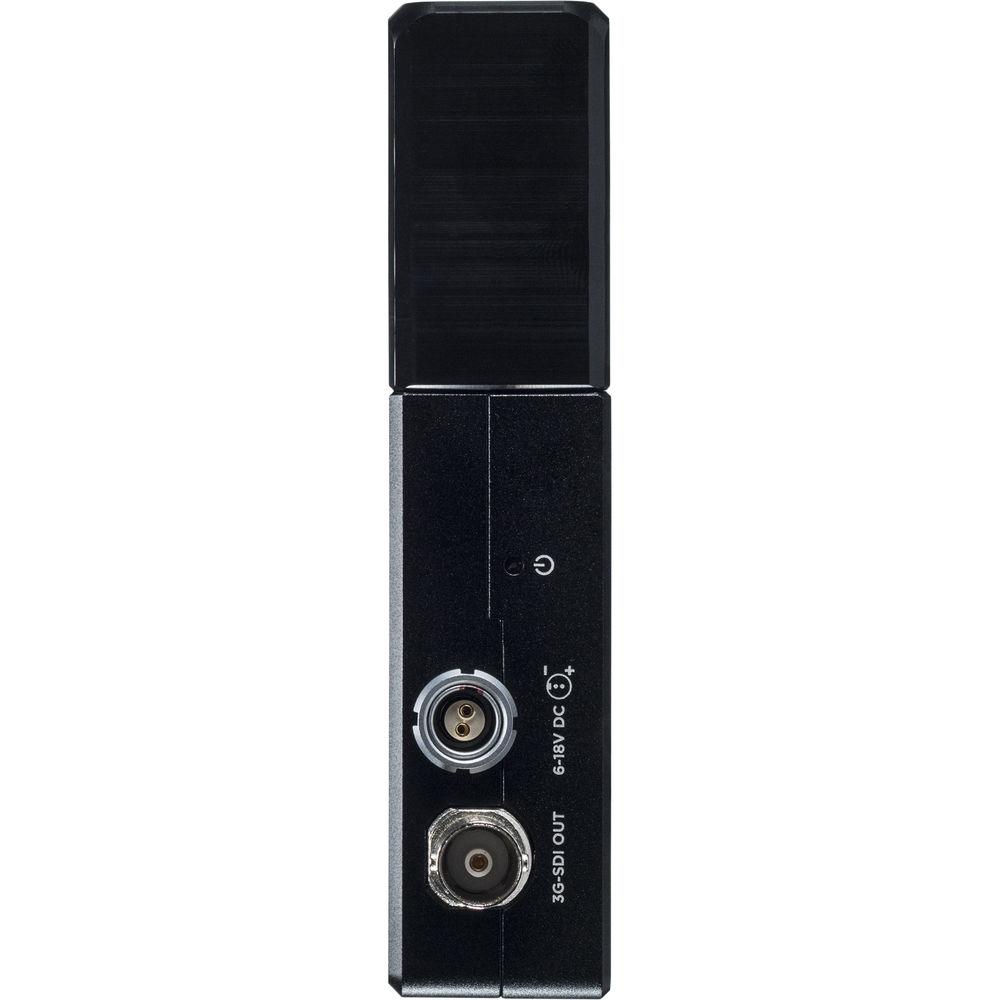

7 to 17 VDC | | Power Consumption | Nominal 7.3 W (measured at 1080p60) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Mountable | Multiple mounting options with M3 and 1/4" holes 3/8" ARRI style accessory mount | | Dimensions | 1 x 3.4 x 4.5" / 2.54 x 8.64 x 11.43 cm | | Weight | 10.1 oz / 288 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 6.6 x 6.6 x 4.8" |
