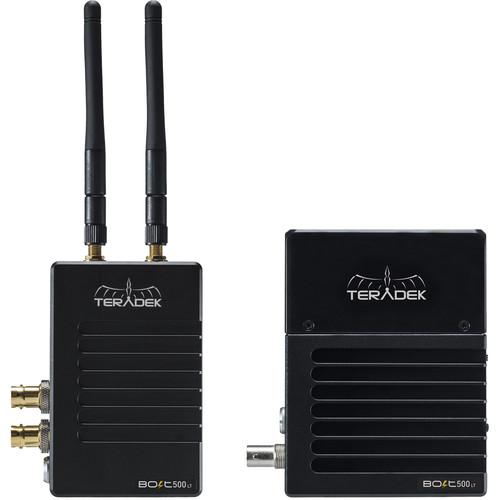

User Manual for Teradek Bolt 500 LT 3G-SDI Wireless Transmitter and Receiver Click to enlarge the picture
Contents of the user manual for the Teradek Bolt 500 LT 3G-SDI Wireless
- Product category: Wireless Transmission Systems Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Transmission Systems
 |
User manual for the Teradek Bolt 500 LT 3G-SDI Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

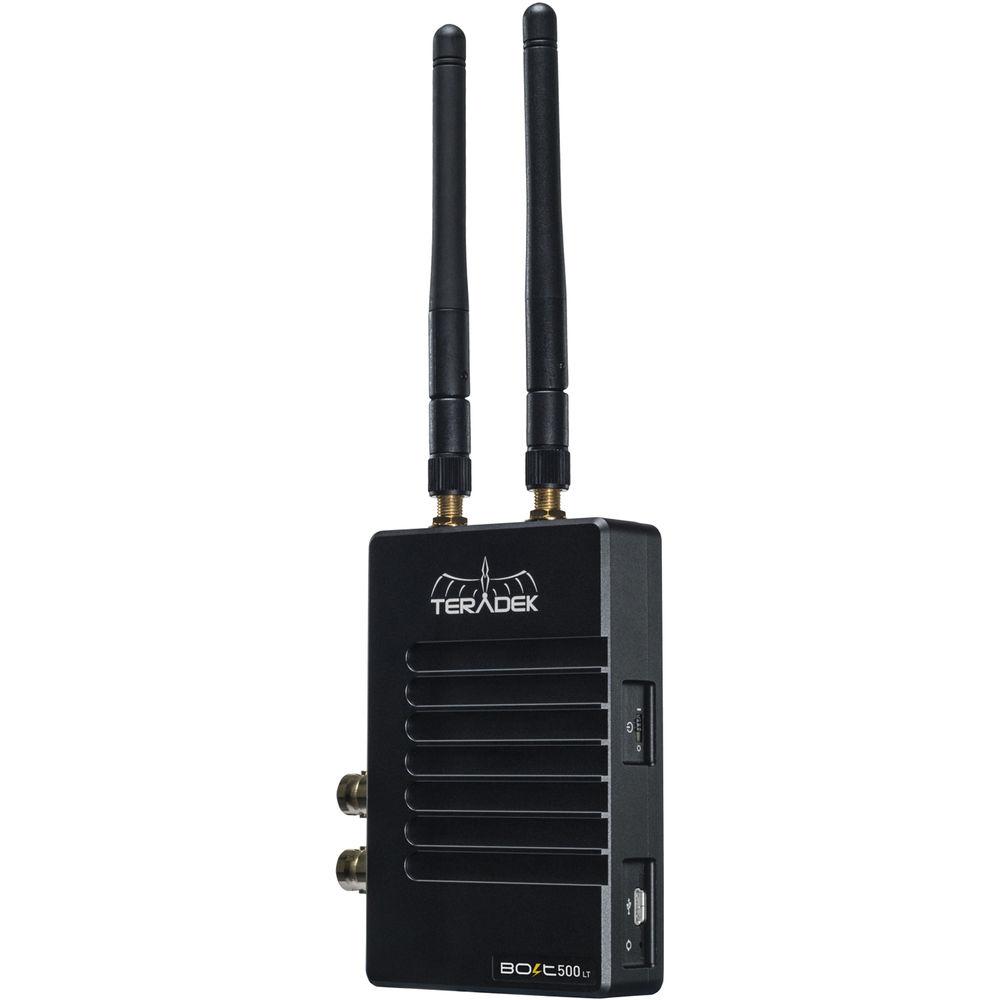

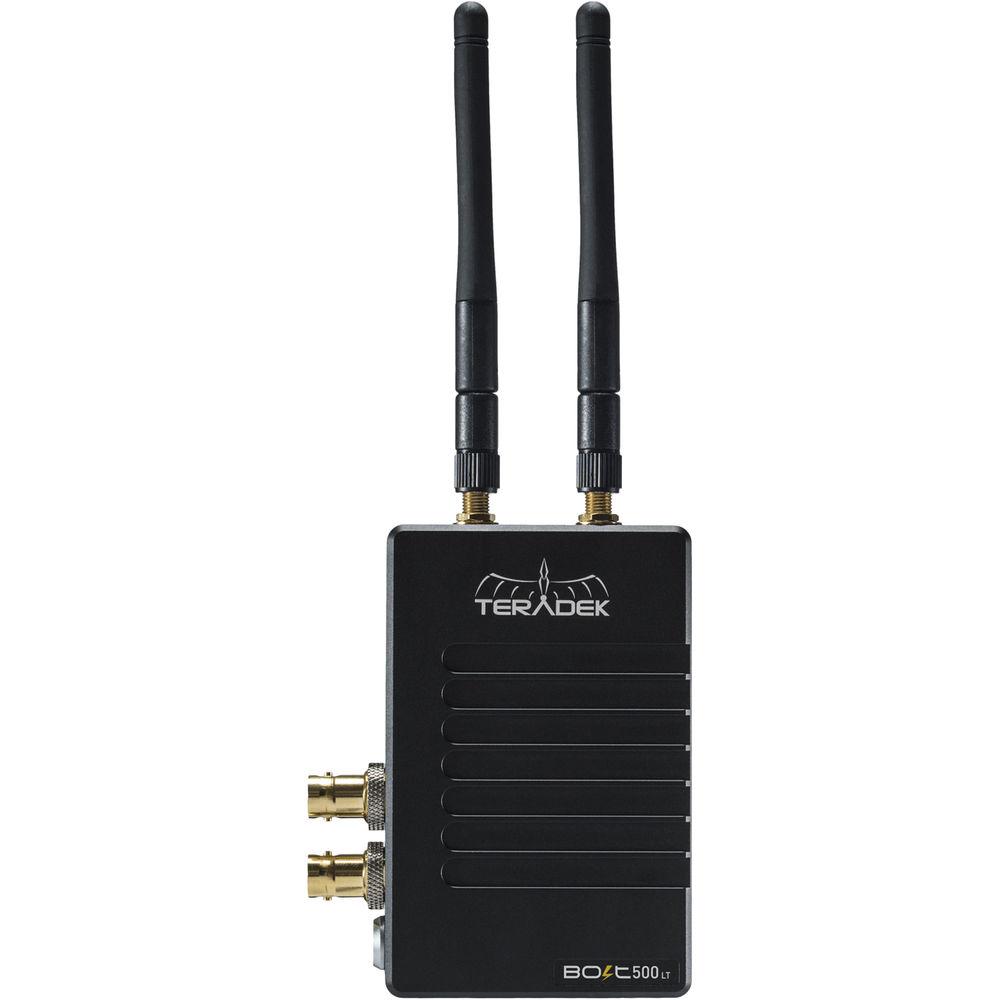

Product description With the Teradek Bolt 500 LT 3G-SDI Wireless Transmitter and Receiver you can transmit visually lossless 3G video signals up to 500' with zero latency. The Bolt LT is compatible with existing 3rd-generation Bolt systems such as the Bolt 500, 1000, Sidekick II, and 703 Bolt, as well as the Bolt XT. The transmitter unit itself can be secured to a camera or other HDMI video source via built-in 1/4"-20 threaded holes, M3, or ARRI-style connectors. The included antennas provide a powerful signal that can travel up to 500' line of sight.
A shoe mount is included for attaching to cameras without 1/4"-20 threads. For convenience, a standard BNC cable is included so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector. A D-Tap power cable is included for attaching to a battery. The transmitter supports up to four receivers and built-in AES 128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals. - Bolt 500 LT 3G-SDI Wireless Transmitter With the Teradek Bolt LT 500 3G-SDI Wireless Video Transmitter you can transmit visually lossless 3G video signals to a Bolt 500 receiver with zero latency. The Bolt LT transmitter is compatible with existing 3rd-generation Bolt systems, such as the Sidekick II and 703 Bolt universal receivers, as well as the Bolt 500 XT receiver. The transmitter unit itself can be secured to a camera or other HDMI video source via built-in 1/4"-20 and M3 threaded holes. The included antennas provide a powerful signal, that can travel up to 500' line-of-sight.
A shoe mount adapter is included for attaching to cameras without 1/4"-20 threads. For convenience, a standard BNC cable is included, so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector. A D-Tap power cable is included for attaching to a battery. The transmitter supports up to four receivers, and built-in AES-128 encryption protects your video from prying eyes, while noise rejection keeps your video clean even when working around 2.4 and 5.8 GHz signals. - Compatible with Bolt 500 XT as well as the Sidekick II and 703 Bolt universal receivers
- SDI ancillary data support—supports metadata, timecode, and start/stop flags from certain camera manufacturers.
- Smaller and lighter chassis design than other Bolt 500 transmitters

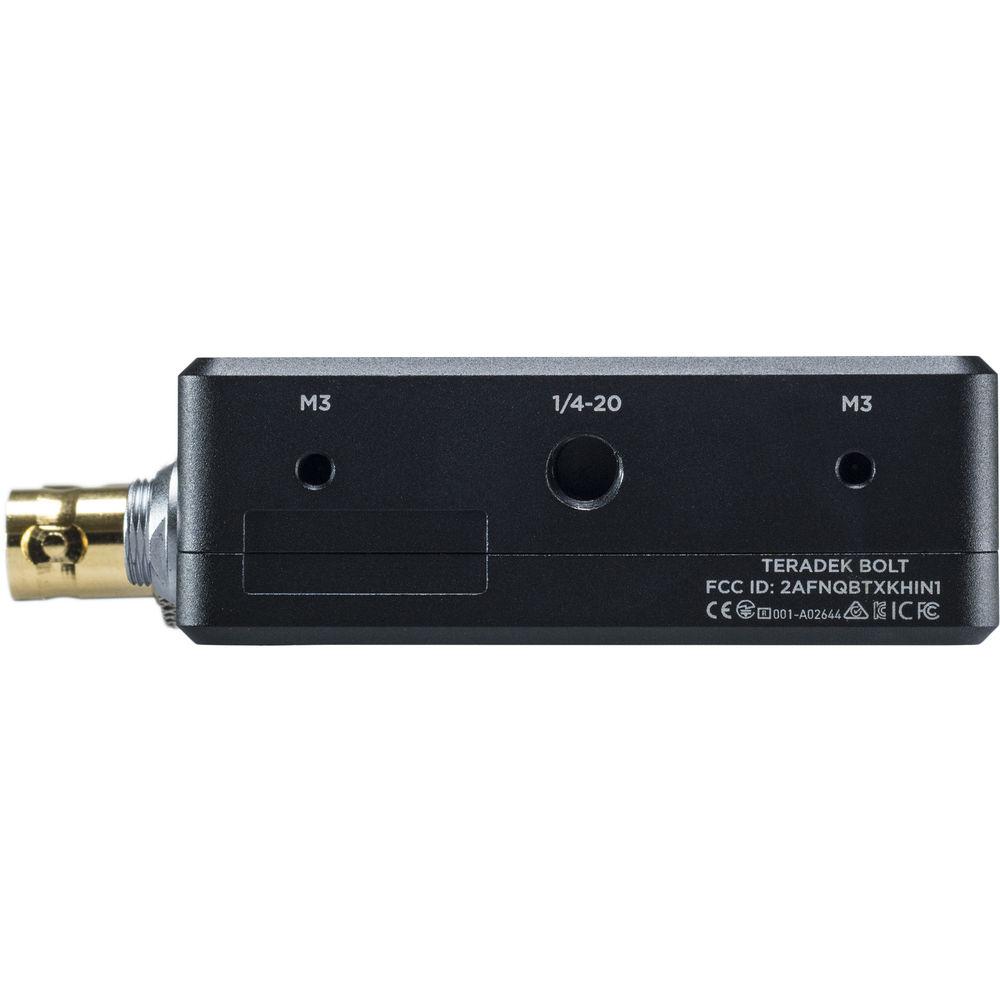

- 1/4"-20, M3, and 3/8" ARRI-style mounting points

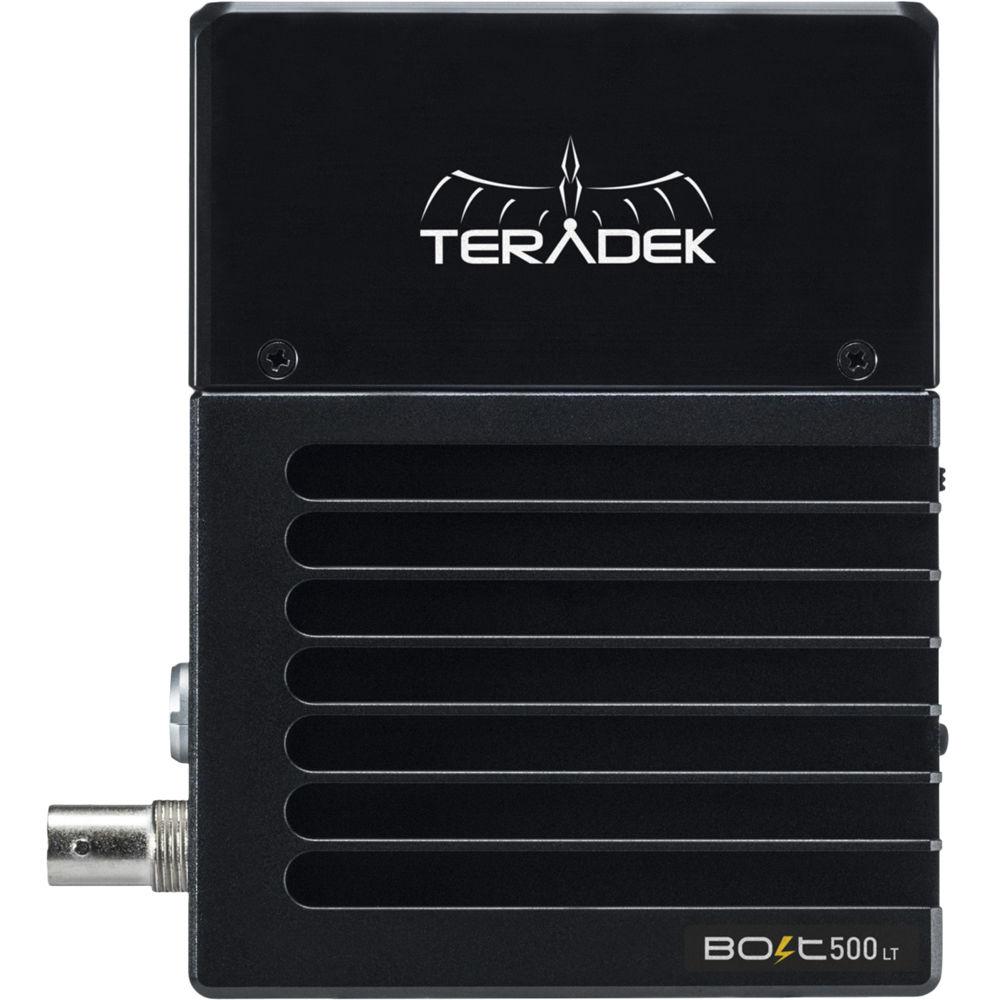

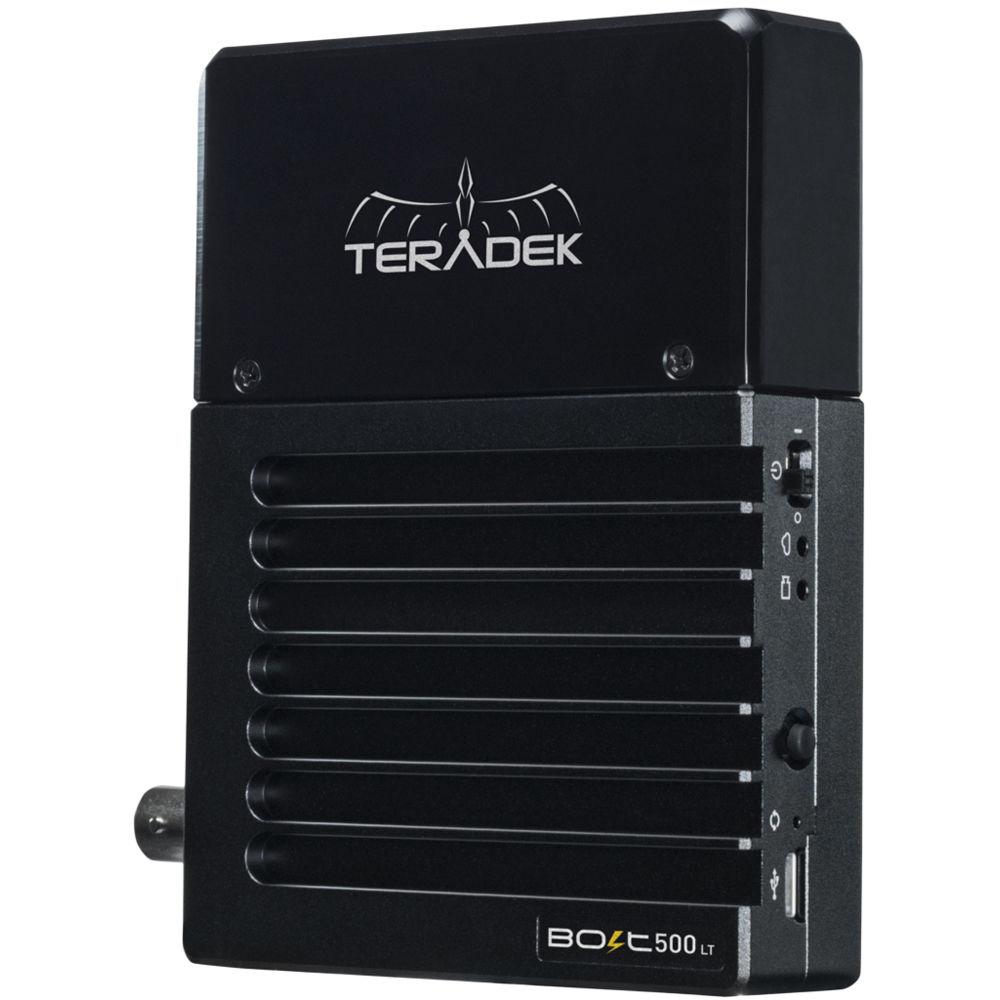

UPC: 818264023099 - Bolt 500 LT 3G-SDI Wireless RX With the Teradek Bolt LT 500 3G-SDI Wireless Video Receiver you can receive visually lossless 3G-video signals from a Bolt 500 LT transmitter with zero latency. The Bolt LT receiver is also compatible with the Bolt 500 XT transmitter. The receiver unit itself can be secured via built-in 1/4"-20 or M3 threaded holes.
A lightstand adapter is included for mounting on stands. For convenience, a standard HDMI cable is included, so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector. A D-Tap power cable is included for attaching to a battery. The transmitter supports up to four receivers and built-in AES 128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals. - Works with Bolt 500 LT and Bolt 500 XT transmitters
- SDI ancillary data support: supports metadata, timecode, and start/stop flags from certain camera manufacturers
- Smaller and lighter chassis design than other Bolt 500 transmitters

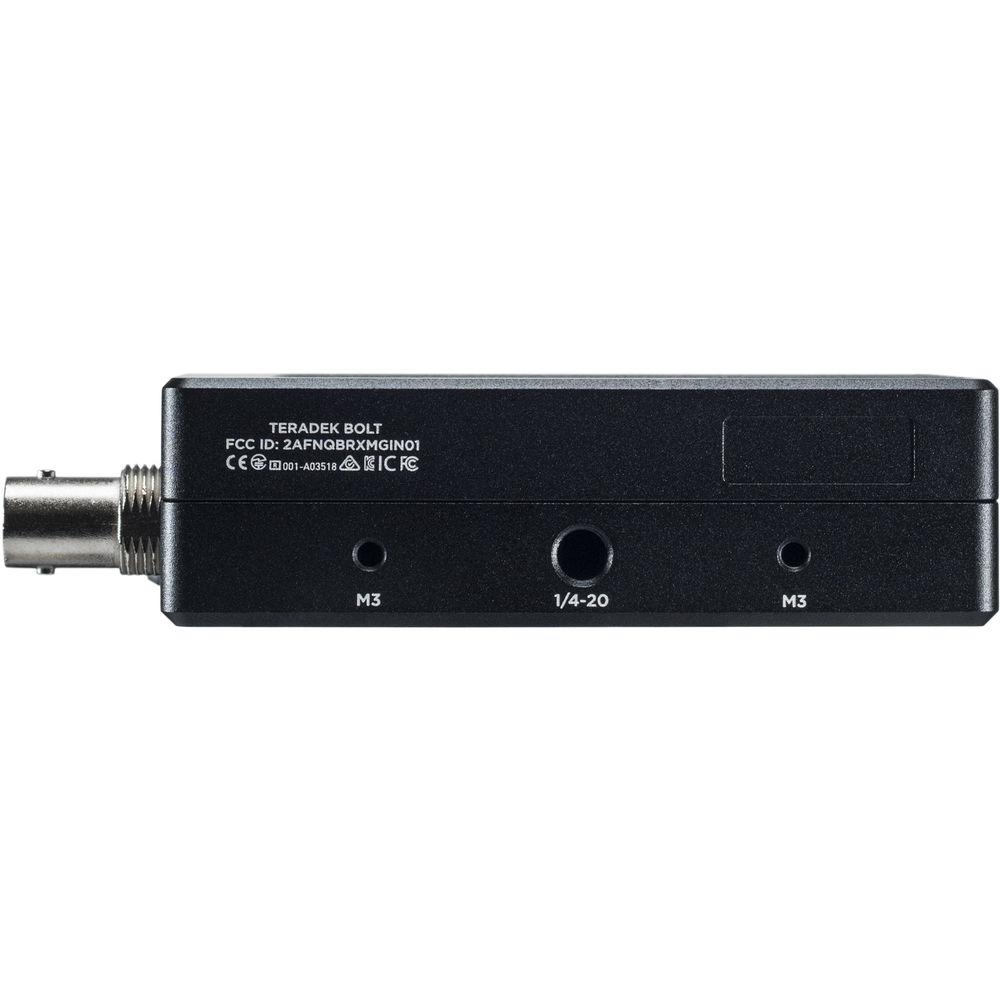

- 1/4"-20, M3, and 3/8" ARRI-style mounting points
UPC: 818264023105 In the Box Bundle Items Bolt 500 LT 3G-SDI Wireless Transmitter Bolt 500 LT 3G-SDI Wireless RX - Lightstand Adapter (1/4"-20)
- USB 3.0 Cable Type-A to Micro-B
- PSU 2-Pin Connector to 18W AC Adapter Cable (6')
User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bolt 500 LT 3G-SDI Wireless Transmitter and Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bolt 500 LT 3G-SDI Wireless Transmitter

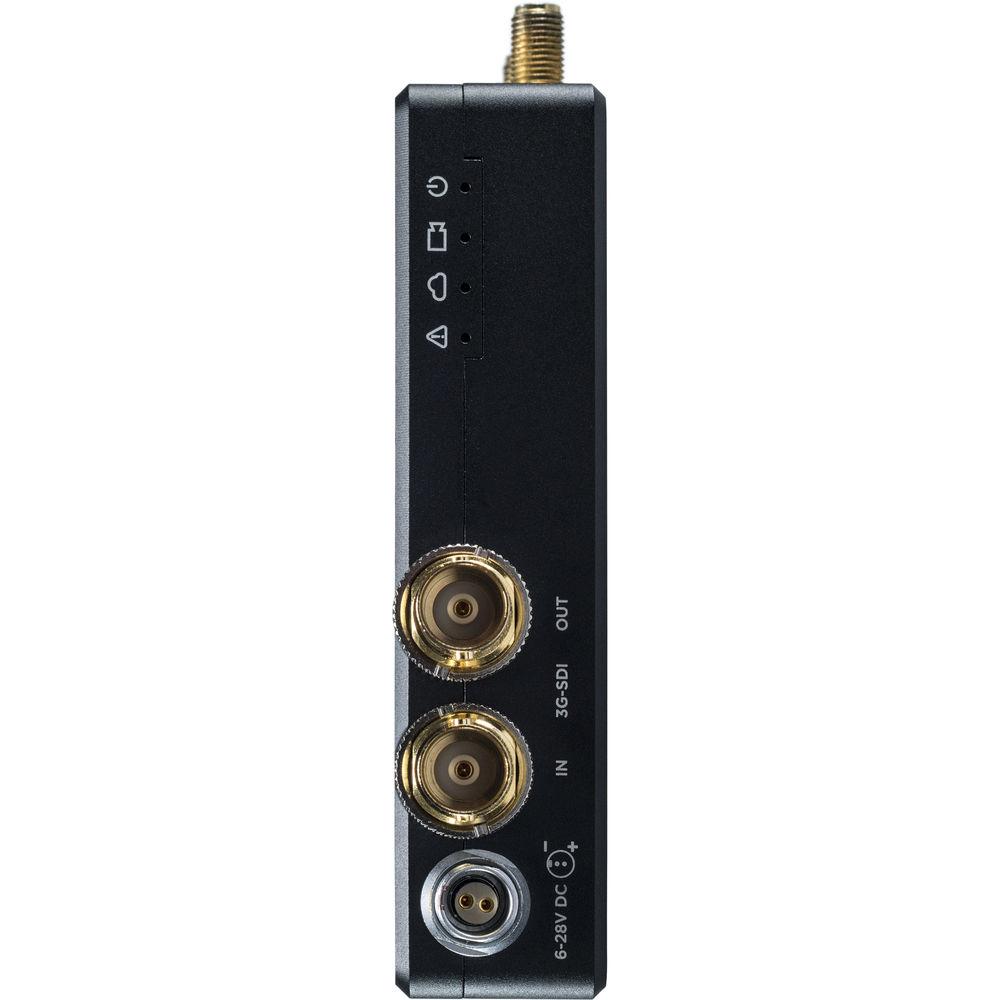

| Construction | Milled aluminum (chassis) and regulation-compliant PCB | | Video Inputs | 3G/HD/SD-SDI: 1 x BNC (75 Ohm) | | Video Outputs | 3G/HD/SD-SDI: 1 x BNC (75 Ohm) | | Color Sampling | YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled) | | Latency | <0.001 seconds (TX to RX without format conversion) | | Supported Resolutions | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94 | | Video Processing | Compression
Visually lossless
Color Correction
CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color) | | Audio Compression | 48 kHz, 24-bit PCM | | Audio Input | Embedded | | Interfaces | Switches: On/Off and Reset
Desktop App: Feature-rich Bolt Manager application for OS X and Windows
USB Interface Functionality: Upgrade via mini-USB | | Wireless | Non-DFS Frequencies
UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz
EU & JP: 5.19 to 5.23 GHz
DFS Frequencies
US: 5.27 to 5.55 GHz and 5.67 GHz
EU & JP: 5.27 to 5.67 GHz | | RF Power | 17 dBm EIRP | | Encryption | AES-128 | | Range | Up to 500' / 152.4 m line of sight | | Unicast Multicast | Unicast / multicast | | Noise Rejection | Can coexist with Wi-Fi and 5 GHz cordless phones | | Power Input | 2-pin connector
7 to 17 VDC | | Power Consumption | Nominal 7.3 W (measured at 1080p60) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Mountable | Multiple mounting options with M3 and 1/4"-20 holes
3/8" ARRI-style accessory mount | | Dimensions | 0.95 x 2.6 x 4.47" / 2.41 x 6.6 x 11.35 cm | | Weight | 8 oz / 226 g | | | | Box Dimensions (LxWxH) | 6.75 x 6.7 x 4.85" | - Bolt 500 LT 3G-SDI Wireless RX
| Construction | Milled aluminum (chassis) and regulation-compliant PCB | | Video Outputs | 3G/HD/SD-SDI: 1 x BNC (75 Ohm, loop out) | | Color Sampling | YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled) | | Latency | <0.001 seconds (Tx to Rx without format conversion) | | Supported Resolutions | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080psF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50 | | Video Processing | Compression
Visually lossless
Color Correction
CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color) | | Audio Compression | 48 kHz, 24-bit PCM | | Audio Input | Embedded | | Interfaces | Switches: On/Off and Reset
Desktop App: Feature-rich Bolt Manager application for Mac OS X and Windows
USB Interface Functionality: 1 x USB 3.0 Micro | | Wireless | Non-DFS Frequencies - UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz
- EU & JP: 5.19 to 5.23 GHz
DFS Frequencies - US: 5.27 to 5.55 GHz and 5.67 GHz
- EU & JP: 5.27 to 5.67 GHz
| | RF Power | 17 dBm EIRP
| | Encryption | AES-128 | | Range | Up to 500' / 152.4 m line of sight | | Unicast Multicast | Unicast / Multicast | | Noise Rejection | Can coexist with WiFi and 5 GHz cordless phones | | Power Input | 2-pin connector
7 to 17 VDC | | Power Consumption | Nominal 7.3 W (measured at 1080p60) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Mountable | - Multiple mounting options with M3 and 1/4" holes
- 3/8" ARRI style accessory mount
| | Dimensions | 1 x 3.4 x 4.5" / 2.54 x 8.64 x 11.43 cm | | Weight | 10.1 oz / 288 g | | | | Box Dimensions (LxWxH) | 6.6 x 6.6 x 4.8" |
