Product description

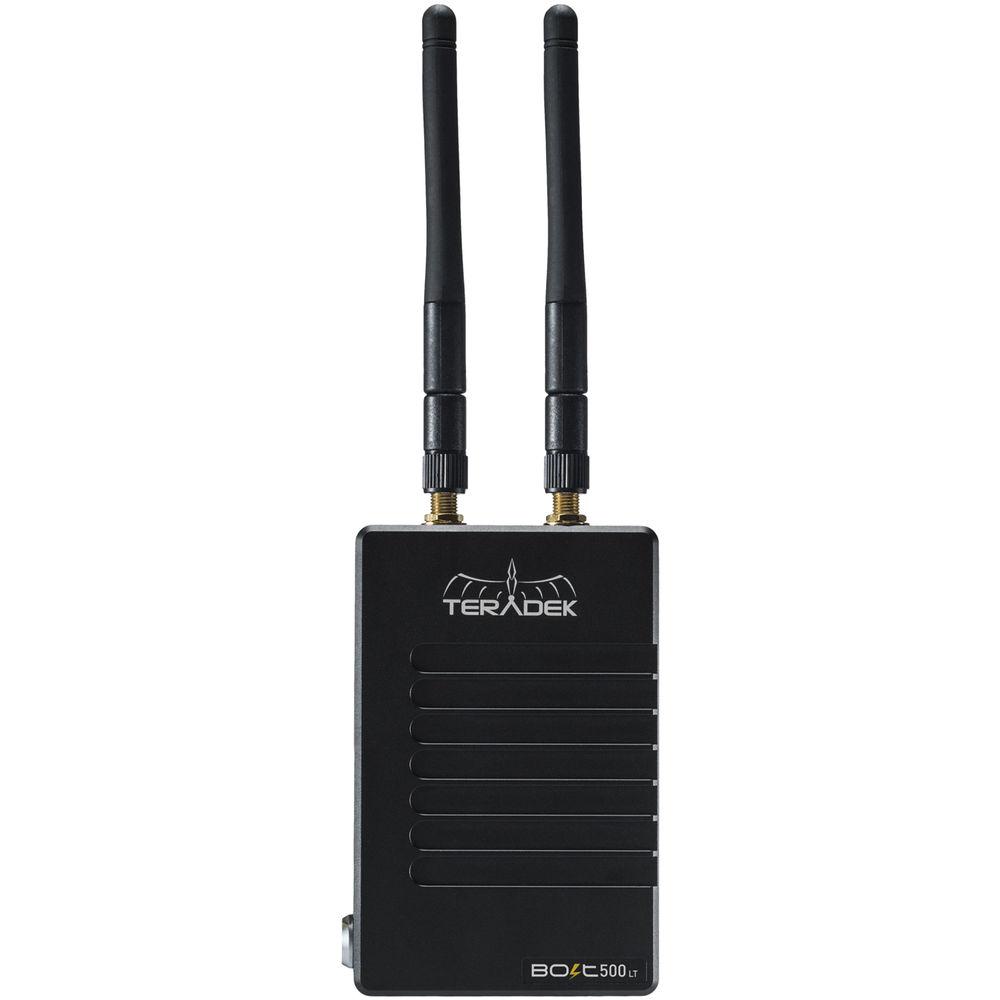

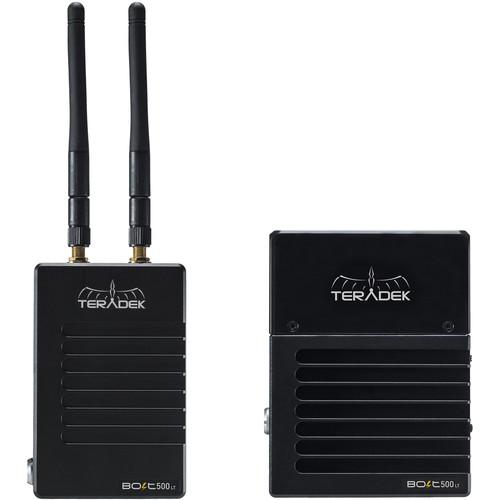

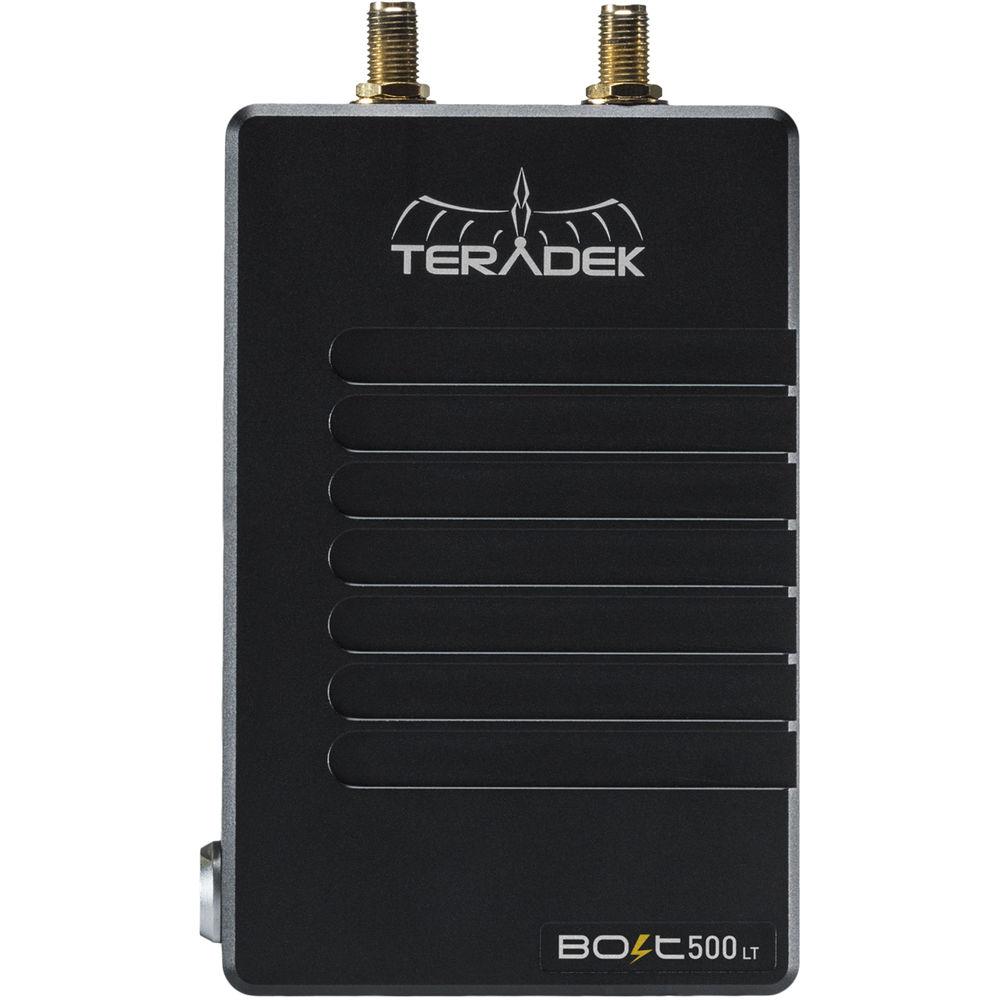

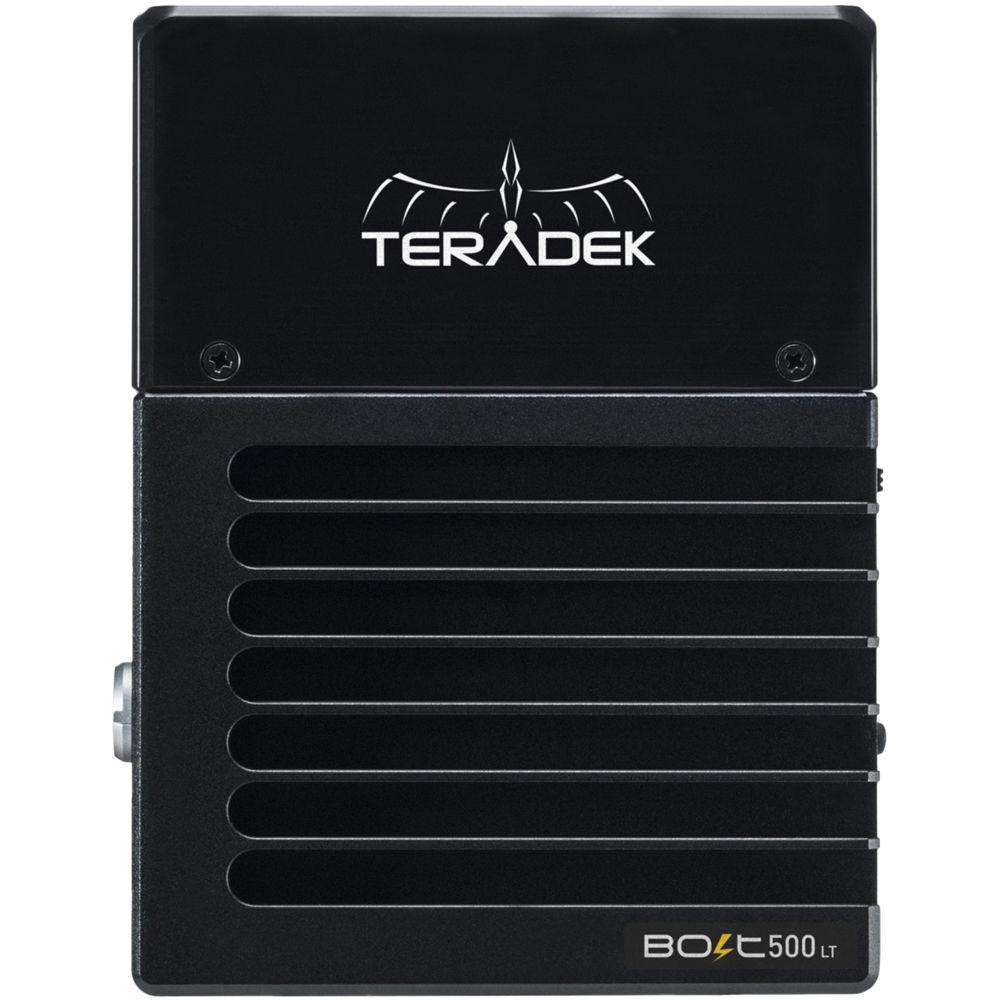

• Bolt 500 LT HDMI Wireless Transmitter With the Teradek Bolt LT 500 3G-SDI Wireless Video Transmitter you can transmit visually lossless 3G video signals to a Bolt 500 receiver with zero latency. The Bolt LT transmitter is compatible with existing 3rd-generation Bolt systems, such as the Sidekick II and 703 Bolt universal receivers, as well as the Bolt 500 XT receiver. The transmitter unit itself can be secured to a camera or other HDMI video source via built-in 1/4"-20 and M3 threaded holes. The included antennas provide a powerful signal, that can travel up to 500' line-of-sight.

  A shoe mount adapter is included for attaching to cameras without 1/4"-20 threads. For convenience, a standard BNC cable is included, so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector. A D-Tap power cable is included for attaching to a battery. The transmitter supports up to four receivers, and built-in AES-128 encryption protects your video from prying eyes, while noise rejection keeps your video clean even when working around 2.4 and 5.8 GHz signals.
  • Compatible with Bolt 500 XT as well as the Sidekick II and 703 Bolt universal receivers
  • Smaller and lighter chassis design than other Bolt 500 transmitters

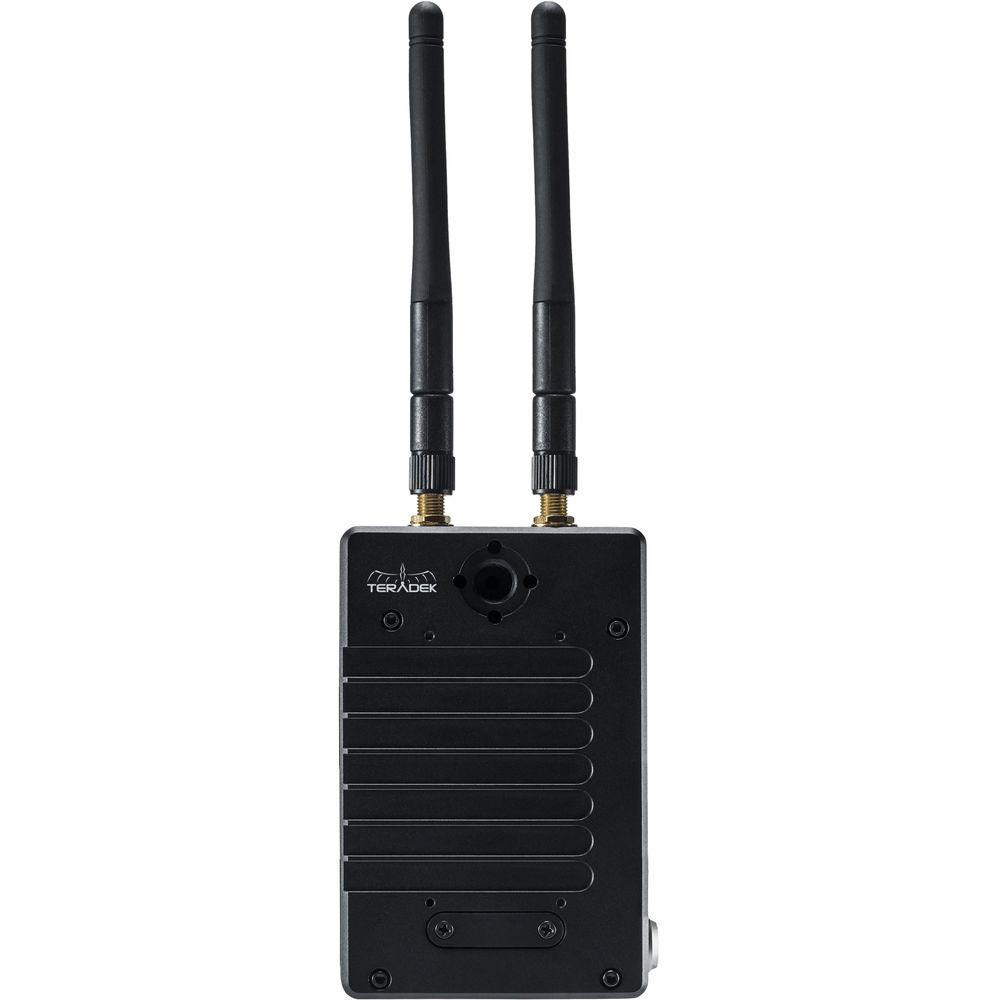

  • 1/4"-20, M3, and 3/8" ARRI-style mounting points
  UPC: 818264023051
• Bolt 500 LT HDMI Wireless RX With the Teradek Bolt LT 500 HDMI Wireless Video Receiver you can receive visually lossless HDMI signals to a Bolt 500 receiver with zero latency. The Bolt LT is compatible with existing 3rd-generation Bolt systems, such as the Bolt 500, 1000, Sidekick II, and 703 Bolt, as well as the Bolt XT. The receiver unit itself can be secured via built-in 1/4"-20 or M3 threaded holes.

  A light stand adapter is included for mounting on stands. For convenience, a standard HDMI cable is included so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector. A D-Tap power cable is included for attaching to a battery. The transmitter supports up to four receivers and built-in AES-128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals.
  • Backwards compatible with 3rd generation Bolt 500, 1000, 300, Sidekick II and 703 Bolt
  • The receiver does not have an LCD or OLED screen. However, an OSD that appears on the Video Output that is controlled with the Menu Joystick
  • Smaller and lighter chassis design than other Bolt 500 transmitters
  • 1/4"-20, M3, and 3/8" ARRI-style mounting points
  UPC: 818264023068

• D-Tap Power Cable (18")

• Shoe Mount Adapter

• 2 x Antenna

• HDMI Cable (18")

• USB Type-A to Mini Cable

• Limited 1-Year Warranty

• Thumbscrew

• Lightstand Adapter (1/4"-20)

• USB 3.0 Cable Type-A to Micro-B

• HDMI Type A Cable (18")

• PSU 2-Pin Connector to 18W AC Adapter Cable (6')

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Bolt 500 LT HDMI Wireless Transmitter

  Construction	Milled aluminum (chassis) and regulation-compliant PCB

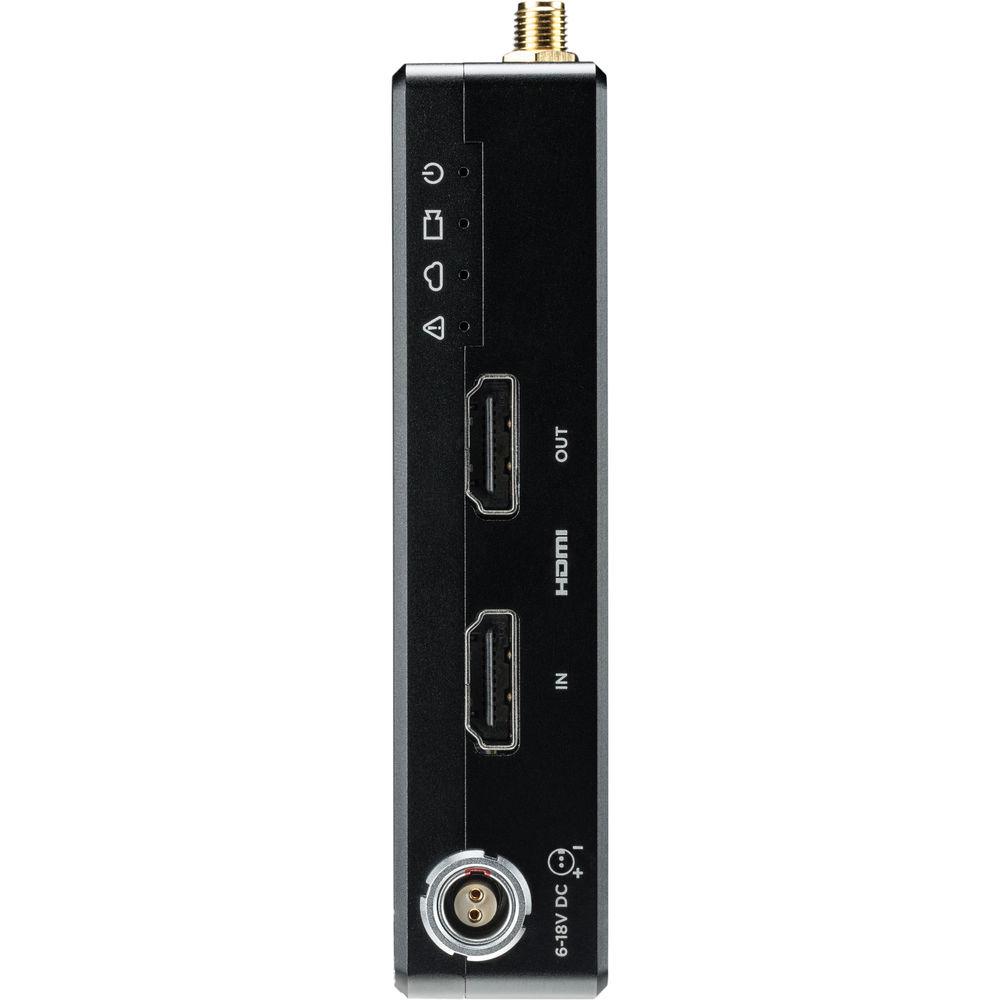

  Video Inputs	HDMI: 1 x Type A
  Video Outputs	HDMI: 1 x Type A
  Color Sampling	YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
  Latency	<0.001 seconds (TX to RX without format conversion)
  Supported Resolutions	1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 59.94 576i: 50 480i: 59.94
  Video Processing	Compression Visually lossless Color Correction CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color)
  Audio Compression	48 kHz, 24-bit PCM
  Audio Input	Embedded

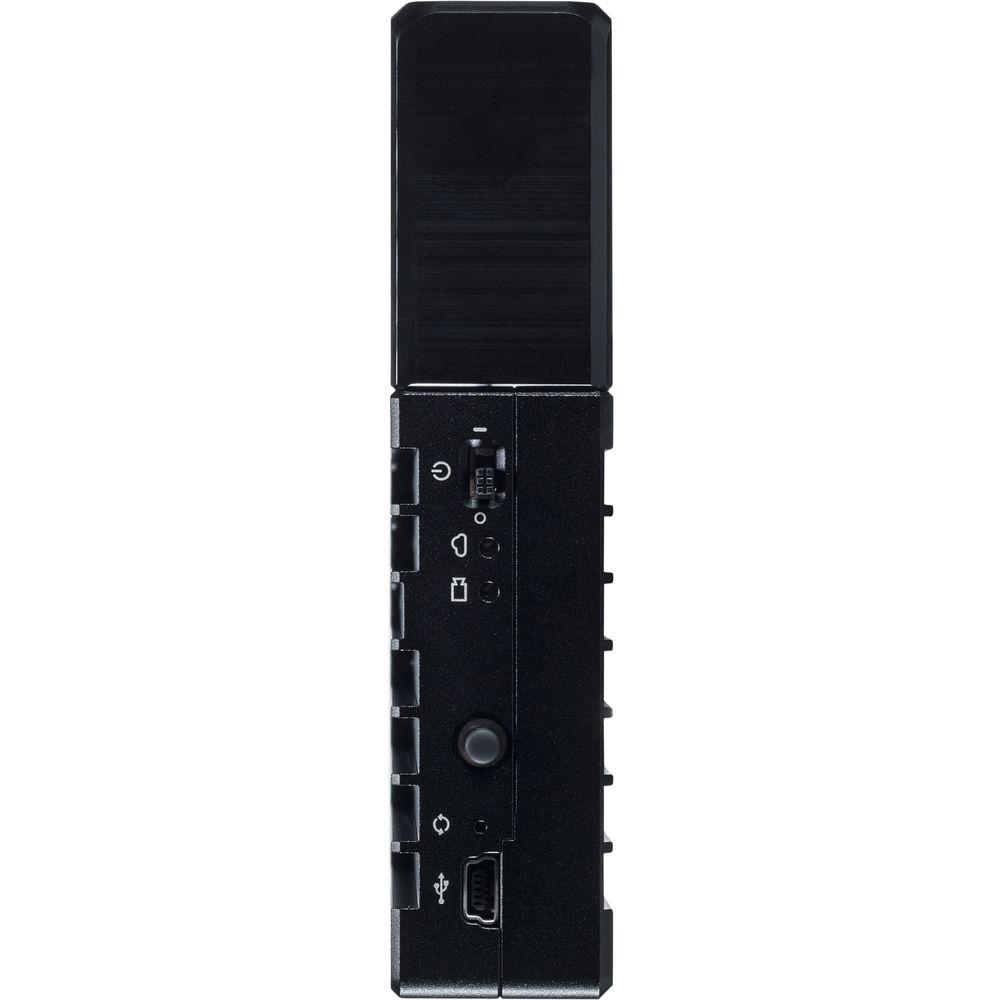

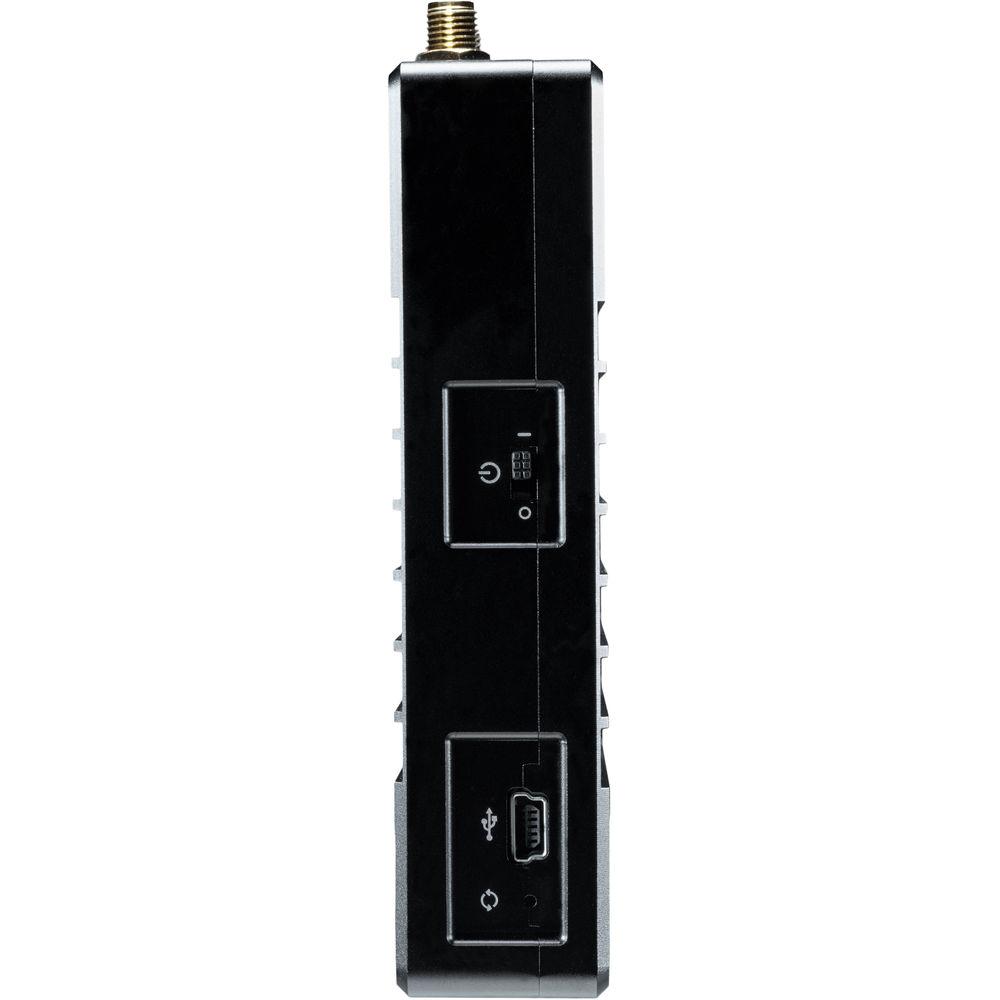

  Interfaces	Switches: On/Off and Reset Desktop App: Feature-rich Bolt Manager application for OS X and Windows USB Interface Functionality: Upgrade via mini-USB
  Wireless	Non-DFS Frequencies UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz EU & JP: 5.19 to 5.23 GHz DFS Frequencies US: 5.27 to 5.55 GHz and 5.67 GHz EU & JP: 5.27 to 5.67 GHz
  RF Power	17 dBm EIRP
  Encryption	AES-128
  Range	Up to 500' / 152.4 m line of sight
  Unicast Multicast	Unicast / multicast
  Noise Rejection	Can coexist with Wi-Fi and 5 GHz cordless phones

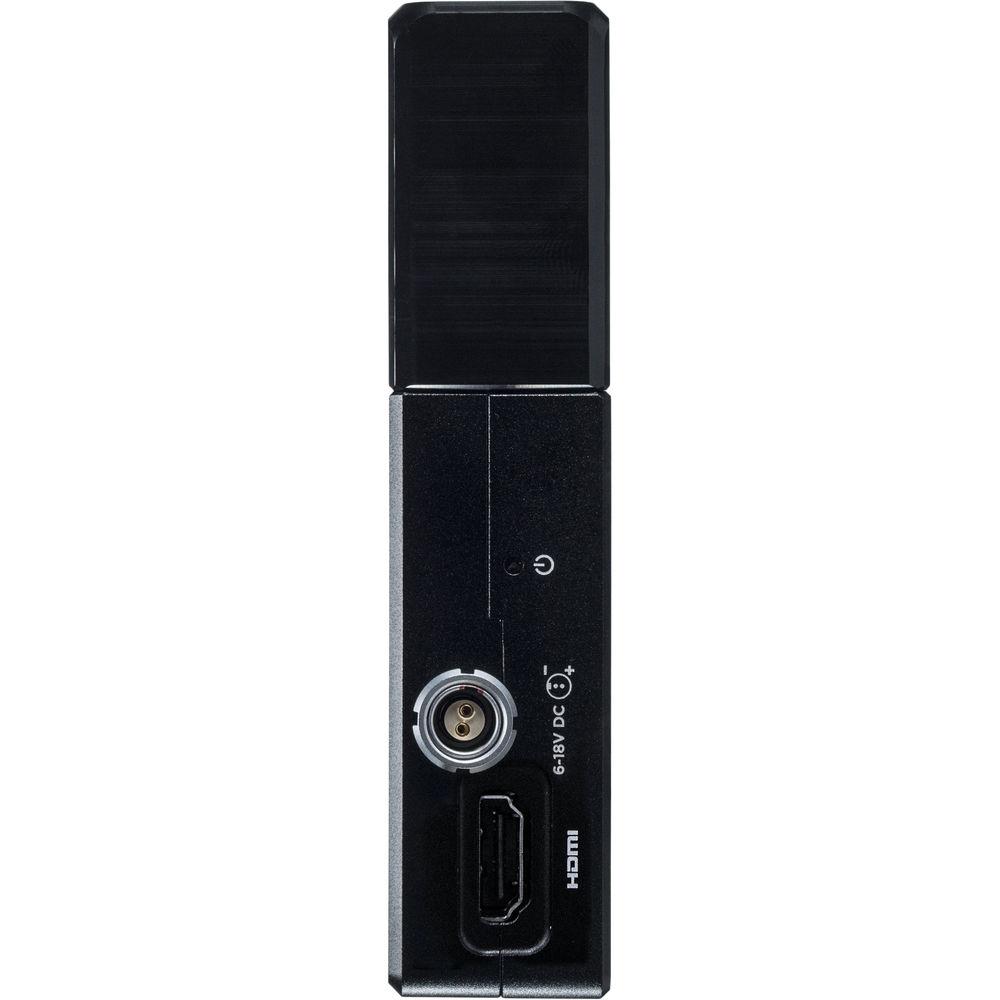

  Power Input	2-pin connector 7 to 17 VDC
  Power Consumption	Nominal 7.3 W (measured at 1080p60)
  Operating Temperature	32 to 104°F / 0 to 40°C

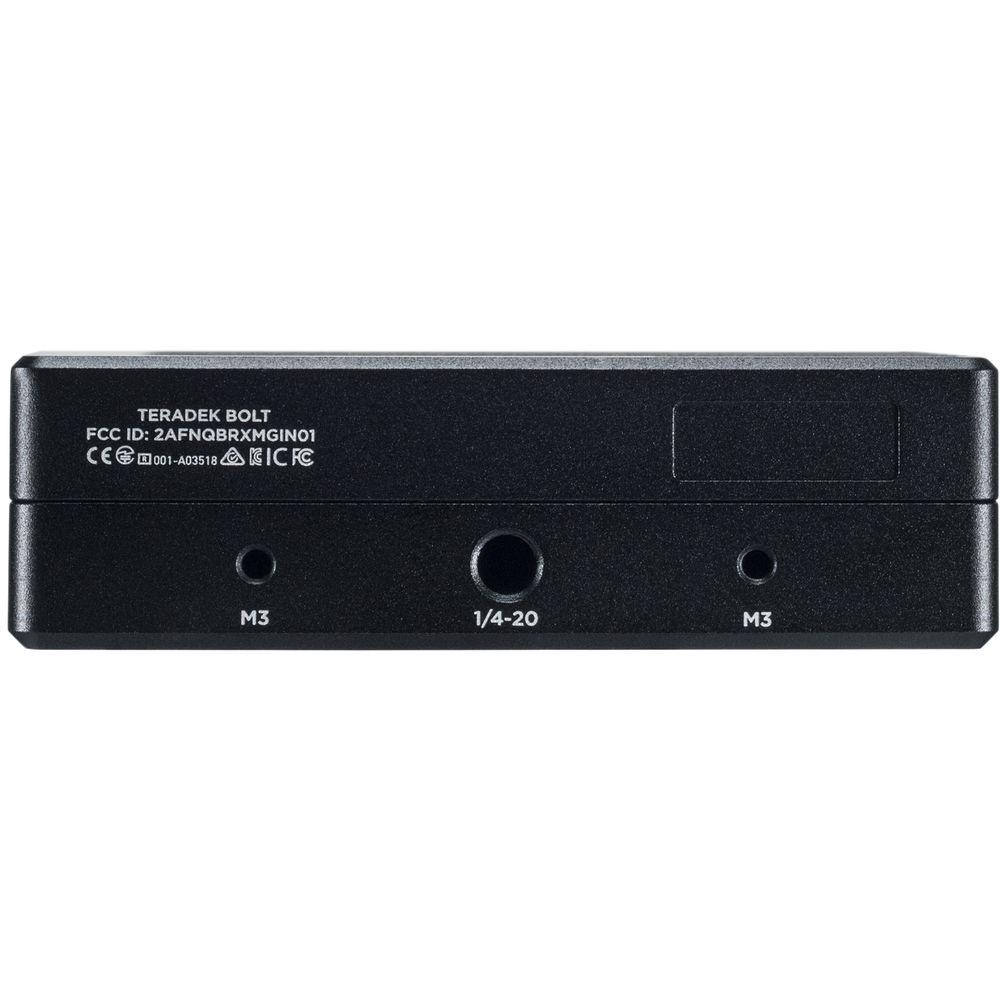

  Mountable	Multiple mounting options with M3 and 1/4"-20 holes 3/8" ARRI-style accessory mount
  Dimensions	0.95 x 2.6 x 4.47" / 2.41 x 6.6 x 11.35 cm
  Weight	8 oz / 226 g

  Box Dimensions (LxWxH)	6.7 x 6.7 x 4.8"

• Bolt 500 LT HDMI Wireless RX

  Construction	Milled aluminum (chassis) and regulation-compliant PCB
  Video Outputs	1 x HDMI type A
  Color Sampling	HDMI: RGB 4:4:4, 8-bit
  Latency	<0.001 seconds (Tx to Rx without format conversion)
  Supported Resolutions	1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480p: 59.94 576p: 50 480i: 59.94 576i: 50
  Video Processing	Compression Visually lossless Color Correction CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color) Test Pattern Generator Support Yes
  Audio Compression	48 kHz, 24-bit PCM
  Audio Input	Embedded
  Interfaces	Switches: On/Off and Reset Desktop App: Feature-rich Bolt Manager application for OS X and Windows USB Interface Functionality: Upgrade via mini-USB
  Wireless	Non-DFS Frequencies UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz EU & JP: 5.19 to 5.23 GHz DFS Frequencies US: 5.27 to 5.55 GHz and 5.67 GHz EU & JP: 5.27 to 5.67 GHz
  RF Power	17 dBm EIRP
  Encryption	AES-128
  Range	Up to 500' / 152.4 m line of sight
  Unicast Multicast	Unicast / Multicast
  Noise Rejection	Can coexist with WiFi and 5 GHz cordless phones
  Power Input	2-pin connector 7 to 17 VDC
  Power Consumption	Nominal 9 W (measured at 1080p60)
  Operating Temperature	32 to 104°F / 0 to 40°C
  Mountable	Multiple mounting options with M3 and 1/4" holes
  Dimensions	1 x 3.4 x 4.5" / 2.54 x 8.64 x 11.43 cm
  Weight	10.1 oz / 286.3 g

  Box Dimensions (LxWxH)	6.7 x 6.7 x 4.9"
