Teradek Bolt 500 SDI HDMI Wireless

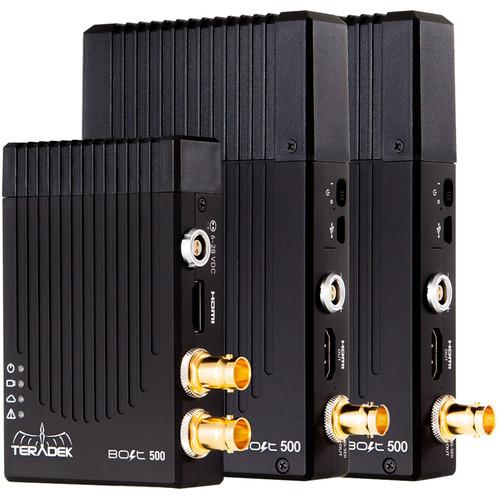

User Manual for Teradek Bolt 500 SDI HDMI Wireless Video Transceiver Set with Two Receivers

• Product category: Wireless Transmission Systems Teradek
• Brand: Teradek
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Teradek Wireless Transmission Systems

Product description

• Bolt 500 3G-SDI/HDMI Video Transmitter The Bolt 500 3G-SDI/HDMI Video Transmitter from Teradek transmits visually lossless video up to 500' with no delay. Within the unlicensed 5 GHz channel range, you can use multiple Bolts in one location without any interference. Thanks to built-in cross-conversion supported by every Bolt model, the transmitter supports real-time standards and cross-conversion from receiver to transmitter, allowing you to automatically convert resolution, frame rate, and inputs/outputs (HDMI / 3G-SDI) without any additional hardware. The built-in HDMI to SDI converter allows you to connect both your on-camera monitor and video source via the same device, thereby making Bolt 500 suitable for use with MoVI and other separately available gimbals.
  • • Eleven 5 GHz channels
    • Supports full HD (1080p) resolution
    • Low latency of up to 0.001 sec
    • Integrated 3D LUT technology
    • Upload your own LUTs using the free Bolt Manager software or select from a number of built-in presets using Bolt's OSD
    • Bolt's USB 3.0 GRAB Engine allows you to ingest a Bolt feed directly into a computer or your DIT cart without any added delay or loss of quality
    • Supports metadata, timecode, and start/stop flags from many camera manufacturers, including RED, ARRI, Canon, Sony, and Panasonic
    • Housed in a hardened aluminum chassis
    • 1/4"-20 holes for mounting to cameras and monitors as well as 2-pin LEMO connectors for power
• Bolt 500 3G-SDI Video Receiver The Bolt 500 3G-SDI Video Receiver from Teradek receives visually lossless video from up to 500' away with no delay. With 40 MHz channel, you can use multiple Bolts in one location without any interference. Thanks to built-in cross-conversion supported by every Bolt model, the receiver supports real-time standards and cross-conversion from receiver to transmitter, allowing you to automatically convert resolution, frame rate, and inputs/outputs without any additional hardware.
  • • Eleven 40 MHz channels
    • Supports full HD (1080p) resolution
    • Low latency of up to 0.001 sec
    • Integrated 3D LUT technology
    • Upload your own LUTs using the free Bolt Manager software or select from a number of built-in presets using Bolt's OSD
    • Bolt's USB 3.0 GRAB Engine allows you to ingest a Bolt feed directly into a computer or your DIT cart without any added delay or loss of quality
    • Supports metadata, timecode, and start/stop flags from many camera manufacturers, including RED, ARRI, Canon, Sony, and Panasonic
    • Housed in a hardened aluminum chassis
    • 1/4"-20 holes for mounting to cameras and monitors as well as 2-pin LEMO connectors for power
• Ultra Arm Mini Monitor Mount (1/4"-20 to 1/4"-20) The 1/4"-20 to 1/4"-20 Ultra Arm Mini Monitor Mount from Wooden Camera is a robust and compact articulating arm with 25mm ball joints. Approximately 5" in length from end to end, the Ultra Arm Mini is designed for keeping a monitor or other accessory close to the camera while providing the full range of ball joint articulation. A lever in the center locks both ball joints, and the mounting points on the ends attach to your gear easily at the turn of integrated tightening knobs. Both ends feature rubber pads for more secure support.

  The Ultra Arm system is interchangeable. Wooden Camera offers a variety of optional end points that install into the ball sockets of the arm. These include NATO clamps, NATO rails, shoe mounts, super clamps, and extensions to add between two of these arms. There is even a Preston mounting bracket. Additionally, the system is compatible with many third-party 25mm ball mount systems.
  Key Features
  • • Full-range ball joint articulation
    • Integrated tightening knobs
    • Rubber pads
    • Interchangeable end points support optional NATO clamps, NATO rails, shoe mounts, super clamps, length extensions, and more (see Accessories tab)
    • Also compatible with third-party 25mm ball mount systems
  UPC: 606184852567
• Ultra Arm Ball with 3/8"-16 Threaded Stud The Wooden Camera Ultra Arm Ball with 3/8"-16 Threaded Stud is compatible with the Ultra Ball system and can swap places with one of the original ends with a threaded stud, or you can combine it with other Ultra Arm accessories to create a custom rig. This Ultra Arm Ball is for attaching to 3/8"-16 threaded mounting holes. UPC: 606184852482
• 2-Pin LEMO to P-Tap Cable (18") This is an 18" 2-Pin LEMO to P-Tap Cable, from Teradek, for powering the 2-pin LEMO version Cube, Bolt, Bond, and Link from a P-Tap power source. UPC: 859273002729
• Protective Case for 2nd Generation Bolt Pro Transmitter & Two Receivers This is an SKB Protective Case, from Teradek, for 2nd generation Bolt transmitters/receivers. It fits one Bolt Pro 300, 600, or 2000 transmitter and two receivers. UPC: 854199005687

• 18" 2-Pin LEMO to PowerTap Cable

• 1/4"-20 Hot Shoe Adapter

• 10" SDI (BNC-to-BNC) Cable

• 18" HDMI Type A to Type A Cable

• Limited 1-Year Warranty

• 1.25" Long 1/4"-20 Thumb Screw

• 1/4"-20 Lightstand Adapter

• 10" SDI (BNC-to-BNC) Cable

• 3' USB 3.0 Type-A to Micro-USB Type-B Cable

• 6' PSU 2-Pin LEMO to 18W AC Adapter Cable

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• 18" HDMI Cable (Type A to Type A)
• 10" Coiled SDI (BNC to BNC) Cable
• Transmitter Mounting Bracket
• Receiver Mounting Bracket
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Bolt 500 3G-SDI/HDMI Video Transmitter

  Video Inputs	1 x 75 Ohms BNC 1 x HDMI female Type A
  Video Outputs	1 x 75 Ohms BNC (loop-out)
  Input / Output	3G-SDI/HDMI
  Color Sampling	SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled) HDMI: RGB 4:4:4, 8-bit
  Latency	<0.001 seconds
  Delay	<0.001 sec (when no video format conversion is enabled)
  Supported Resolutions	1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 1080p sf23.98 / 24 / 25 / 29.97 / 30 1080i 50 / 59.94 / 60 720p 50 / 59.94 / 60 480p 59.94 / 576p 50 (via HDMI ports only) 480i (NTSC) / 576i (PAL)
  Video Compression	Visually lossless
  Color Correction	CDL/1024 1D LUT (supports 10-bit color) 33 x 33 x 33 3D LUT (supports 10-bit color)
  Frequency	Non-DFS Frequencies: 5.19 to 5.23 GHz 5.755 to 5.795 GHz DFS Frequencies: 5.27 to 5.55 GHz 5.67 GHz
  Channel Selection	Auto
  RF Power	17 dBm EIRP
  Range	Up to 500' (152 m)
  Encryption	AES-128
  Audio Compression	48 kHz 24-bit PCM
  Audio Input	Embedded
  Switches	On/Off Reset Switch
  Application	Bolt Manager Application for OSX & Windows
  Noise Rejection	Can coexist with Wi-Fi and 5 GHz cordless phones
  Construction	Milled aluminum (chassis) and regulation-compliant PCB Plastic cap
  Power Input Connector	2-pin 7 to 28 VDC
  Power Consumption	7.3 W nominal @ 1080p
  Operating Temperature	32 to 104°F (0 to 40°C)
  Dimensions	1.0 x 2.6 x 4.0" (2.4 x 6.6 x 10.2 cm)
  Weight	7.6 oz (217 g)

  Box Dimensions (LxWxH)	6.6 x 6.5 x 4.8"

• Bolt 500 3G-SDI Video Receiver

  Video Outputs	1 x 75 Ohms BNC 1 x Micro-USB 3.0 female type B
  Input / Output	3G-SDI
  Color Sampling	SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
  Latency	<0.001 seconds
  Resolution	1080p60
  Video Compression	Visually lossless
  Test Pattern Generator	Custom output formatted test pattern over HDMI and SDI
  Color Correction	CDL/1024 1D LUT (supports 10-bit color) 33 x 33 x 33 3D LUT (supports 10-bit color)
  Frequency	Non-DFS Frequencies: 5.19 to 5.23 GHz 5.755 to 5.795 GHz DFS Frequencies: 5.27 to 5.55 GHz 5.67 GHz
  Channel Selection	Auto
  RF Power	15 dBm EIRP
  Range	Up to 500' (152 m)
  Encryption	AES-128
  Audio Compression	48 kHz 24-bit PCM
  Audio Input	Embedded
  OSD	Appears on the video output which can be controlled with the menu joystick
  Switches	On/Off Reset Switch
  Application	Bolt Manager Application for Mac OS X & Windows
  Noise Rejection	Can coexist with Wi-Fi and 5 GHz cordless phones
  Construction	Milled aluminum (chassis) and regulation-compliant PCB Plastic cap
  Power Input Connector	2-pin 7 to 28 VDC
  Power Consumption	9 W nominal @ 1080p
  Operating Temperature	32 to 104°F (0 to 40°C)
  Dimensions	1.0 x 3.5 x 5.8 (25.2 x 88.9 x 146.5 mm)
  Weight	10.5 oz (299 g)

  Box Dimensions (LxWxH)	6.6 x 6.6 x 4.8"

• Ultra Arm Mini Monitor Mount (1/4"-20 to 1/4"-20)

  Top Mount	1/4"-20 Stud
  Bottom Mount	1/4"-20 Stud
  Points of Articulation	2
  Maximum Length	5" / 12.7 cm
  Weight	4.8 oz / 136 g

  Box Dimensions (LxWxH)	3.8 x 3.4 x 2.3"

• Ultra Arm Ball with 3/8"-16 Threaded Stud

  Ball Size	0.98" / 25 mm
  Dimensions	1 x 3 x 1" / 2.54 x 7.62 x 2.54 cm
  Weight	1.6 oz / 45.3 g

  Box Dimensions (LxWxH)	2.8 x 1.7 x 1.0"

• 2-Pin LEMO to P-Tap Cable (18")

  Length	18" (46 cm)
  Connector 1	2-pin LEMO, male
  Connector 2	P-Tap, male

  Box Dimensions (LxWxH)	5.2 x 4.3 x 0.7"

• Protective Case for 2nd Generation Bolt Pro Transmitter & Two Receivers

  Box Dimensions (LxWxH)	13.25 x 11.4 x 5.35"
