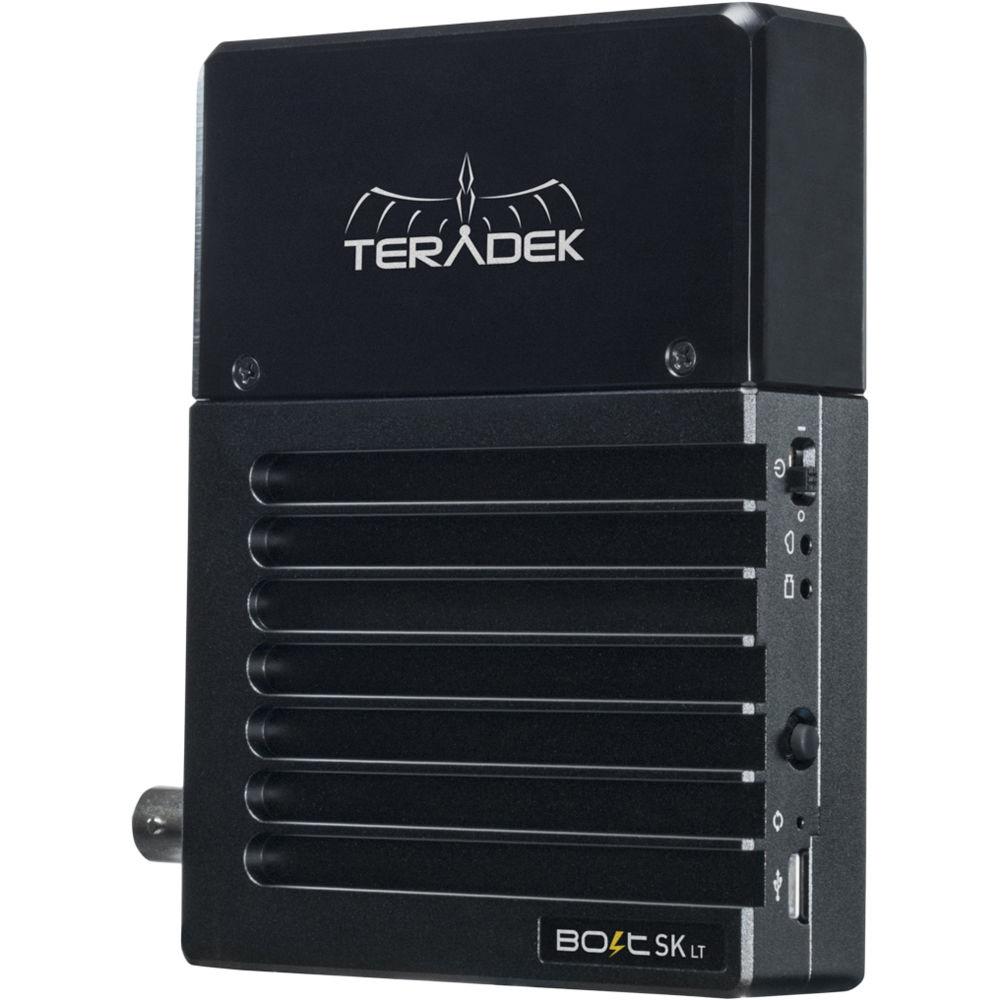

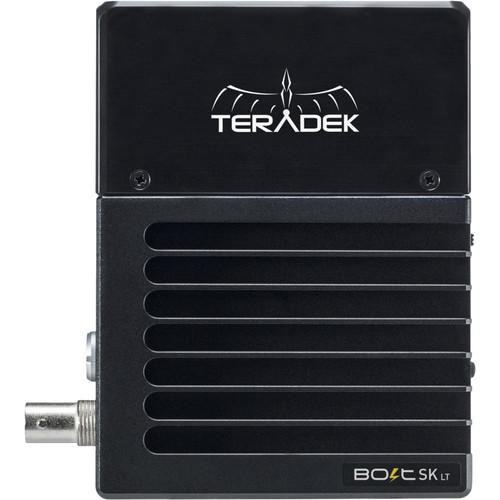

Product description With the Teradek Bolt 500 Sidekick LT Universal Wireless RX you can receive visually lossless video signals from a Bolt 500 transmitter with zero latency. The Bolt Sidekick LT is compatible with existing 3rd-generation Bolt systems, such as the Bolt 500, 1000, Sidekick II, and 703 Bolt, as well as the Bolt XT, but is limited to 500' receiving distance no matter what transmitter you are using. The receiver unit itself can be secured via built-in 1/4"-20 or M3 threaded holes.

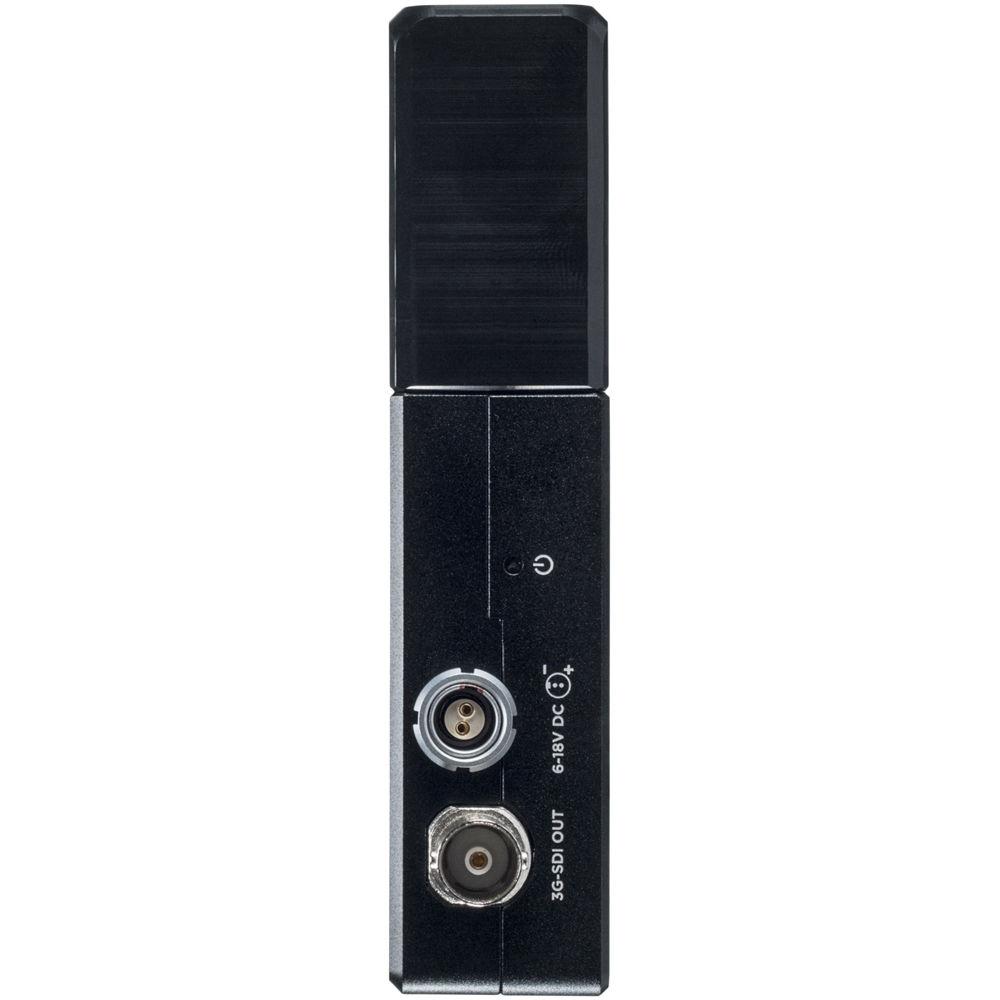

Power can be provided using the integrated 2-pin connector. The transmitter supports up to four receivers and built-in AES-128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals. - Backwards compatible with 3rd generation Bolt 500, 1000, 300, Sidekick II and 703 Bolt
- The receiver does not have an LCD or OLED screen. However, an OSD that appears on the Video Output that is controlled with the Menu Joystick
- Smaller and lighter chassis design than other Bolt 500 transmitters

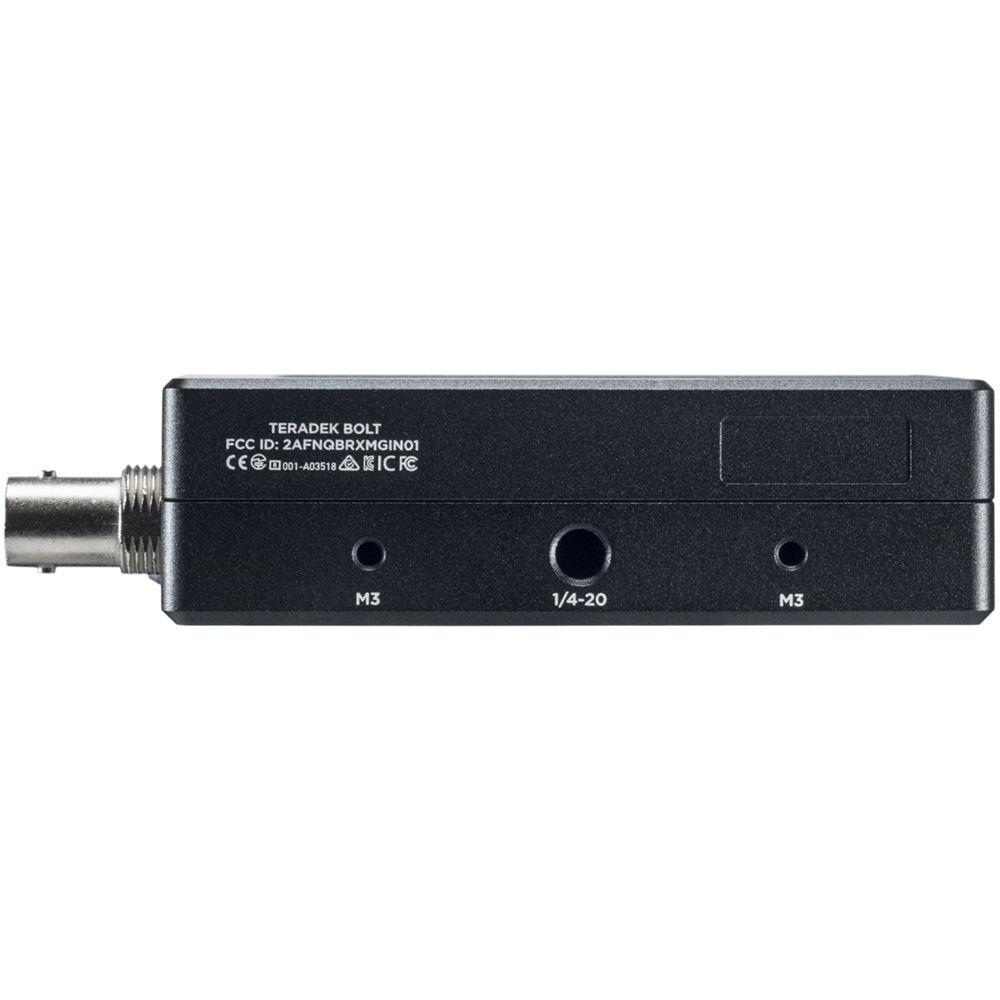

- 1/4"-20 and M3 mounting points
UPC: 818264023464 In the Box Teradek Bolt 500 Sidekick LT Universal Wireless RX Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bolt 500 Sidekick LT Universal Wireless RX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek Sidekick Specs | Construction | Milled aluminum (chassis) and regulation-compliant PCB | | Video Outputs | 1 x BNC (SD/HD/3G-SDI) | | Color Sampling | YCbCr: 4:2:2, 10-bit | | Supported Resolutions | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50 | | Video Processing | Compression
Visually lossless
Test Pattern Generator Support

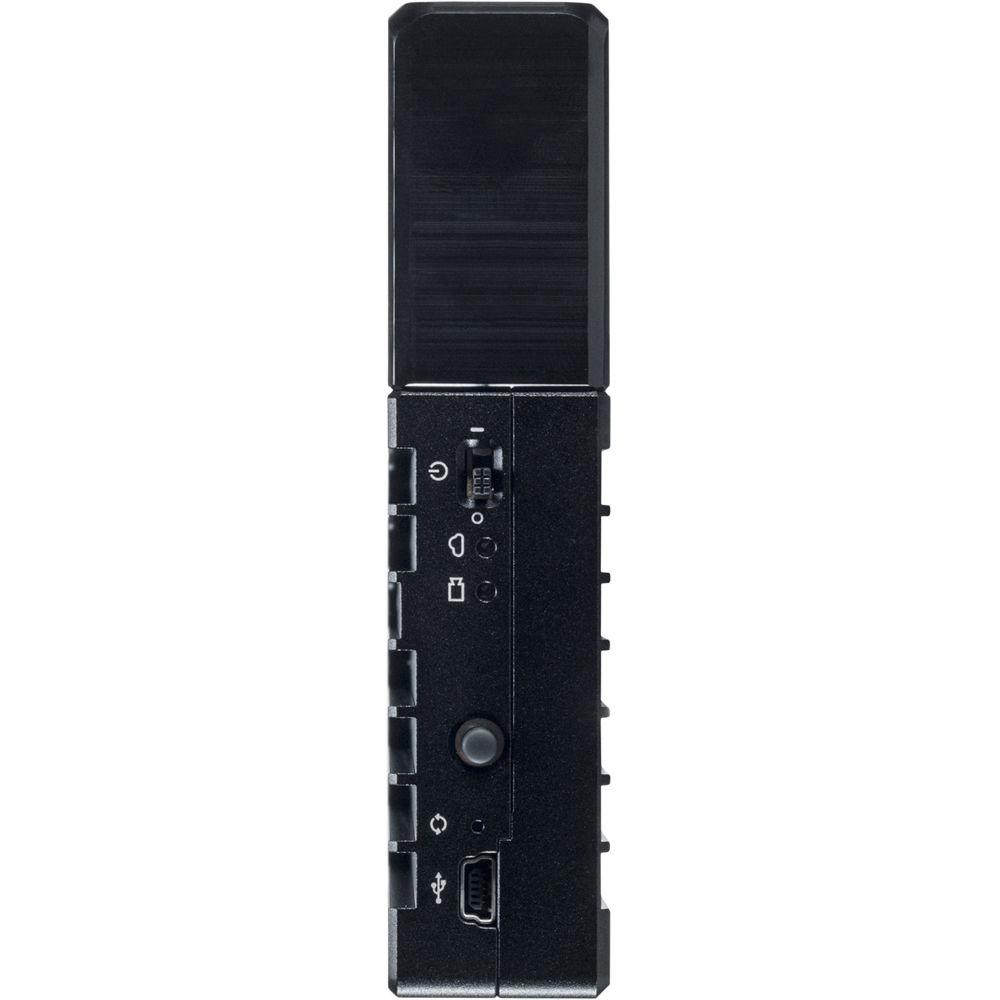

Yes | | Audio Compression | 48 kHz, 24-bit PCM | | Audio Input | Embedded | | Interfaces | Switches: On/Off and Reset
Configuration Interfaces: On Screed Display on video Output, Windows/Mac desktop configuration utility
Desktop App: Feature-rich Bolt Manager application for Mac OS X and Windows
USB Interface Functionality: Upgrade via mini-USB | | Wireless | 5 GHz (20 and 40 MHz)
DFS Frequencies Available | | RF Power | Auto only (NOT configurable) | | Encryption | AES-128 | | RF Power | 15 dBm EIRP | | Range | Up to 500' / 152.4 m line of sight | | Unicast Multicast | 1 Bolt TX can transmit to a maximum of 4 RX | | Noise Rejection | Can coexist with Wi-Fi and 5 GHz cordless phones | | Power Input | 2-pin connector
7 to 17 VDC | | Battery | None | | Power Consumption | Nominal 9 W (measured at 1080p60) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Mountable | Multiple mounting options with M3 and 1/4" holes | | Dimensions | 1 x 3.4 x 4.5" / 2.54 x 8.64 x 11.43 cm | | Weight | 10.1 oz / 286.3 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 6.7 x 6.6 x 4.9" |
