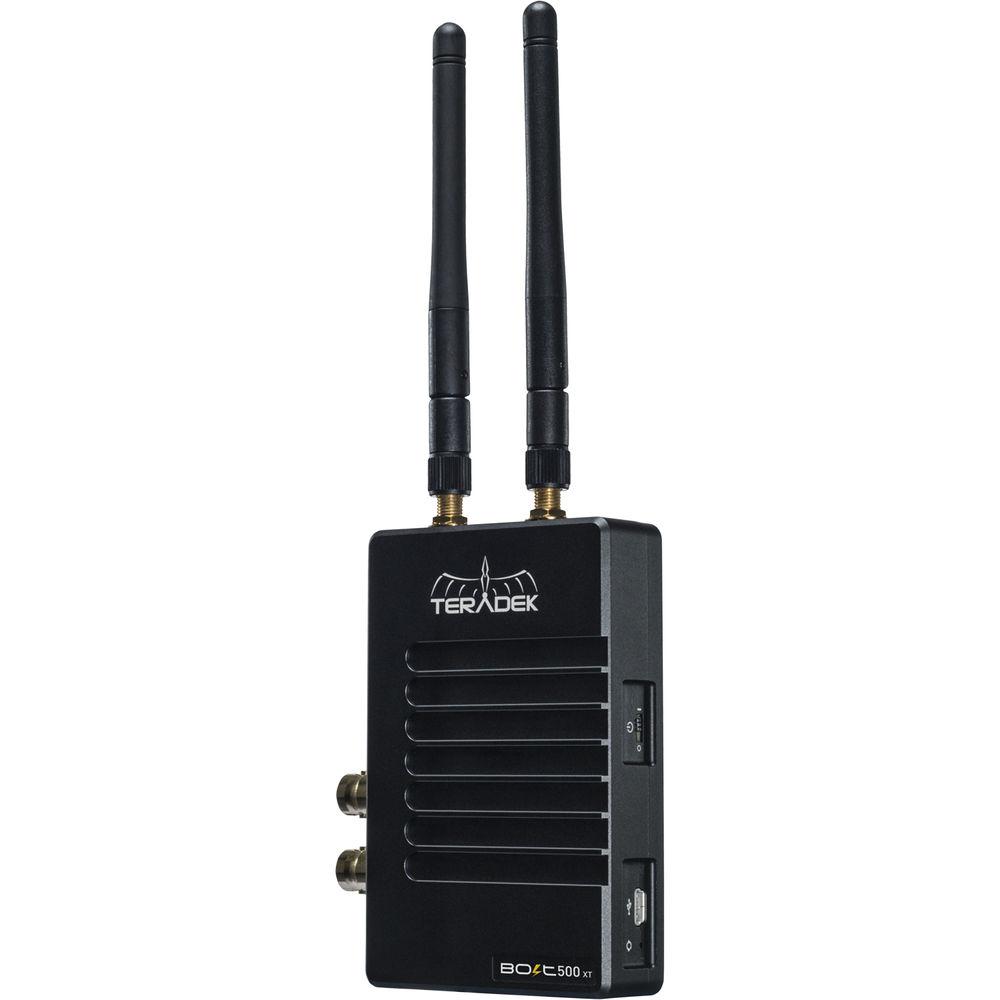

User Manual for Teradek Bolt 500 XT 3G-SDI HDMI Wireless Transmitter Click to enlarge the picture
Contents of the user manual for the Teradek Bolt 500 XT 3G-SDI HDMI
- Product category: Wireless Transmission Systems Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Transmission Systems
 |
User manual for the Teradek Bolt 500 XT 3G-SDI HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

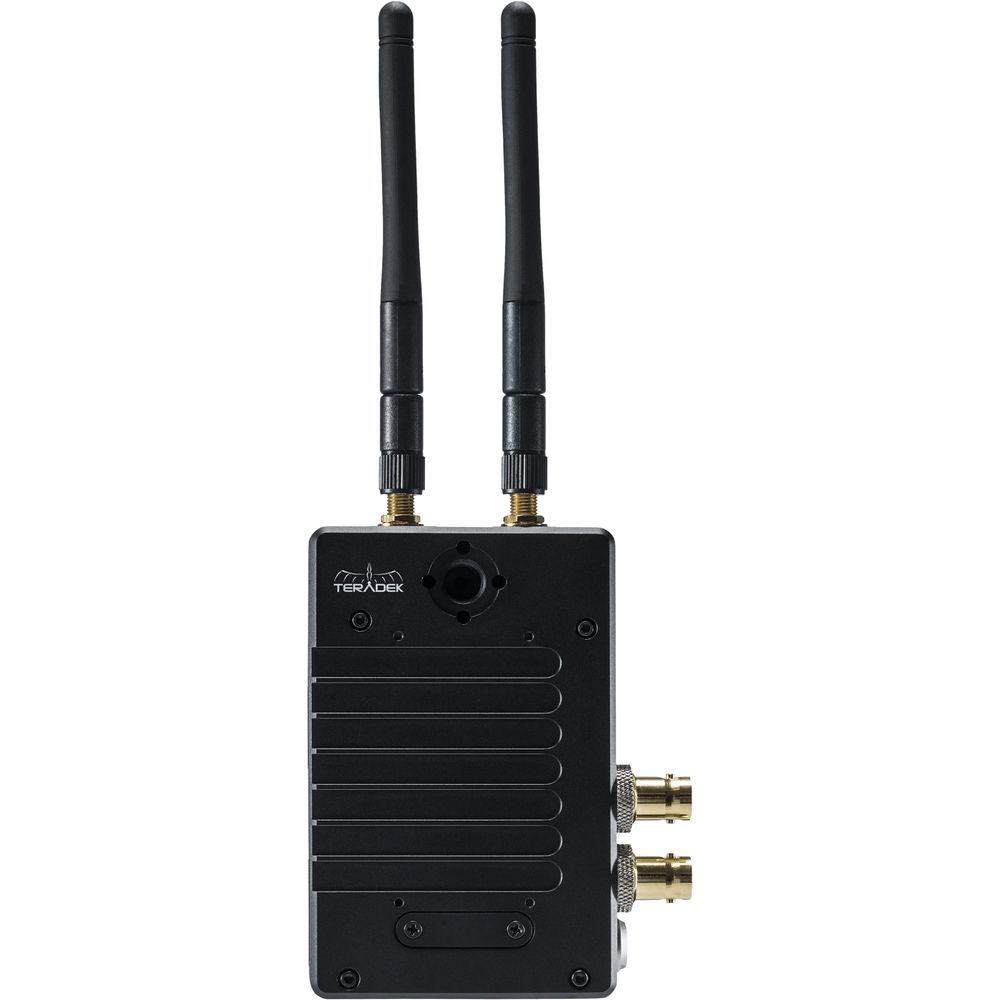

Product description With the Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter you can transmit visually lossless 3G video signals to a Bolt 500 receiver with zero latency. The Bolt XT is compatible with existing third-generation Bolt systems such as the Bolt 500, 1000, Sidekick II, and 703 Bolt, as well as the Bolt LT. The transmitter unit can be secured to a camera or other SDI/HDMI video source via a built-in 1/4"-20 threaded hole, as well as two M3 threaded holes. The included antennas provide a powerful signal that can travel up to 500' line of sight.
A shoe mount is included for attaching to cameras without 1/4"-20 threads. For convenience, both a standard BNC cable and HDMI cable are included so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector via the included D-Tap power cable. The transmitter supports up to four receivers. Built-in AES-128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals. - Backward compatible with third-generation Bolt 500, 1000, 300, Sidekick II, and 703 Bolt

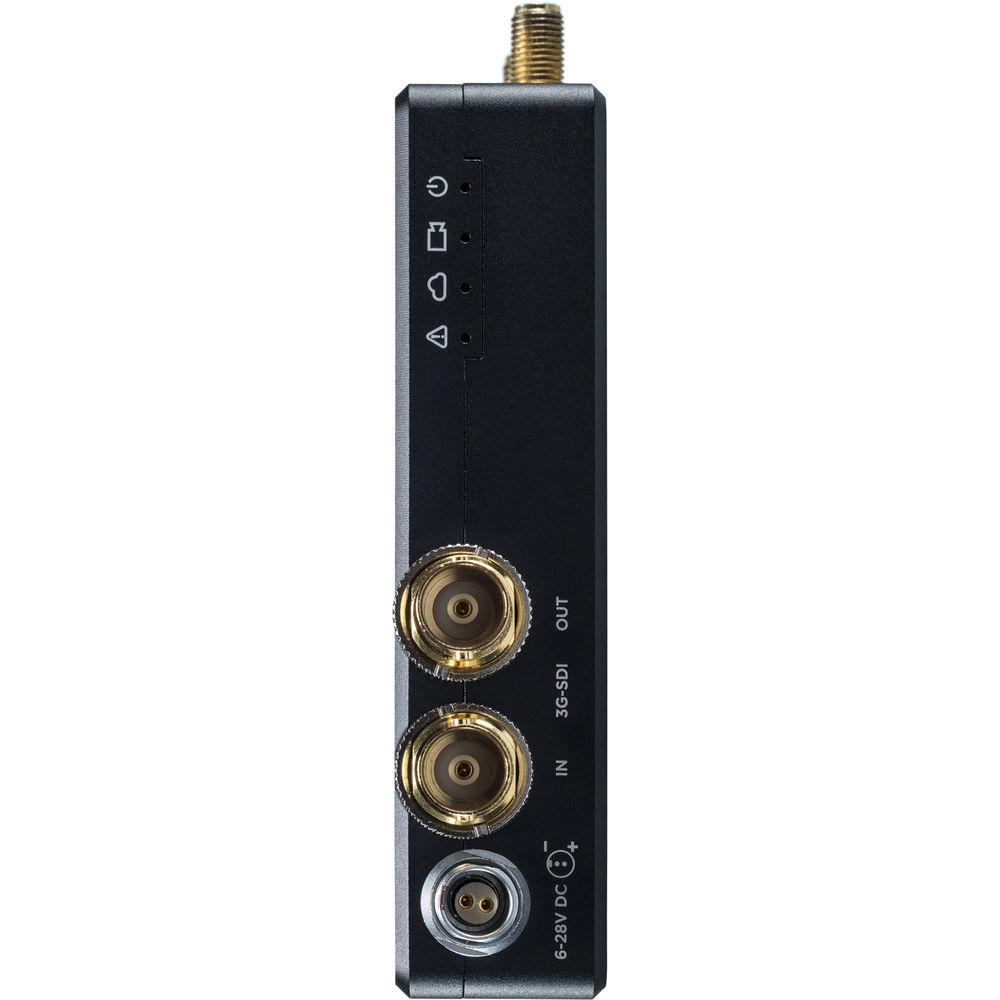

- HDMI and 3G-SDI inputs, with 3G-SDI loop-through output on transmitter
- SDI ancillary data support for metadata, timecode, and start/stop flags from certain camera manufacturers
- 1/4"-20, 3/8"-16, and ARRI rosette mounting points
UPC: 818264023150 In the Box Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter D-Tap Power Cable (18") Shoe Mount 2 x Antenna SDI Cable (10") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bolt 500 XT 3G-SDI HDMI Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 500 Specs | Construction | Milled Aluminum Chassis and Regulation-Compliant PCB | | Video Inputs | SDI: 1 x BNC (75 Ohm), 3G/HD/SD
HDMI: 1 x HDMI Type A Receptacle | | Video Outputs | SDI: 1 x BNC (75 Ohm), 3G/HD/SD, Loop-Through | | Color Sampling | SDI: YCbCr 4:2:2, 10-bit (8-Bit when Format Conversion is Enabled)
HDMI: RGB 4:4:4, 8-Bit | | Latency | <0.001 Seconds (TX to RX without Format Conversion) | | Supported Resolutions | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50 | | Video Processing | Compression
Visually Lossless
Color Correction
CDL/1024 1D LUT (Supports 10-Bit Color)

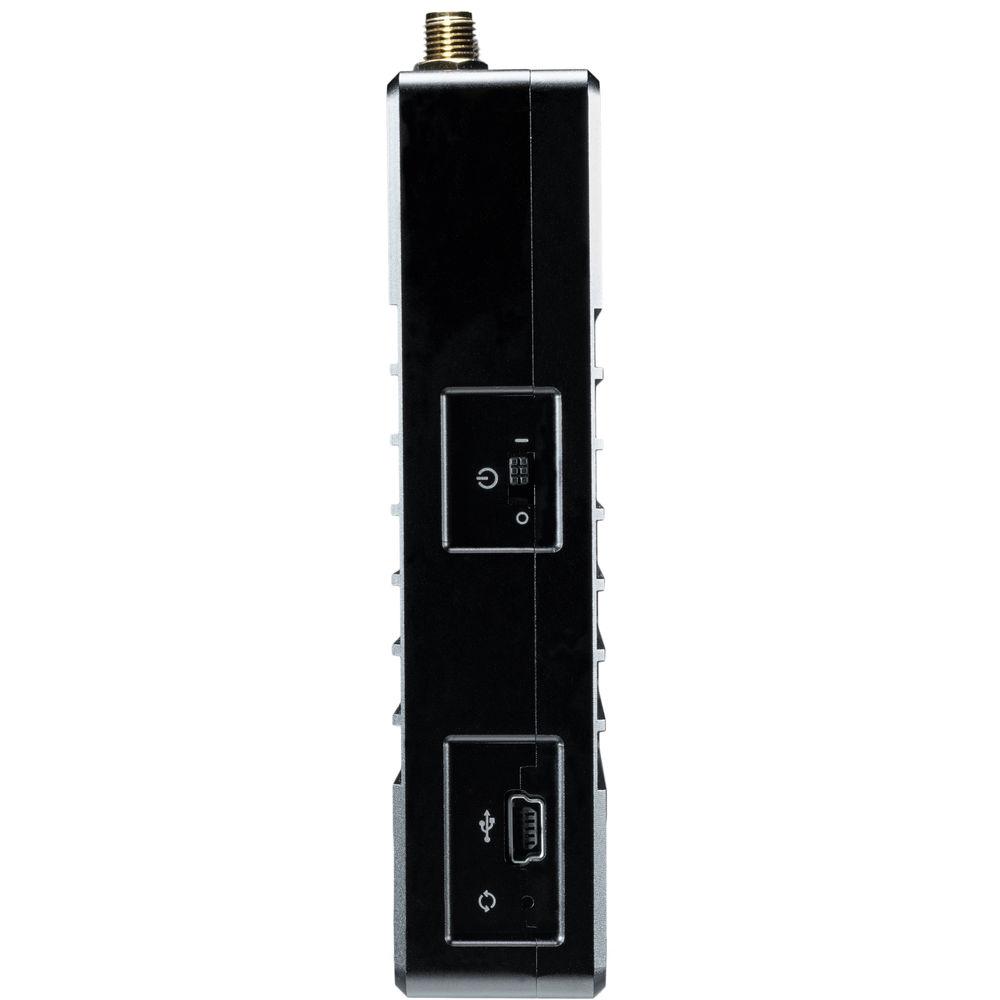

33x33x33 3D LUT (Supports 10-Bit Color) | | Audio Compression | 48 kHz, 24-bit PCM | | Audio Input | Embedded | | Interfaces | Switches: On/Off and Reset
Desktop App: Feature-Rich Bolt Manager Application for OS X and Windows
USB Interface Functionality: Upgrade via Mini-USB | | Wireless | Non-DFS Frequencies- UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz
- EU & JP: 5.19 to 5.23 GHz
DFS Frequencies- US: 5.27 to 5.55 GHz and 5.67 GHz
- EU & JP: 5.27 to 5.67 GHz
| | RF Power | 17 dBm EIRP
| | Encryption | AES-128 | | Range | Up to 500' / 152.4 m Line of Sight | | Unicast Multicast | Unicast / Multicast | | Noise Rejection | Can Coexist with Wi-Fi and 5 GHz Cordless Phones | | Power Input | 2-Pin Connector

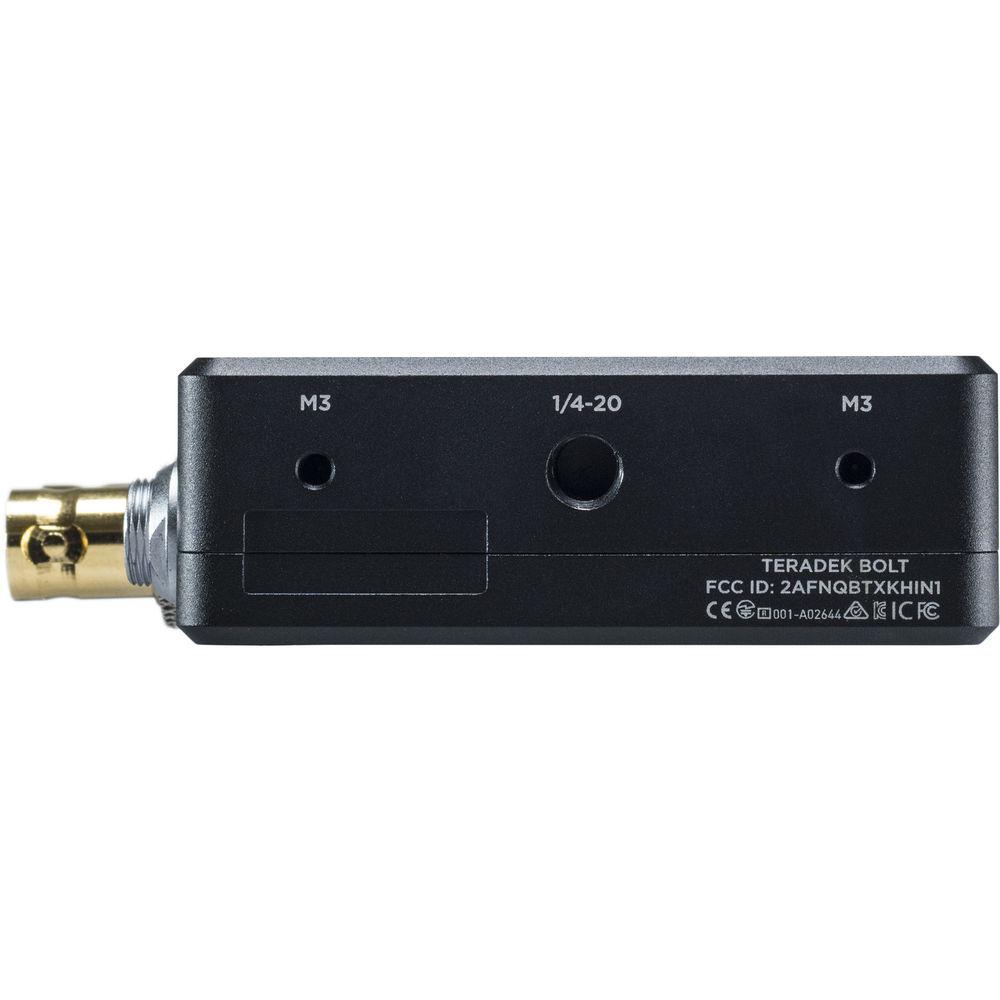

7 to 17 VDC | | Power Consumption | Nominal 7.3 W (Measured at 1080p60) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Mountable | 1 x 1/4"-20 Threaded Mounting Hole
2 x M3 Threaded Mounting Holes | | Dimensions | 0.95 x 2.6 x 4.47" / 2.41 x 6.6 x 11.35 cm | | Weight | 8 oz / 226 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 6.7 x 6.5 x 4.8" |
